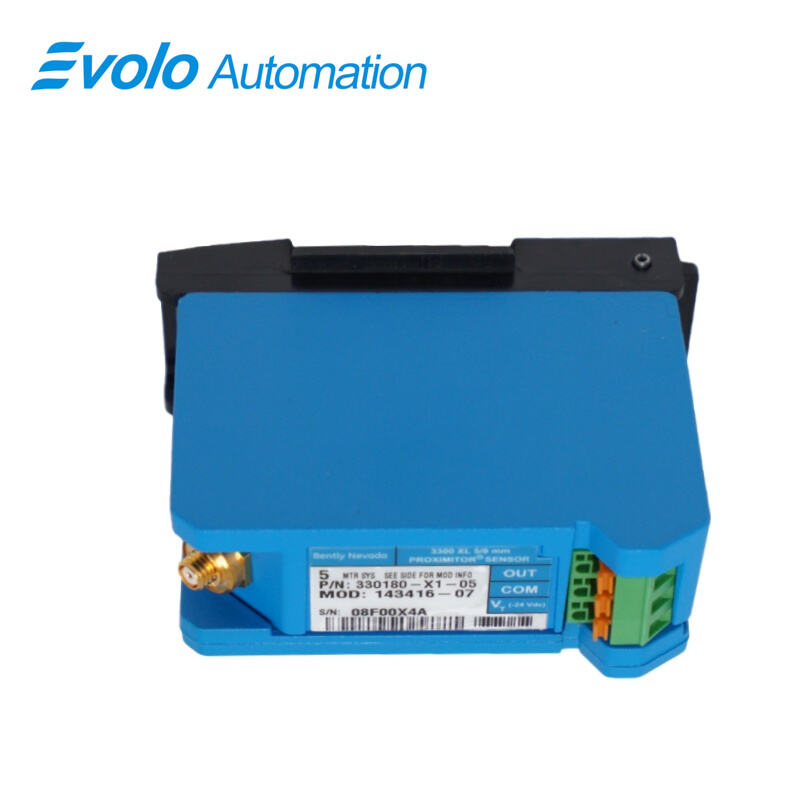

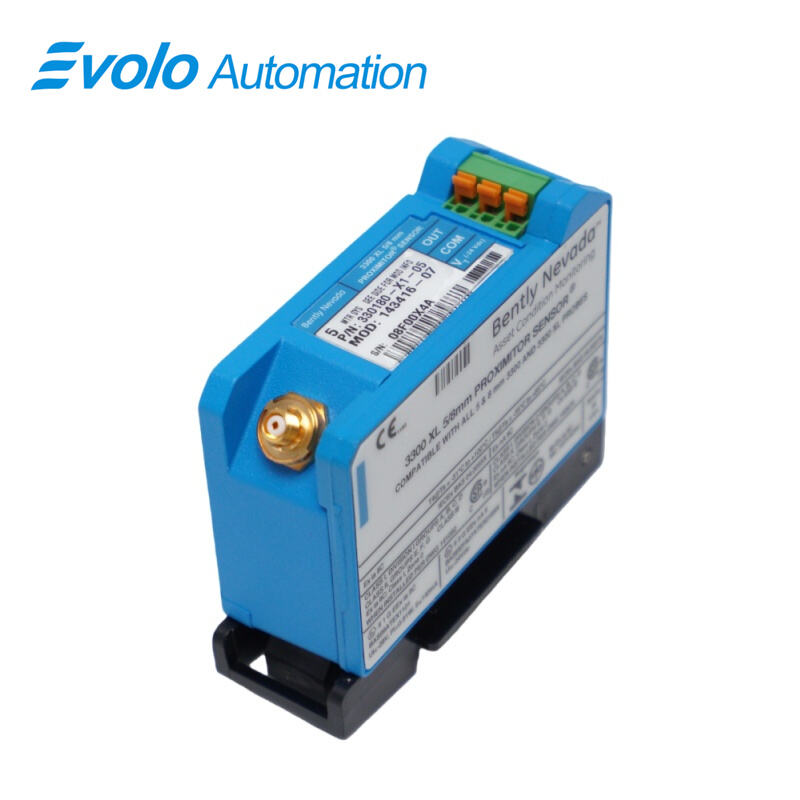

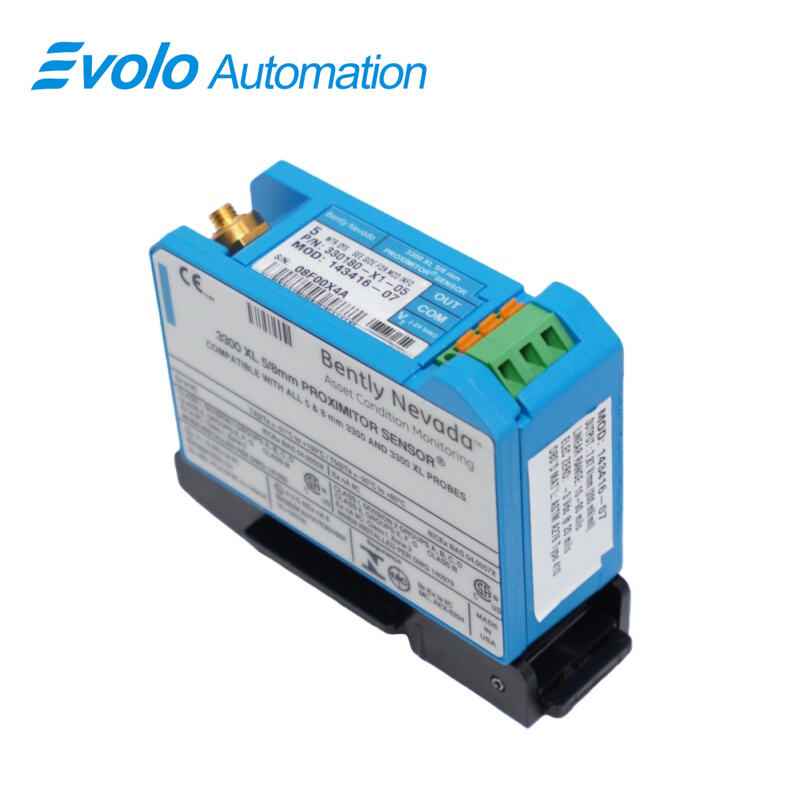

330180-X1-05 MOD：145004-82 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-05 MOD：145004-82
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-05 MOD:145004-82 3300 XL Proximitor Sensor is a precision-engineered eddy-current proximity sensor interface designed for advanced industrial automation and predictive maintenance applications. Supporting 3300-series 5 mm and 3300 XL 8 mm Proximity Probes with extension cables, this sensor accurately measures both static displacement and dynamic vibration on critical rotating machinery, including pumps, compressors, turbines, and fluid-film bearing systems.

Built from durable A308 aluminum, the MOD:145004-82 sensor offers reliable performance under extreme operating conditions from −52°C to +100°C and storage temperatures up to +105°C. Its wide frequency response of 0–10 kHz (±3 dB with up to 305 meters of field wiring) ensures high-fidelity vibration capture for early fault detection, while supply sensitivity remains below 2 mV per volt, guaranteeing stable output even under electrical fluctuations. With CSA, ATEX, and IECEx certifications, this Proximitor Sensor is suitable for hazardous environments such as petrochemical plants and power generation facilities. Full interchangeability with previous 3300-series components streamlines retrofits, eliminates the need for bench calibration, and complies with API 670 standards for linearity, accuracy, and temperature stability, making the 330180-X1-05 MOD:145004-82 a robust solution for machinery monitoring, reliability optimization, and automation integration.

Applications

Application 1: Steam Turbine Rotor Vibration Monitoring
Installed on steam turbines running 3,000–10,000 rpm, the 3300 XL captures real-time vibration amplitudes and frequency spectra, detecting rotor imbalance or rubs before they escalate into failures. Accurate monitoring reduces unplanned outages by 35% and improves turbine efficiency.

Application 2: Centrifugal Compressor Shaft Displacement
Monitoring axial and radial displacement in gas compressors, the sensor measures motion within 50–150 μm. This early detection enables adjustment of thrust bearings, reducing maintenance downtime by up to 40% and preventing catastrophic shaft damage.

Application 3: Refinery Pump Condition Surveillance
The 3300 XL Proximitor Sensor identifies vibration patterns associated with cavitation and misalignment in pumps, enabling predictive maintenance strategies that extend seal and bearing life by 30–45% while lowering operational risk.

Application 4: Keyphasor Reference and Rotational Speed Measurement
Provides precise Keyphasor output for phase and speed analysis, supporting dynamic balancing and rotor diagnostics. Accurate phase data can reduce residual vibration by 20–30% after corrective actions.

Application 5: Fluid-Film Bearing Clearance Control
Fluid-film bearings rely on clearances of 50–100 μm; the sensor continuously monitors shaft motion, preventing contact and wear. This reduces bearing replacement frequency by half and minimizes unexpected equipment downtime.

Specifications

Competitive Advantage

Advantage 1: Hazardous Area Certification
With CSA, ATEX, and IECEx approvals, the 3300 XL is deployable in Class I Division 1/Zone 0–1 environments, enabling operations in petrochemical and power sectors without additional protective measures, expanding installation possibilities by over 60%.

Advantage 2: Extended Frequency and Wiring Capability
Maintains ±3 dB performance up to 305 m (1,000 ft) of field wiring, reducing signal degradation and eliminating the need for repeaters or additional signal conditioning, saving up to 15–20% in installation costs.

Advantage 3: Backward Compatibility and Interchangeability
Fully compatible with legacy 3300 5 mm and 8 mm systems, eliminating bench calibration. Retrofit projects save 25–40% in integration labor while ensuring accurate vibration and position monitoring across multiple generations of equipment.

Advantage 4: Electrical and Thermal Stability
Operating from −52°C to +100°C with supply sensitivity <2 mV/V, the sensor delivers reliable measurements under electrical noise and temperature fluctuations, improving detection accuracy by 10–18% in harsh industrial conditions.

Advantage 5: Non-Contact Vibration Sensing
Eddy-current non-contact operation prevents mechanical wear, extending monitoring system life and reducing maintenance frequency. Enables continuous measurement without impacting machine components, lowering overall lifecycle costs.
