330130-085-02-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-085-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

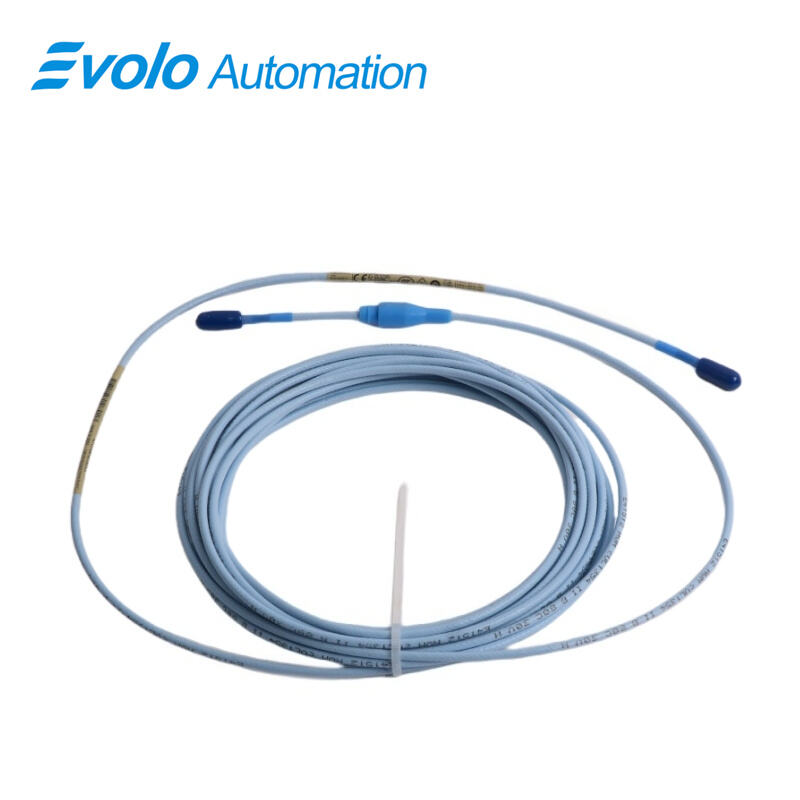

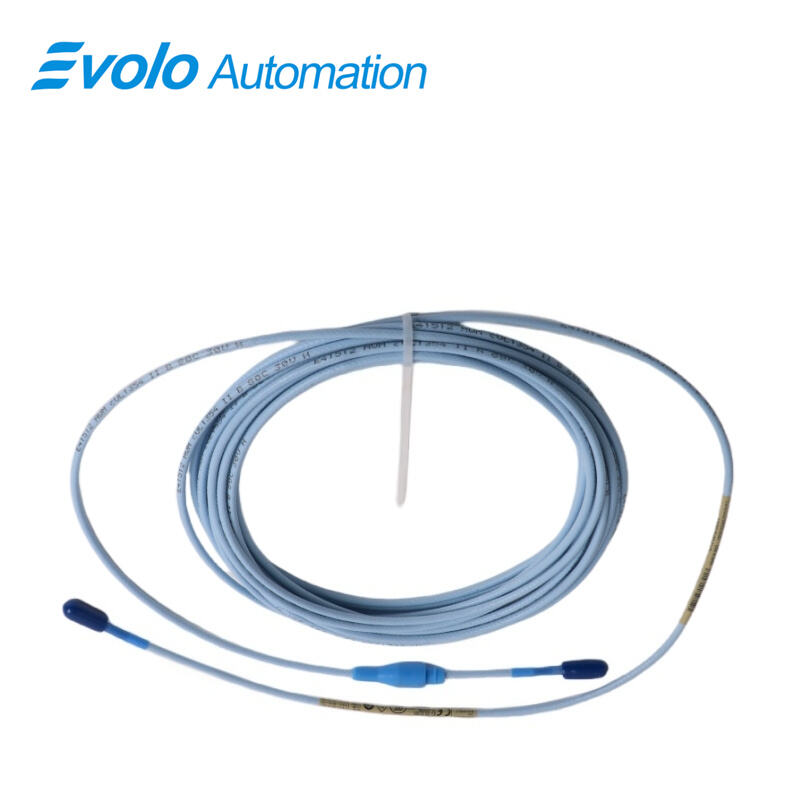

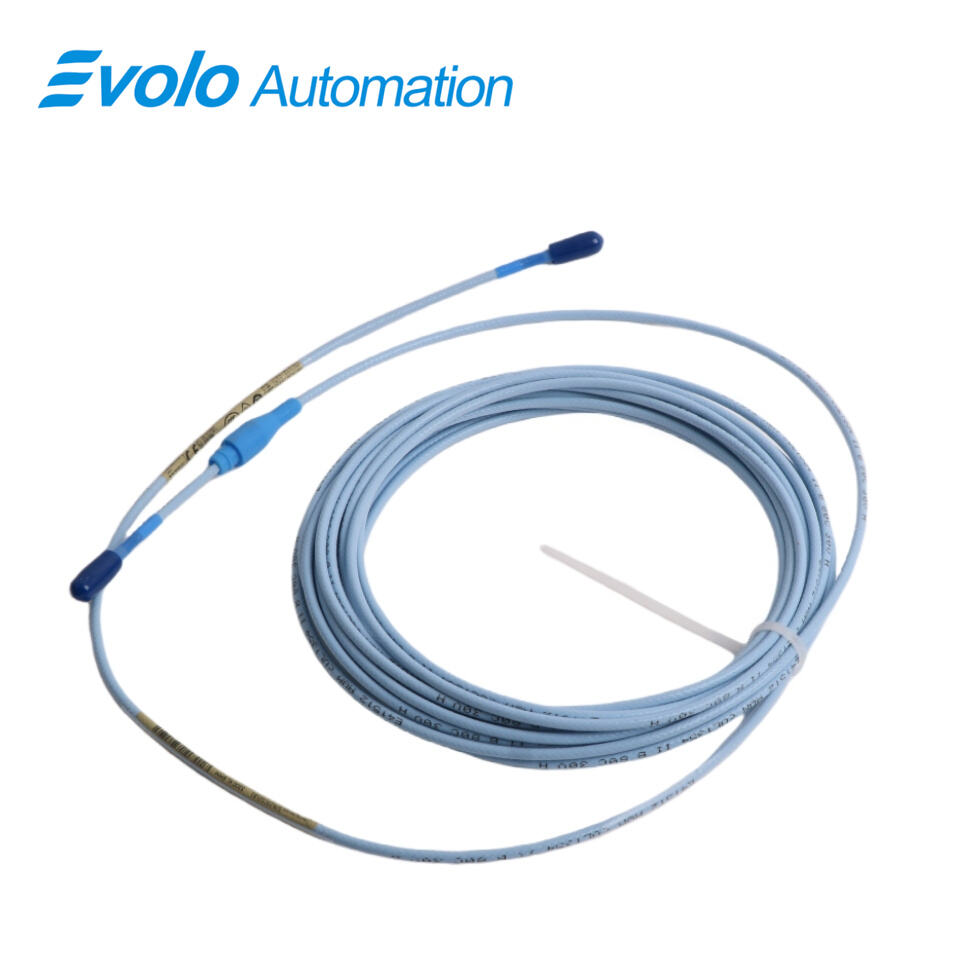

The 330130-085-02-05 3300 XL Standard Extension Cable is designed to extend the functionality of the 3300 XL 8 mm proximity transducer systems, offering superior reliability and precision in demanding industrial environments. With a total cable length of 8.5 meters (27.9 feet), this extension cable ensures flexible installation without compromising signal integrity. The cable comes with a standard connector protector, enhancing durability and providing additional protection against mechanical stress during installation and operation.

Engineered to meet stringent industrial standards, this extension cable holds CSA, ATEX, and IECEx approvals, making it suitable for hazardous and high-risk environments. The operating and storage temperature range of -52°C to +177°C (-62°F to +350°F) ensures consistent performance even under extreme conditions, maintaining stable operation in both cold and high-temperature applications.

Electrical performance is optimized with a supply sensitivity of less than 2 mV change per volt change in input voltage, paired with an output resistance of 50 Ω and an extension cable capacitance of 69.9 pF/m (21.3 pF/ft), which ensures minimal signal degradation over long distances. The system supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG) and provides a linear range of 2 mm (80 mils) with a frequency response from 0 to 10 kHz when using up to 305 meters (1000 feet) of field wiring. The minimum target size is 15.2 mm (0.6 in) diameter, suitable for both flat and curved surfaces.

This extension cable incorporates advanced design improvements for enhanced durability. The patented TipLoc molding creates a robust connection between the probe tip and the cable, while the CableLoc system offers a pull strength of 330 N (75 lbf), ensuring secure attachment under heavy mechanical stress. Additionally, the optional FluidLoc cable feature prevents fluids such as oil from leaking through the cable, safeguarding both the equipment and surrounding environment.

Functionally, the 3300 XL extension cable maintains a linear output voltage proportional to the distance between the probe tip and the conductive surface, enabling precise position and vibration measurements. It is ideal for fluid-film bearing machines and supports Keyphasor reference and speed measurements, delivering reliable results in critical monitoring applications. Fully compliant with API 670 standards, the system ensures exceptional accuracy, linearity, and temperature stability.

All components of the 3300 XL 8 mm transducer system, including this extension cable, are fully interchangeable with other 3300 series probes and Proximitor sensors, eliminating the need for custom calibration or component matching. The backward compatibility also supports 5 mm and 8 mm non-XL probes, providing maximum flexibility in installation across different machine sizes and configurations.

With these features, the 330130-085-02-05 3300 XL Standard Extension Cable represents an industry-leading solution for extending the reach and functionality of 3300 XL proximity transducer systems while ensuring consistent performance, safety, and reliability.

Applications

1. Vibration and Position Monitoring

The 3300 XL Standard Extension Cable is designed to support high-precision vibration and position measurements in industrial machinery. By connecting 3300 XL 8 mm proximity probes to Proximitor sensors, it enables accurate monitoring of both static positions and dynamic vibrations of fluid-film bearing machines. Its linear output voltage is directly proportional to the distance between the probe tip and the measured surface, ensuring precise detection of even minor displacements.

2. Keyphasor and Speed Measurement Applications

This extension cable is ideal for Keyphasor reference and rotational speed measurements, providing reliable phase reference signals for rotating equipment. Its high-frequency response up to 10 kHz allows it to capture fast vibration signals, making it suitable for high-speed turbines, compressors, and generators.

3. Hazardous and Extreme Environment Suitability

With CSA, ATEX, and IECEx approvals, and an operating temperature range of -52°C to +177°C (-62°F to +350°F), this extension cable can be deployed in hazardous or extreme industrial environments. It is compatible with explosive atmospheres and high-temperature applications commonly found in petrochemical plants, refineries, and heavy industry.

4. Robust Mechanical and Fluid Protection

The cable incorporates the TipLoc and CableLoc patented designs, ensuring a strong mechanical bond and a pull strength of 330 N (75 lbf). Additionally, the optional FluidLoc feature prevents leakage of oil and other liquids through the cable, making it suitable for machinery with high lubrication or cooling fluid exposure.

5. Flexible Installation and Interchangeability

With a total length of 8.5 meters (27.9 feet) and support for field wiring from 0.2 to 1.5 mm² (16–24 AWG), the cable offers flexibility in routing and installation. It is fully interchangeable with other 3300 series probes and Proximitor sensors, including 5 mm and 8 mm non-XL components, which eliminates the need for bench calibration and simplifies maintenance and upgrades.

6. Industrial Machinery Applications

Common use cases include steam turbines, gas turbines, centrifugal compressors, pumps, and generators. The cable’s robust design, high accuracy, and compatibility with API 670 standards make it a reliable choice for critical machinery monitoring, predictive maintenance, and ensuring operational safety and efficiency.

Specifications

Competitive Advantage

1. Extended Reach for Flexible Installation

With a cable length of 8.5 meters (27.9 feet), this extension cable allows for flexible routing in complex machinery layouts, supporting long-distance connections between 3300 XL 8 mm proximity probes and Proximitor sensors without signal degradation.

2. High Mechanical Durability

The cable incorporates a patented TipLoc molding method and CableLoc design, which provide a pull strength of 330 N (75 lbf). This ensures a secure bond between the probe tip and cable, reducing the risk of mechanical failure in demanding industrial environments.

3. Superior Environmental Resistance

Approved for CSA, ATEX, and IECEx standards, the extension cable is suitable for hazardous locations. Its operating and storage temperature range of -52°C to +177°C (-62°F to +350°F) ensures reliable performance even in extreme conditions, from freezing environments to high-temperature industrial processes.

4. Enhanced Electrical Performance

Designed for precise monitoring, the cable exhibits less than 2 mV change in output voltage per volt change in input voltage, with a 50 Ω output resistance and 69.9 pF/m (21.3 pF/ft) capacitance, ensuring minimal signal loss over long distances. It also supports field wiring from 0.2 to 1.5 mm² (16–24 AWG), providing installation flexibility without compromising signal integrity.

5. Reliable Vibration and Position Measurement

The system provides a linear output voltage proportional to the probe-to-target distance, supporting both static position and dynamic vibration measurements. Its frequency response up to 10 kHz allows accurate capture of high-speed machinery vibrations, making it ideal for fluid-film bearing machines, turbines, compressors, and generators.

6. Optional Fluid Protection

The FluidLoc cable option prevents oil and other liquids from leaking through the cable interior, protecting both machinery and surrounding areas, which enhances reliability in lubricated or fluid-intensive applications.

7. Compatibility and Interchangeability

All 3300 XL system components, including this extension cable, are fully interchangeable with other 3300 series 5 mm and 8 mm probes and Proximitor sensors, eliminating the need for component matching or bench calibration. This backward compatibility provides easy upgrades and flexible system integration, even in installations with limited space where a smaller 5 mm probe is required.

8. Compliance with Industry Standards

The extension cable supports the API 670 Standard, ensuring compliance with mechanical configuration, linear range, accuracy, and temperature stability. This makes it a trusted choice for critical machinery monitoring in industrial operations worldwide.
