16710-10 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	16710-10
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

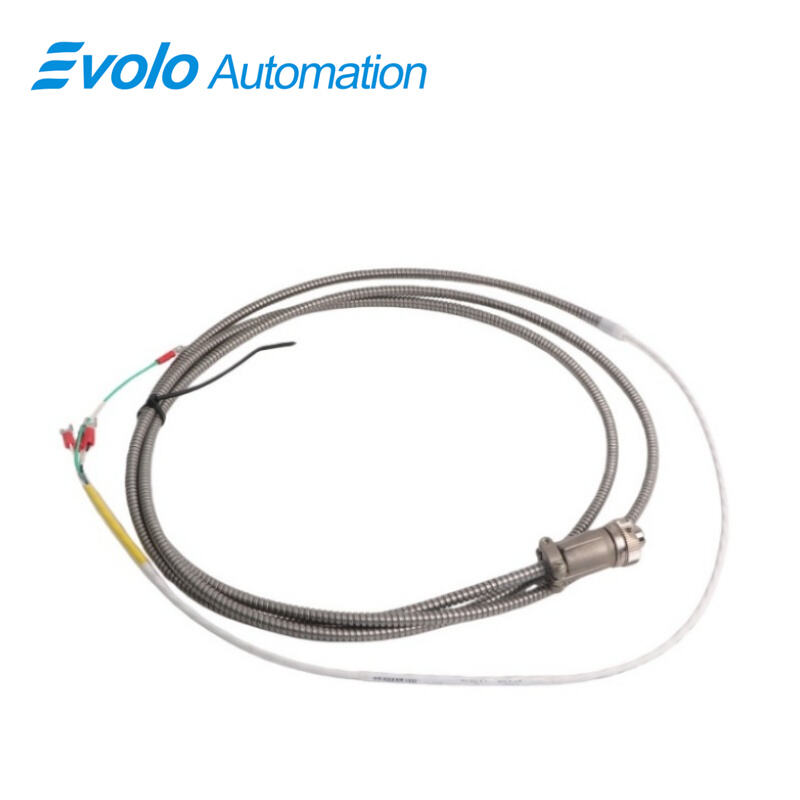

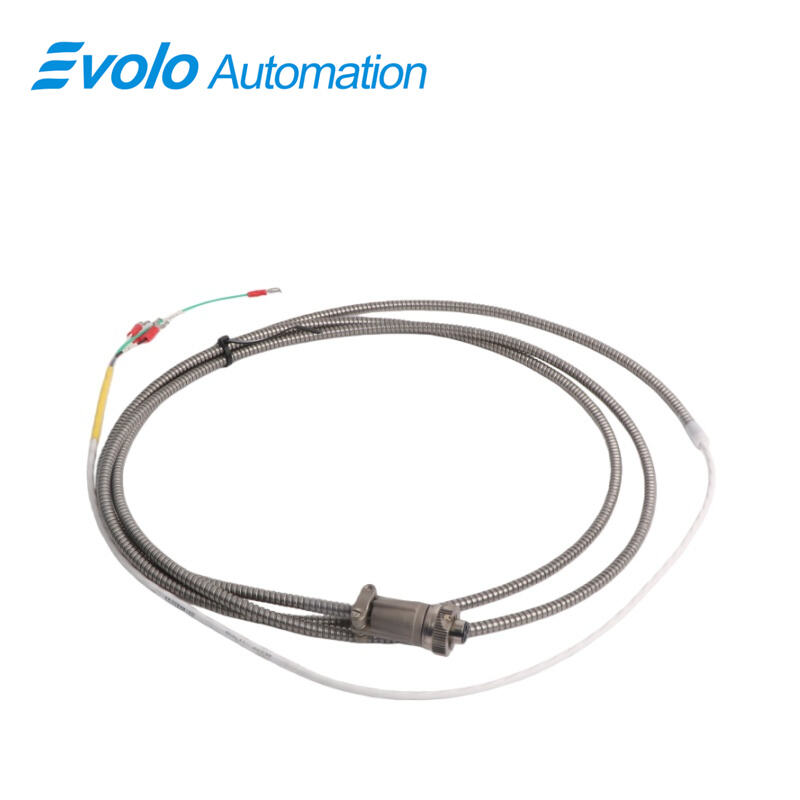

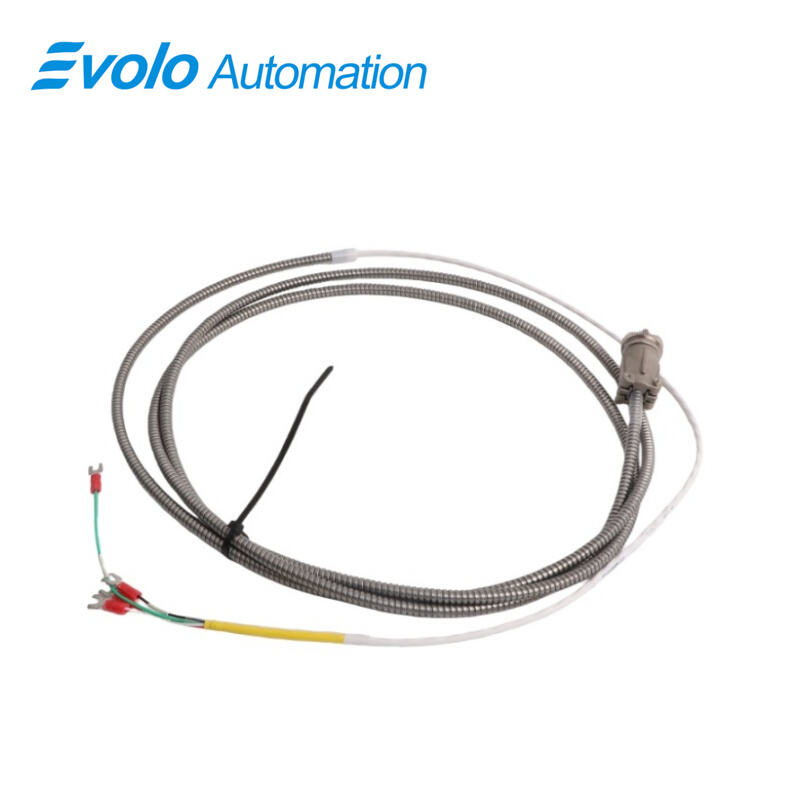

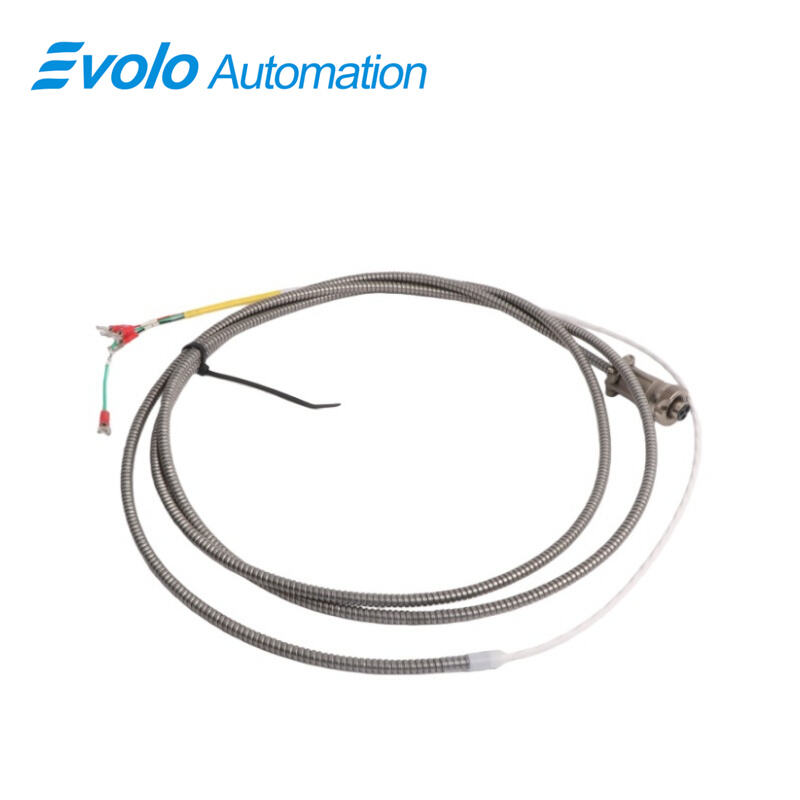

The 16710-10 Interconnect Cable is a high-performance solution designed for industrial automation, control systems, and field instrumentation applications. Constructed with a 3-conductor shielded 22 AWG (0.5 mm²) armored cable, this interconnect cable ensures reliable signal transmission and exceptional durability in harsh environments. Its robust design features a 3-socket plug at one end and terminal lugs at the other, providing secure and flexible connectivity for a wide range of electrical systems.

Engineered for demanding conditions, the 16710-10 operates across an extensive temperature range from –40°C to +90°C, while safe storage is possible between –50°C and +120°C. The cable’s bend radius of ≥10× its diameter allows for easy routing in tight spaces without compromising integrity, and its cable diameter of 6.0–7.5 mm balances flexibility with mechanical strength. The armored construction further protects against abrasion, impact, and crushing, making it ideal for both permanent installations and portable setups.

The electrical design of the 16710-10 is optimized for efficiency and reliability. It supports a nominal voltage of ≤30 V DC, with conductor resistance below 100 mΩ/m and capacitance of 90–100 pF/m, ensuring accurate signal propagation. The cable incorporates 2 normally open (NO) relay circuits with volt-free contacts and 2 additional solid-state outputs, compatible with standard logic levels. Each conductor can safely carry up to 2 A, supporting a broad spectrum of industrial control applications.

Moisture and dust protection are critical in challenging environments, and the 16710-10 meets IP65/IP67 standards, offering resistance against water ingress and particulate contamination. The cable length option of 3.0 meters (-10) provides installation flexibility, while the combination of plug and terminal lug terminations guarantees secure, reliable connections.

With its combination of mechanical resilience, electrical reliability, and environmental protection, the 16710-10 Interconnect Cable is an ideal choice for engineers and technicians seeking dependable interconnection solutions. Whether deployed in control panels, automation systems, or field equipment, this cable delivers consistent performance and long-term operational reliability.

Applications

Industrial Automation Systems

The 16710-10 interconnect cable is ideal for connecting sensors, actuators, and control modules within automated production lines and factory automation setups, ensuring reliable signal transmission under harsh industrial conditions.

Control Panel Wiring

With its 3-socket plug and terminal lugs, the cable provides secure connections for control panels, relay circuits, and logic input/output modules, supporting both normally open (NO) relay contacts and solid-state outputs.

Field Instrumentation and Monitoring

Designed for operating temperatures from –40°C to +90°C and IP65/IP67-rated moisture protection, the cable is suitable for outdoor or field installations where sensors and measurement devices require durable, weather-resistant interconnections.

Portable Test and Measurement Equipment

The combination of a flexible armored cable and a bend radius ≥10× cable diameter allows the 16710-10 to be used in portable monitoring setups, temporary testing rigs, and situations requiring repeated cable handling without damage.

Low-Voltage Signal and Communication Lines

Supporting nominal voltages ≤30 V DC and precise signal transmission with low conductor resistance (<100 mΩ/m), this interconnect cable is suitable for low-voltage signal wiring,

Specifications

Competitive Advantage

The 16710-10 Interconnect Cable stands out for its exceptional combination of durability, flexibility, and reliable electrical performance in industrial and automation applications. Engineered to operate across a wide temperature range from –40°C to +90°C and withstand storage conditions up to –50°C to +120°C, it ensures consistent functionality in both harsh field environments and controlled indoor installations.

Its IP65/IP67-rated protection against moisture and dust guarantees dependable performance in outdoor, industrial, or rugged conditions, while the armored 3-conductor design provides superior mechanical resilience against abrasion, crushing, and repeated bending. With a bend radius of ≥10× the cable diameter and a diameter of 6.0–7.5 mm, this cable delivers high installation flexibility without compromising structural integrity.

On the electrical side, the 16710-10 offers a nominal voltage of ≤30 V DC, low conductor resistance (<100 mΩ/m), and capacitance of 90–100 pF/m, ensuring accurate and low-loss signal transmission. The inclusion of 2 normally open (NO) relay circuits and 2 solid-state outputs provides versatile connectivity options for logic-level and relay-controlled devices. Each conductor supports up to 2 A, meeting the demands of a wide range of automation and control applications.

The cable’s connectivity features, with a 3-socket plug at one end and terminal lugs at the other, enable secure, reliable, and fast installation across various setups. Additionally, the 3.0-meter cable length option (-10) balances reach with manageability, simplifying integration into existing systems.

Overall, the 16710-10 Interconnect Cable offers a reliable, flexible, and robust interconnection solution for industrial automation, field instrumentation, and control systems, making it a preferred choice for engineers seeking high-performance, long-lasting, and versatile cabling.
