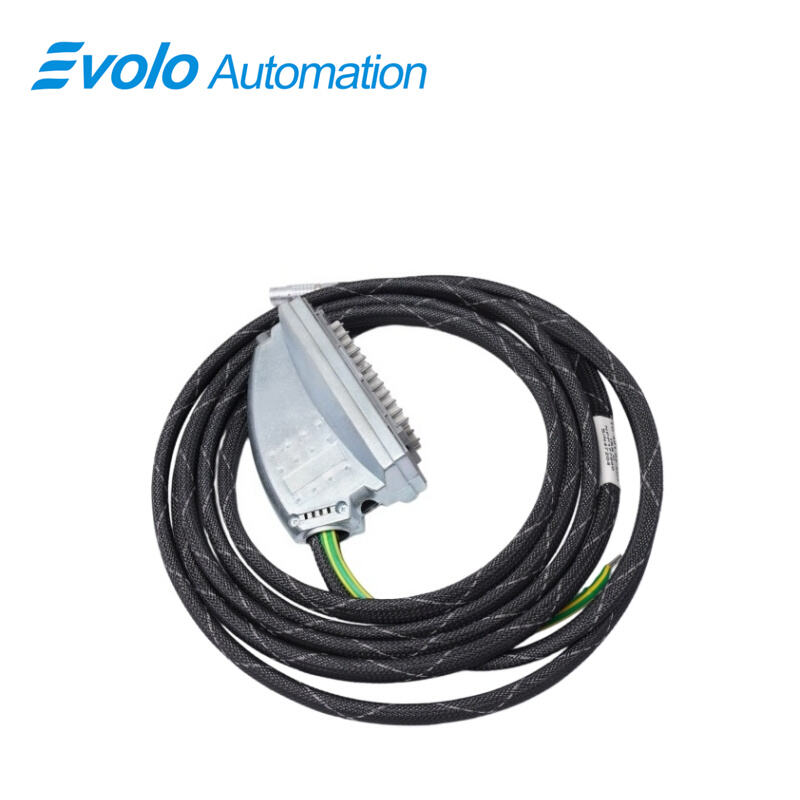

TC-301-02-10M0 Communications Cable , China TC-301-02-10M0 Communications Cable Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	ICS TRIPLEX
Model Number:	TC-301-02-10M0
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Part Number	TC-301-02-10M0
Part Name	Communications Cable
Cable Length	10 m
Maximum Length	30 m
Cable Type	Cat 6 Plus shielded twisted pair
Insulation Material	Low smoke zero halogen (LSZH)
Connection Start Point	Expander Interface Adapter (T8312)
Connection End Point	Expander Processor (T8310)
Rack End Interface (SKT2)	96-pin C-type connector with dual-width protective shield and grounding braid
Expansion End Interface (SKT1)	12-pin Swiss LEMO high-precision self-locking connector

Description

TC-301-02-10M0 Communications Cable is a long-distance, high-reliability industrial communication solution designed for Trusted TMR Expander Processor (T8310) and Expander Interface Adapter Unit (T8312) integration in safety-critical distributed control systems. It enables stable data and control signal transmission across extended cabinet rows or separated control zones, ensuring reliable system interconnection in large-scale industrial automation architectures.

Applications

Large Chemical Plants: Long-distance isolation routing between control rooms and cabinets; LSZH prevents toxic fumes in fires.

Nuclear Power Plants: Redundant control bus with strict low-smoke safety for control rooms.

Waste-to-Energy Plants: Strong EMI shielding ensures stable DCS operation under turbine interference.

Steel Smelting Plants: Long-reach routing between furnace zones; LEMO connector resists vibration.

Biopharmaceutical Plants: Cleanroom-safe material enables secure production-to-control communication.

Troubleshooting

Link Completely Offline or Handshake Failure: 10 m cable; check 12-pin LEMO lock “click”, ensure secure seating.

Frequent Bus CRC Errors: Likely grounding/EMI issue; verify SKT2 braided ground is tightly bonded to cabinet main earth.

Single-Channel Data Loss: Likely due to over-bending or mechanical pressure; replace cable if internal damage suspected.

FAQ

Q1: Will TC-301-02-10M0 suffer signal loss over its 10 m Cat 6 Plus link?
A: No. It is impedance-matched for up to 30 m, ensuring full-bandwidth stable transmission at 10 m.

Q2: Can TC-301-02-10M0 be cut and re-terminated to shorten to 8 m?
A: Absolutely not. Factory-crimped connectors would be damaged, destroying shielding and impedance balance.

Q3: What clearance is required for TC-301-02-10M0 double-width SKT2 hood?
A: Adequate slot spacing is required; compression is strictly prohibited due to shielding and grounding structure.

Q4: What mechanical stress can TC-301-02-10M0 LEMO plug withstand?
A: It is highly vibration-resistant and will not loosen under normal pull force when locked.

Q5: What happens if grounding braid of TC-301-02-10M0 is not connected?
A: EMI cannot be discharged, leading to noise interference and possible bus data loss.
