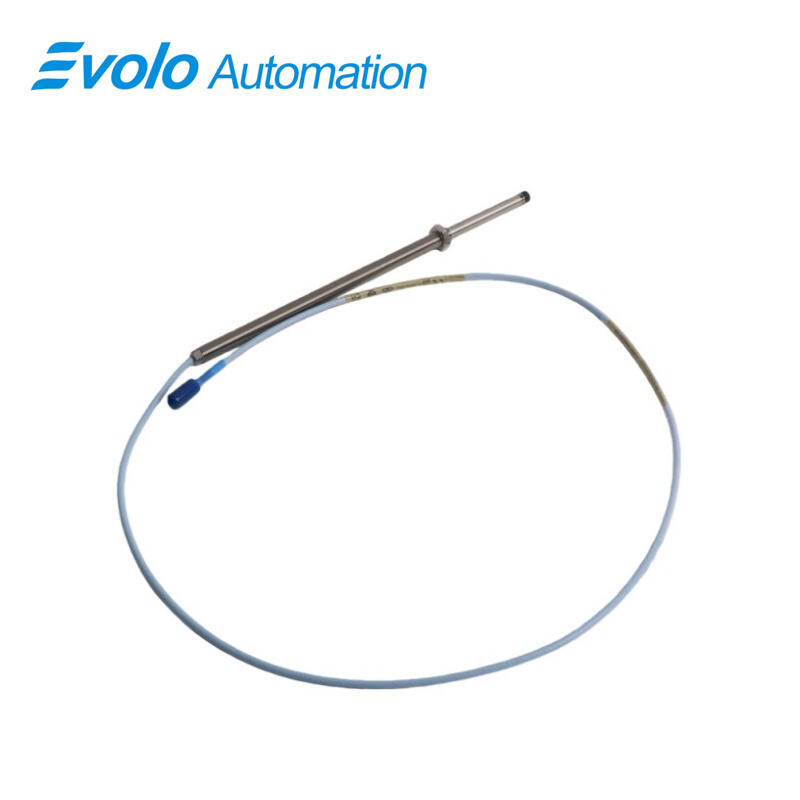

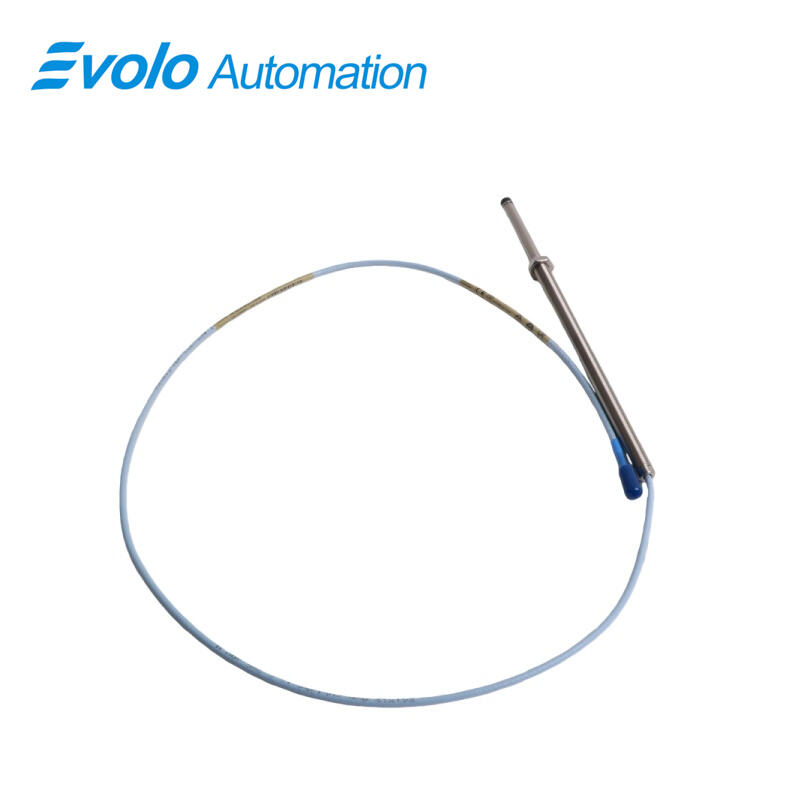

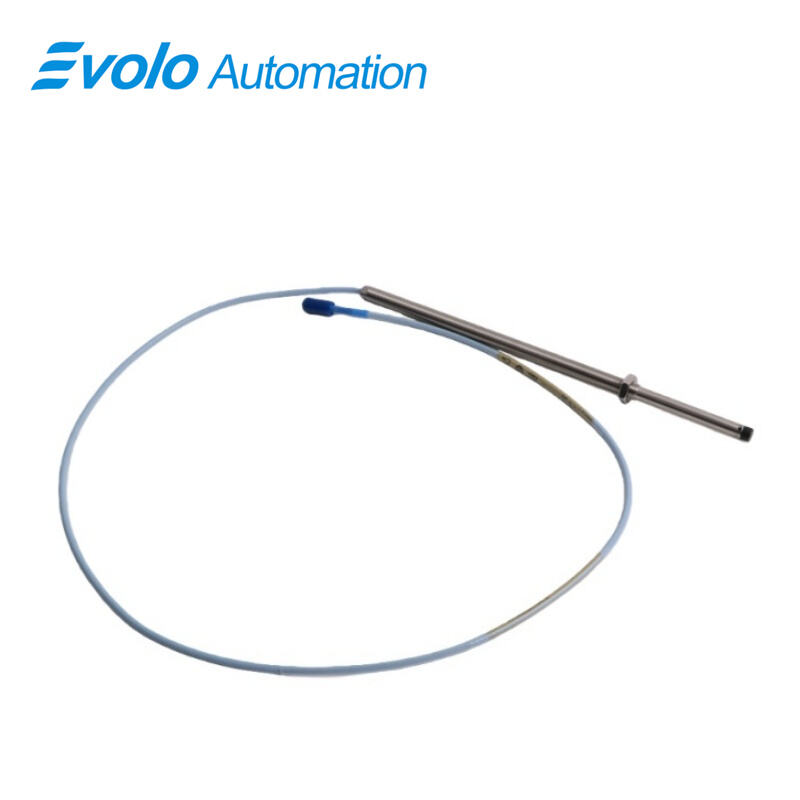

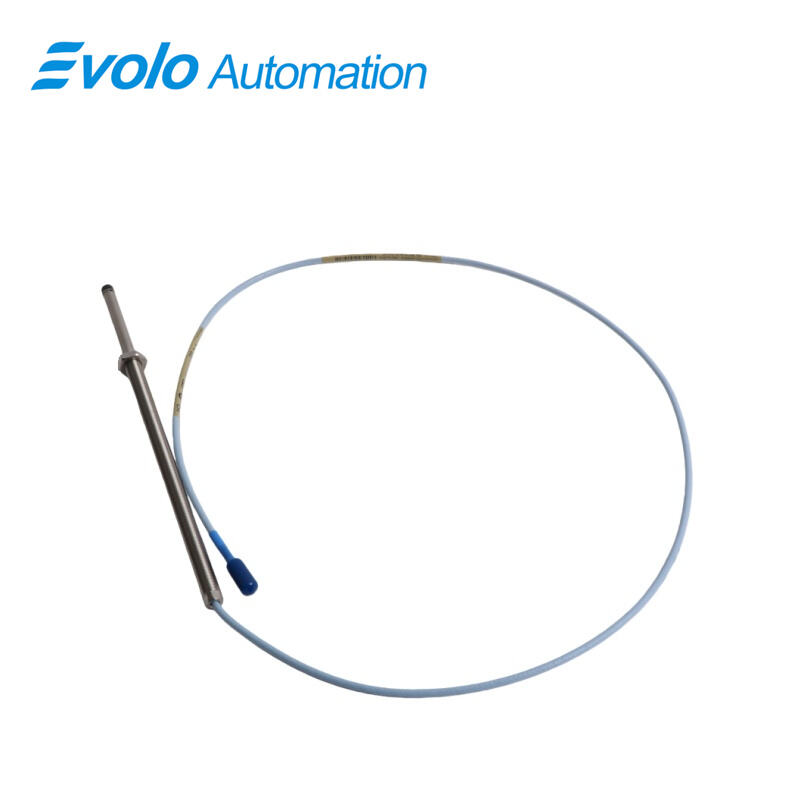

330103-06-25-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-06-25-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-06-25-10-02-00 3300 XL 8 mm Proximity Probe is engineered to deliver exceptional performance in demanding industrial environments. Featuring an unthreaded length of 60 mm and an overall case length of 250 mm, this probe provides precise measurement capabilities for both static position and dynamic vibration applications. The total cable length of 1.0 meter (3.3 feet) is equipped with a miniature coaxial ClickLoc connector and standard cable, ensuring reliable and secure connectivity. With no mandatory agency approval required, this probe offers flexible deployment across a wide range of industrial systems.

Operating reliably across a temperature range of -52°C to +177°C (-62°F to +350°F), the 3300 XL 8 mm Proximity Probe is suitable for extreme conditions often encountered in fluid-film bearing machines. The M10x1 probe case thread supports a maximum engagement length of 15 mm, allowing for straightforward installation and consistent mechanical stability. The probe produces an output voltage that is directly proportional to the distance from the conductive target surface, enabling highly accurate vibration, position, Keyphasor reference, and speed measurements.

This probe represents the latest advancement in eddy current proximity transducer technology. Fully compliant with API 670 standards, the 3300 XL 8 mm system ensures exceptional linearity, accuracy, and thermal stability. The design allows full interchangeability with existing 3300 series 5 mm and 8 mm components, including probes, extension cables, and Proximitor sensors, which eliminates the need for individual calibration or component matching. Backward compatibility with non-XL 3300 components further extends its versatility across legacy systems.

Significant design improvements have enhanced the reliability and robustness of the 3300 XL probe. The patented TipLoc molding technology strengthens the bond between probe tip and body, while the CableLoc design secures the cable with a pull strength of 330 N (75 lbf). For applications requiring protection against fluid ingress, an optional FluidLoc cable configuration is available, preventing oil and other liquids from entering the machine via the cable interior.

Overall, the 330103-06-25-10-02-00 3300 XL 8 mm Proximity Probe delivers superior accuracy, robust construction, and operational flexibility, making it an ideal choice for industrial professionals seeking reliable vibration and position monitoring in complex machinery. Its combination of precision, interchangeability, and durability ensures long-term performance across a wide array of high-demand applications.

Applications

Precision Vibration and Position Measurement

The 3300 XL 8 mm Proximity Probe is engineered to provide highly accurate vibration and position measurements on fluid-film bearing machines. Utilizing eddy current technology, the system delivers an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface. This capability enables the detection of both static (position) and dynamic (vibration) values, making it ideal for machinery where precision monitoring is critical.

Keyphasor and Speed Detection

In addition to general vibration monitoring, the 3300 XL 8 mm probe is widely applied as a Keyphasor reference sensor. Its accurate, reliable signal supports speed measurements and phase reference applications, essential in rotating machinery diagnostics and predictive maintenance programs.

Compliance with Industry Standards

The standard 5-meter 3300 XL 8 mm system is fully compliant with the American Petroleum Institute’s (API) 670 Standard, ensuring mechanical configuration, linear range, accuracy, and temperature stability meet the highest industry requirements. This compliance makes the probe suitable for critical applications in oil and gas, power generation, and other heavy industrial environments.

Interchangeable and Backward Compatible System

All components of the 3300 XL 8 mm system—including probes, extension cables, and Proximitor sensors—are fully interchangeable and backward compatible with non-XL 3300 series 5 mm and 8 mm systems. This feature eliminates the need for component-specific matching or bench calibration, simplifying installation and maintenance while reducing operational downtime.

Robust Design for Harsh Environments

The probe’s design incorporates the patented TipLoc molding method, ensuring a secure and durable bond between the probe tip and body. Its miniature coaxial ClickLoc connector and standard cable use a patented CableLoc design, capable of withstanding 330 N (75 lbf) pull strength for enhanced reliability. Optional FluidLoc cable configurations prevent oil or fluid ingress through the cable, making the probe highly suitable for use in oil-lubricated machinery and other challenging environments.

Flexible Mounting and Temperature Range

The probe’s M10x1 threaded case and a maximum 15 mm thread engagement provide flexible mounting options. Operating temperatures from -52°C to +177°C (-62°F to +350°F) ensure the probe can withstand extreme industrial conditions without compromising performance.

Specifications

Competitive Advantage

Exceptional Measurement Accuracy

The 3300 XL 8 mm Proximity Probe delivers highly precise vibration and position measurements on fluid-film bearing machinery. Its output voltage is directly proportional to the distance between the probe tip and the conductive surface, allowing for both static (position) and dynamic (vibration) monitoring. This ensures operators achieve reliable and accurate data essential for predictive maintenance and high-performance machinery monitoring.

Compliance with Industry Standards

Designed to fully comply with the American Petroleum Institute’s (API) 670 Standard, the 3300 XL 8 mm system meets stringent requirements for mechanical configuration, linear range, accuracy, and temperature stability. This compliance guarantees the probe’s suitability for critical applications in oil, gas, power generation, and heavy industrial environments.

Interchangeability and Backward Compatibility

All 3300 XL 8 mm system components—including probes, extension cables, and Proximitor sensors—are fully interchangeable and backward compatible with non-XL 3300 series 5 mm and 8 mm transducer systems. This feature eliminates the need for component-specific matching or bench calibration, reducing installation complexity and minimizing downtime.

Robust Mechanical Design

The probe incorporates a patented TipLoc molding method, providing a stronger bond between the probe tip and body, ensuring durability even in demanding environments. Its M10x1 threaded case and 15 mm maximum thread engagement offer flexible mounting options. Additionally, the miniature coaxial ClickLoc connector and patented CableLoc design provide 330 N (75 lbf) pull strength for secure probe-to-cable connection.

Optional Fluid Protection

For applications exposed to oil or other liquids, the 3300 XL 8 mm probe offers an optional FluidLoc cable. This feature prevents fluid ingress through the cable interior, protecting both the probe and the monitored system while ensuring consistent performance in harsh environments.

Wide Operating Temperature Range

Capable of operating from -52°C to +177°C (-62°F to +350°F), the 3300 XL 8 mm Proximity Probe is engineered for extreme industrial conditions, maintaining stable performance across a broad range of temperatures.

Compact Design with Superior Performance

The probe’s overall case length of 250 mm, unthreaded length of 60 mm, and total system length of 1.0 meter (3.3 feet) allow for installation in high-density areas without sacrificing performance. This combination of compact design and advanced eddy current technology ensures superior measurement capabilities in tight spaces.
