Siemens APOGEE PXC Compact 16-Point BACnet Controller PXC16.2-EF.A
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: United States of America
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • APOGEE PXC Compact

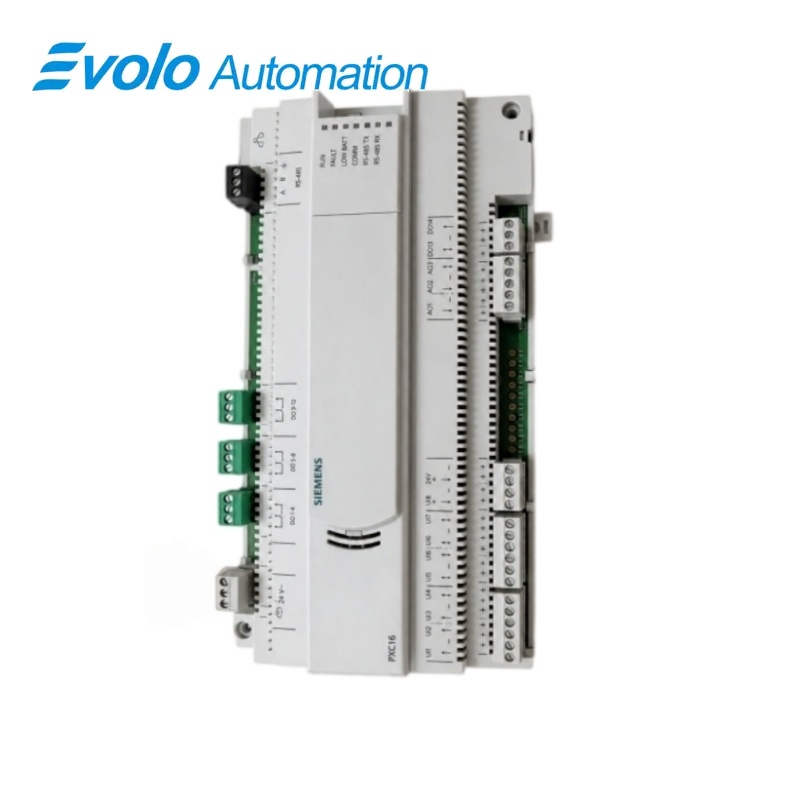

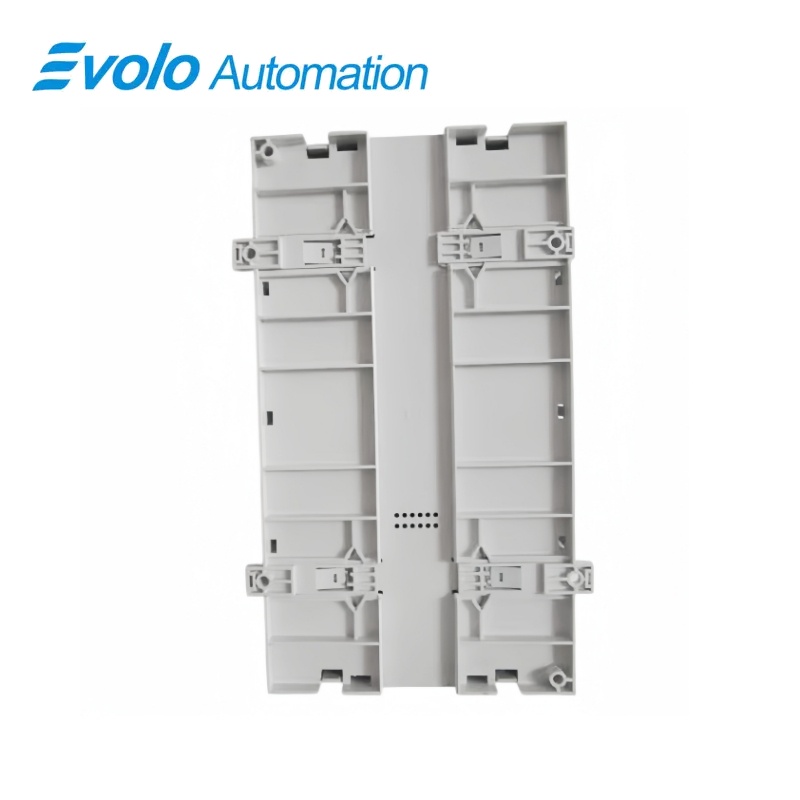

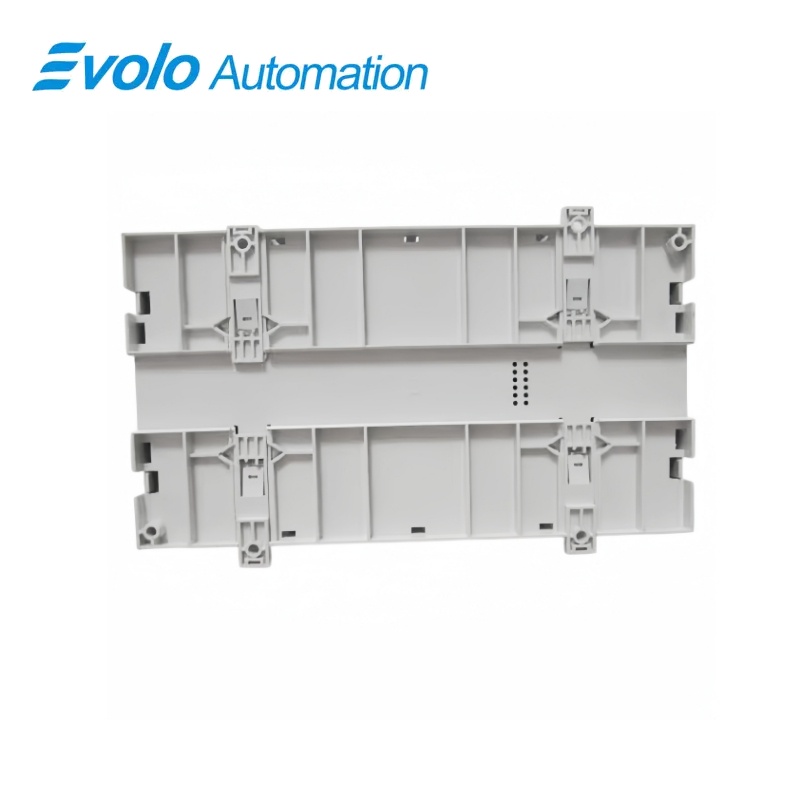

PXC16.2-EF.A APOGEE PXC Compact 16-Point BACnet Controller
The PXC16.2-EF.A is a 16-point PXC Compact controller with BACnet/IP ALN communication and a P1 or BACnet MS/TP field-level network.
At a Glance
| Brand | Siemens |
|---|---|
| Model | PXC16.2-EF.A |
| Product Type | Sixteen-point direct digital building controller |
| Core Function | Performs stand-alone building control and supervises BACnet/IP plus P1 or MS/TP field networks |
| Application or Compatible Series | APOGEE building automation systems requiring a 16-point BACnet/IP controller with RS485 FLN |
Exact Identification
Match PXC16.2-EF.A character by character and confirm the complete APOGEE PXC Compact 16-Point BACnet Controller designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The PXC16.2-EF.A is a 16-point PXC Compact controller with BACnet/IP ALN communication and a P1 or BACnet MS/TP field-level network.
The compact controller provides integrated building-control points. Ethernet connects the controller to the BACnet automation-level network. The EF variant supports P1 or BACnet MS/TP FLN operation.
Key Functions
Sixteen-Point Controller
The compact controller provides integrated building-control points.
BACnet/IP ALN
Ethernet connects the controller to the BACnet automation-level network.
RS485 Field Network
The EF variant supports P1 or BACnet MS/TP FLN operation.
Official Specifications
| Onboard Point Capacity | 16 points |
|---|---|
| Automation-Level Network | BACnet/IP |
| Ethernet Interface | 10Base-T / 100Base-TX |
| Field-Level Network | P1 or BACnet MS/TP over RS-485; additional license required |
| Processor | Freescale MPC852T, 100 MHz |
| Memory | 40 MB total: 32 MB SDRAM and 8 MB Flash ROM |
| Supply Voltage | 24 V AC ±20% |
| Line Frequency | 50/60 Hz |
| Maximum Power Consumption | 18 VA at 24 V AC |
| Digital Input Type | Dry-contact / potential-free contact closure |
| Analog Input Resolution | 16 bit |
| Analog Output | 0 to 10 V DC |
| Analog Output Resolution | 10 bit |
| Sensor Supply | 24 V DC, 50 mA per termination; 200 mA maximum total |
| SDRAM Battery Backup | 180 accumulated days |
| Real-Time Clock Backup | 10 years |
| Dimensions (L × W × D) | 272 × 150 × 62 mm |
| Net Weight | 0.891 kg |
Frequently Asked Questions
Which automation network is used by building controller PXC16.2-EF.A?
Connect the controller to the BACnet/IP automation-level network.
Which field networks can be supervised by building controller PXC16.2-EF.A?
Use the configured P1 or BACnet MS/TP RS485 field network.
Which installed configuration should be recorded before replacing building controller PXC16.2-EF.A?
Record the configured addresses, wiring assignments, parameters, firmware and neighboring hardware before removal.
What identification must match when selecting building controller PXC16.2-EF.A?
Match the complete article number, hardware revision and every option used by the installed system.
How should technicians handle building controller PXC16.2-EF.A?
Isolate the affected equipment and use grounded electrostatic-discharge precautions throughout the exchange.
Which checks are required after installing building controller PXC16.2-EF.A?
Verify power, diagnostics, communication, field signals and the complete approved machine or plant function.
When should a visually similar unit replace building controller PXC16.2-EF.A?
Use a visually similar unit only after engineering confirms identical electrical, mechanical and software compatibility.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the sixteen-point wiring schedule.
- Preserve BACnet and FLN addressing.
- Back up the complete controller application before replacement.
