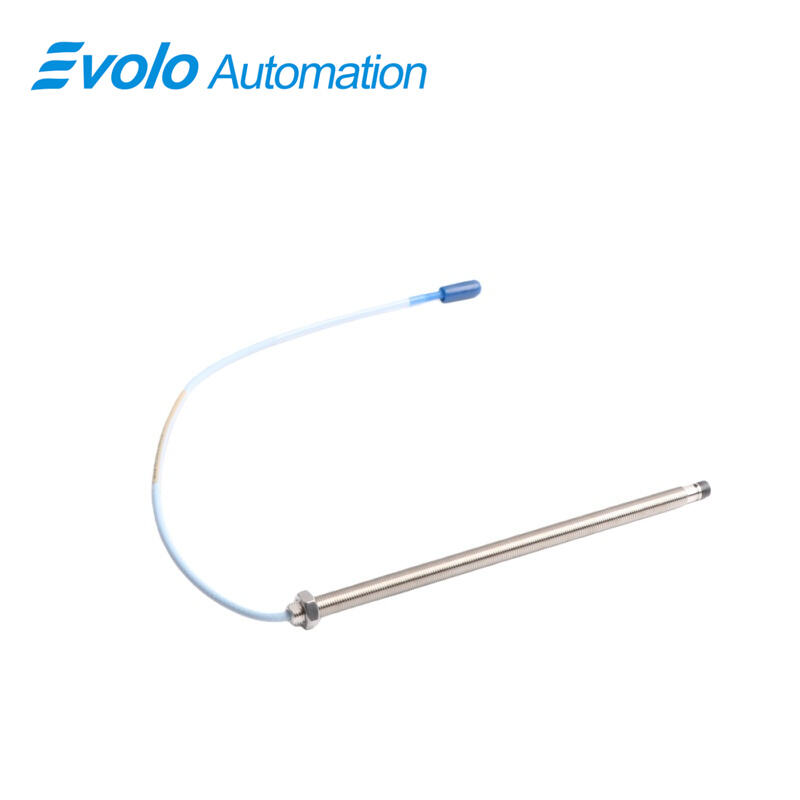

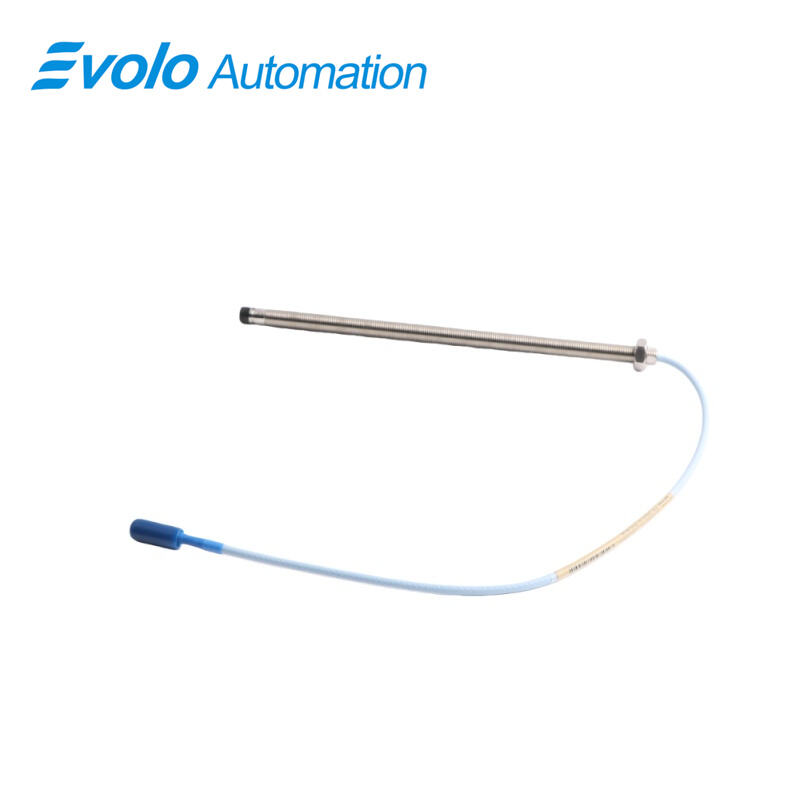

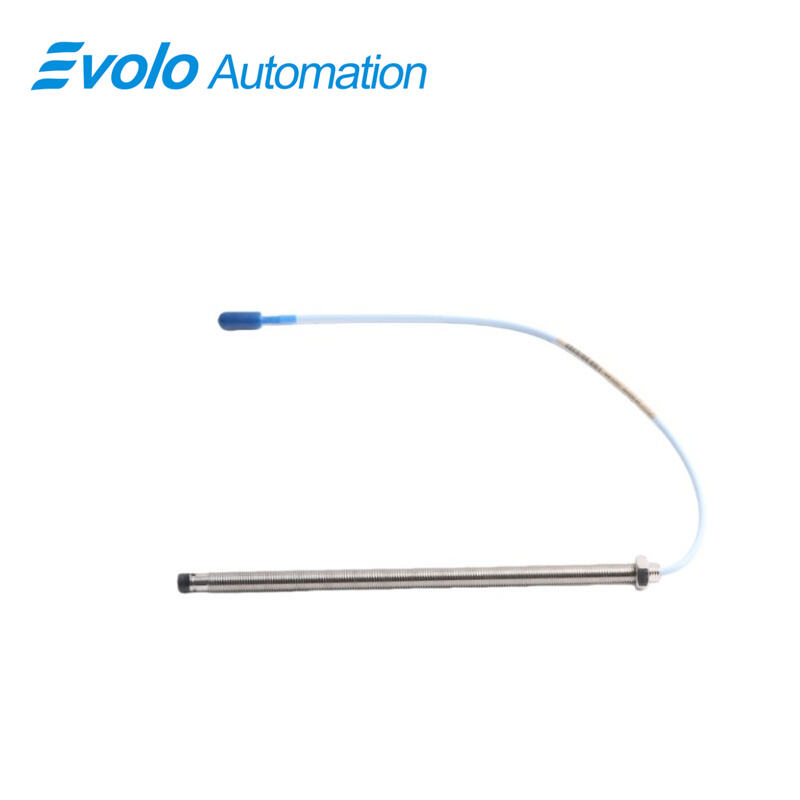

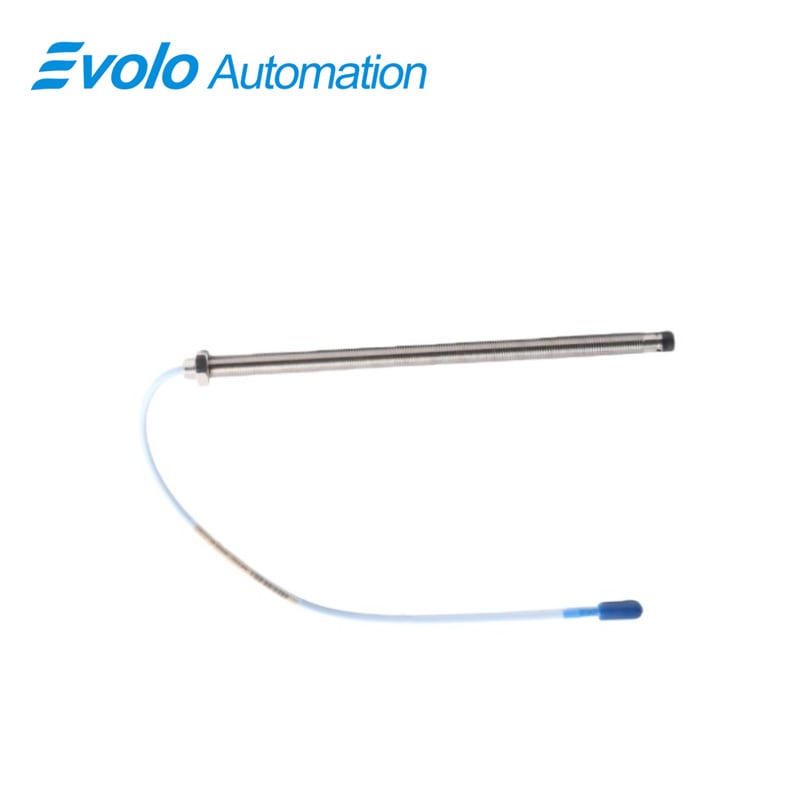

330101-04-16-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-04-16-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-04-16-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy-current transducer designed for advanced industrial automation and vibration monitoring. This 8 mm probe delivers an output voltage directly proportional to the distance between its tip and the conductive target surface, enabling both static (position) and dynamic (vibration) measurements. The probe features a 3/8-24 UNF threaded case with a maximum thread engagement of 0.563 in, an unthreaded length of 0.4 in, and an overall case length of 1.6 in, making it ideal for compact mounting spaces. The 1.0-meter (3.3 feet) miniature coaxial ClickLoc cable, with an extension cable capacitance of 69.9 pF/m (21.3 pF/ft), ensures accurate signal transmission in automated systems. Operating from -52°C to +177°C (-62°F to +350°F) with CSA, ATEX, and IECEx approvals, this 3300 XL 8 mm Proximity Probe offers superior reliability and compliance for critical automation applications. Patented TipLoc and CableLoc designs provide a robust mechanical bond and secure 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents leakage of oil or other liquids, ensuring safe, continuous operation in harsh industrial environments.

Applications

Vibration and Position Monitoring on Fluid-Film Bearings
The 3300 XL 8 mm Proximity Probe enables precise measurement of shaft vibration and displacement, supporting predictive maintenance and automated control systems. Its 2 mm linear range ensures accurate readings for high-speed rotating equipment.

Keyphasor Signal Reference in Turbines and Compressors
The probe generates reliable Keyphasor signals for phase reference, facilitating automated vibration analysis and real-time fault detection in critical industrial machinery.

Rotational Speed and Tachometer Measurement
The high-fidelity output supports automated speed monitoring and zero-speed detection, providing crucial data for industrial control systems and ensuring safe operation of rotating equipment.

Compact Mounting in Automation Systems
With a small 1.6 in case length and 0.4 in unthreaded section, the probe fits into restricted spaces while maintaining full measurement capability, ideal for upgrades or retrofits in existing automation installations.

Fluid Containment and Leak Prevention
When used with the optional FluidLoc cable, the probe prevents oil or hydraulic fluids from leaking through the cable, maintaining system cleanliness and minimizing maintenance downtime in automated operations.

Specifications

Competitive Advantage

High Measurement Accuracy and Linear Range
2 mm (80 mils) linear range combined with <2 mV per volt supply sensitivity ensures precise static and dynamic measurements, critical for automated monitoring of high-speed machinery.

Extreme Temperature and Environmental Reliability
Operates reliably from -52°C to +177°C (-62°F to +350°F) and is CSA, ATEX, and IECEx certified, ensuring dependable performance under harsh industrial conditions.

Robust Mechanical and Electrical Design
3/8-24 UNF threaded case, TipLoc molded probe tip, and CableLoc cable attachment provide secure, vibration-resistant connections in demanding automation systems.

Leak Prevention with FluidLoc Option
Optional FluidLoc cable prevents leakage of oil and fluids, enhancing operational safety and reliability in automated industrial equipment.

Full Compatibility and Interchangeability
Backward compatible with 3300 XL extension cables and Proximitor sensors, supporting seamless upgrades, retrofits, or replacements without recalibration, and compliant with API 670 standards.
