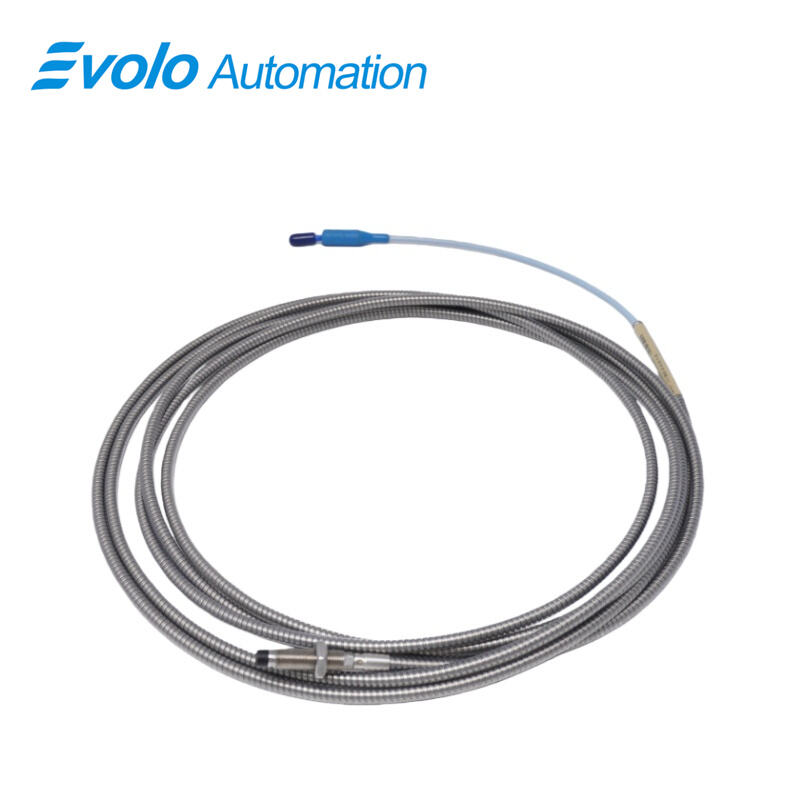

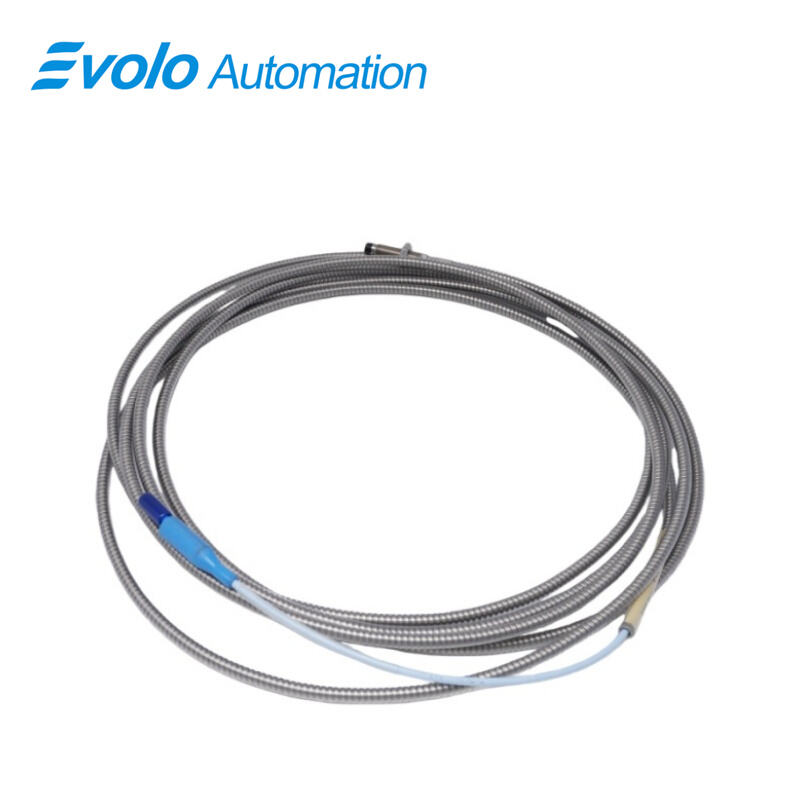

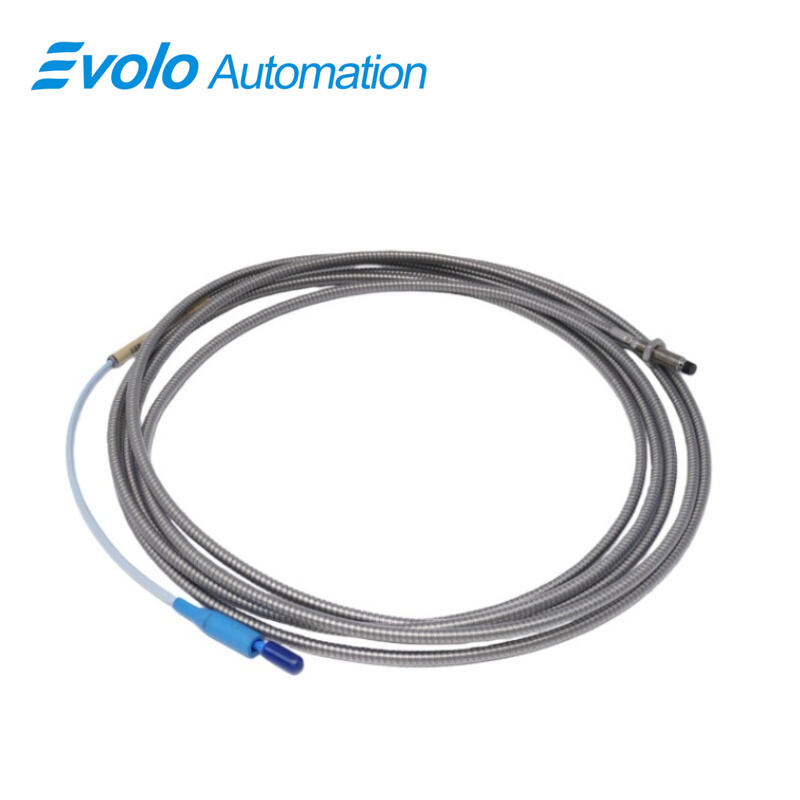

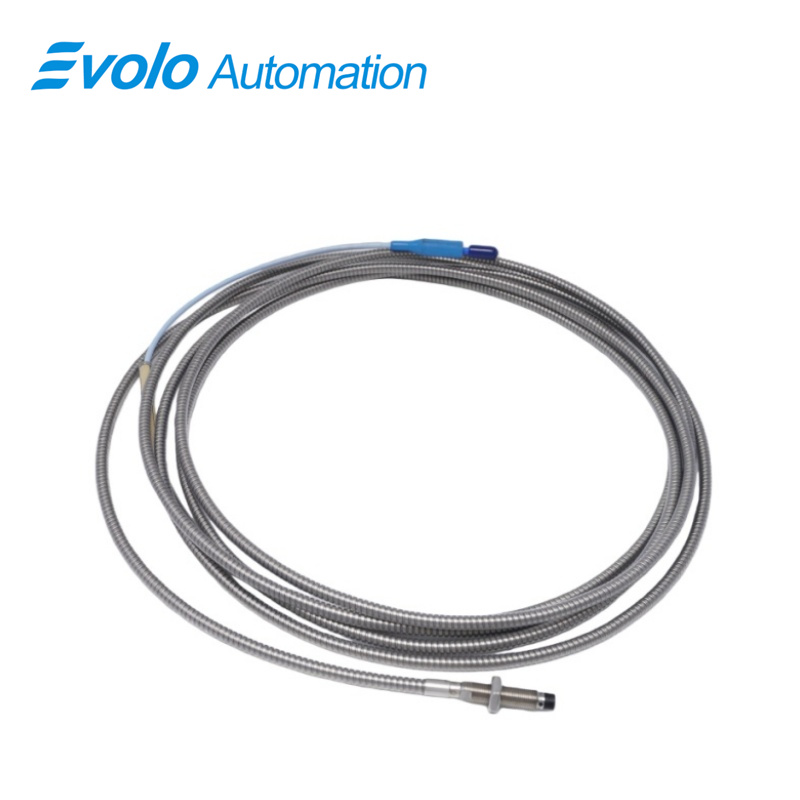

330104-00-04-90-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-04-90-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-04-90-02-00 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for precise vibration, position, and speed measurements in industrial automation systems. Its 8 mm probe tip measures both static positions and dynamic vibrations with a linear range of 2 mm (80 mils) and maintains exceptional stability across -52°C to +177°C (-62°F to +350°F). The probe features a Miniature coaxial ClickLoc connector and 9-meter total cable length, with patented TipLoc and CableLoc designs providing a 330 N pull strength, ensuring secure attachment in harsh industrial environments. Fully compatible with 3300 XL extension cables and Proximitor sensors, it supports API 670 standard compliance, backward compatibility, and complete interchangeability without bench calibration. Optional FluidLoc cables prevent oil and fluid leakage, making the system ideal for fluid-film bearing machines, turbines, and high-speed rotating equipment. With 50 Ω output resistance, 69.9 pF/m cable capacitance, and minimal supply sensitivity (<2 mV per volt input change), the 3300 XL 8 mm probe delivers accurate, low-noise signals for PLCs, DCS, and condition monitoring systems.

Applications

Vibration Monitoring in Turbines and Compressors
The 3300 XL 8 mm probe measures dynamic vibration in turbines, pumps, and compressors with a linear range of 2 mm and high-frequency response. Accurate data allows predictive maintenance, preventing unexpected downtime and reducing repair costs.

Position Sensing for Fluid-Film Bearings
Installed on fluid-film bearing machines, the probe provides static and dynamic positional feedback. Its -52°C to +177°C operating range ensures reliable measurements under extreme temperature conditions in industrial automation systems.

Keyphasor Speed Reference for Rotating Machinery
The probe outputs precise signals for speed and phase reference (Keyphasor) applications in rotating equipment, supporting API 670 compliance and enabling synchronized control of industrial assets.

Integration in PLC/DCS Monitoring Systems
With Miniature coaxial ClickLoc connectors, 50 Ω output resistance, and 9-meter cable length, the probe seamlessly integrates into PLCs or DCS platforms, providing real-time analog signals for condition monitoring or process control.

High-Performance Applications in Oil and Gas
Optional FluidLoc cables prevent fluid leakage in high-pressure or oil-rich environments. The probe’s CableLoc 330 N pull strength ensures mechanical reliability in refineries, chemical plants, and offshore facilities.

Specifications

Competitive Advantage

Superior Signal Accuracy and Stability
The 3300 XL probe maintains less than 2 mV output variation per volt input change, with 69.9 pF/m cable capacitance, ensuring consistent vibration and position measurement in industrial automation applications.

Robust Mechanical Design
Patented TipLoc and CableLoc designs provide secure probe tip bonding and 330 N pull strength, preventing cable disconnections and improving longevity under mechanical stress.

Wide Operating Temperature Range
Designed to operate from -52°C to +177°C (-62°F to +350°F), the probe is suitable for extreme industrial environments, including chemical plants, turbines, and offshore facilities.

Flexible Integration and Interchangeability
Fully compatible with 3300 XL extension cables and Proximitor sensors, the probe allows backward compatibility and complete interchangeability without bench calibration, simplifying system upgrades and maintenance.

Leak Prevention and Operational Safety
Optional FluidLoc cable design prevents oil or fluid leaks from the machine interior, improving plant safety and reducing maintenance hazards, while complying with industrial automation standards.
