Overview

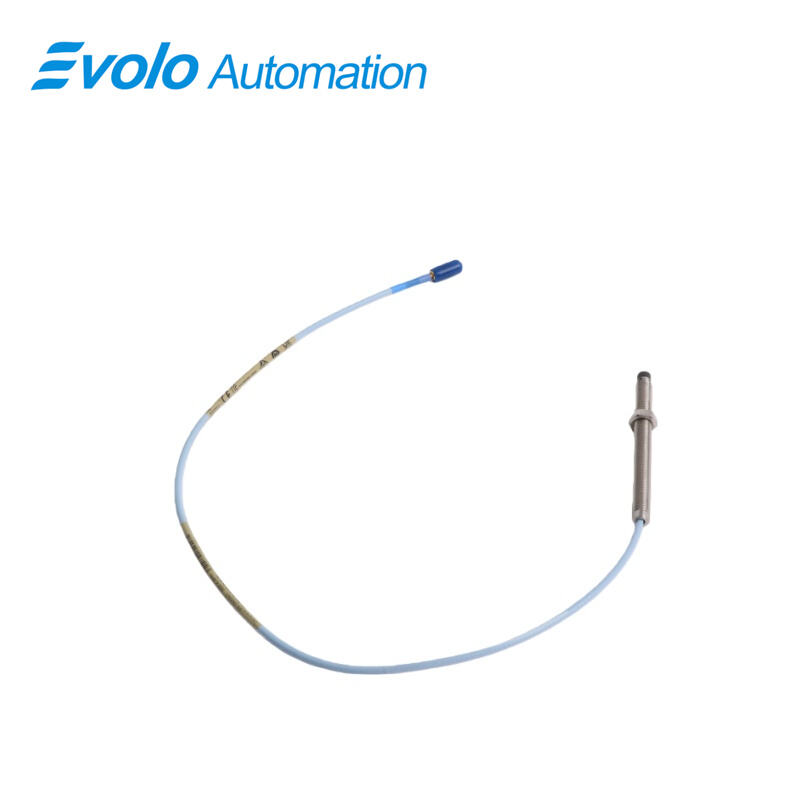

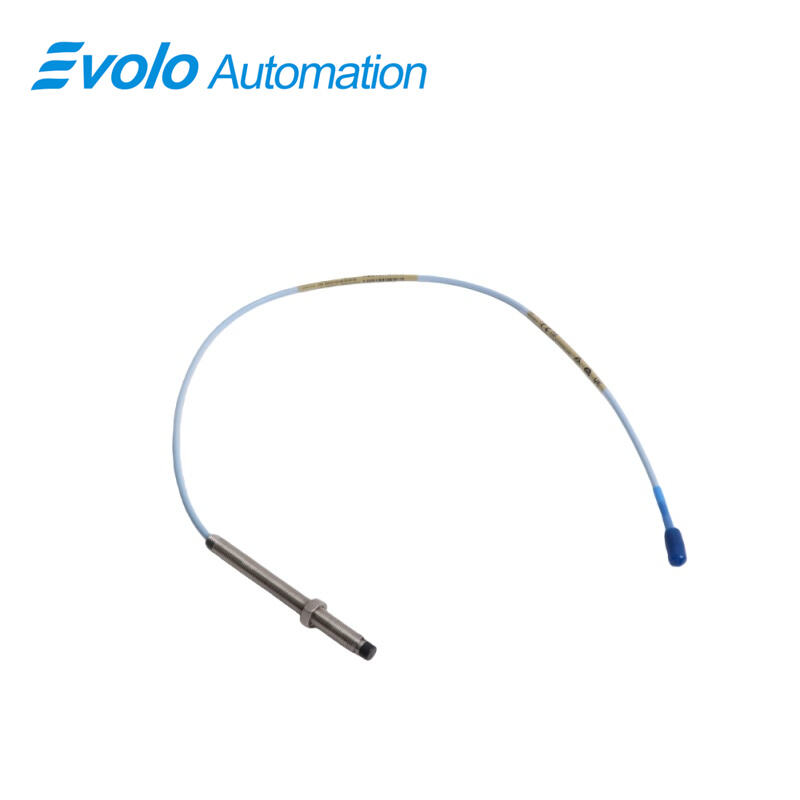

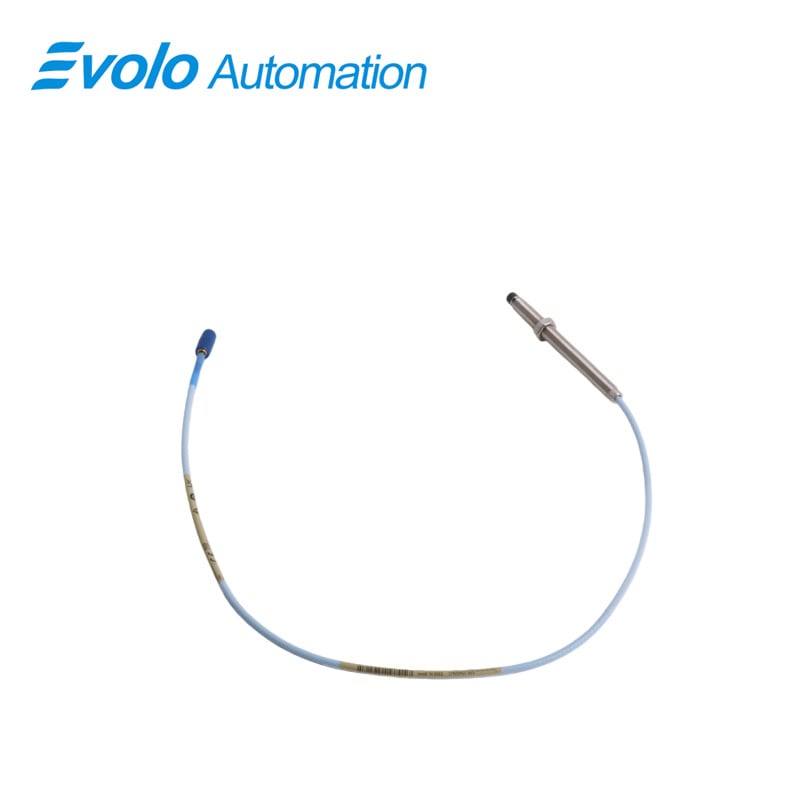

330101-00-40-05-02-00 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-40-05-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330101-00-40-05-02-00 3300 XL 8 mm Proximity Probes is a precision-engineered non-contact eddy current sensor developed for continuous monitoring of displacement and vibration in critical rotating machinery. As part of the advanced 3300 XL product family, the 3300 XL 8 mm Proximity Probes is designed to convert the physical gap between the probe tip and a conductive target surface into a stable and proportional voltage output, enabling accurate measurement of shaft vibration, radial displacement, and axial movement under demanding industrial conditions.
The mechanical design of the 330101-00-40-05-02-00 3300 XL 8 mm Proximity Probes emphasizes durability, reliability, and installation flexibility. Featuring an overall case length of 4 inches with an unthreaded length of 0 inches, this probe is suitable for compact installations where precise alignment and mechanical stability are required. The probe case is manufactured from AISI 303 or 304 stainless steel, offering strong resistance to corrosion, oil exposure, and mechanical wear, while the polyphenylene sulfide (PPS) probe tip provides excellent thermal stability and electrical insulation to maintain consistent eddy current performance.
Key Functions
Applications
The 330101-00-40-05-02-00 3300 XL 8 mm Proximity Probes is widely used for vibration monitoring in rotating machinery such as motors, pumps, compressors, and turbines, where accurate detection of shaft vibration and dynamic displacement is essential for early fault identification and machinery protection.
In shaft position and displacement measurement applications, the 3300 XL 8 mm Proximity Probes provides stable and repeatable output for monitoring radial movement and axial position, supporting condition-based maintenance programs and long-term equipment health assessment.
The 330101-00-40-05-02-00 3300 XL 8 mm Proximity Probes is suitable for continuous condition monitoring systems operating in industrial environments exposed to temperature variation, oil contamination, and mechanical vibration, ensuring reliable data acquisition for predictive maintenance and operational optimization.
Official Specifications
Quick Detail
|
Agency Approval Option: |
Not required |
|
Unthreaded Length Option : |
0 in |
|
Overall Case Length Option : |
4 in |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
1.5x1.3x68cm |
|
Weight: |
0.06kg |
Specifications
|
Operating Temperature Range: |
-55°C to +180°C (-65°F to+350°F) |
|
Linear Range: |
2 mm (80 mils) |
|
Output Resistance: |
55 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.7 Vdc to -25 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Frequently Asked Questions
What is the model number?
The listed model number is 330101-00-40-05-02-00.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.High Measurement Accuracy and Signal Stability
The 3300 XL 8 mm Proximity Probes offers a 2 mm linear range, low supply sensitivity, and stable output resistance, ensuring precise and repeatable vibration and displacement measurements even under fluctuating electrical conditions.
2.Robust Industrial Construction
With a stainless steel probe case and PPS probe tip, the 330101-00-40-05-02-00 3300 XL 8 mm Proximity Probes provides excellent resistance to corrosion, mechanical wear, and thermal stress, extending service life in demanding industrial environments.
3.Compact Design and Easy Installation
The lightweight structure, short overall case length, and miniature coaxial ClickLoc connector allow fast installation and secure signal connections, making the 3300 XL 8 mm Proximity Probes ideal for space-constrained machinery layouts.
