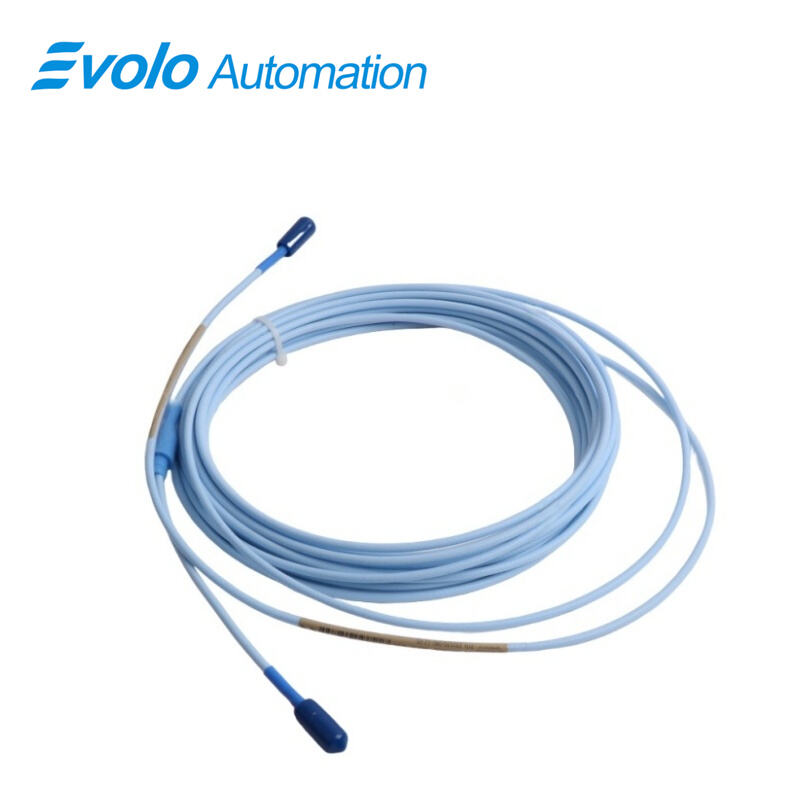

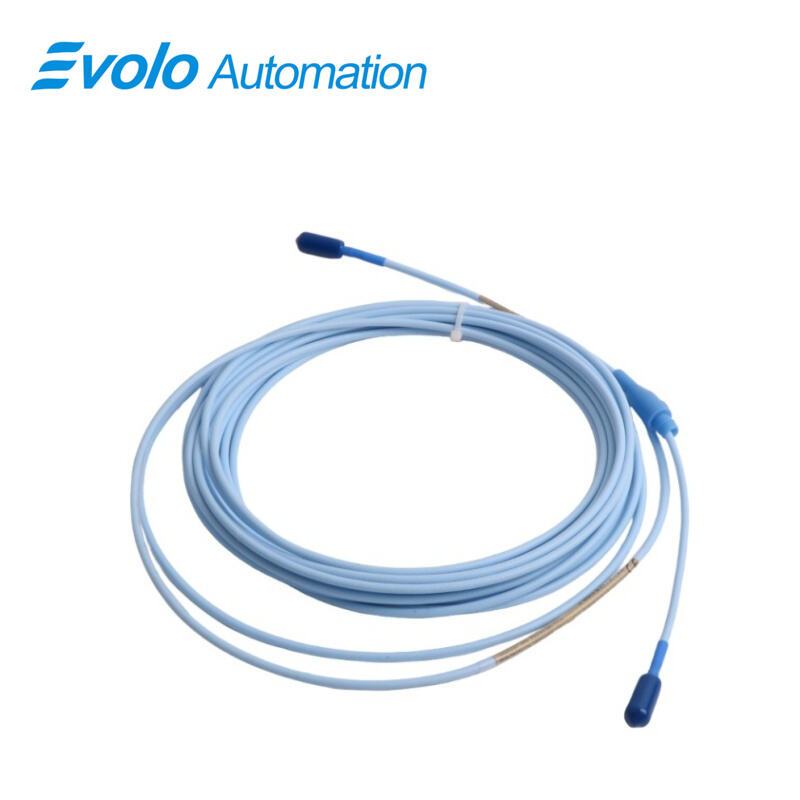

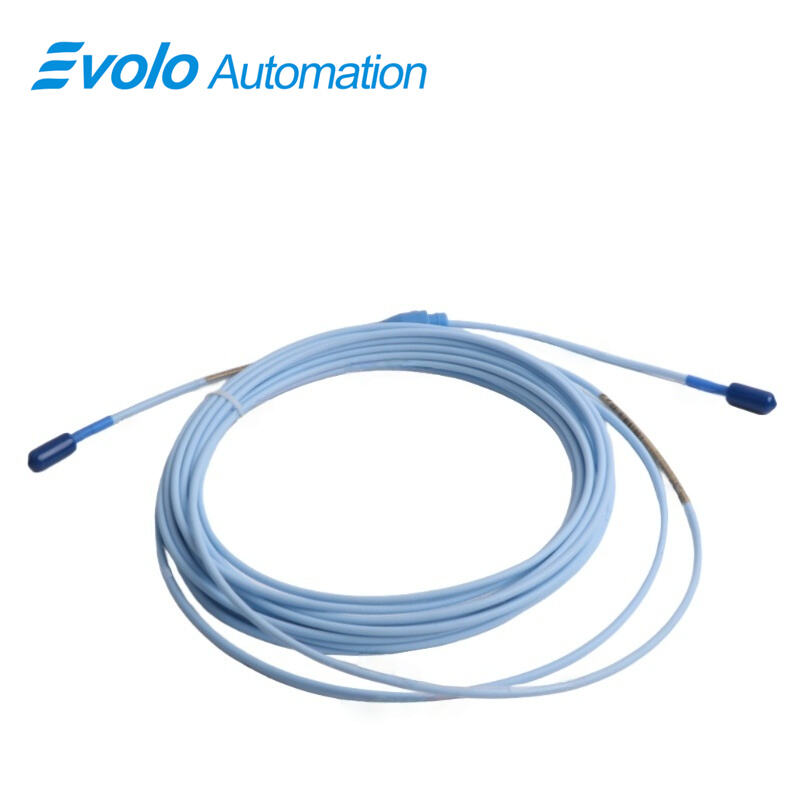

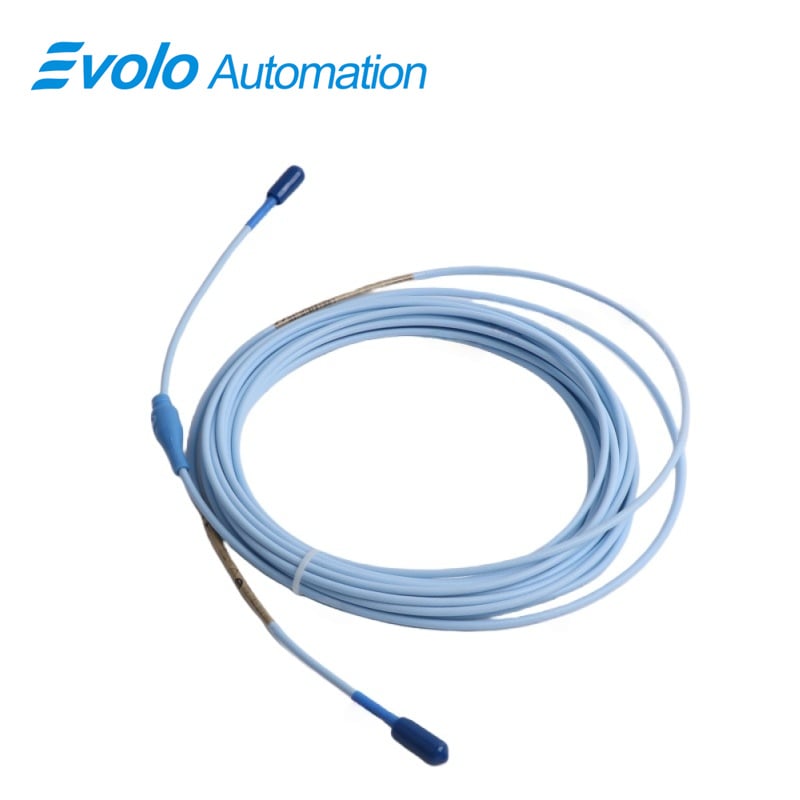

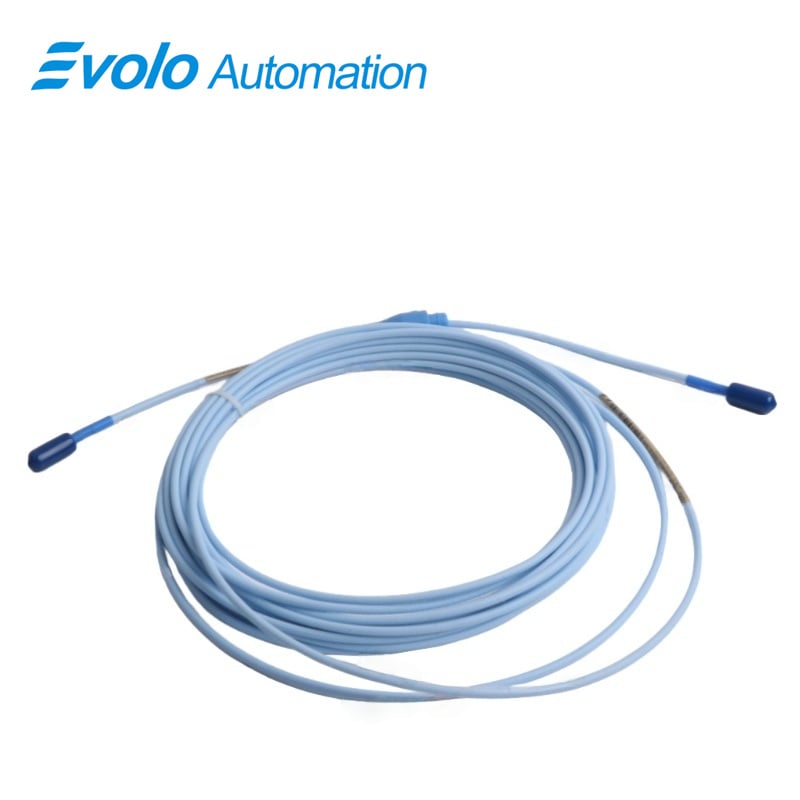

330130-080-12-RU 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-12-RU
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-12-RU 3300 XL Standard Extension Cable is a high-performance 8-meter triaxial cable designed for seamless integration with 3300 XL 8 mm Proximity Transducer Systems in advanced industrial automation and vibration monitoring applications. Constructed with 75 Q FEP-insulated triaxial materials and a FluidLoc connector protector, this extension cable ensures robust electrical insulation, minimal signal degradation, and enhanced mechanical durability under harsh industrial conditions. The 3300 XL extension cable supports field wiring of 0.2 to 1.5 mm² (16 to 24 AWG) and maintains less than 2 mV change in output per volt change in input, providing precise measurement for static and dynamic shaft vibration, Keyphasor speed, and position sensing on fluid-film bearing machines. Certified to CSA, ATEX, and IECEx standards, the 330130-080-12-RU cable is fully compatible with all 3300 XL probes and Proximitor sensors, supporting API 670 compliance and interchangeable system components, allowing fast installation, maintenance, and enhanced reliability in automated industrial environments.

Applications

Application 1: Vibration Monitoring on Turbomachinery
The 3300 XL extension cable transmits high-fidelity signals from 8 mm proximity probes installed on compressors, turbines, and pumps, ensuring precise vibration measurement up to 10 kHz for condition-based maintenance.

Application 2: Shaft Position Measurement
Supports static and dynamic shaft displacement detection with linear range of 2 mm (80 mils) and minimum target diameter 15.2 mm, critical for rotor alignment and predictive monitoring.

Application 3: Keyphasor Reference for Rotating Equipment
Facilitates speed and phase reference signal transmission for balancing, fault detection, and motor startup control in petrochemical and power generation machinery.

Application 4: Hazardous Area Deployment
With CSA, ATEX, and IECEx approvals, the extension cable is suitable for intrinsically safe automation systems operating in Class I, Division 2, or Zone 1 industrial locations.

Application 5: Fluid-Sealed Industrial Environments
FluidLoc connector design prevents oil, moisture, and contaminant ingress into the cable and probe assembly, ensuring long-term reliability in lubricated bearings and high-humidity conditions.

Specifications

Competitive Advantage

Advantage 1: High-Fidelity Signal Transmission
Maintains output resistance at 50 Ω and capacitance of 69.9 pF/m, providing accurate, low-noise signal delivery over long 8-meter runs, minimizing measurement errors in industrial automation.

Advantage 2: Robust Mechanical and Chemical Resistance
FEP-insulated 75 Q triaxial construction and FluidLoc connectors resist mechanical pull forces, oil exposure, and high temperature up to +177°C (-62°F to +350°F), improving system durability.

Advantage 3: Broad Frequency Response
Supports 0–10 kHz measurement range with up to 305 m of field wiring, enabling compatibility with high-speed rotating machinery for vibration and position analytics.

Advantage 4: Fully Certified for Hazardous Locations
CSA, ATEX, and IECEx approvals allow deployment in hazardous areas, ensuring compliance with global industrial automation standards and enhancing operational safety.

Advantage 5: Interchangeable with 3300 XL System Components
Backward compatibility with all 3300 XL probes and Proximitor sensors reduces procurement complexity, allows rapid system upgrades, and eliminates the need for custom calibration.
