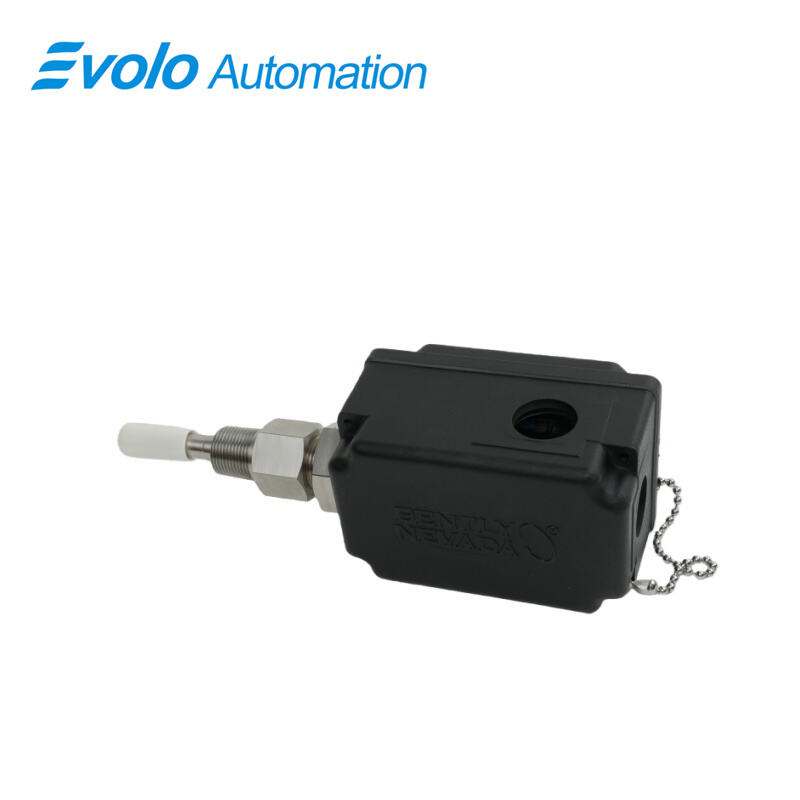

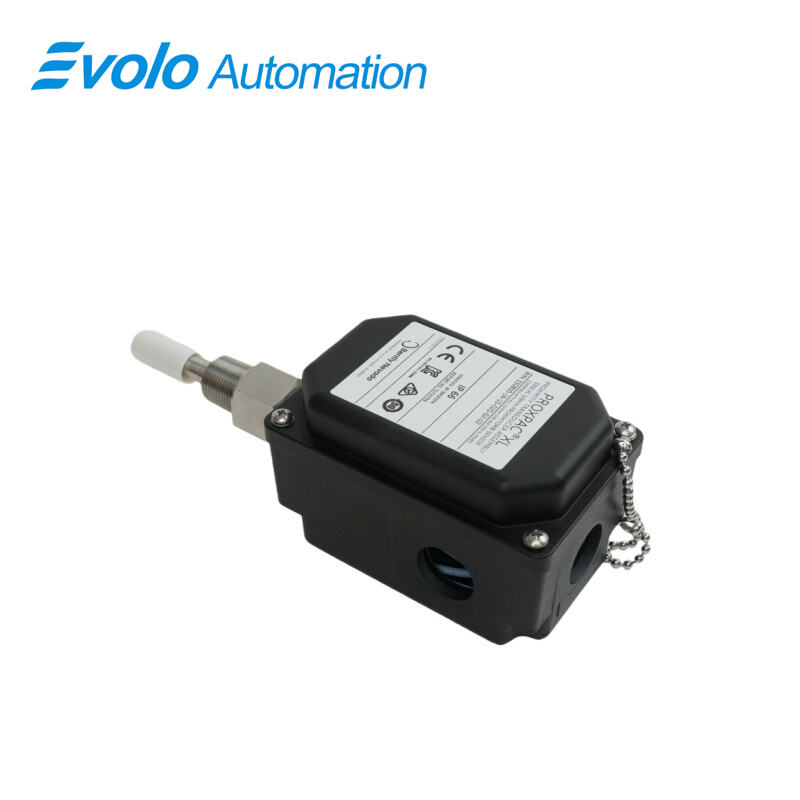

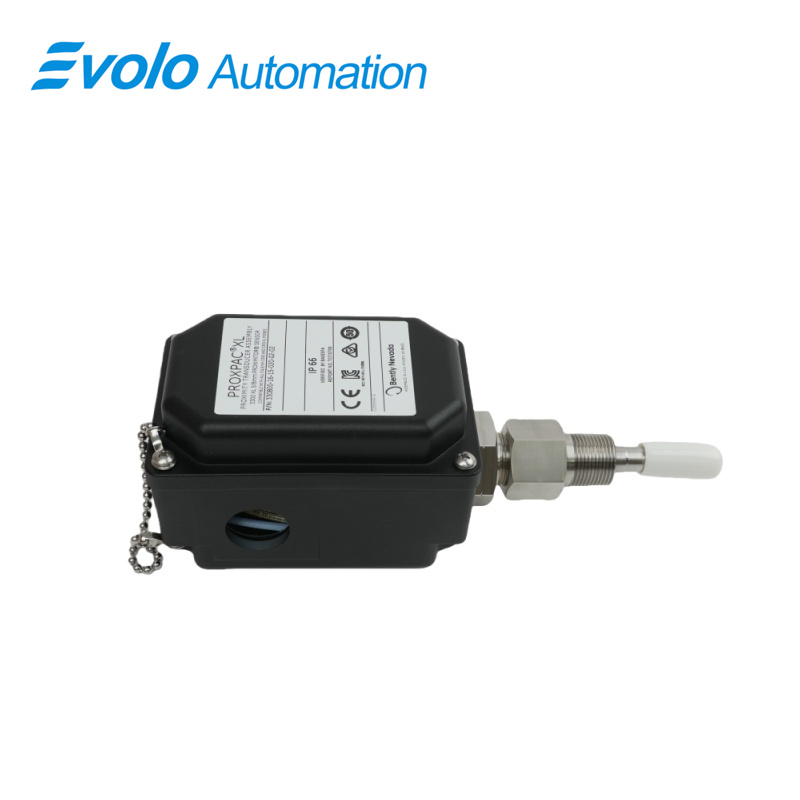

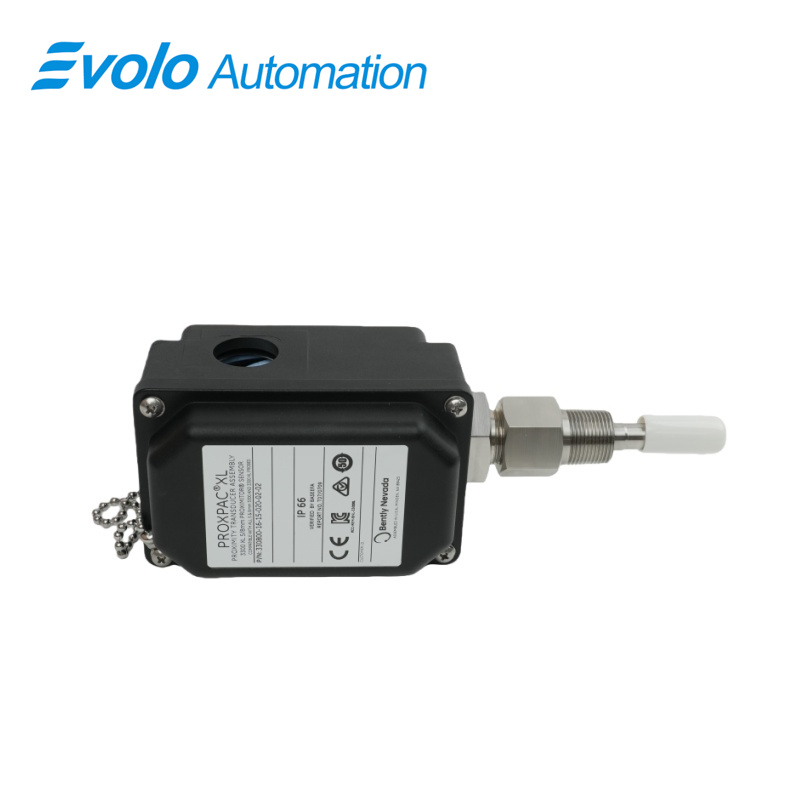

330800-16-15-020-02-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330800-16-15-020-02-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330800-16-15-020-02-02 PROXPAC XL Proximity Transducer is a fully integrated, self-contained proximity sensing solution designed for high-precision industrial automation applications. This assembly combines a 3300 XL 8 mm probe with an integrated Proximitor sensor, eliminating the need for separate Proximitor housings or extension cables. Its PPS (Polyphenylene Sulfide) housing reinforced with glass and conductive fibers ensures exceptional durability and electrostatic charge dissipation, while offering IP66 and Type 4X environmental protection. The PROXPAC XL transducer supports linear range of 2 mm, recommended gap of 1.27 mm, output resistance of 50 Ω, and supply sensitivity under 2 mV per volt change, providing reliable performance across extreme temperatures from -52°C to +100°C (-62°F to +212°F). With easy field wiring (16 to 24 AWG) and robust NPT mounting options, this transducer delivers superior vibration and shaft monitoring for industrial machinery, enabling precise automation control and predictive maintenance strategies.

Applications

1. Rotating Equipment Monitoring
The PROXPAC XL transducer measures shaft displacement in pumps, turbines, and compressors with shaft diameters from 50.8 mm to 76.2 mm, ensuring accurate vibration monitoring in critical rotating machinery.

2. Predictive Maintenance Systems
Integrated Proximitor sensor technology enables direct connection to monitoring systems, allowing condition-based maintenance that reduces unplanned downtime by up to 30% in industrial plants.

3. Harsh Environment Operation
Its PPS housing rated IP66 and Type 4X allows operation in environments with extreme temperatures, dust, and moisture, making it suitable for chemical processing, oil and gas, and mining facilities.

4. Automation Feedback for Control Loops
Provides precise linear displacement feedback over 2 mm range, supporting automation systems in maintaining tight operational tolerances in high-speed machinery.

5. Compact Installation in Space-Constrained Areas
The self-contained design and integrated probe allow installation in compact areas without requiring additional extension cabling, reducing system complexity and improving field service efficiency.

Specifications

Competitive Advantage

1. Self-Contained Design
Eliminates the need for separate Proximitor housings and extension cables, reducing installation time and potential points of failure.

2. High Environmental Resistance
PPS housing with glass and conductive fiber reinforcement offers superior electrostatic dissipation and IP66/Type 4X protection against harsh industrial environments.

3. Precision Sensing
Maintains a linear range of 2 mm and recommended gap of 1.27 mm, ensuring high-accuracy proximity detection for critical shaft monitoring.

4. Extreme Temperature Performance
Operates reliably between -52°C and +100°C (-62°F to +212°F), supporting applications in both cryogenic and high-temperature environments.

5. Simplified Field Integration
Supports 16 to 24 AWG wiring and standard 3/4-14 NPT mounting threads, providing seamless integration with existing monitoring systems and reducing commissioning complexity.
