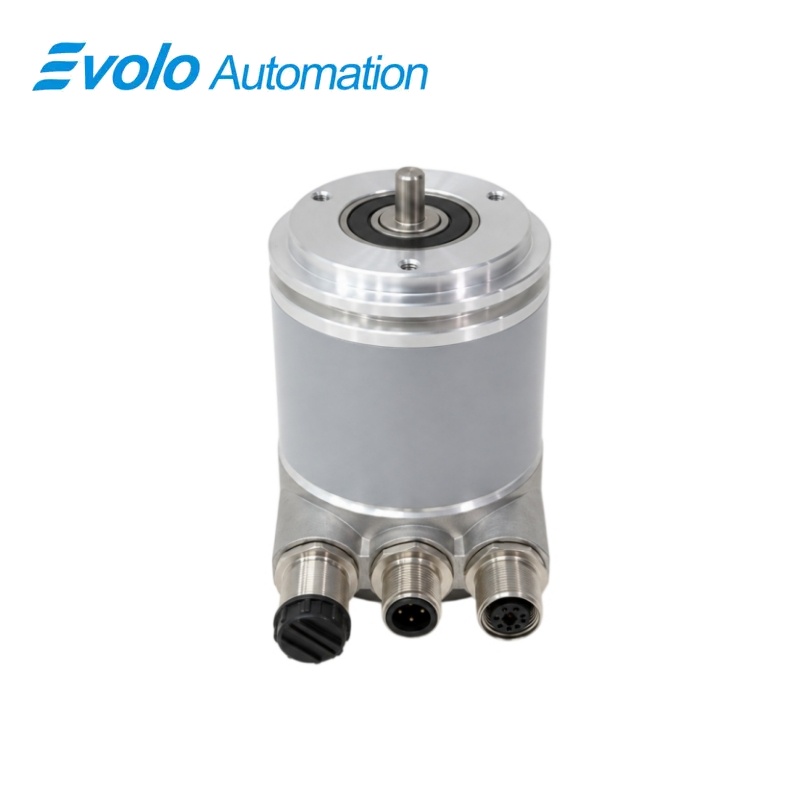

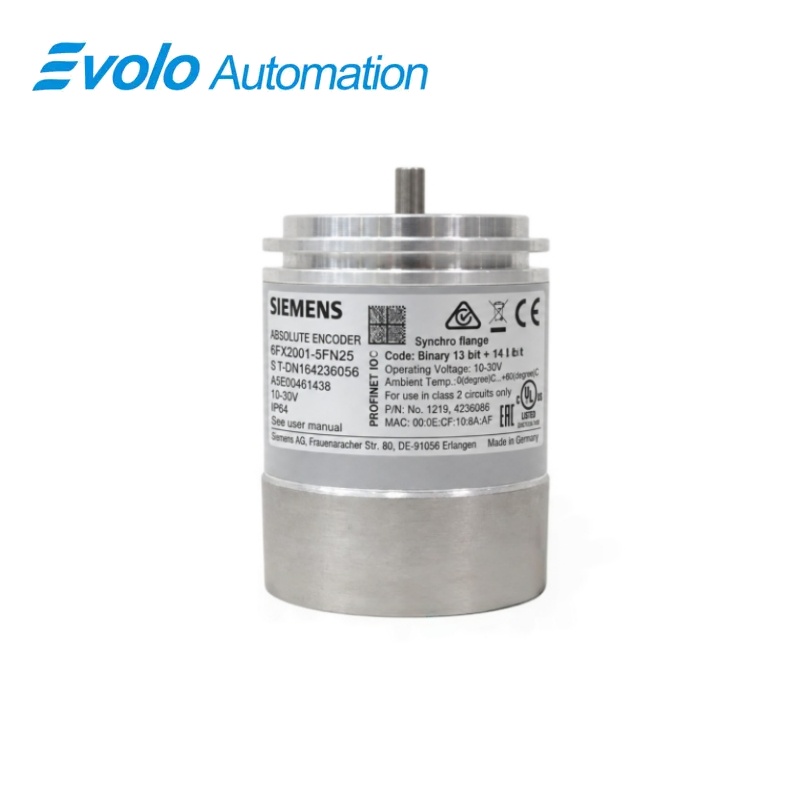

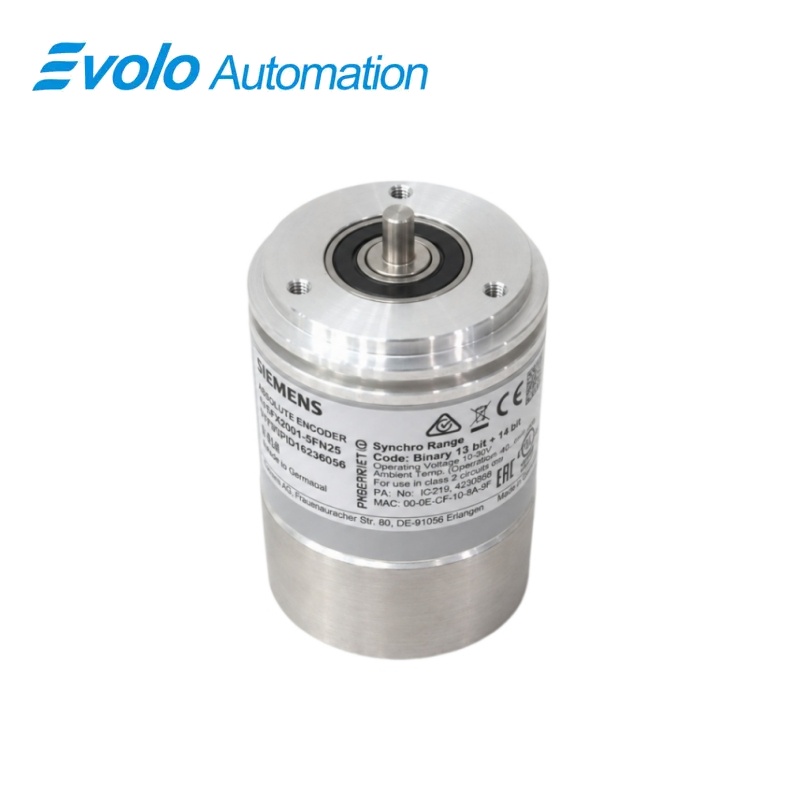

Siemens SIMATIC Absolute Encoder with PROFINET IO 6FX2001-5FN25
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · Siemens motion-control encoders
6FX2001-5FN25 SIMATIC Absolute Encoder with PROFINET IO
This absolute encoder provides a 30-bit position interface with PROFINET IO RT/IRT, two network ports, a 10 to 30 V DC supply and configurable encoder functions.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6FX2001-5FN25 |
| Product Type | Industrial absolute rotary encoder |
| Core Function | Measures shaft position and transmits absolute position data over PROFINET IO with RT/IRT |
| Application or Compatible Series | Motion-control and automation systems requiring a 30-bit PROFINET absolute encoder |
Exact Identification
Match 6FX2001-5FN25 character by character and confirm the complete SIMATIC Absolute Encoder with PROFINET IO designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This absolute encoder provides a 30-bit position interface with PROFINET IO RT/IRT, two network ports, a 10 to 30 V DC supply and configurable encoder functions.
The encoder supplies absolute shaft position without a homing run after power-up. Two M12 network ports support real-time and isochronous real-time communication. Preset, counting direction, resolution and speed-signal functions can be parameterized.
Key Functions
Absolute Position Feedback
The encoder supplies absolute shaft position without a homing run after power-up.
PROFINET RT/IRT Interface
Two M12 network ports support real-time and isochronous real-time communication.
Configurable Encoder Functions
Preset, counting direction, resolution and speed-signal functions can be parameterized.
Official Specifications
| Operating Voltage | 10 to 30 V DC |
|---|---|
| Network Ports | 2 x M12, 4-pin |
| Transfer Rate | 100 Mbit/s |
| Resolution per Revolution | Configurable from 1 to 8192 |
| Code Type | Gray |
| Maximum Mechanical Speed | 6000 rpm |
| Maximum Speed at ±1 LSB Accuracy | 5800 rpm |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Maximum Angular Acceleration | 100000 rad/s² |
| Housing Protection | IP67 |
| Shaft-Input Protection | IP64 |
| Operating Temperature | -40 to +85 °C |
| Net Weight | 0.43 kg |
| Compliance | CE and cULus |
Frequently Asked Questions
Which network should I connect to 6FX2001-5FN25?
Connect the encoder to a supported PROFINET IO network using the specified M12 ports.
What supply range is required by 6FX2001-5FN25?
Provide 10 to 30 V DC through the dedicated four-pin M12 power connector.
Can the resolution of 6FX2001-5FN25 be parameterized?
Yes; configure the required single-turn and total resolution within the supported range.
Does 6FX2001-5FN25 support isochronous operation?
Yes; the interface supports PROFINET IRT and clock-synchronous operation.
What should be recorded before replacing 6FX2001-5FN25?
Save the PROFINET device name, IP settings, telegram, resolution, preset, direction and controller configuration.
What shaft loads must be checked for 6FX2001-5FN25?
Verify axial and radial forces against the permitted values for the actual operating speed.
What should be tested after installing 6FX2001-5FN25?
Check mechanical alignment, counting direction, preset, position accuracy, network diagnostics and safety limits.
Compatibility & Ordering Notes
Compatibility Checklist
- Use a controller and engineering environment supporting the required PROFINET encoder profile.
- Match the shaft coupling, axial and radial loads to the mechanical limits.
- Restore all encoder parameters before enabling motion.
