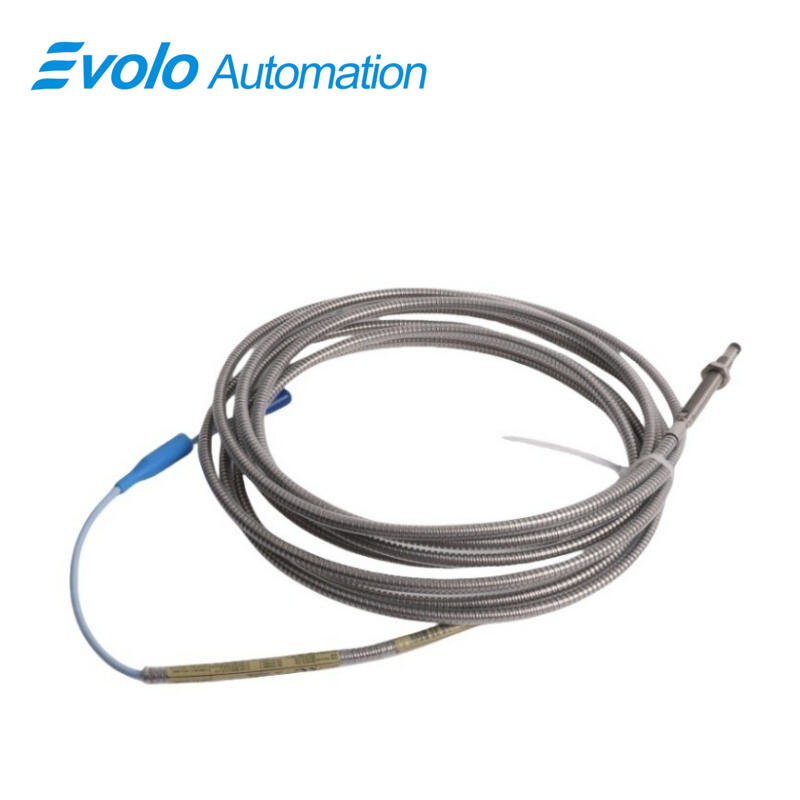

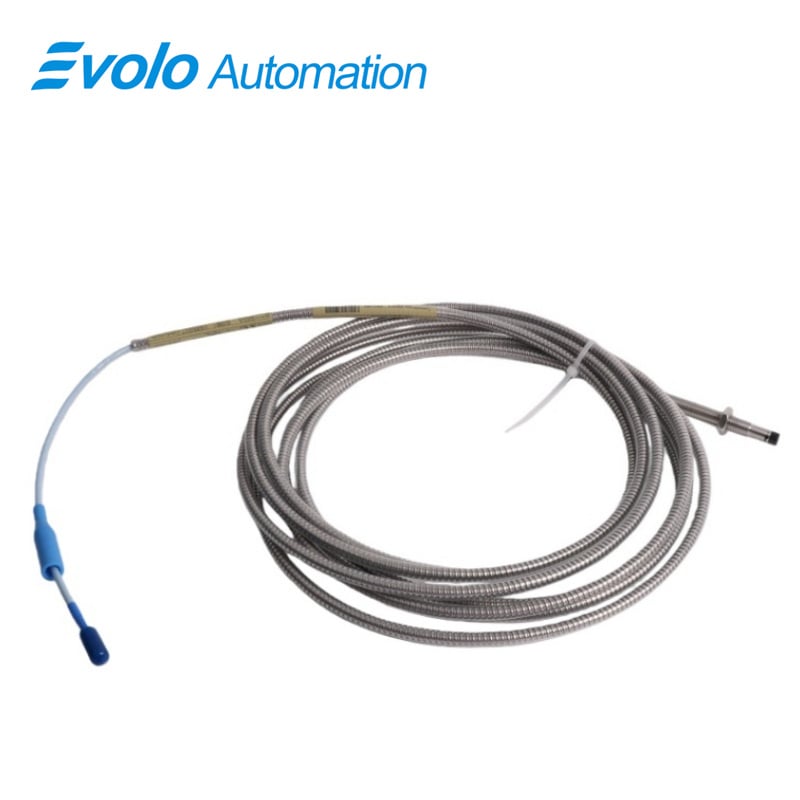

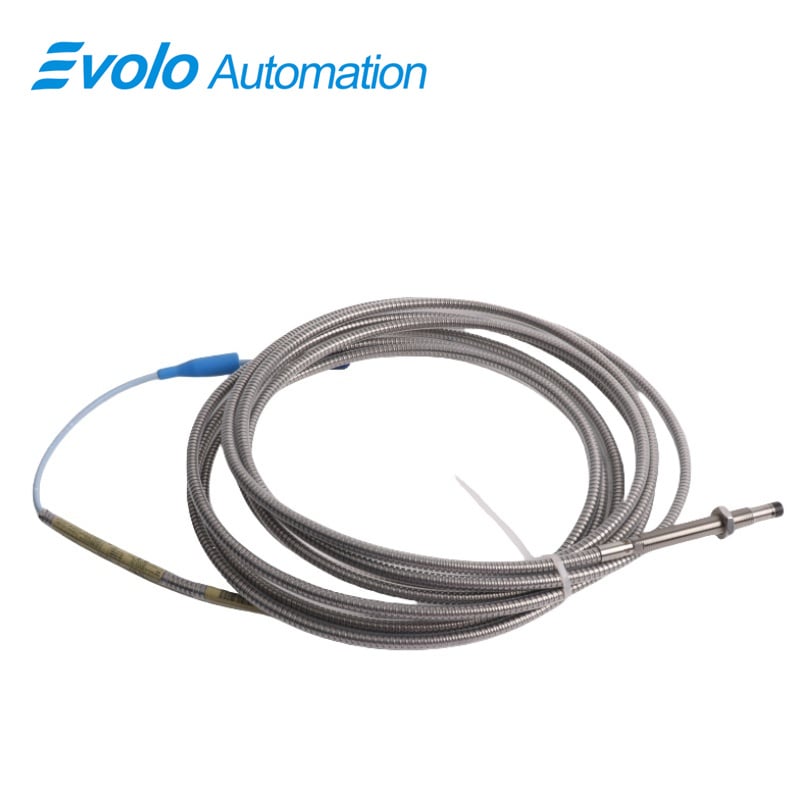

330104-01-17-05-01-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-01-17-05-01-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-01-17-05-01-CN 3300 XL 8 mm Proximity Probe is engineered as an industrial-grade sensing component designed for high-accuracy vibration and position monitoring in advanced automation and turbomachinery environments. Featuring an M10x1 threaded probe case and a miniature coaxial ClickLoc connector, the proximity probe ensures stable mechanical mounting and reliable signal transmission under harsh conditions. With a linear range of 2 mm (80 mils), supply sensitivity below 2 mV per input volt, and operating temperature from −52°C to +177°C, the 3300 XL 8 mm Proximity Probe delivers precise displacement measurement and dynamic waveform acquisition for rotating equipment, compressors, pumps, and fluid-film bearing machines. The 330104-01-17-05-01-CN model complies with CSA, ATEX, and IECEx certifications to support global industrial safety standards, while its 0.5-meter total length and CableLoc architecture ensure a secure installation capable of sustaining 330 N pull strength.
This proximity probe system is compatible with standard 3300 XL extension cables and Proximitor sensors, allowing flexible configuration and interchangeability in automation systems without bench calibration. Its ability to provide oil-blocking functionality through an optional FluidLoc cable further enhances equipment integrity in petrochemical and marine automation settings. In modern predictive maintenance and condition-monitoring platforms, the 3300 XL 8 mm Proximity Probe is widely utilized to support real-time diagnostics, Keyphasor phase reference measurements, and high-speed machine protection, making it an essential sensing device for reliability-focused industrial automation.

Applications

Application 1
Turbomachinery Vibration Monitoring
Used for synchronous and asynchronous vibration detection on turbines and compressors; the 2 mm linear range and low output resistance enable accurate waveform capture for machinery above 3000 RPM.

Application 2
Fluid-Film Bearing Displacement Measurement
Measures shaft displacement in fluid-film bearings, where temperature stability up to 177°C ensures low drift performance during continuous operation in petrochemical plants.

Application 3
Keyphasor Phase and Speed Measurement
Provides precise reference pulses for Keyphasor systems, improving phase angle measurements with timing accuracy suitable for speed calculations >50,000 RPM in rotating assets.

Application 4
Predictive Maintenance in Process Automation
Supports condition-based maintenance and fault diagnosis in automation platforms, enabling early detection of misalignment, rub, and imbalance faults to reduce downtime by up to 30%.

Application 5
Machine Protection Systems
Integrated into safety-critical protection loops for pumps and marine engines, ensuring immediate shutdown actions when displacement excursions exceed specified vibration thresholds.

Specifications

Competitive Advantage

Advantage 1
High Temperature Stability
Operating range from −52°C to +177°C minimizes signal drift compared to standard probes rated only up to 120°C, enhancing reliability in petrochemical processes.

Advantage 2
Certified for Hazardous Industries
CSA, ATEX, and IECEx certifications simplify deployment in explosive atmospheres, reducing compliance integration time by 20%–40% vs. non-certified sensors.

Advantage 3
Robust CableLoc Pull Strength
The 330 N (75 lbf) pull strength prevents cable detachment under vibration shocks, outperforming typical industrial probe cables rated below 200 N.

Advantage 4
Interchangeability without Calibration
Fully interchangeable with 3300 XL systems, extension cables, and Proximitor sensors without bench calibration, lowering service and installation cost by up to 25%.

Advantage 5
FluidLoc Liquid Barrier Option
Optional FluidLoc cable prevents oil and chemical leakage through cable interiors, extending probe service life by up to 1.5× in lubrication-heavy equipment.
