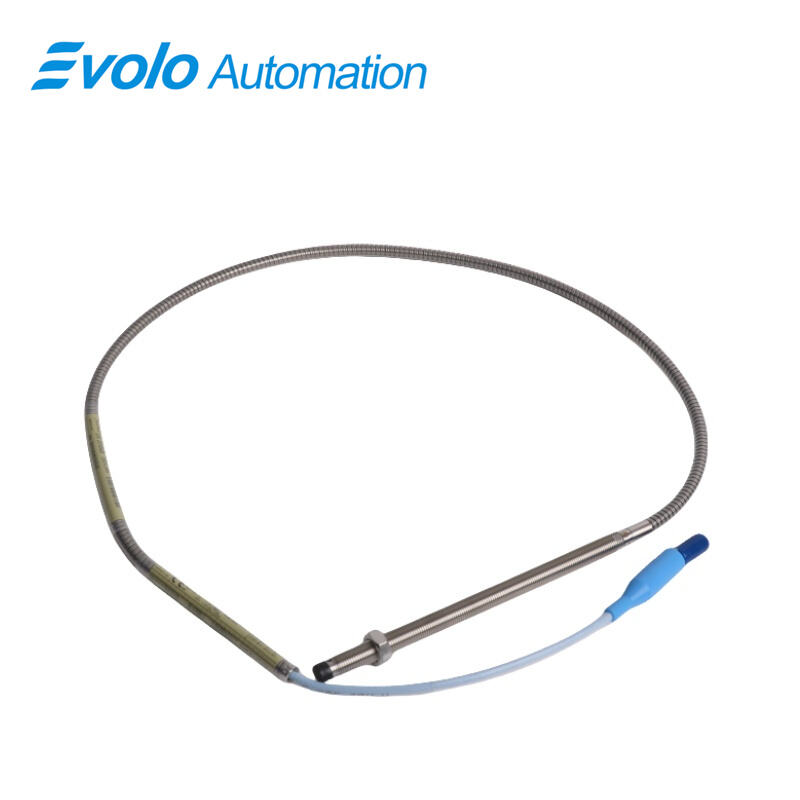

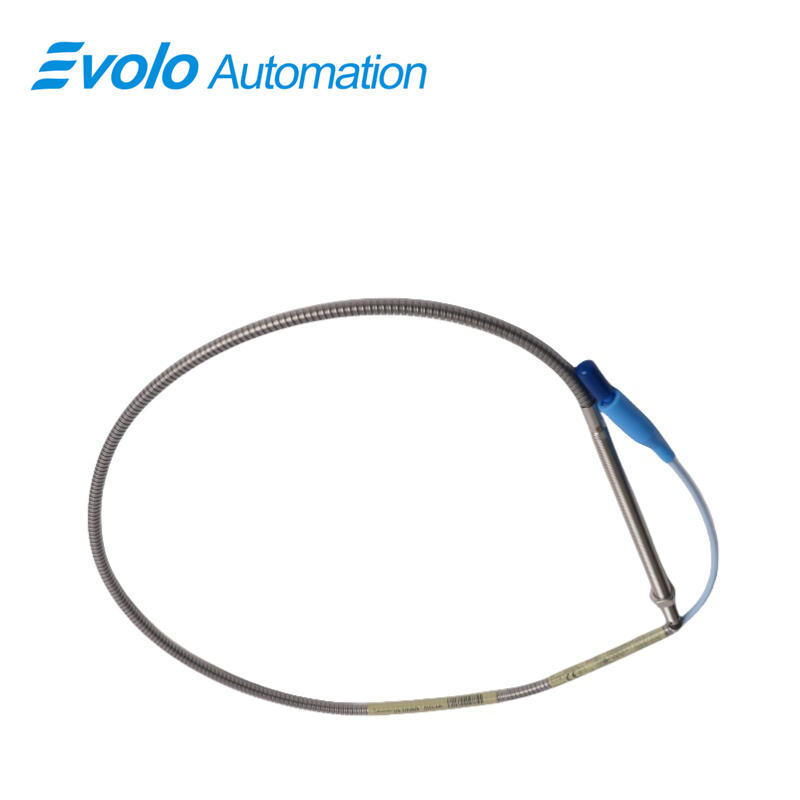

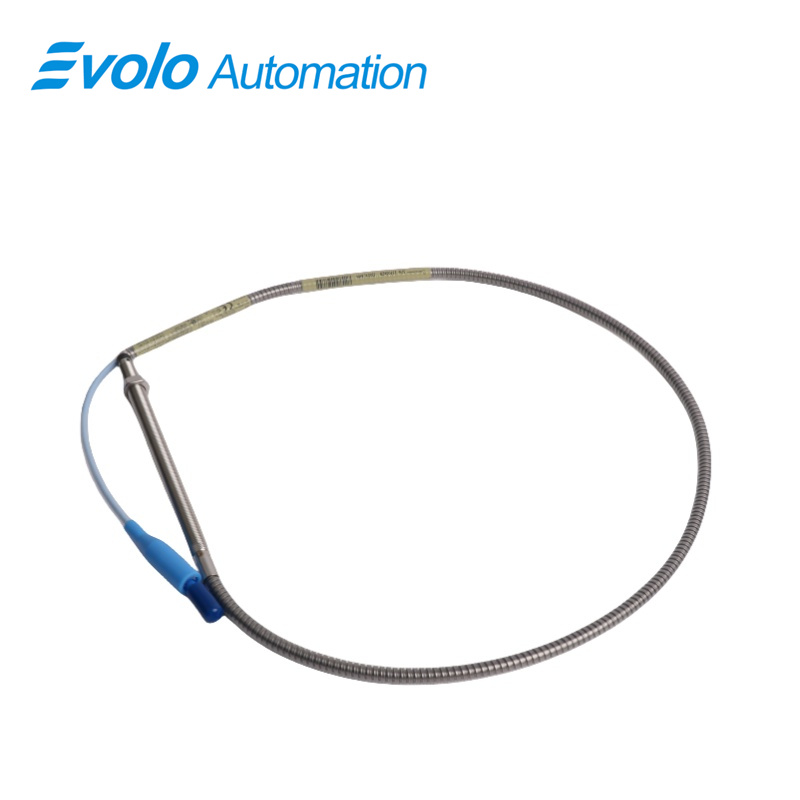

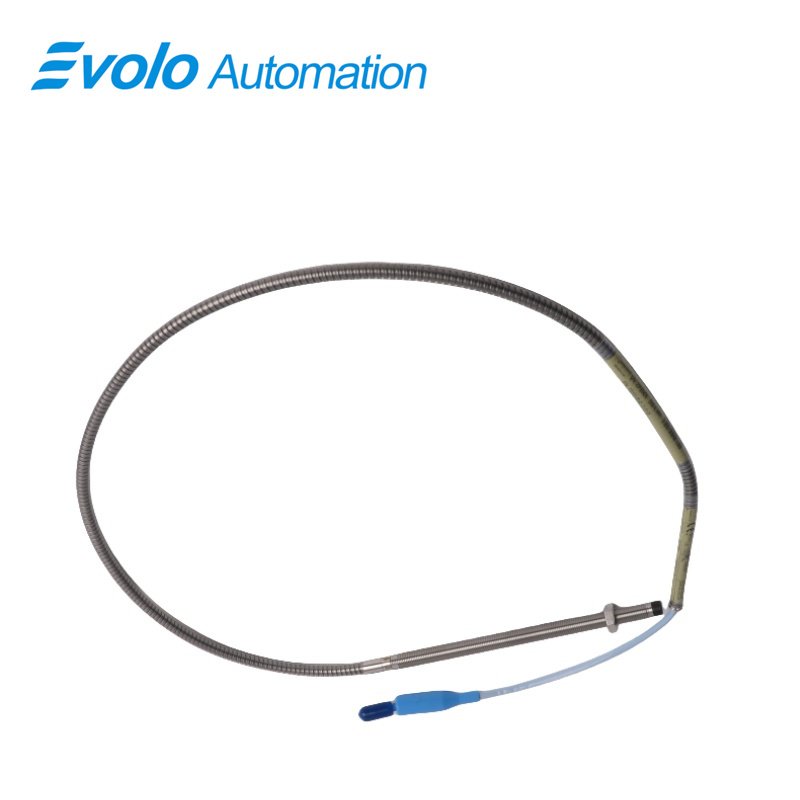

330102-00-68-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-68-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-68-05-02-05 3300 XL 8 mm Proximity Probe is a precision eddy current transducer designed for industrial automation and condition monitoring applications. It provides an output voltage directly proportional to the distance between the probe tip and a conductive target, enabling accurate static position and dynamic vibration measurements on fluid-film bearing machinery. Featuring a linear range of 2 mm (80 mils) and reliable operation from -52°C to +177°C (-62°F to +350°F), it supports Keyphasor speed and phase reference measurements. The probe incorporates a patented TipLoc molding method for enhanced probe tip durability and a CableLoc design delivering 330 N (75 lbf) pull strength to secure cable attachment. Available with a miniature coaxial ClickLoc connector and optional FluidLoc cable to prevent oil leakage, the 3300 XL 8 mm probe is backward compatible with other 3300 series components, ensuring seamless integration into automated monitoring systems.

Applications

Application 1: Fluid-Film Bearing Vibration Measurement
Enables real-time vibration monitoring of turbines, compressors, and pumps, detecting imbalance and misalignment early to support predictive maintenance in automated systems.

Application 2: Shaft Position Monitoring for Rotating Machinery
Provides precise static position data for Keyphasor reference and speed calculations, enabling automated rotational speed and phase control.

Application 3: Automated Condition-Based Maintenance Systems
Integrates directly with PLCs or DCS, delivering continuous feedback for automated health monitoring, minimizing unplanned downtime, and reducing maintenance costs.

Application 4: High-Temperature Operation
Operates reliably in extreme conditions up to +177°C (+350°F), suitable for high-temperature processes like steam turbines and industrial compressors in automated plants.

Application 5: Space-Constrained Installations
Compact design and backward compatibility with 5 mm 3300 probes allow installation in limited spaces without sacrificing measurement precision, supporting flexible automated system layouts.

Specifications

Competitive Advantage

Advantage 1: Robust Mechanical Bond
Patented TipLoc molding strengthens the bond between probe tip and body, ensuring durability and reliability in high-vibration industrial environments.

Advantage 2: Secure Cable Connection
CableLoc design provides 330 N (75 lbf) pull strength, preventing accidental disconnection and ensuring continuous automated monitoring and accurate data capture.

Advantage 3: High Environmental Tolerance
Operates from -52°C to +177°C (-62°F to +350°F) and supports optional FluidLoc cable for fluid containment, maintaining performance in harsh industrial environments.

Advantage 4: API 670 Compliance
Meets API 670 standards for mechanical configuration, linearity, and temperature stability, guaranteeing accurate vibration and position measurements in automated machinery protection systems.

Advantage 5: Interchangeability and Flexibility
Compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, enabling easy replacement and upgrades without recalibration, reducing downtime in automated systems.
