Siemens 6ES7193-4JA00-0AA0 SIMATIC ET 200S Bus Terminating Module
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Use this component for an ET 200S station bus assembly.
- Install all required terminal modules before fitting the terminating module.
- Latch the terminating module to the final terminal module on the rail.
- Keep terminal-base protective covers and external bus-cable terminating resistors separate from this component.
- After a backplane interruption during operation or removal and refitting under voltage, power-cycle the complete station.

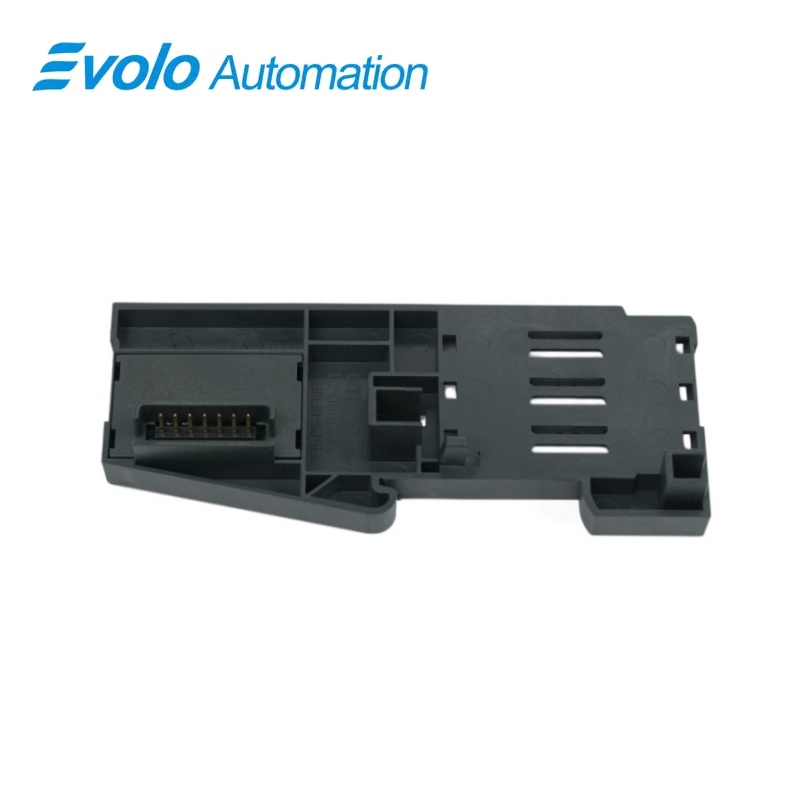

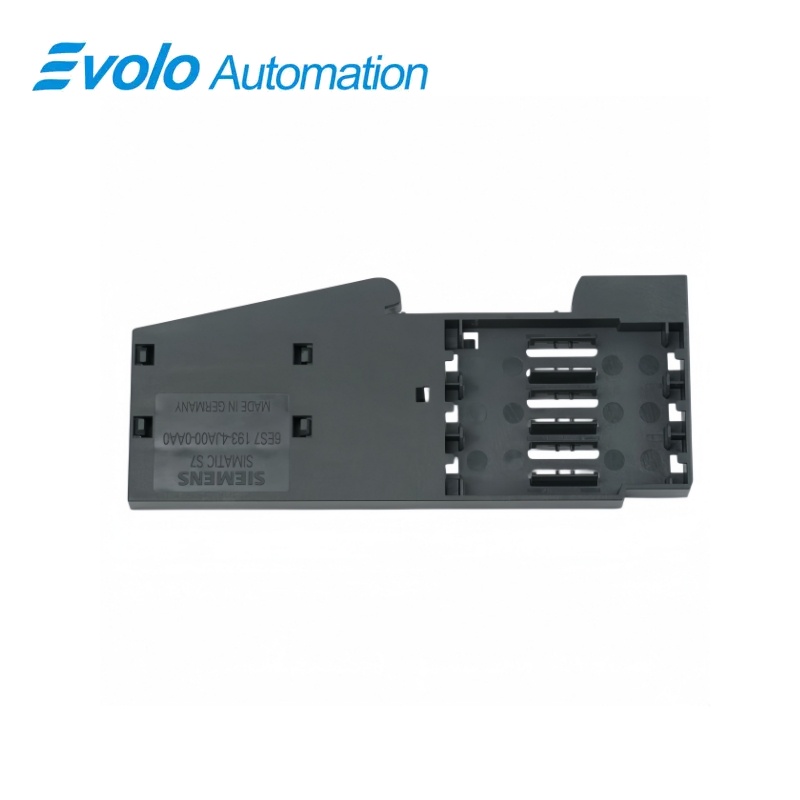

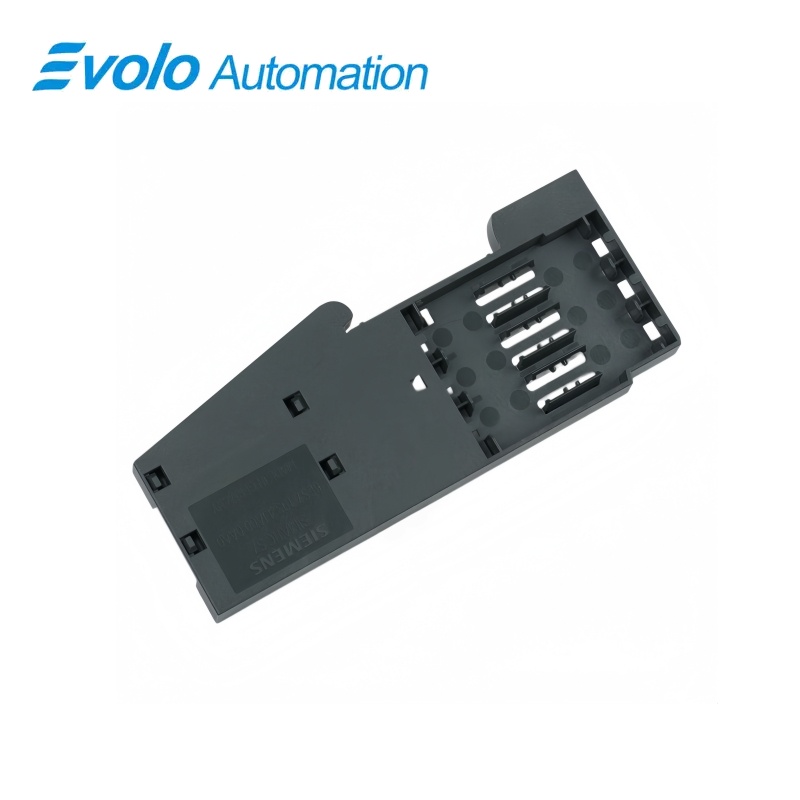

6ES7193-4JA00-0AA0 SIMATIC ET 200S Bus Terminating Module
The replacement terminating module for the end of an ET 200S assembly, mechanically joined to the final terminal module to complete the station.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7193-4JA00-0AA0 |
| Product Type | Station bus terminating module |
| Core Function | Completing the station backplane bus |
| Application | Right-hand end of an ET 200S station |
Required station ending
The ET 200S is not ready for operation without its terminating module.
Last position
The terminating module follows the last terminal module at the end of the station.
Latched assembly
It pivots onto the DIN rail and locks into the terminal module to its left.
Product Overview
6ES7193-4JA00-0AA0 completes the ET 200S backplane-bus assembly at the end of the station, immediately after the final terminal module.
It is a dedicated station component rather than an electronic I/O module, and its removal or interruption of the backplane during operation requires a complete station power cycle after restoration.
Key Functions
Complete the ET 200S station assembly
The terminating module closes the distributed I/O assembly, which is not ready for operation if the module is absent.
Latch to the final terminal module
The module hooks onto the rail, pivots backward and slides left until it locks into the installed final terminal module.
Support planned station maintenance
After removal and refitting under voltage or a restored backplane interruption, switch the complete ET 200S supply off and on to establish a defined station state.
Official Specifications
| Dimensions (Width × Height × Depth) | 30 × 106 × 7.5 mm |
|---|---|
| Approximate Weight | 50 g |
| Mechanical Attachment | DIN-rail attachment with a locking connection to the final terminal module |
| Degree of Protection in an ET 200S Assembly | IP20 according to IEC 60529 |
| ET 200S Operating Ambient Temperature | 0 to +60 °C with horizontal installation; 0 to +40 °C in other mounting positions |
| ET 200S Operating Relative Humidity | 15 to 95%, without condensation |
| ET 200S Operating Air Pressure | 795 to 1080 hPa; altitude −1000 to 2000 m |
| Transport and Storage Temperature | −40 to +70 °C in the original packaging |
Frequently Asked Questions
Can my ET 200S station start without 6ES7193-4JA00-0AA0 installed?
The ET 200S is not ready for operation without the terminating module.
What must already be in place before I fit 6ES7193-4JA00-0AA0?
The station’s final terminal module must already be installed.
How do I lock 6ES7193-4JA00-0AA0 into the completed assembly?
Fit it onto the rail, pivot it backward and slide it left until it audibly locks into the last terminal module.
How do I release 6ES7193-4JA00-0AA0 when servicing the station?
Push the last terminal module’s slider down to its stop with a screwdriver, move the terminating module right and pivot it off the rail.
What must I do after 6ES7193-4JA00-0AA0 has been removed and refitted under voltage?
Switch the complete ET 200S power supply off and on again to establish a defined station state.
Will 6ES7193-4JA00-0AA0 add another set of field I/O channels?
The module completes the ET 200S station bus rather than providing field input or output channels.
Should 6ES7193-4JA00-0AA0 remain at its old position after I extend the station?
The terminating module belongs after the final terminal module of the completed assembly.
