22810-00-05-10-02 SENSOR PROBE

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	22810-00-05-10-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

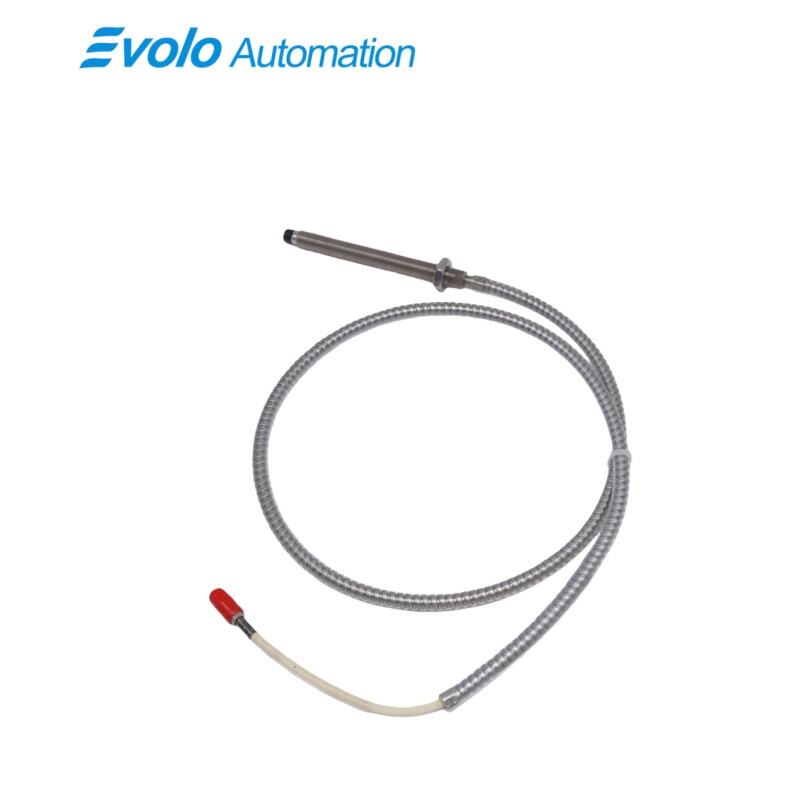

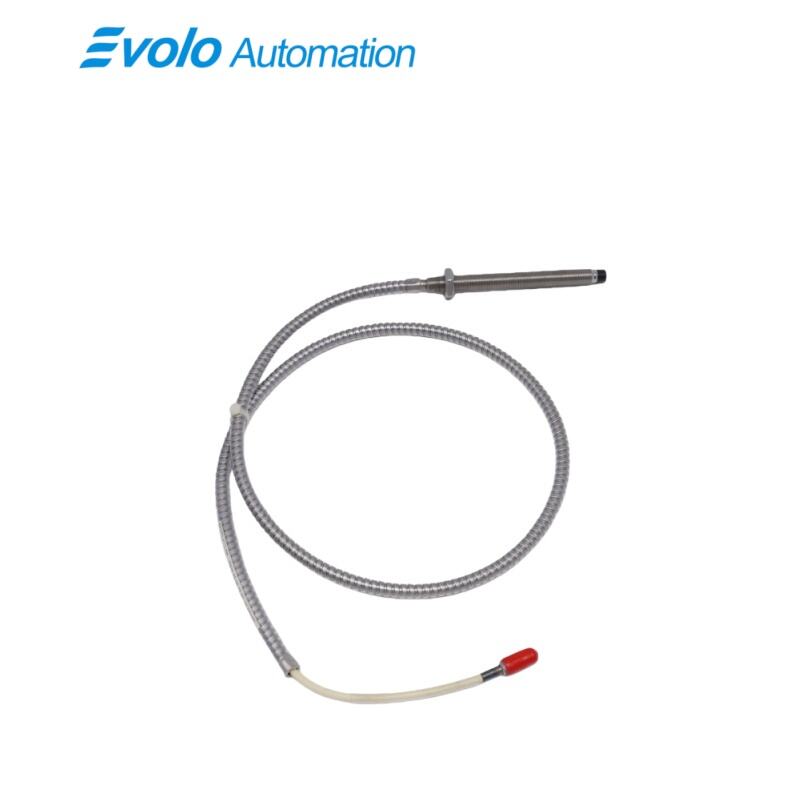

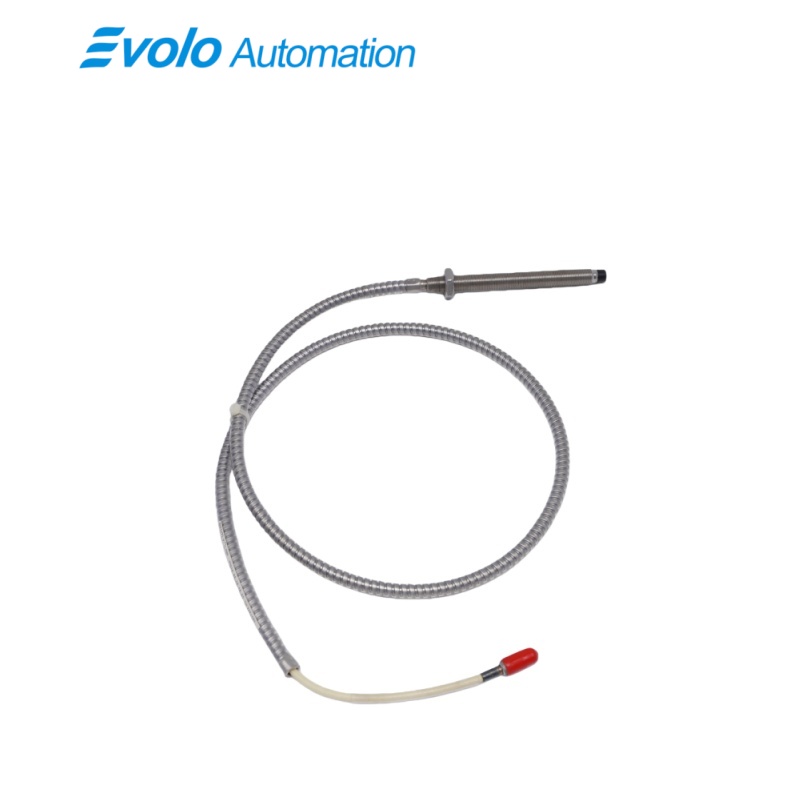

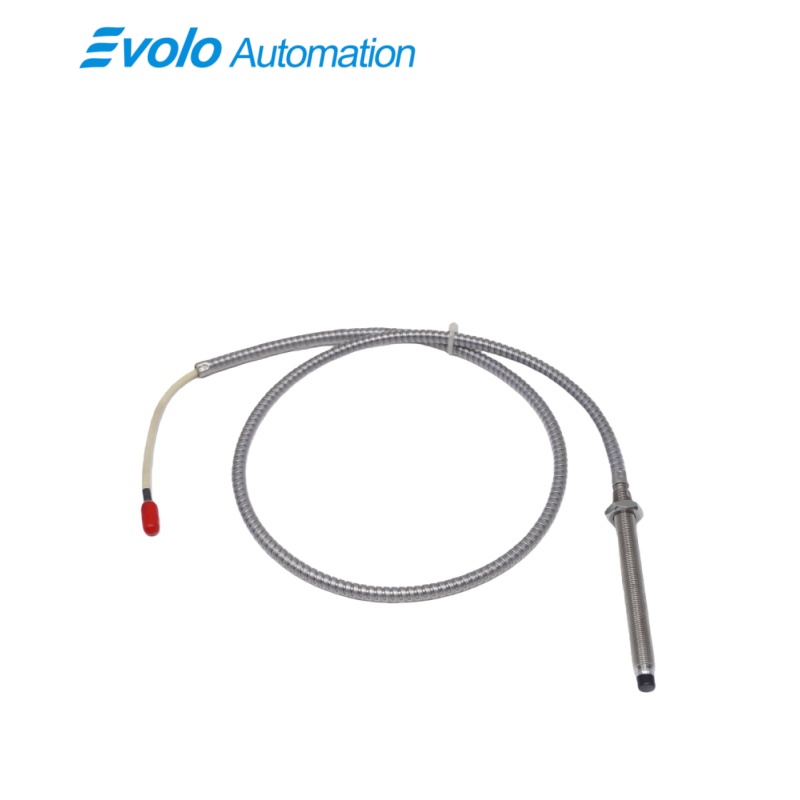

The 22810-00-05-10-02 is a high-performance industrial Sensor Probe engineered by Bently Nevada for critical vibration and displacement measurement in demanding rotating machinery applications. This precision probe represents a robust, ready-to-install sensing solution, distinguished by its unique configuration tailored for specific installation geometries. A key characteristic is its integration with a 10-pin MIL-STD-26482 circular connector, providing a secure, military-grade interface for reliable signal transmission in high-vibration environments. The probe comes with a substantial 5.0-meter integrated cable, offering ample reach for flexible system integration in large machinery layouts, from the measurement point to the junction box or monitoring system.

Constructed from premium-grade titanium alloy, this sensor probe offers an exceptional strength-to-weight ratio alongside superior corrosion resistance, making it ideally suited for harsh environments in aerospace, marine, and chemical processing industries where exposure to corrosive agents is a concern. The probe assembly includes stainless steel fittings and is designed with a 1/2-20 UNF mounting thread, ensuring a secure and precise mechanical interface with standard mounting locations on machinery housings. Its physical design incorporates a 25.4 mm standoff adapter (Option C) and a 15.0 mm probe penetration depth (Option D), providing engineers with critical dimensions to ensure optimal positioning relative to the target surface for accurate measurement.

Applications

This sensor probe is ideally deployed on high-performance rotating equipment such as gas turbines, aerospace test rigs, and high-speed compressors where its titanium alloy construction provides essential resistance to high temperatures and corrosive atmospheres. Its 5.0-meter cable length and 10-pin MIL-STD connector offer reliable, long-distance signal transmission for condition monitoring systems tasked with protecting these valuable and critical assets.

The probe's specific mechanical configuration, including the 25.4 mm standoff and 15.0 mm penetration depth, makes it suitable for applications with precise spatial requirements, such as monitoring shaft vibration and axial position within tightly engineered machinery housings in the energy and heavy manufacturing sectors. The 1/2-20 UNF thread allows for secure mounting directly onto equipment, ensuring stable and repeatable measurements.

With its wide operating temperature range (-51°C to +187°C) and robust stainless steel fittings, the probe is applicable in extreme environment industries like offshore oil & gas platforms and marine propulsion systems. Here, it can reliably monitor bearings and shafts on pumps and turbines, enduring salt spray, humidity, and thermal cycles while providing accurate data for predictive maintenance programs.

Specifications

Competitive Advantage

1.Premium Titanium Alloy Construction for Superior Performance

The use of titanium alloy as the primary material provides a significant advantage over standard stainless steel probes. This material offers an exceptional combination of high strength, low weight (0.16kg), and outstanding corrosion resistance, making the probe ideal for aggressive chemical environments, saline atmospheres, and applications where minimizing added mass on high-speed machinery is critical. It ensures long-term durability and reliability where other materials might degrade or fail.

2.Military-Spec Connector and Extended Cable for Reliable Integration

Featuring a 10-pin MIL-STD-26482 circular connector, this probe provides a robust, vibration-resistant, and environmentally sealed connection interface that exceeds the reliability of standard industrial connectors. Coupled with a generous 5.0-meter integrated cable, this design ensures secure signal transmission over extended distances in complex machinery layouts, reducing the need for additional junction points and potential failure sources, thereby enhancing overall system integrity.

3.Precision-Engineered Mechanical Interface for Accurate Mounting

The probe's design includes precise mechanical specifications—a 1/2-20 UNF mounting thread, a 25.4 mm standoff adapter, and a 15.0 mm probe penetration depth. This engineered interface allows for accurate, repeatable, and secure installation directly onto machinery. It eliminates guesswork and custom machining, ensuring the probe is positioned at the optimal distance from the target for maximum measurement accuracy and linearity within its 0.30mm to 2.3mm range, directly contributing to more reliable condition monitoring data.
