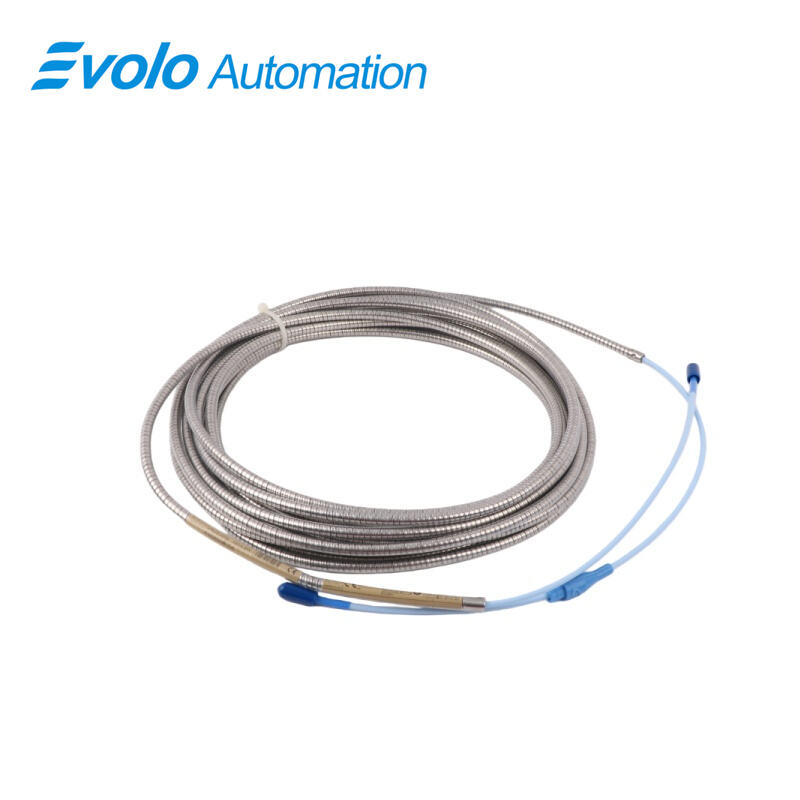

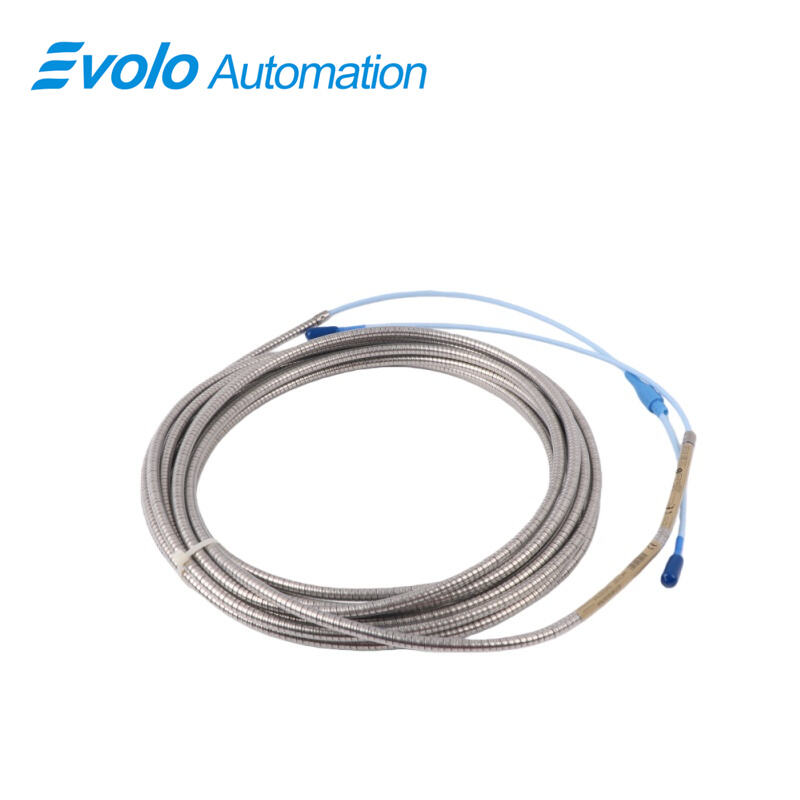

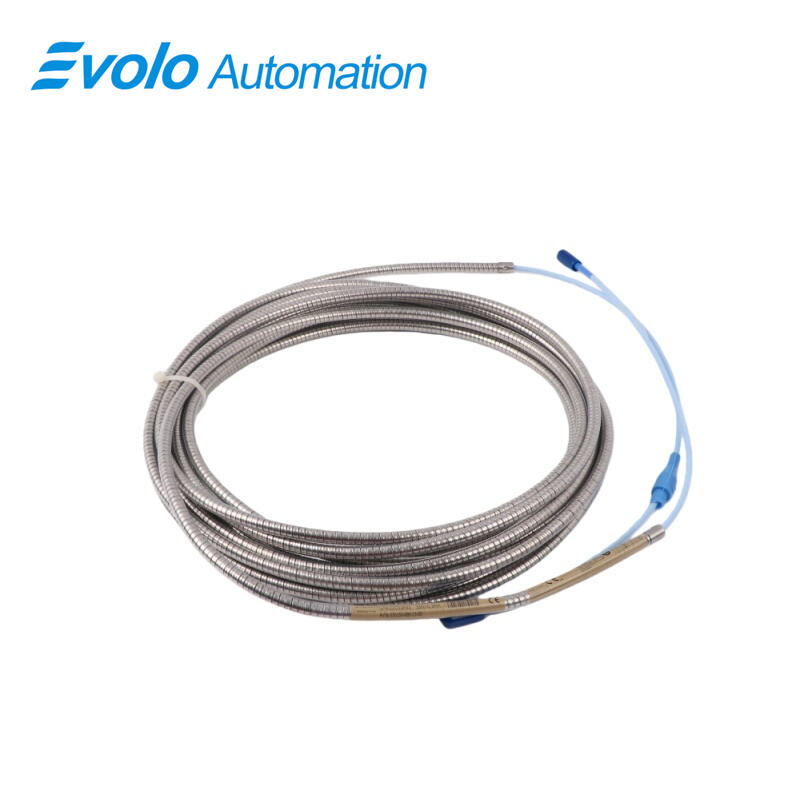

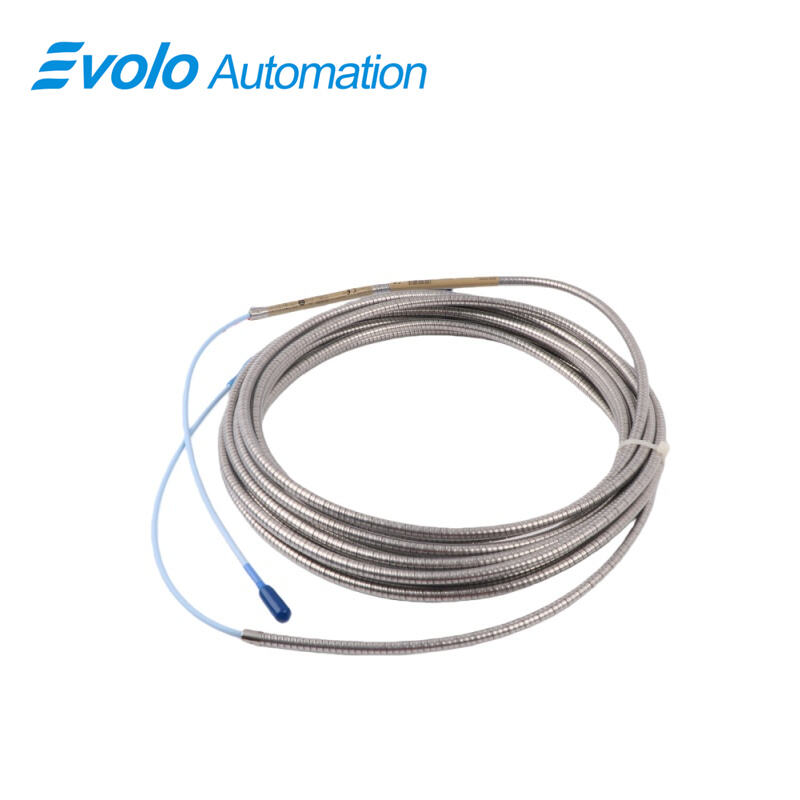

330130-085-10-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-085-10-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-085-10-05 3300 XL Standard Extension Cable is a high-reliability industrial cable designed for seamless integration with 3300 XL 8 mm proximity probes in critical automation systems. Measuring 8.5 meters (27.9 feet) in total length, this extension cable features 75 Q triaxial construction with fluoroethylene propylene (FEP) insulation, providing robust electrical shielding, high signal integrity, and protection against harsh industrial environments. Equipped with a miniature ClickLoc connector and optional FluidLoc cable, it delivers 330 N (75 lbf) pull strength while preventing oil or liquid leakage from the machine interior. The cable supports linear ranges up to 2 mm (80 mils) and frequencies from 0 to 10 kHz, maintaining less than 2 mV change in output per volt of supply variation. CSA, ATEX, and IECEx approvals enable safe deployment in hazardous areas. Fully compatible with 3300 XL probes and Proximitor Sensors, this extension cable ensures reliable, high-precision measurement of both vibration and position in turbines, compressors, pumps, and other rotating machinery, meeting API 670 standards for performance, temperature stability, and interchangeability.

Applications

Vibration and Position Monitoring
The 3300 XL extension cable transmits high-fidelity signals from proximity probes, enabling accurate measurement of both dynamic vibrations and static positions on fluid-film bearing machines.

Extended Reach for Remote Sensors
With 8.5 meters of cable length, the system can position probes in optimal locations while connecting to monitors or Proximitor Sensors located at a distance, supporting flexible automation layouts.

Hazardous Area Automation
CSA, ATEX, and IECEx approvals allow the cable to safely operate in explosive or flammable industrial environments, ensuring reliable signal transmission in automation systems within petrochemical and chemical plants.

High-Frequency Signal Transmission
Supports frequency response from 0 to 10 kHz over extended wiring lengths up to 305 meters (1000 feet), enabling precise monitoring of high-speed rotating machinery without signal degradation.

Fluid-Protected Installations
Optional FluidLoc cable prevents oil or liquid leakage along the cable’s interior, maintaining safe operation and signal integrity in lubricated equipment or high-temperature environments.

Specifications

Competitive Advantage

High Signal Integrity
Triaxial 75 Q construction with FEP insulation reduces EMI/RFI interference and preserves accurate voltage output, maintaining reliable data from connected 3300 XL probes.

Extended Reach Capability
8.5-meter cable length provides flexibility for probe placement and routing in complex industrial installations, without compromising linear range or frequency response.

Robust Mechanical Design
ClickLoc connectors and FluidLoc cable option provide 330 N (75 lbf) pull strength, securing the connection between probe and cable in high-vibration environments.

Hazardous Area Compliance
CSA, ATEX, and IECEx approvals ensure the cable can be safely used in explosive atmospheres, expanding its suitability for global industrial automation deployments.

API 670 Standards Conformance
Designed to meet API 670 requirements for linear range, mechanical configuration, and temperature stability, the cable supports high-performance automation and condition monitoring systems.
