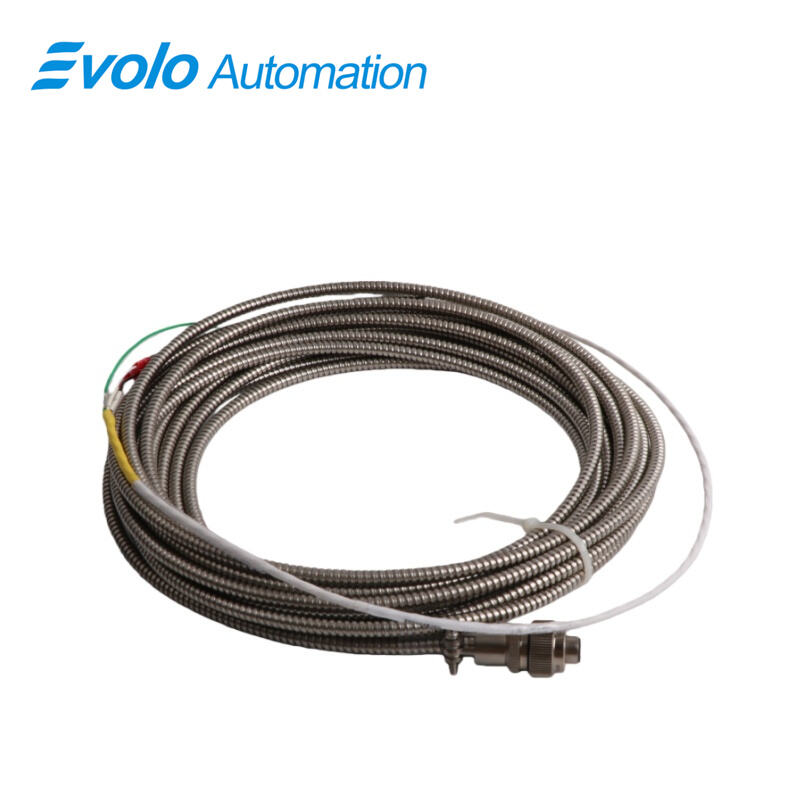

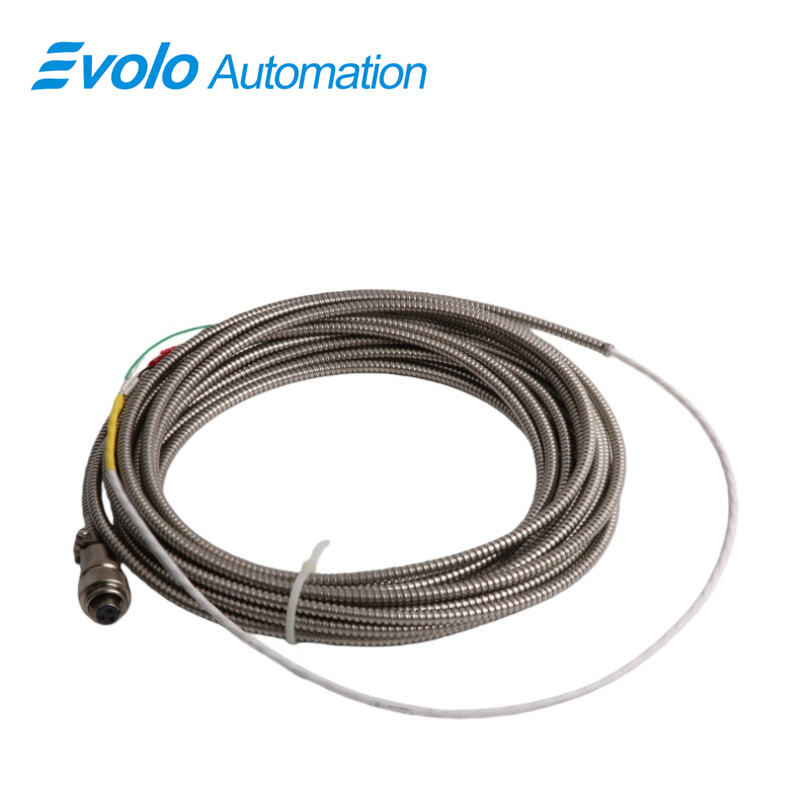

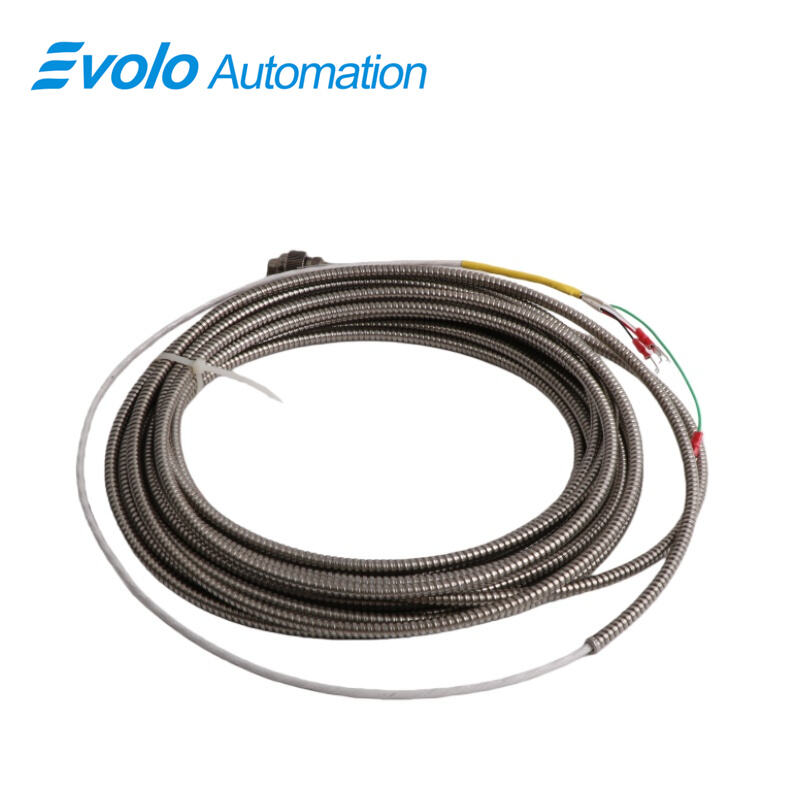

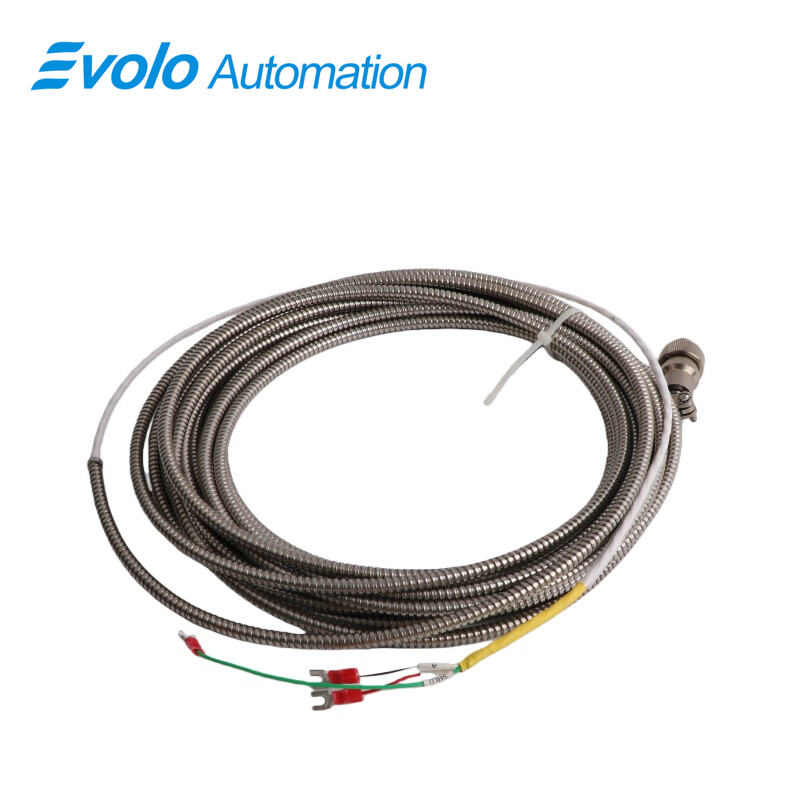

16710-33 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	16710-33
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 16710-33 Interconnect Cable is a high-performance wiring solution designed for industrial, automation, and control applications where reliable signal transmission and robust electrical connectivity are essential. With a standard length of 33 feet (approximately 10 meters), this interconnect cable provides ample reach for equipment interconnections, while also offering customizable lengths ranging from 3 feet up to 99 feet (1 to 30 meters) to accommodate specialized installation requirements. The flexibility in length ensures seamless integration into diverse setups, from compact control panels to large-scale machinery layouts.

Constructed with high-purity copper conductors, the 16710-33 Interconnect Cable guarantees minimal resistance and superior conductivity, essential for maintaining signal integrity across both analog and digital communication lines. Typically built with 24 AWG conductors, the cable is suitable for a wide range of low-voltage applications. The conductor is protected by a durable PVC, FEP, or PTFE insulation layer, selected based on the environmental conditions to provide excellent thermal stability, chemical resistance, and electrical insulation. The outer jacket, made of flexible PVC or thermoplastic elastomer, enhances durability while maintaining flexibility for routing through tight spaces or around corners.

Designed for versatility, the 16710-33 Interconnect Cable supports control, data, and signal transmission with a rated voltage of 220 V AC/DC. Its resistance of less than 1 Ω per 10 meters ensures efficient energy transfer, while the high insulation resistance of over 100 MΩ provides reliable protection against leakage currents and electrical noise. Typical capacitance ranges from 30 to 50 pF per foot, ensuring stable signal propagation with minimal attenuation. For applications involving high-speed or impedance-sensitive signals, the cable maintains an impedance between 50 Ω and 100 Ω, guaranteeing consistent performance across communication protocols.

Color-coded or standard black variants facilitate easy identification during installation and maintenance, reducing wiring errors and improving operational efficiency. The 16710-33 Interconnect Cable is engineered for longevity, with robust mechanical properties to resist abrasion, bending, and environmental stresses. Ideal for automation systems, industrial controllers, instrumentation, and machinery interconnections, this interconnect cable ensures reliable electrical performance, high flexibility, and superior safety standards in demanding operational environments.

Applications

Industrial Control Systems

The 16710-33 Interconnect Cable is ideal for connecting components within complex industrial control systems. Its high-purity copper conductors ensure reliable transmission of analog, digital, or control signals across distances up to 33 ft (≈10 m), supporting accurate communication between sensors, actuators, and controllers. For customized setups, the cable can be ordered in lengths ranging from 3 ft to 99 ft (≈1 m – 30 m), allowing flexible system design and installation.

Signal Transmission and Instrumentation

Designed with a typical 24 AWG conductor and impedance ranging from 50 Ω to 100 Ω, this cable efficiently transmits both analog and digital signals with minimal interference. Its low resistance (≤ 1 Ω per 10 m) and high insulation resistance (≥ 100 MΩ) ensure signal integrity, making it suitable for precision instrumentation and measurement applications in manufacturing, automation, and testing environments.

Harsh Environment Compatibility

With insulation options including PVC, FEP, or PTFE and a flexible jacket made from PVC or thermoplastic elastomer, the 16710-33 cable is well-suited for diverse industrial environments. It can tolerate temperature extremes and mechanical stress, while its multi-color or standard black color coding simplifies identification and installation in complex wiring layouts.

Versatile Power and Control Applications

Rated for 220 V AC/DC operation, this cable can safely handle low-voltage power transmission alongside control signals. Its construction supports reliable operation in control panels, distributed automation systems, and inter-equipment connectivity, ensuring consistent performance for both power delivery and signal communication.

Custom Integration Solutions

The flexibility in length, conductor material, and insulation type allows the 16710-33 Interconnect Cable to be tailored for specific industrial applications. Whether used in factory automation, robotics, or process control, this cable provides a durable, high-performance solution for connecting devices with precision and reliability.

Specifications

Competitive Advantage

High-Quality Conductor Materials

The cable utilizes high-purity copper (OFC or bare), ensuring superior electrical conductivity, minimal signal loss, and long-term reliability, even in demanding industrial environments.

Flexible Length Options

With a standard length of 33 ft (≈10 m) and custom lengths ranging from 3 ft to 99 ft (≈1–30 m), the 16710-33 cable provides versatile installation options, reducing waste and enabling precise fit for various applications.

Robust Insulation and Jacket

Insulation options include PVC, FEP, or PTFE, and the outer jacket is made of flexible PVC or thermoplastic elastomer. This combination delivers excellent mechanical protection, high thermal resistance, and adaptability to harsh environmental conditions.

Reliable Electrical Performance

Rated for 220 V AC/DC with low resistance (≤ 1 Ω per 10 m) and high insulation resistance (≥ 100 MΩ), the cable guarantees stable power and signal transmission. Typical capacitance of 30–50 pF/ft supports accurate analog and digital signal propagation.

Optimized Signal Transmission

Designed with an impedance range of 50–100 Ω for signal cables, it ensures minimal signal reflection and interference, making it suitable for sensitive analog, digital, and control signal applications.

Easy Identification and Installation

Multi-color or standard black color coding simplifies wiring management and reduces installation errors, improving overall system efficiency and maintenance convenience.

Versatility Across Applications

Compatible with both analog and digital systems, as well as control signals, the 16710-33 interconnect cable meets diverse industrial and automation requirements, making it a reliable choice for OEMs, machinery, and complex electrical systems.
