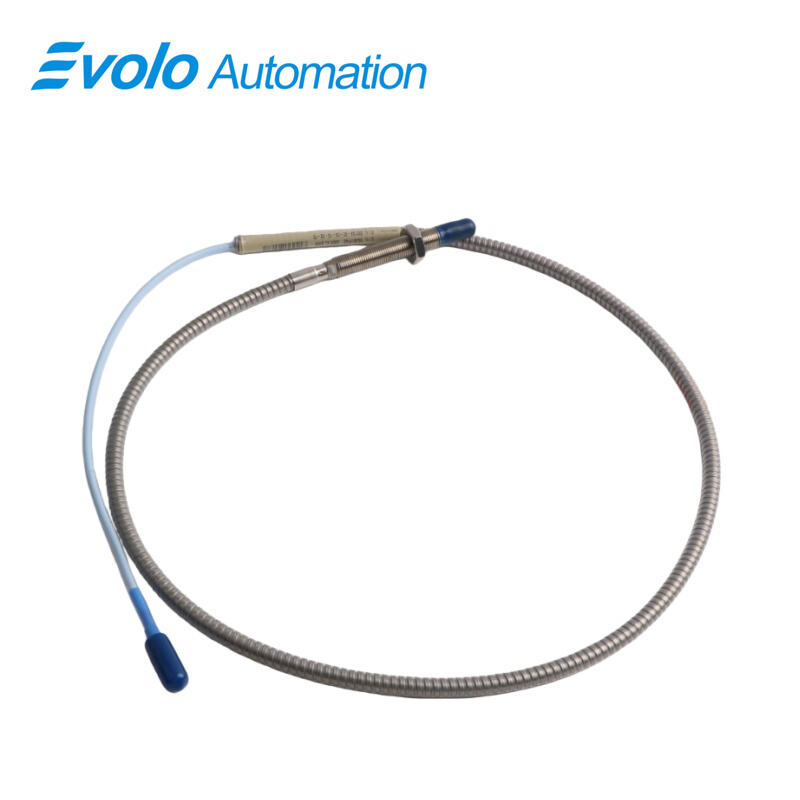

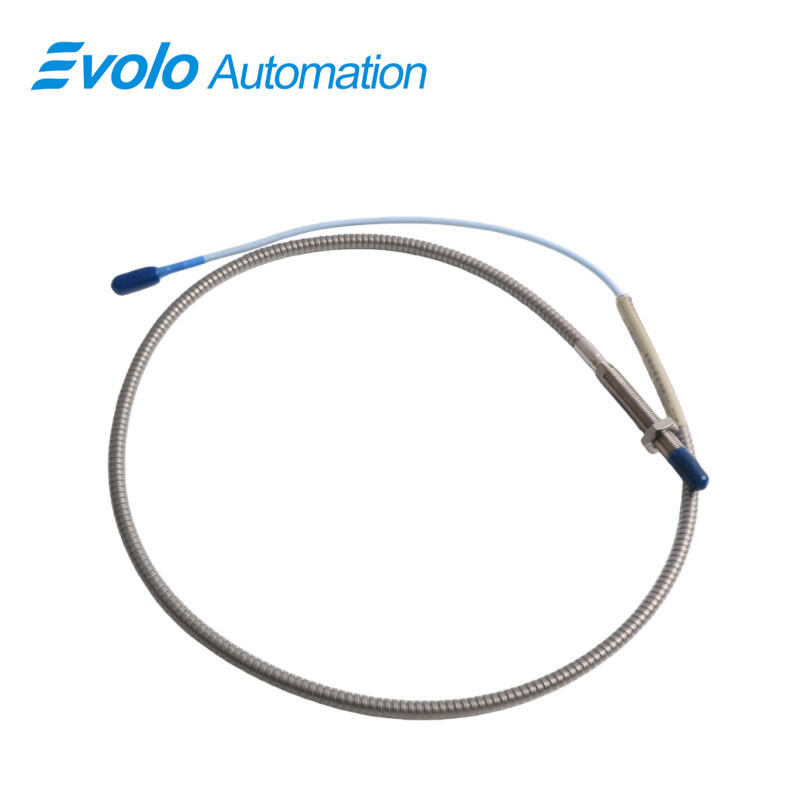

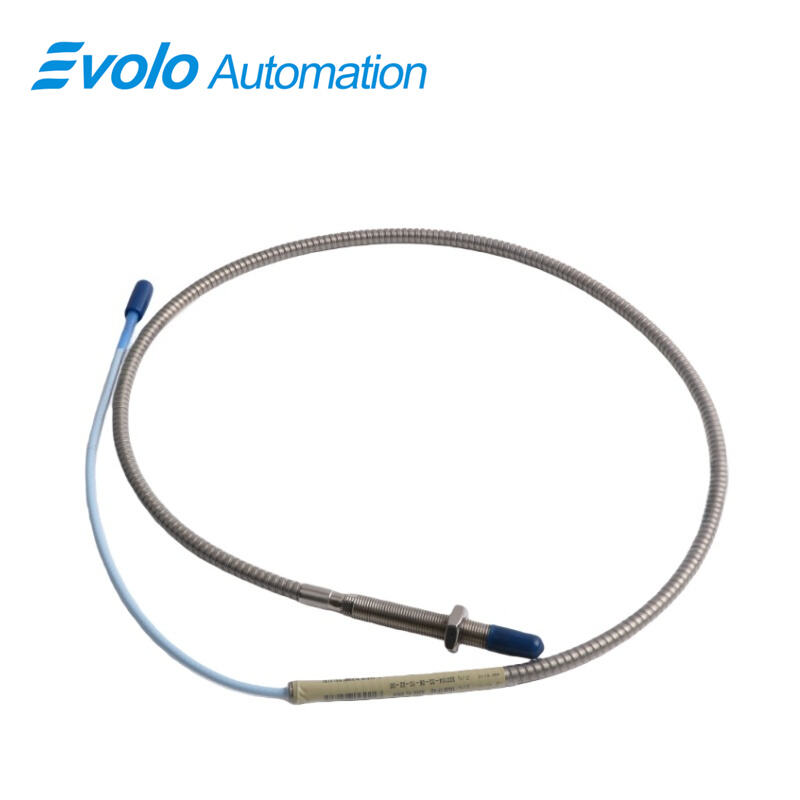

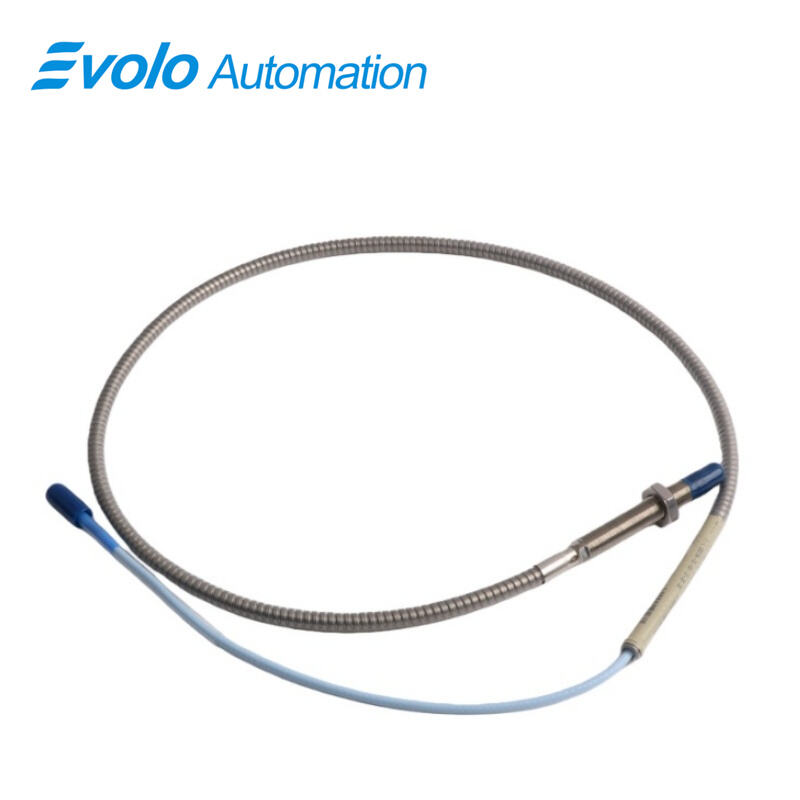

330104-00-06-10-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-06-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-06-10-01-00 3300 XL 8 mm Proximity Probe is a high-precision industrial sensor designed for automation, machinery protection, and condition monitoring of rotating equipment such as turbines, compressors, and pumps. It provides accurate static position and dynamic vibration measurements with a 2 mm (80 mils) linear range and 50 Ω output resistance. The probe features a miniature coaxial ClickLoc connector with protector and a 1.0-meter standard cable with 69.9 pF/m capacitance, ensuring stable signal transmission in industrial control systems. Operating from -52°C to +177°C and with supply sensitivity below 2 mV/V, the 330104-00-06-10-01-00 probe withstands harsh environmental conditions while maintaining API 670 compliance for linearity and temperature stability. The M10x1 threaded probe, combined with patented TipLoc and CableLoc designs, provides up to 330 N (75 lbf) pull strength for secure mechanical retention. Optional FluidLoc cable protection prevents fluid ingress in lubricated machinery, enabling reliable, long-term performance in predictive maintenance, Keyphasor reference, and real-time vibration monitoring applications.

Applications

Radial Vibration Monitoring
Monitors radial vibrations on high-speed compressors and turbines; 2 mm linear range allows early detection of imbalance and misalignment in fluid-film bearing machines.

Axial (Thrust) Position Measurement
Provides accurate axial displacement readings for thrust and bearing centerline alignment; supports API 670-compliant machinery protection systems.

Keyphasor Reference and Speed Measurement
Generates phase reference and tachometer outputs for rotor speed synchronization; 50 Ω output ensures accurate timing data for balancing and synchronous control.

High-Temperature Industrial Diagnostics
Operates from -52°C to +177°C, suitable for bearing housings, turbine casings, and other heat-intensive industrial machinery environments.

Predictive Maintenance Integration
Seamlessly connects to SCADA, vibration monitoring, and condition-based maintenance platforms; backward compatibility reduces installation time and eliminates the need for bench calibration.

Specifications

Competitive Advantage

API 670 Compliance and Backward Compatibility
Ensures linearity, temperature stability, and mechanical compatibility with non-XL 3300 5 mm and 8 mm components, reducing integration and maintenance effort.

High Mechanical Durability
TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, preventing probe disconnection under vibration or thermal cycling.

Wide Environmental Tolerance
Operates in extreme temperatures (-52°C to +177°C) and industrial humidity conditions, maintaining reliable performance in challenging machinery environments.

Stable Electrical Performance
Less than 2 mV/V supply sensitivity and 69.9 pF/m extension cable capacitance provide consistent signal quality over long cable runs.

Optional FluidLoc Cable Protection
Prevents oil or fluid ingress in lubricated equipment, ensuring accurate vibration and position measurements while reducing maintenance needs in high-moisture industrial systems.
