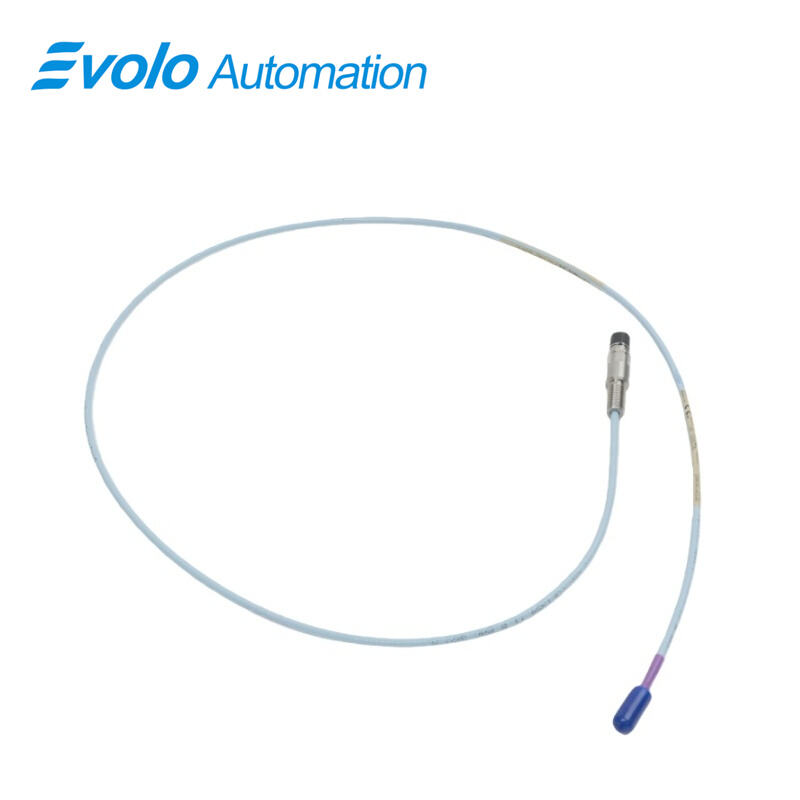

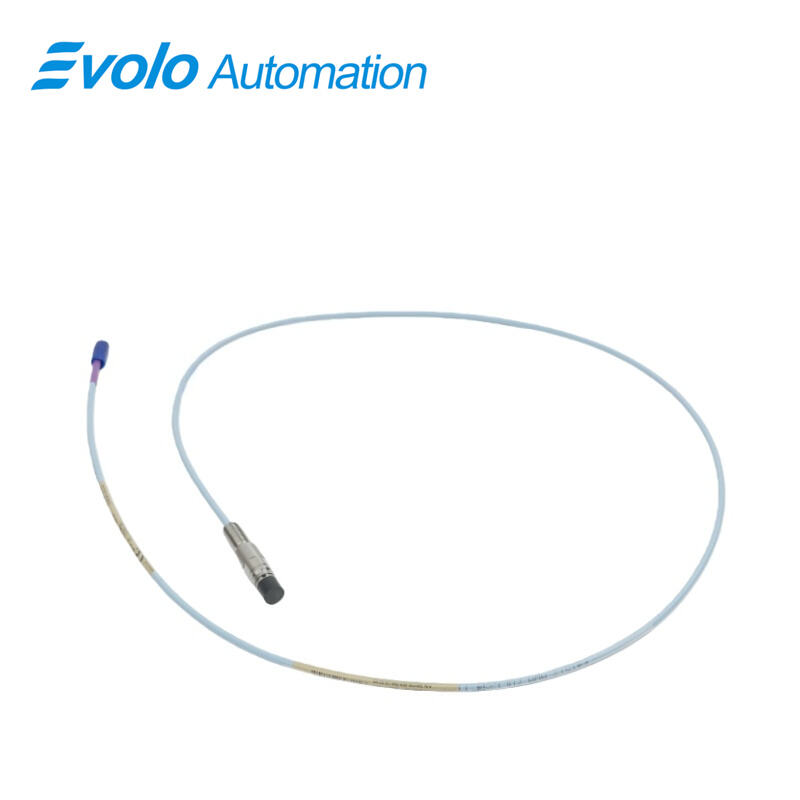

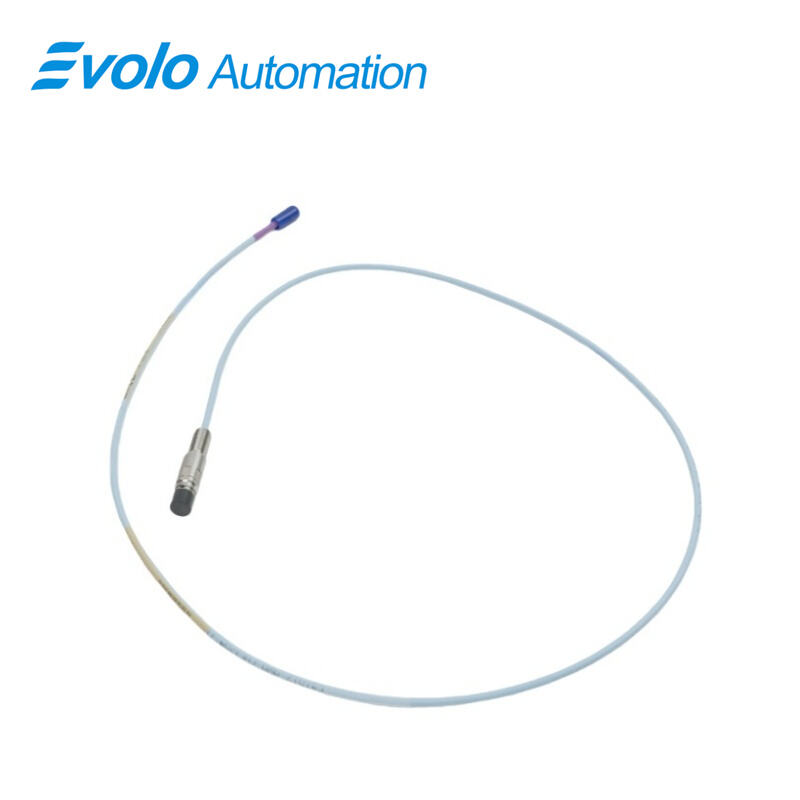

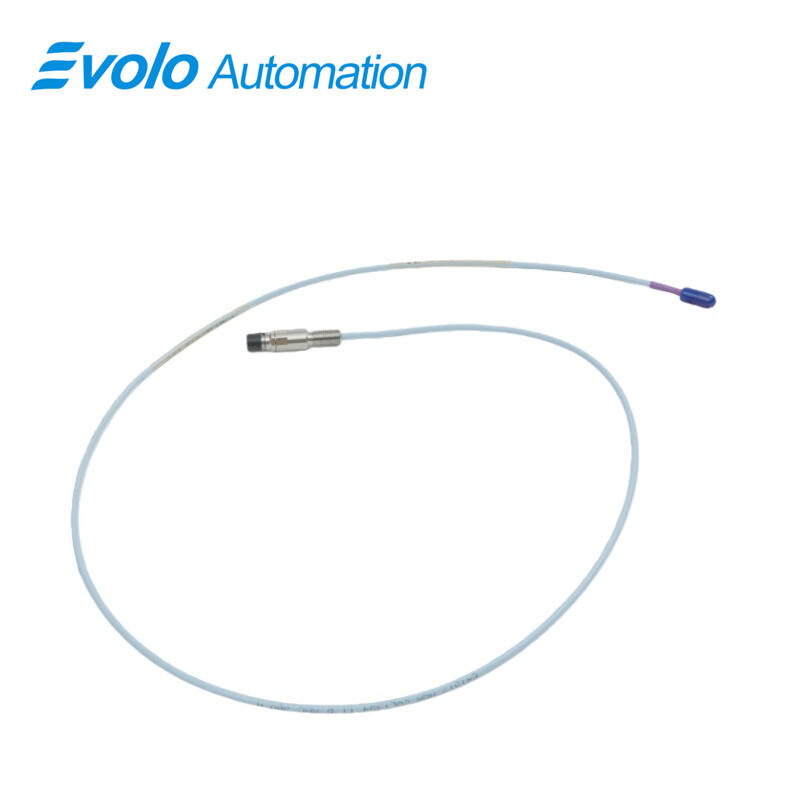

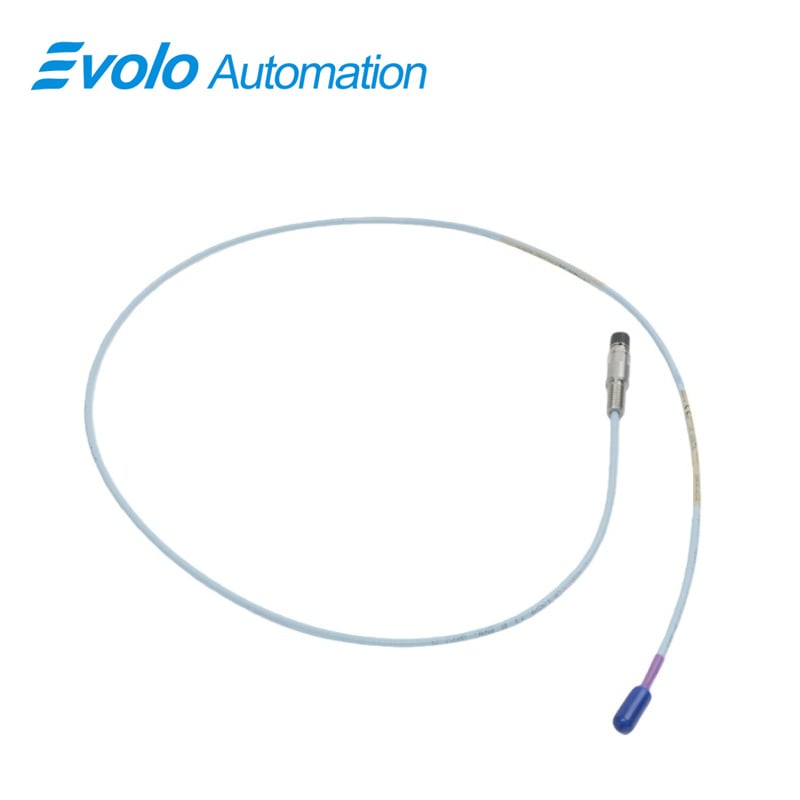

330706-005-046-10-02-05 3300 XL 11 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330706-005-046-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330706-005-046-10-02-05 3300 XL 11 mm Reverse Mount Probe is a high-performance proximity transducer designed for demanding industrial automation and rotating machinery applications. As part of the 3300 XL 11 mm Proximity Transducer System, the probe enables accurate non-contact vibration monitoring, shaft displacement detection, and dynamic position measurement on turbines, compressors, and fluid-film bearing machines. Featuring an extended linear range and a 3.94 V/mm output, model 330706-005-046-10-02-05 provides improved signal fidelity for axial thrust positioning, differential expansion analysis, rod drop detection, tachometer feedback, and Keyphasor phase reference acquisition in critical turbomachinery control loops. This probe incorporates ClickLoc connectors for secure electrical interfaces, robust M10 x 1 reverse mount threads for simplified field installation, and patented CableLoc construction offering 330 N pull strength. With a rated operating temperature from −52°C to +177°C and optional armored 75 Ω triaxial cabling, the 3300 XL 11 mm Reverse Mount Probe is optimized for long-term stability, high signal reliability, and advanced condition monitoring within power generation, petrochemical, and process automation environments. Its integration within modern supervisory control systems enhances predictive maintenance strategies, improves machine uptime, and supports higher productivity in industrial automation assets.

Applications

Application 1 Axial Thrust Position Monitoring
For fluid-film bearing turbines and steam machines, the extended linear range of the 330706-005-046-10-02-05 allows accurate thrust position measurement over larger axial travel distances. With 3.94 V/mm sensitivity and −52°C to +177°C temperature tolerance, the probe ensures reliable feedback for thrust bearing protection and automated trip logic.

Application 2 Differential Expansion Analysis in Steam Turbines
Steam turbine casings experience thermal expansion gradients. The 11 mm 3300 XL system enables differential displacement tracking with stable 100 mV/mil output, improving thermal control models and optimizing startup sequences to reduce heat-induced stress and operational downtime.

Application 3 Rod Position and Rod Drop on Reciprocating Compressors
The mechanical wear of piston rods requires dynamic position profiling. This model supports non-contact rod drop analysis, allowing predictive maintenance scheduling that reduces unplanned outages and extends component lifecycle in process gas compressors and petrochemical assets.

Application 4 Tachometer and Zero-Speed Detection
The probe’s consistent voltage output supports high-resolution tachometry for rotating shafts. Zero-speed detection improves turbine turning gear operation, startup synchronization, and safety interlocks, especially in power generation facilities with automated sequencing systems.

Application 5 Keyphasor Phase Reference Sensing
The 330706-005-046-10-02-05 generates stable phase reference signals for vibration analysis systems. Precise phase angle data is essential for synchronous orbit analysis, shaft centerline plotting, and imbalance diagnostics on industrial turbines, compressors, and critical rotating equipment.

Specifications

Competitive Advantage

Advantage 1 Extended Linear Range for Complex Machinery
Compared to standard 8 mm probes, the 11 mm design increases linear measurement range, reducing signal dropout during large displacement events and improving data reliability for thrust and rod-drop applications.

Advantage 2 Rugged Reverse-Mount Configuration
The M10 x 1 reverse-mount geometry simplifies protected installations in confined cavities and harsh service environments, ensuring mechanical stability and reducing installation time during turbine overhauls.

Advantage 3 High Pull-Strength Cable Construction
The patented CableLoc assembly provides 330 N pull resistance, minimizing failures due to cable stress, vibration fatigue, or routing disturbances—critical for long-run cabling in power and gas plants.

Advantage 4 Wide Temperature and Agency Compliance
Operating from −52°C to +177°C with multiple global approvals, the probe is suitable for steam turbines, petrochemical compressors, and outdoor generation units exposed to thermal cycling and corrosive atmospheres.

Advantage 5 Integration with Condition Monitoring & SCADA
The 3300 XL system interfaces seamlessly with modern 3500-series condition monitoring and supervisory control platforms, enabling predictive analytics that increase machine uptime and reduce maintenance cost across the automation asset lifecycle.
