Siemens TELEPERM XP FUM 360 Fail-Safe Binary Output Module 6DP1360-8BA
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · TELEPERM XP

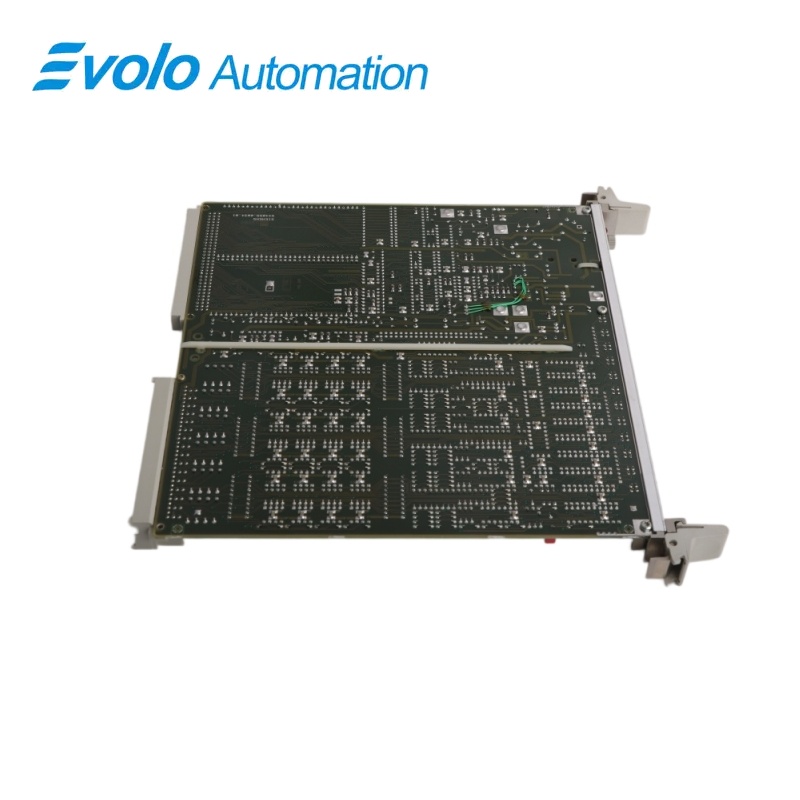

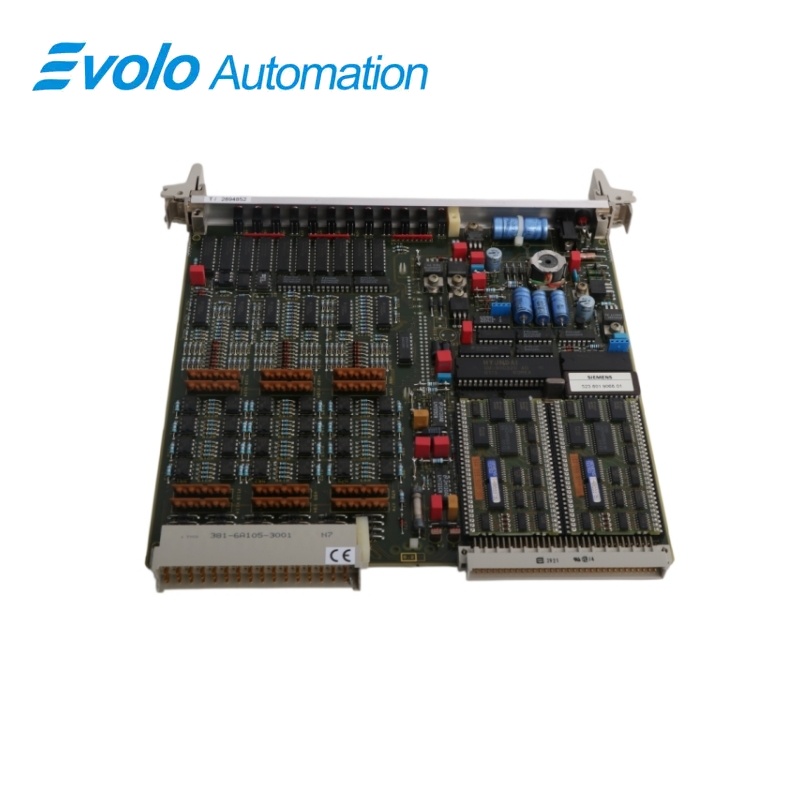

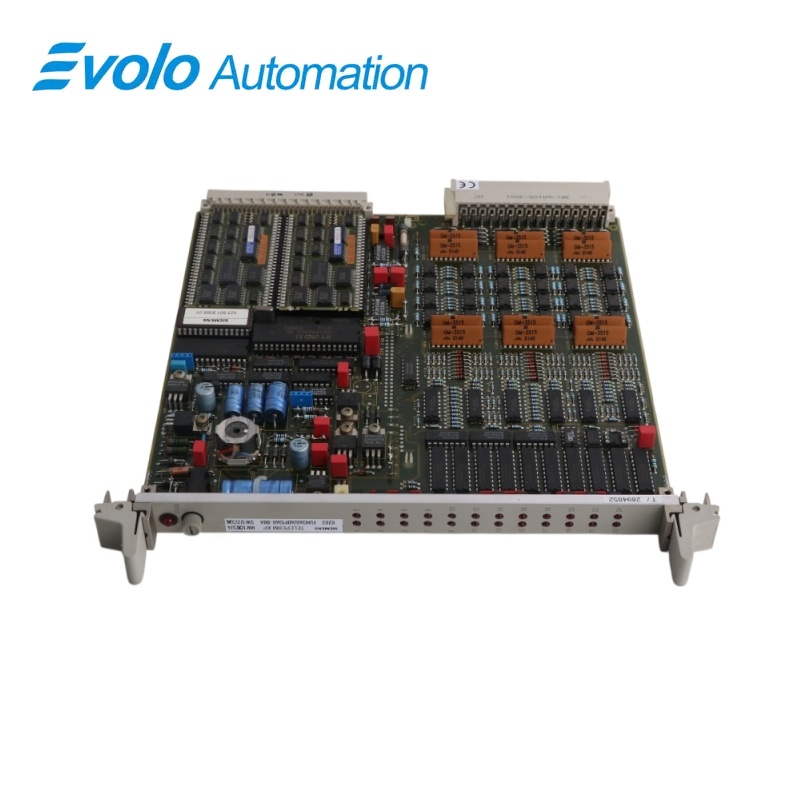

6DP1360-8BA TELEPERM XP FUM 360 Fail-Safe Binary Output Module
The TELEPERM XP FUM 360 is a fail-safe binary output function module with 24 controller outputs for 24 V DC relay coupling, front-panel output indication and support for redundant application arrangements.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6DP1360-8BA |
| Product Type | Fail-safe binary output function module |
| Core Function | Provides monitored 24 V DC controller outputs for relay coupling in TELEPERM XP safety applications |
| Application or Compatible Series | TELEPERM XP systems engineered for FUM 360 output functions and redundant use |
Exact Identification
Match 6DP1360-8BA character by character and confirm the complete TELEPERM XP FUM 360 Fail-Safe Binary Output Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The TELEPERM XP FUM 360 is a fail-safe binary output function module with 24 controller outputs for 24 V DC relay coupling, front-panel output indication and support for redundant application arrangements.
Provides the FUM 360 binary output function for safety-related TELEPERM XP control tasks. Twenty-four controller outputs are rated for 24 V DC relay-coupling circuits. Front-panel indicators provide direct output-state observation during commissioning and service.
Key Functions
Fail-Safe Output Function
Provides the FUM 360 binary output function for safety-related TELEPERM XP control tasks.
Relay-Coupling Outputs
Twenty-four controller outputs are rated for 24 V DC relay-coupling circuits.
Visible Channel State
Front-panel indicators provide direct output-state observation during commissioning and service.
Official Specifications
| Module Designation | FUM 360 |
|---|---|
| System Family | TELEPERM XP |
| Signal Direction | Binary outputs |
| Safety Function | Fail-safe output module |
| Controller Outputs | 24 |
| Output Voltage | 24 V DC |
| Output Current | 120 mA per controller output |
| Typical Load | Coupling relays |
| Output-State Indication | Front-panel LEDs |
| Redundant Application | Supported |
| Module Format | TELEPERM XP plug-in function module |
Frequently Asked Questions
What type of field load is intended for 6DP1360-8BA?
Use compatible 24 V DC coupling relays within the specified output-current limit.
How many binary outputs are provided by 6DP1360-8BA?
The module provides twenty-four controller outputs.
Can 6DP1360-8BA be used in a redundant safety arrangement?
Yes; the module is specified for supported redundant TELEPERM XP applications.
How can an engineer see the state of an output on 6DP1360-8BA?
The corresponding front-panel LED indicates the controller-output state.
What must be checked before wiring a replacement 6DP1360-8BA?
Verify every terminal assignment, relay-coil rating, 24 V DC supply reference and safety-channel allocation.
Should 6DP1360-8BA be exchanged while the safety loop is active?
No; isolate the affected function according to the approved plant safety procedure before replacement.
What should be tested after installing 6DP1360-8BA?
Perform the authorized proof test for output switching, feedback, diagnostics and redundancy response.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only in a TELEPERM XP configuration that explicitly specifies the FUM 360 function.
- Match every output to the recorded relay and safety-channel assignment.
- Commission the replacement under the plant-approved fail-safe test and authorization process.
