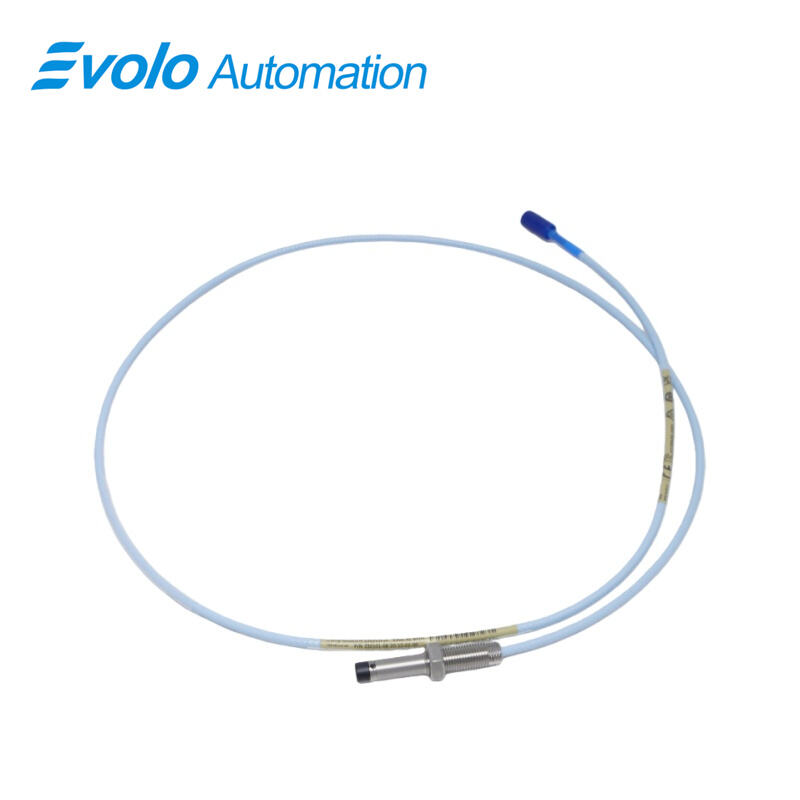

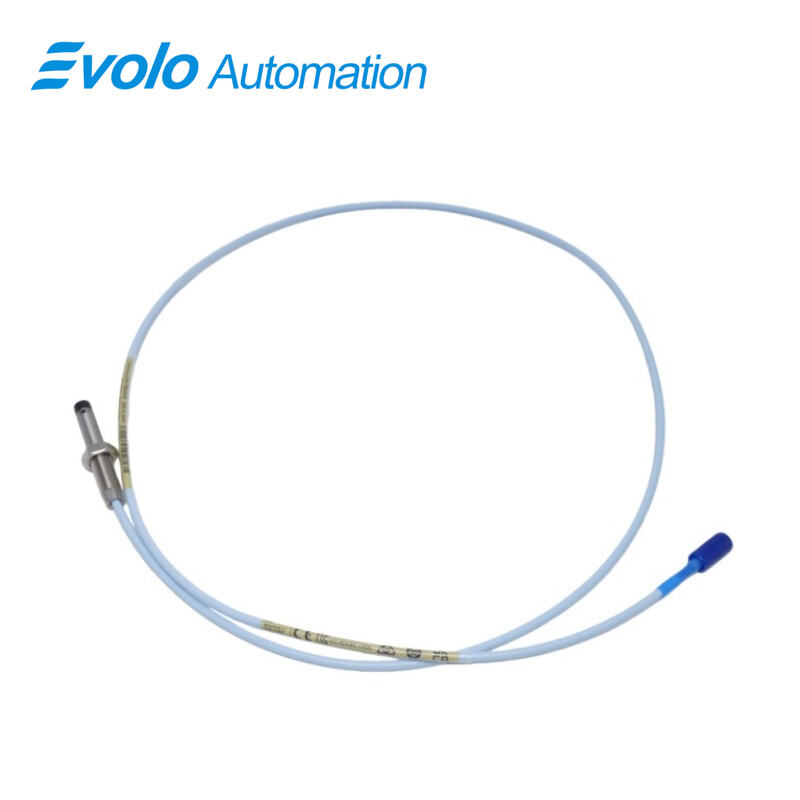

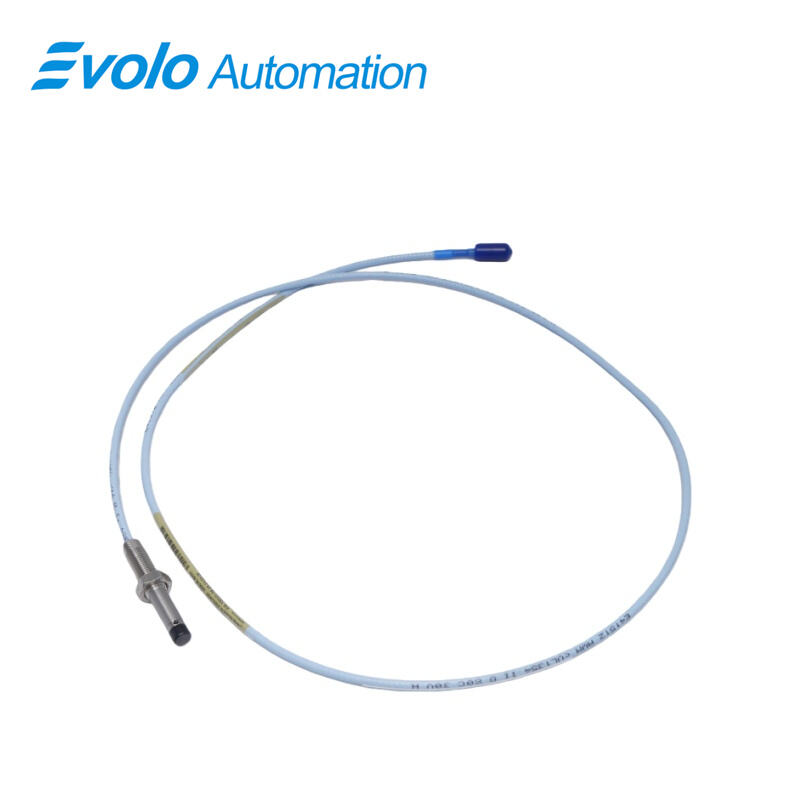

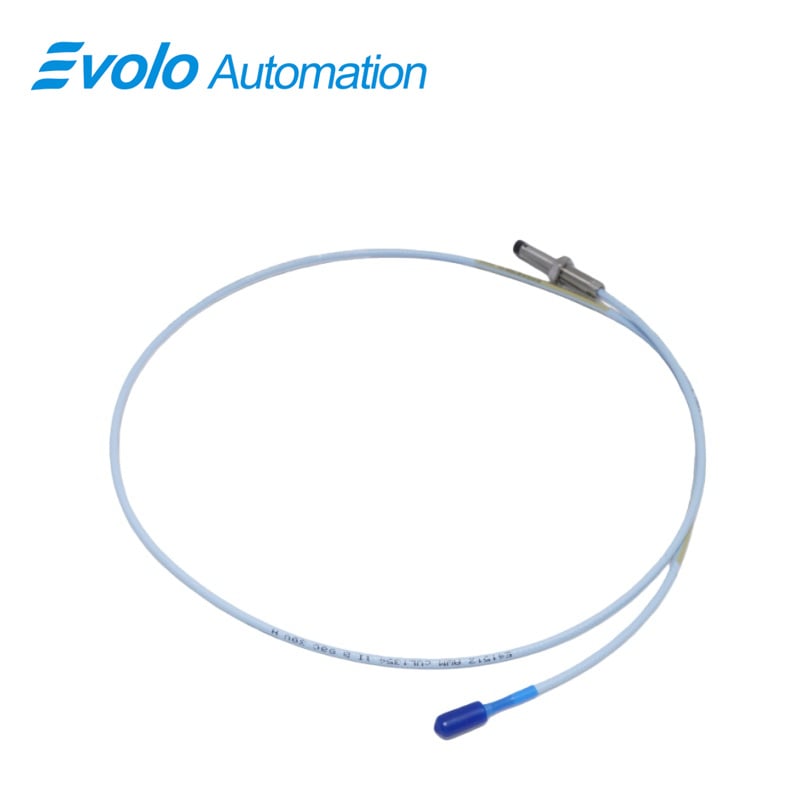

330101-08-20-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-08-20-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-08-20-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation and vibration monitoring applications. This probe provides a linear output voltage proportional to the distance between the probe tip and the measured conductive surface, supporting both static position measurements and dynamic vibration detection. With an 8 mm probe diameter, 2 mm linear range, and operating temperature from -52°C to +177°C, the 3300 XL ensures reliable performance in extreme environments. The system features a Miniature coaxial ClickLoc connector, 1-meter standard cable, 3/8-24 UNF probe thread, and 50 Ω output resistance, enabling secure integration into industrial monitoring systems. Enhanced mechanical design includes a patented TipLoc molding for robust probe-tip bonding and CableLoc technology delivering 330 N pull strength for reliable cable retention. Optional FluidLoc cable protection prevents oil and liquid ingress, ensuring stable operation in hydraulic or lubricated machinery. Fully compatible with 3300 series components, the 3300 XL 8 mm Proximity Probe guarantees interchangeability, API 670 compliance, and superior automation performance for vibration, speed, and position monitoring in critical industrial machinery.

Applications

1. Fluid-Film Bearing Vibration Monitoring
Measure vibration amplitudes on pumps, turbines, and compressors with high precision. Linear range: 2 mm; output voltage proportional to displacement ensures accurate diagnostics of bearing conditions.

2. Rotor Position Tracking
Real-time rotor position measurements in high-speed rotating equipment. The 3300 XL’s 50 Ω output and low supply sensitivity (<2 mV/volt) deliver stable readings in automated control systems.

3. Keyphasor Reference Signal Generation
Provides reliable Keyphasor signals for speed and phase monitoring in synchronous machines. Compatible with API 670 standard setups for automated machine health monitoring.

4. Dynamic Speed Measurement
High-frequency dynamic response supports real-time speed measurement in rotating machinery. Operating temperature range of -52°C to +177°C ensures functionality in extreme industrial environments.

5. Hydraulic and Lubrication System Diagnostics
Optional FluidLoc cable allows monitoring in oil-lubricated environments without risk of fluid ingress. Critical for automated maintenance and predictive analytics in heavy industrial applications.

Specifications

Competitive Advantage

1. High Interchangeability
Fully compatible with 3300 series 5 mm and 8 mm probes and Proximitor sensors, eliminating the need for bench calibration and ensuring rapid integration in existing automated systems.

2. Robust Mechanical Design
Patented TipLoc molding and CableLoc cable attachment provide 330 N pull strength, improving probe and cable durability in vibration-intensive industrial automation environments.

3. Extreme Temperature Tolerance
Operates reliably from -52°C to +177°C, supporting applications in extreme temperature conditions and harsh industrial processes.

4. Enhanced Measurement Accuracy
Linear range of 2 mm with less than 2 mV output change per volt supply change ensures precise distance, vibration, and speed measurements critical for automated process control.

5. Oil and Fluid Resistance
Optional FluidLoc cable design prevents oil leakage through cables, maintaining consistent sensor performance in lubrication-heavy machinery and enhancing reliability in automated condition monitoring.
