Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
31000-28-05-15-030-00-02 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8 mm probe, multiple approvals |
|
Probe Cable Length: |
0.5 m (20 in) |
|
Standoff Adapter Length (Option C Dimension): |
Minimum length 1.5 in (38 mm) |
|
Probe Penetration Option (Option D Dimension): |
3.0 in |
|
Fittings: |
Without fittings |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option). |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5kg |
Description

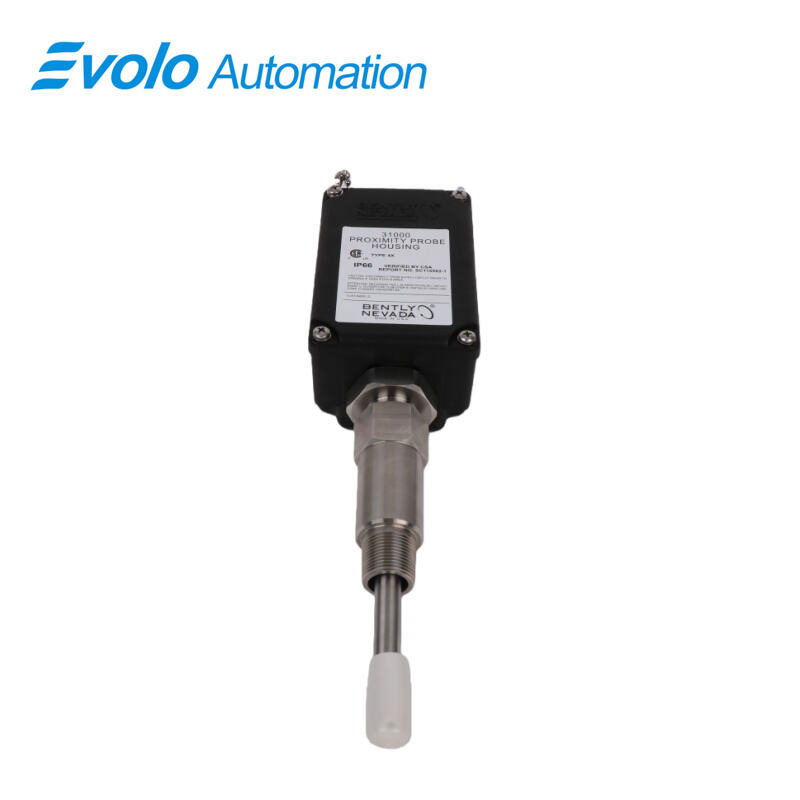

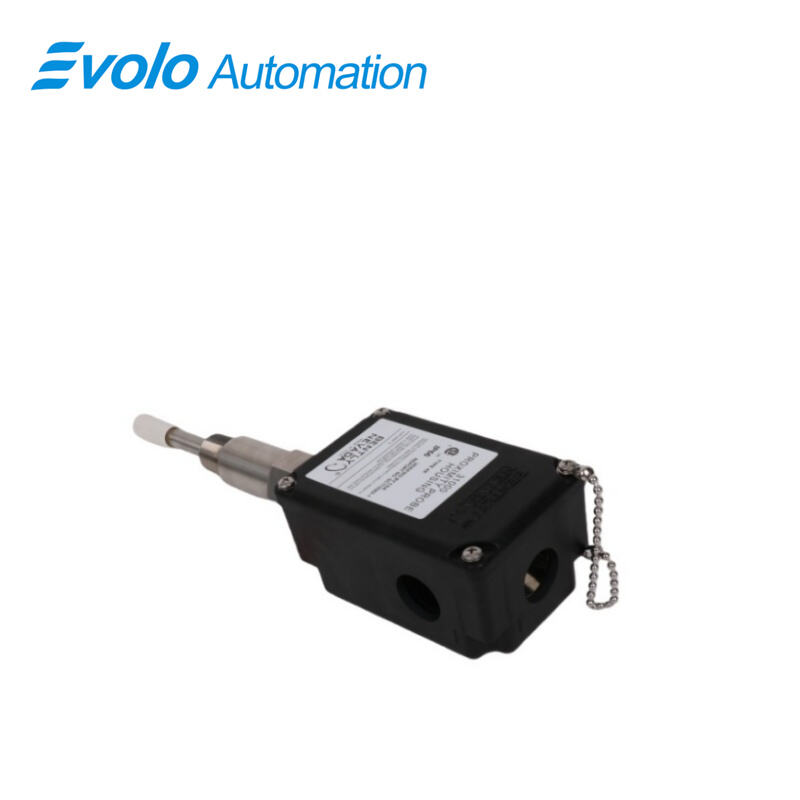

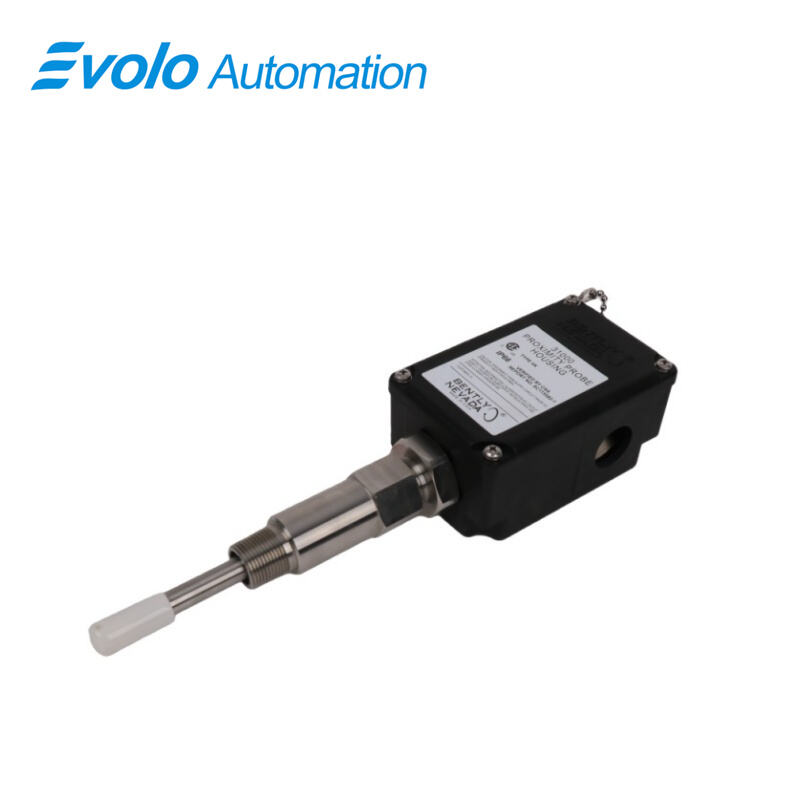

The 31000-28-05-15-030-00-02 Proximity Probe Housing Assembly is a high-performance solution designed for mounting 3300 XL 8 mm Proximity Probes in automated and industrial systems. Engineered from glass-reinforced polyphenylene sulfide (PPS) thermoplastic with conductive fibers, this housing provides superior corrosion resistance and robust mechanical strength. The assembly includes a 0.5 m (20 in) probe cable, a standoff adapter with 1.5 in (38 mm) minimum length, and a probe penetration of 3.0 in, enabling precise positioning for vibration and Keyphasor measurements. Stainless steel elements, including AISI 304 sleeve and AISI 303 exterior components, ensure durability and resistance to harsh operating environments. Certified with a Type 4X rating by CSA and impact-tested to withstand 4 Joule impacts at -39°C to 115°C, this housing offers exceptional protection in extreme conditions. The assembly allows external access to the probe for gap adjustments and replacements without machine disassembly, facilitating faster maintenance and reduced downtime. Fully compliant with API 670 standards, the 31000-28-05-15-030-00-02 supports intrinsically safe applications in hazardous areas when used with approved transducer systems and I.S. barriers.
Applications
Rotating Machinery Vibration Monitoring
Ideal for mounting 3300 XL probes on turbines, motors, and compressors, enabling precise vibration measurement for predictive maintenance.
Keyphasor Signal Generation
Supports phase reference measurements in rotating equipment, critical for speed and position control systems.
External Gap Adjustment
The housing allows for probe gap adjustment without machine disassembly, enabling quick maintenance and calibration.
Hazardous Area Installation
CSA Type 4X certification and compatibility with I.S. barriers allow deployment in explosive or hazardous environments.
High-Temperature and Corrosive Conditions
Polyphenylene sulfide housing and stainless steel components ensure reliable operation under extreme temperatures (-39°C to 115°C) and corrosive environments.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
Durable Construction
Glass-reinforced PPS and stainless steel resist corrosion, wear, and thermal stress, ensuring longevity.
Maintenance-Friendly Design
External access to probe and cable allows adjustments and replacements without disassembly, minimizing downtime.
High Impact Resistance
Certified to withstand 4 Joule impacts at -39°C and 115°C, maintaining operational reliability in demanding industrial environments.
API 670 Compliant
Meets industry standards for externally mounted proximity probe housings, ensuring compatibility with advanced monitoring systems.
Intrinsic Safety Capability
When paired with approved transducers and I.S. barriers, supports safe operation in hazardous locations, expanding application flexibility.
