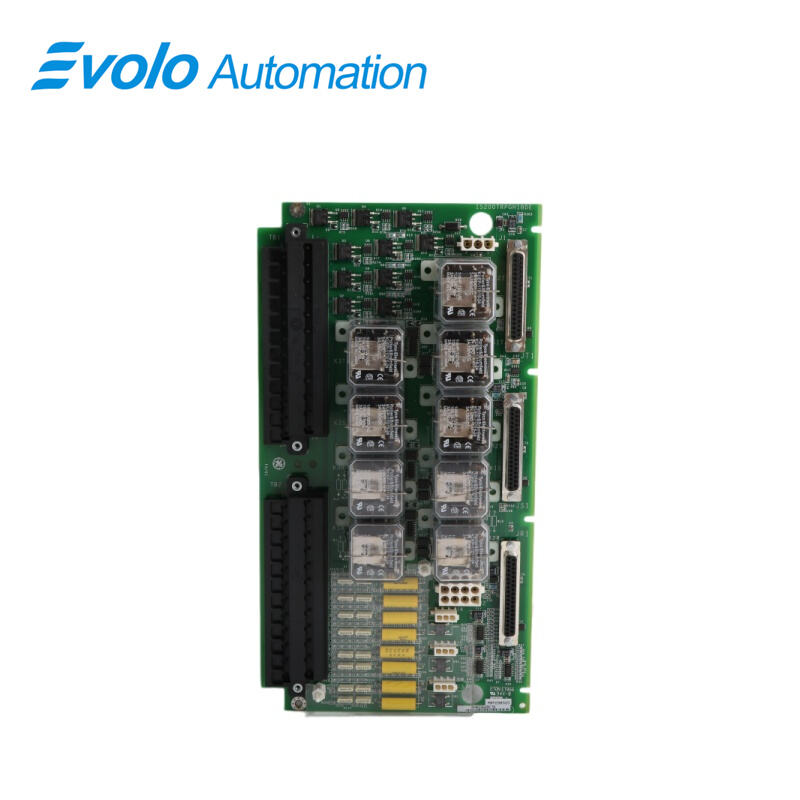

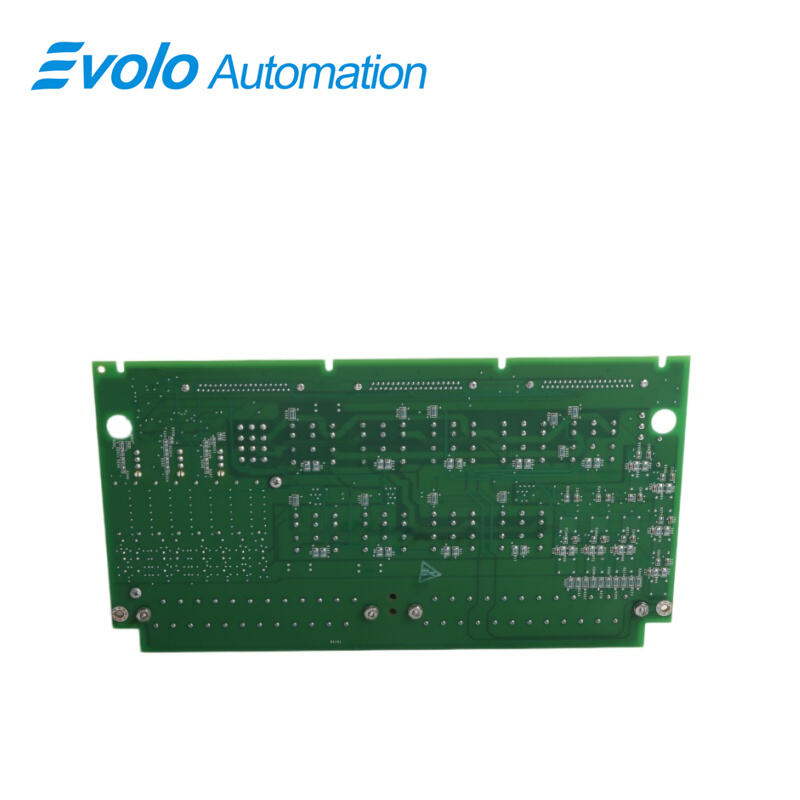

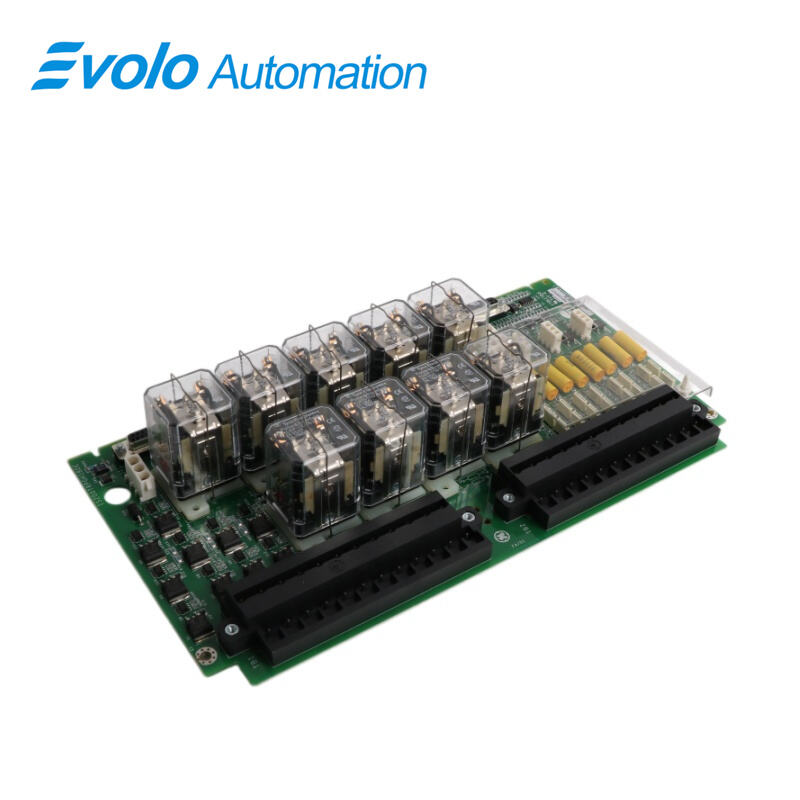

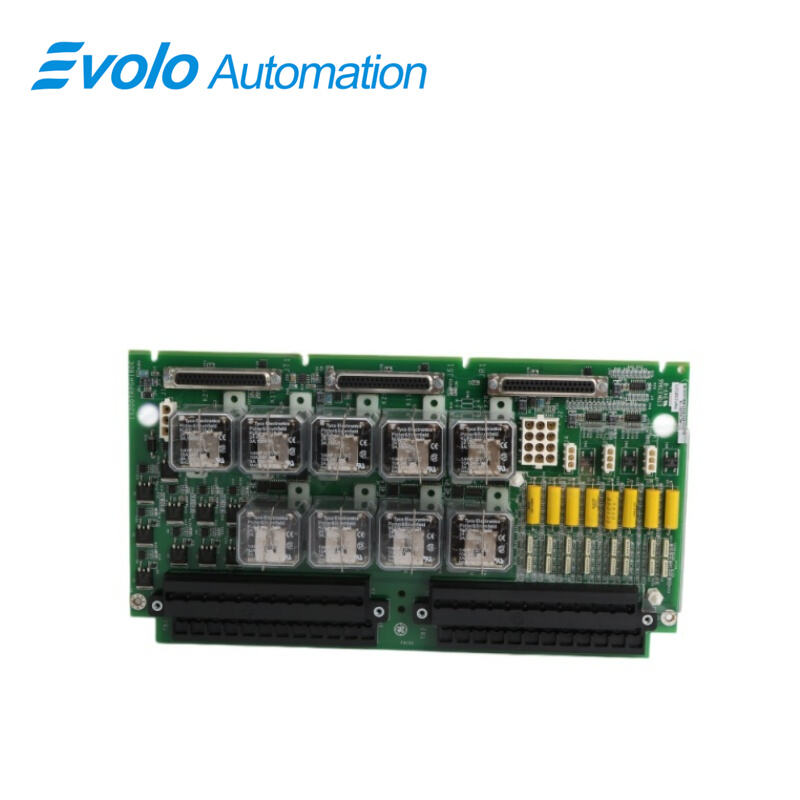

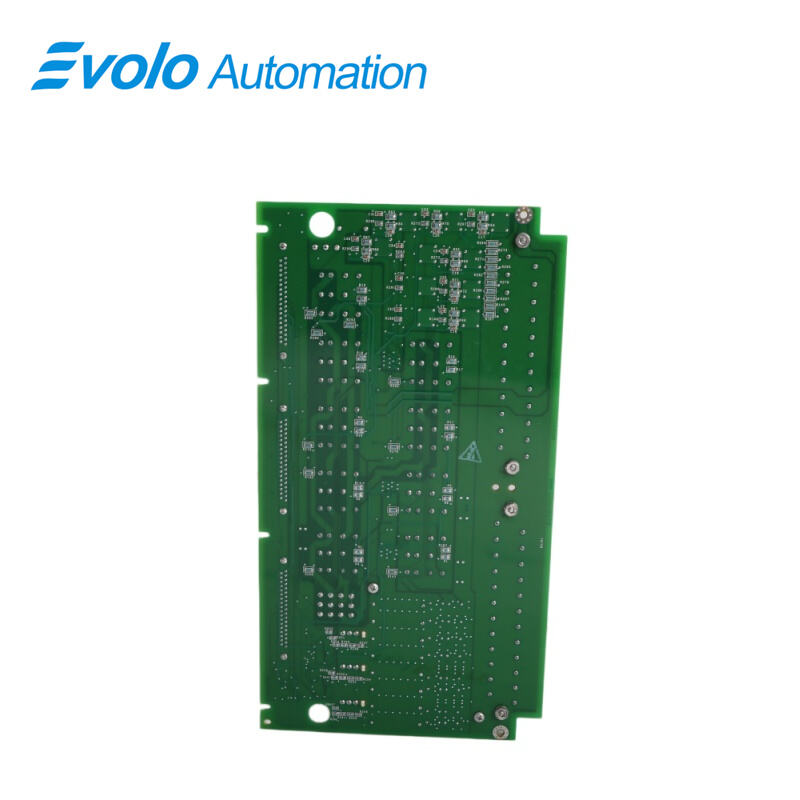

IS200TRPGH1B Primary Trip Terminal Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	IS200TRPGH1B
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

IS200TRPGH1B is a Primary Trip Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in gas turbine control systems. The I/O controller regulates the TRPG terminal board.Three voting circuits in TRPG feature nine magnetic relays that connect to three trip solenoids, or Electrical Trip Devices

(ETD). The primary and emergency sides of the interface to the ETDs are formed by the TRPG and TREG working together. For gas turbine applications, TRPG also accepts inputs from eight Geiger-Mueller flame detectors. There are two board types as follows:

The H1A and H1B versions include three voting relays built into each trip solenoid for TMR applications.

For simplex applications, the H2A and H2B versions have one relay per trip solenoid.

MARK VI SYSTEMS

The VTUR board interfaces with the TRPG terminal board in Mark VI systems.TRPG is connected to the VME rack, which houses the VTUR board, through cables with

molded plugs. Systems using simplex and TMR are both supported.

MARK Vle SYSTEMS

The PTUR packs on TTURH1C control TRPG in Mark Vle systems. The D-type connectors on TTURH1C, which is connected to TRPG, accept the I/O packs as input. Systems

using simplex and TMR are both supported.

Application

Power Generation: This is its core application area. It is widely used in control systems for gas turbines, steam turbines, and wind turbine generators.

Oil & Gas: Used in large industrial drive units in oil refineries or offshore platforms, such as turbines driving large compressors or pump sets.

Heavy Industrial Manufacturing: Used to manage the safe operation of core power systems in facilities requiring large mechanical drives, such as steel mills and chemical plants.

INSTALLATION

The flame detectors (if utilized) are attached directly to the second terminal block, while the three trip solenoids are wired to the first I/O terminal block. The flame detectors are linked with the power to J3,J4, and J5. J1 receives 125 V dc power for the trip solenoids, and J2 supplies power to the TREG board.

DIAGNOSTICS

The TRPG diagnostics are run by the l/O board. These include feedback from the trip solenoid relay driver and contact, the solenoid power bus, and the excitation voltage for the flame detector being too low or excessive. If any of the signals becomes abnormal, a diagnostic warning is generated (beyond limits).The terminal board's

connectors JR1, JS1, and JT1 each have their own ID device that the I/O board queries.If a discrepancy is found, a hardware incompatibility fault is generated.The terminal board serial number, board type, revision number, and plug location are all encoded on the read-only ID device chip.

FAQ

How Many Yellow Capacitors are Mounted in IS200TRPGH1B?

Eight Solid Yellow capacitors are mounted vertically on the Board.

How Many Female Ports are Available in Connection Ports?

Each connection port is equipped with 37 female ports.
