Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
32000-28-05-15-080-03-02 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8 mm probe, multiple approvals |
|
Probe Cable Length: |
0.5 m (20 in) |
|
Standoff Adapter Length (Option C Dimension): |
150 mm |
|
Probe Penetration Option (Option D Dimension): |
80 mm |
|
Fittings: |
Two plugs, one M20 fitting One cable seal grip with grommets for armored probe cable |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option.) |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5 kg |
Description

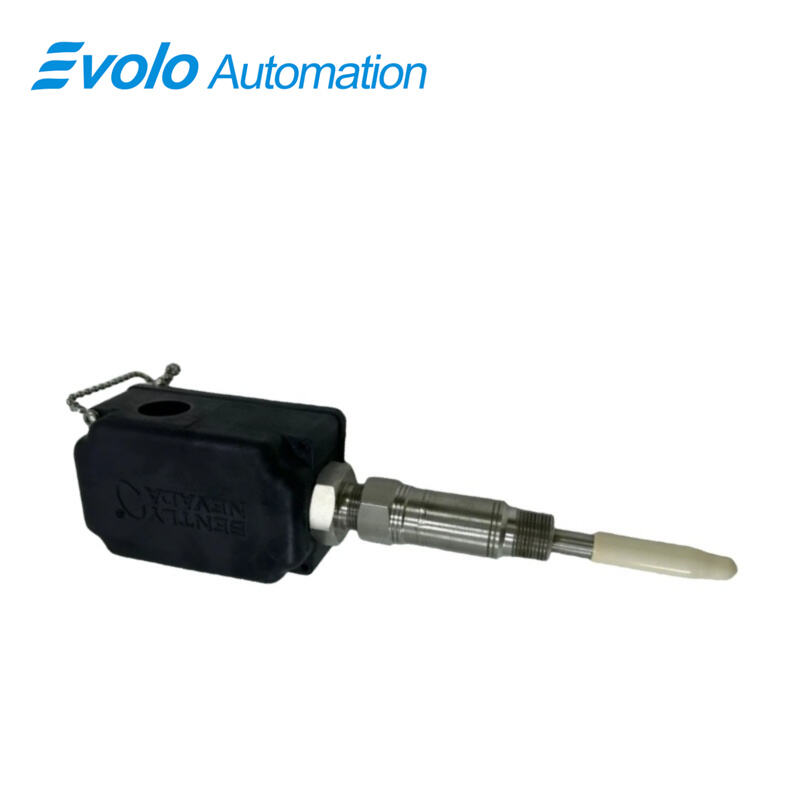

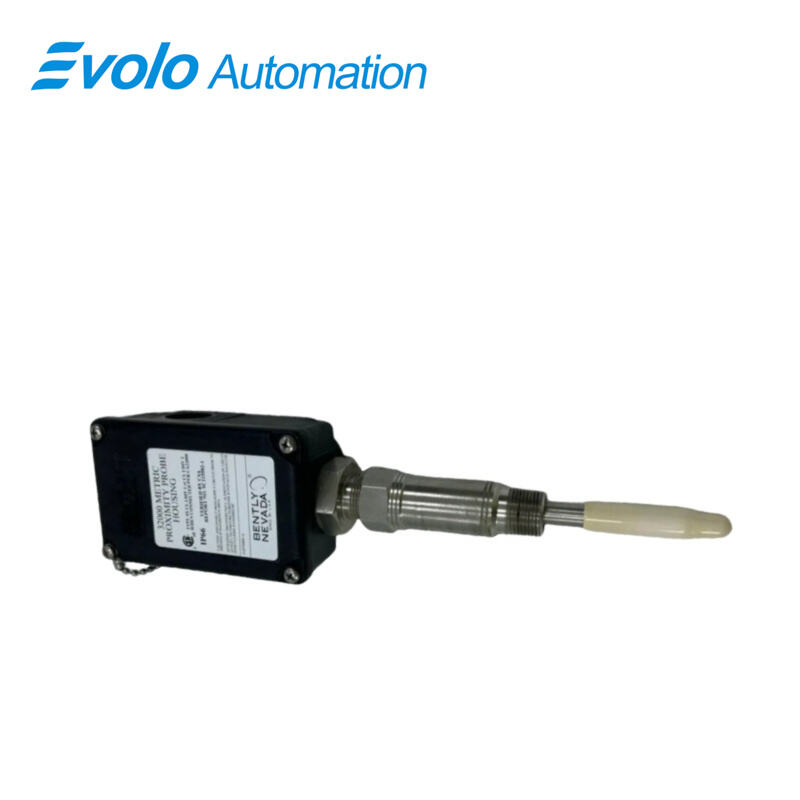

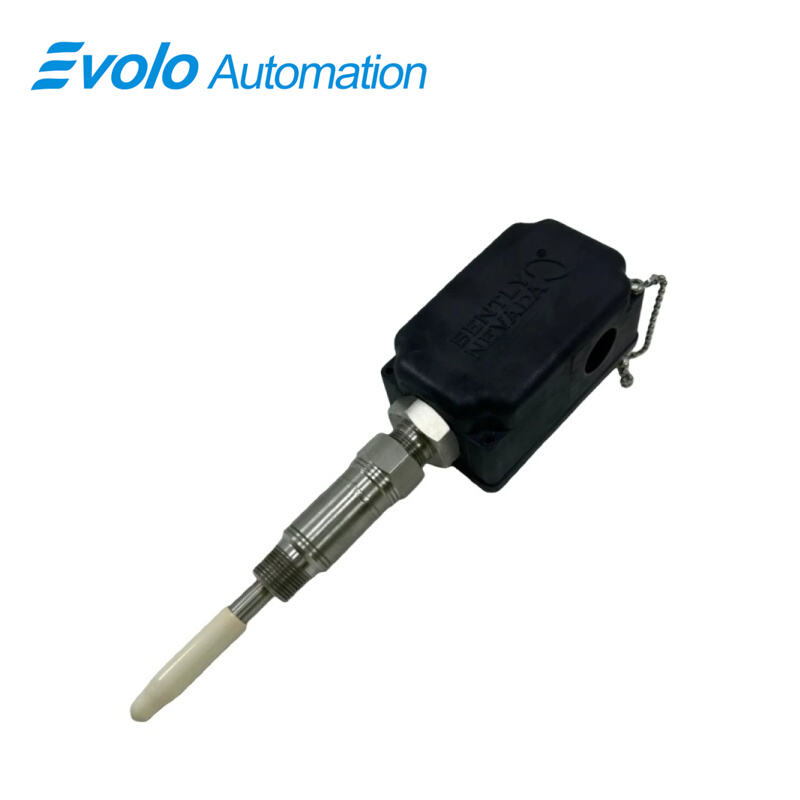

The 32000-28-05-15-080-03-02 Metric Proximity Probe Housing Assembly is a high-performance solution designed for industrial automation applications requiring precise vibration and Keyphasor measurements. Compatible with 3300 XL 8 mm proximity probes, this assembly provides secure radially mounted installation through machine casings, enabling accurate gap monitoring and real-time condition assessment. Constructed from glass-reinforced polyphenylene sulfide (PPS) thermoplastic with embedded conductive fibers, the housing offers exceptional strength, corrosion resistance, and chemical durability, while stainless steel components ensure long-term structural integrity. Certified Type 4X by CSA and impact-tested by BASEEFA, it withstands extreme temperatures from -39°C to 115°C and provides safe operation in hazardous environments. The housing assembly includes multiple fittings, O-ring seals, and torque-specified retaining nuts, facilitating easy probe replacement or adjustment without full machine disassembly. Fully compliant with API 670 standards, the 32000-28-05-15-080-03-02 assembly enhances industrial automation reliability, safety, and maintainability.
Applications
The 32000-28-05-15-080-03-02 Metric Proximity Probe Housing Assembly is primarily applied in industrial automation and rotating machinery monitoring. It is ideal for radially mounted proximity probes in turbines, compressors, and generators, where continuous vibration and Keyphasor measurements are required to maintain operational stability. The assembly enables easy access for gap adjustment, probe replacement, and cable management, supporting preventive maintenance and reducing machine downtime. It is widely used in petrochemical plants, power generation facilities, and other critical automation systems where precise condition monitoring is essential for reliable machinery performance.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
The 32000-28-05-15-080-03-02 Housing Assembly stands out due to its combination of high-strength PPS thermoplastic, stainless steel components, and CSA-certified Type 4X protection, providing unmatched durability in harsh industrial environments. Its design ensures quick probe access without complete disassembly, reducing maintenance time and costs. BASEEFA impact certification and API 670 compliance make it suitable for hazardous and intrinsically safe areas, offering both operational safety and longevity. The assembly’s flexibility with multiple conduit fittings and pre-installed 3300 XL proximity probes enhances automation integration and compatibility, giving it a competitive edge in high-reliability industrial monitoring applications.
