330930-045-01-00 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-045-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

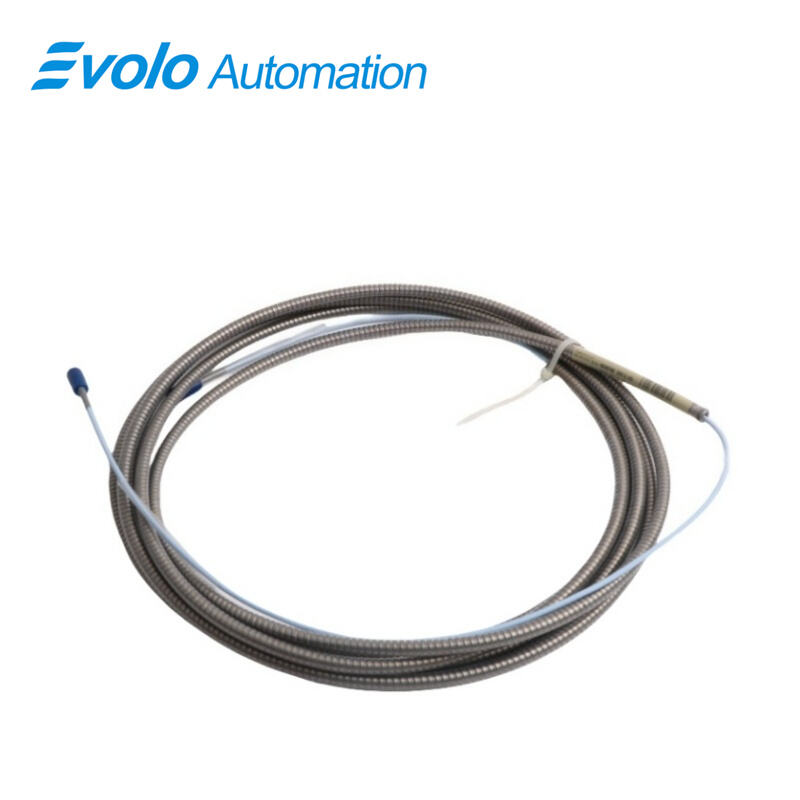

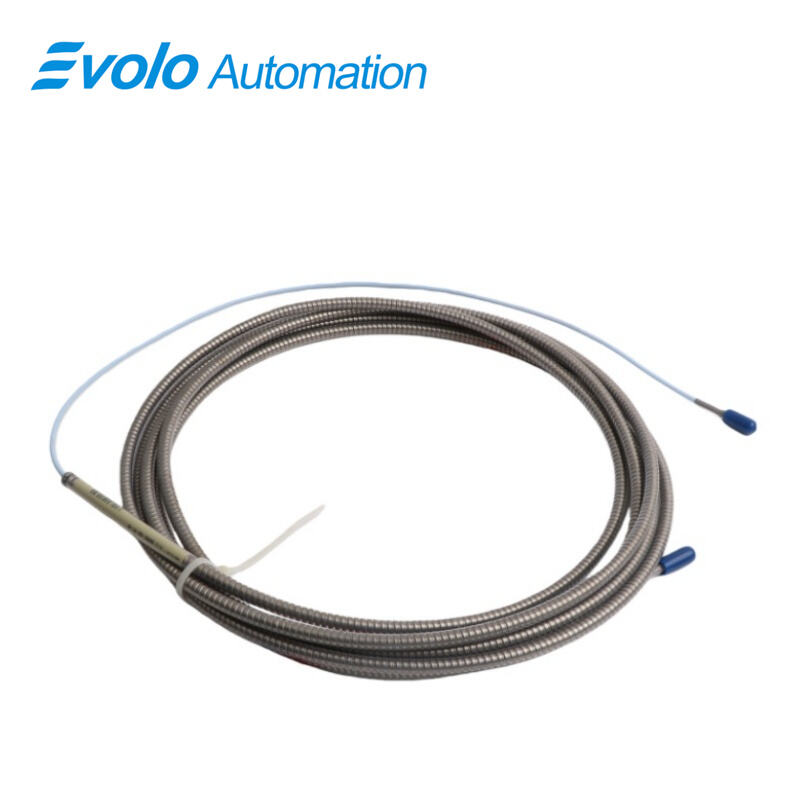

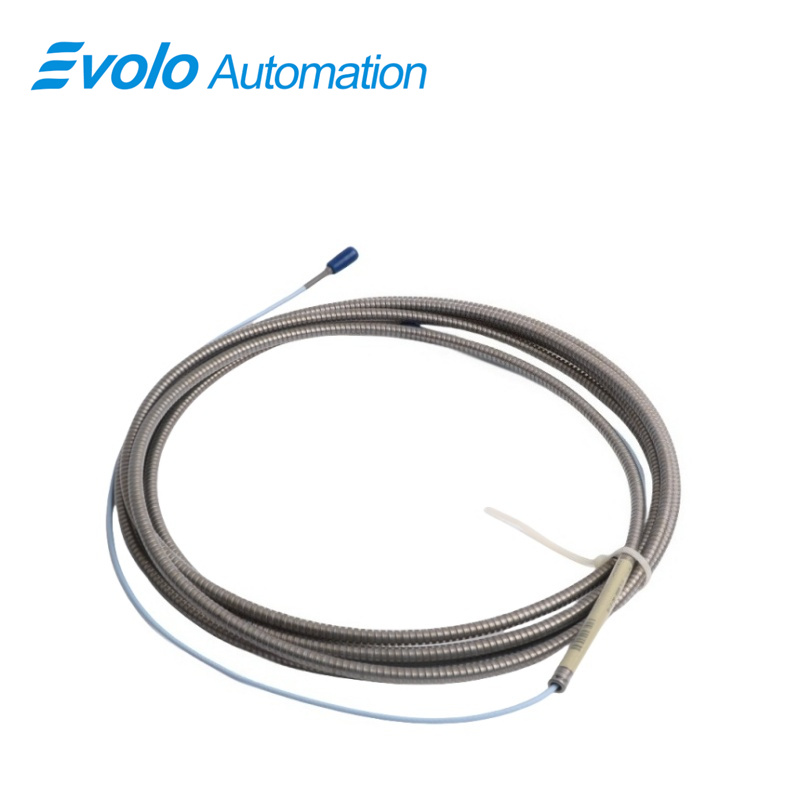

The 330930-045-01-00 3300 NSv Extension Cable is a high-performance accessory designed for industrial automation and condition monitoring of rotating machinery such as centrifugal air compressors, refrigeration compressors, and process gas compressors. This 4.5-meter (14.8-foot) extension cable features a stainless steel armored construction with an FEP jacket, ensuring robust protection against mechanical damage, chemical exposure, and harsh environmental conditions. Compatible with 3300 NSv proximity probes, the cable maintains a 1.5 mm (60 mils) linear range and recommended 1.0 mm (40 mils) gap setting, supporting precise radial and axial vibration measurements. It accommodates field wiring from 0.2 to 1.5 mm² (16–24 AWG) and offers stable electrical performance with 50 Ω output resistance and less than 2 mV/V supply sensitivity. Operating and storage temperatures range from -52°C to +177°C, enabling reliable performance in extreme industrial environments. The 330930-045-01-00 cable is fully compatible with Bently Nevada 3300 RAM systems and supports seamless upgrades to the 3300 XL NSv system, allowing secure connections with TipLoc and CableLoc designs to provide 220 N (50 lb) pull strength and reduce downtime in automation and predictive maintenance applications.

Applications

Centrifugal Air Compressor Monitoring
Extends the connection between NSv probes and Proximitor sensors, enabling precise radial vibration measurement on compressors with tight installation spaces.

Refrigeration Compressor Diagnostics
Maintains signal integrity for vibration and axial position measurement in low-temperature and high-humidity refrigeration environments.

Process Gas Compressor Safety Systems
Supports real-time condition monitoring and Keyphasor reference signals to prevent rotor imbalance and ensure safe operation.

Small Shaft or Limited Side-View Applications
Ideal for shafts smaller than 51 mm or flat targets under 15 mm, where space limitations prevent standard probe installation.

Predictive Maintenance Integration
Facilitates seamless retrofitting of existing 3300 RAM systems to the 3300 XL NSv system using existing monitoring panels and probes, reducing installation time and calibration requirements.

Specifications

Competitive Advantage

Robust Construction
Stainless steel armor with FEP jacket protects against mechanical damage, chemicals, and industrial wear, extending service life.

Precision Electrical Performance
Maintains 50 Ω output resistance and supply sensitivity under 2 mV/V, ensuring accurate vibration and position readings over long cable lengths.

Wide Temperature Range
Operates reliably from -52°C to +177°C, suitable for extreme industrial environments, including high-temperature compressor and turbine housings.

Seamless System Compatibility
Mechanically and electrically compatible with previous 3300 RAM and 3000/7000-series transducer systems, simplifying upgrades and replacements.

Secure Connections
Patented TipLoc and CableLoc designs provide 220 N (50 lb) pull strength; connector protectors prevent liquid ingress, ensuring reliable signal transmission in harsh conditions.
