Overview

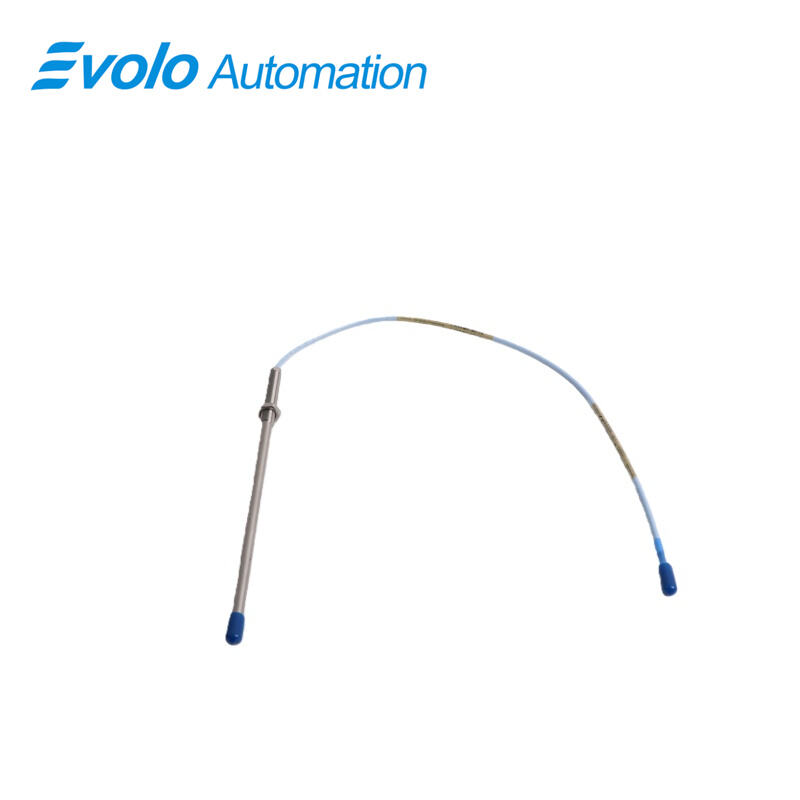

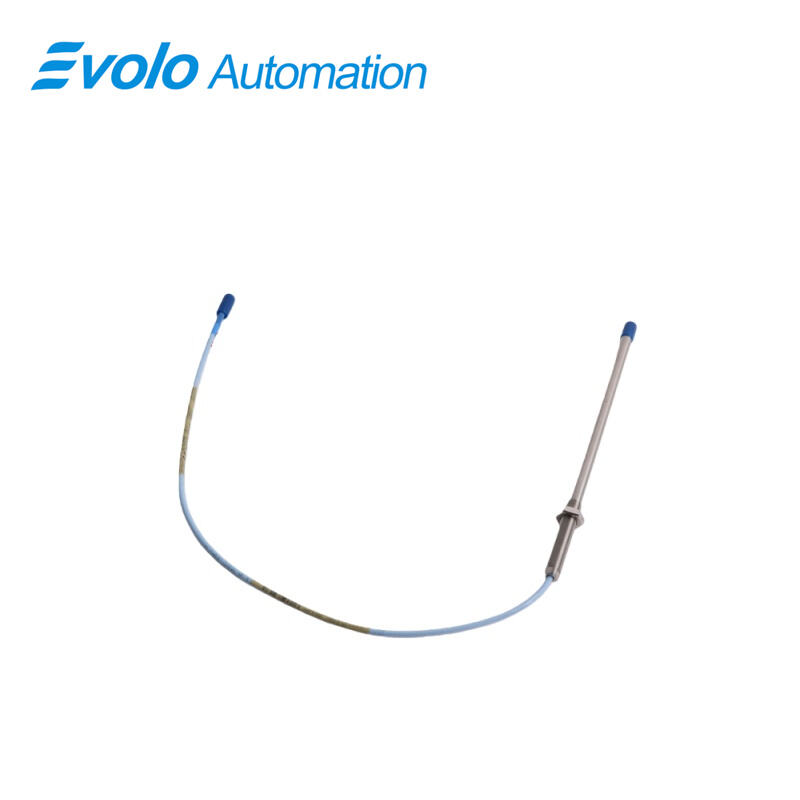

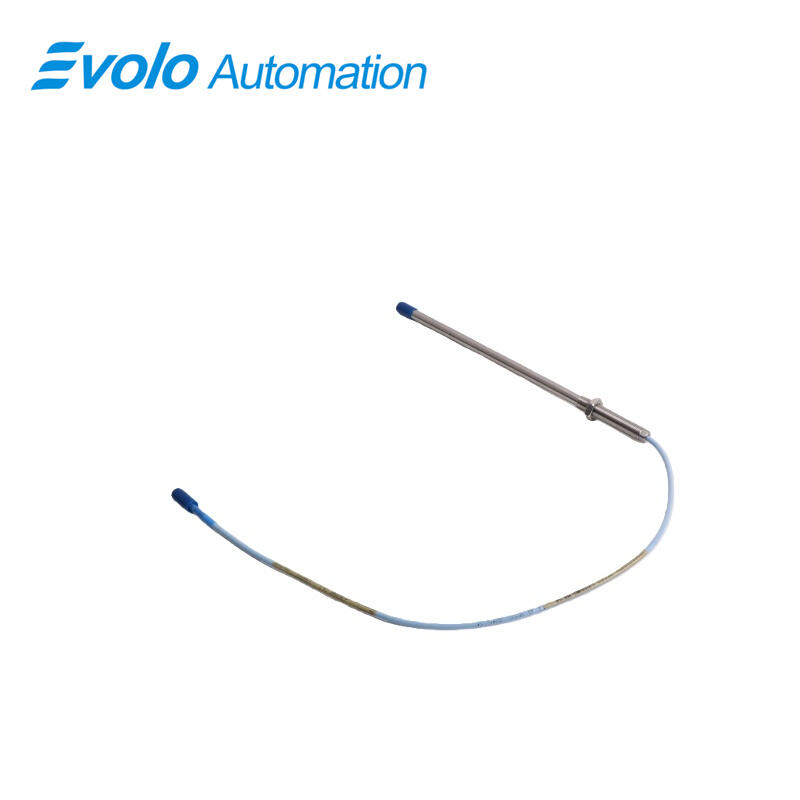

330103-17-22-10-12-05 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-17-22-10-12-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The Bently Nevada 330103-17-22-10-12-05 represents a highly specialized configuration within the industry-leading 3300 XL 8 mm Proximity Probes family, engineered for exceptional performance in demanding and spatially constrained monitoring applications. These premium non-contact eddy current displacement sensors are meticulously manufactured in the USA, delivering unparalleled accuracy for continuous vibration and position measurement on critical rotating machinery such as gas turbines, steam turbines, high-speed compressors, and large centrifugal pumps. The defining characteristic of this specific 3300 XL 8 mm Proximity Probes model is its extended mechanical design, featuring a 170 mm unthreaded probe length and a 220 mm overall case length. This unique geometry is purpose-built to navigate deep-set mounting scenarios, allowing the 3300 XL 8 mm Proximity Probes to pass through substantial machine casings, thick-walled bearing housings, or auxiliary protective sleeves while maintaining precise gap alignment with the target shaft.
At the core of the 3300 XL 8 mm Proximity Probes operation is a robust eddy current sensing principle. The probe generates a high-frequency electromagnetic field at its tip; when positioned near a conductive target, induced eddy currents create a measurable change in the coil's impedance, which is linearly converted into a precise DC voltage output proportional to the gap distance. This 3300 XL 8 mm Proximity Probes variant offers a standard 2 mm (80 mils) linear measuring range, providing high-resolution data essential for detecting minute changes in shaft radial vibration, axial thrust position, and eccentricity. The sensor's construction ensures long-term reliability: the durable probe body is machined from corrosion-resistant AISI 303/304 stainless steel, while the wear-resistant probe tip utilizes high-temperature Polyphenylene Sulfide (PPS) material to ensure dimensional stability. The integrated 1.0-meter FluidLoc cable terminates in a secure Miniature Coaxial ClickLoc connector, offering excellent resistance to fluids and ensuring a reliable, vibration-proof connection to the compatible 3300 XL Proximitor transducer.
Key Functions
Applications
1.Deep-Reach Machinery Vibration Monitoring
This probe is specifically engineered for applications where the measurement point is located deep within the machine structure. Its 170 mm unthreaded length and 220 mm overall case length allow it to traverse thick housings or protective barriers in large turbines, generators, and compressors, providing accurate vibration and shaft position data from otherwise inaccessible locations.
2.Hazardous Environment Certified Installations
With its CSA, ATEX, and IECEx Approvals, this sensor is ideally suited for deployment in classified hazardous areas. It is a reliable component for machinery protection systems in industries such as oil & gas production, chemical processing, and pharmaceutical manufacturing, where safety and compliance are paramount.
3.Critical Asset Predictive Maintenance
When integrated into a continuous condition monitoring system, the probe's precise 2 mm linear range and stable output facilitate trend analysis for predictive maintenance. It helps identify developing issues like shaft misalignment, imbalance, and bearing degradation in pumps, motors, and fans, enabling planned interventions before failure occurs.
Official Specifications
Quick Detail
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Unthreaded Length Option : |
170 mm |
|
Overall Case Length Option : |
220 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Dimension: |
1.8x1.5x50cm |
|
Weight: |
0.08kg |
Specifications
|
Operating Temperature Range: |
-55°C to +180°C (-60°F to+345°F) |
|
Linear Range: |
3 mm |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.5 Vdc to -20 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Frequently Asked Questions
What is the model number?
The listed model number is 330103-17-22-10-12-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.Specialized Extended Length Design for Complex Mounting
Unlike standard proximity probes, this model features a unique 170 mm unthreaded section and 220 mm overall case length. This provides a critical advantage for OEMs and maintenance teams dealing with deep-set bearing housings or custom machine designs, eliminating the need for complex adapter solutions and ensuring direct, reliable installation.
2.Multi-Certification for Global Hazardous Area Compliance
The probe comes pre-certified with CSA, ATEX, and IECEx Approvals. This trifecta of certifications simplifies the specification and procurement process for global projects, ensures compliance with international safety standards, and reduces the time and cost associated with obtaining site-specific hazardous area certifications.
3.Superior Environmental and Operational Robustness
Constructed with an AISI 303/304 stainless steel case and a PPS probe tip, the sensor offers exceptional resistance to corrosion, oil, chemicals, and mechanical wear. Coupled with a wide operating temperature range (-55°C to +180°C) and very low supply sensitivity, it guarantees measurement stability and long-term reliability in the most demanding industrial environments, minimizing sensor drift and maintenance needs.
