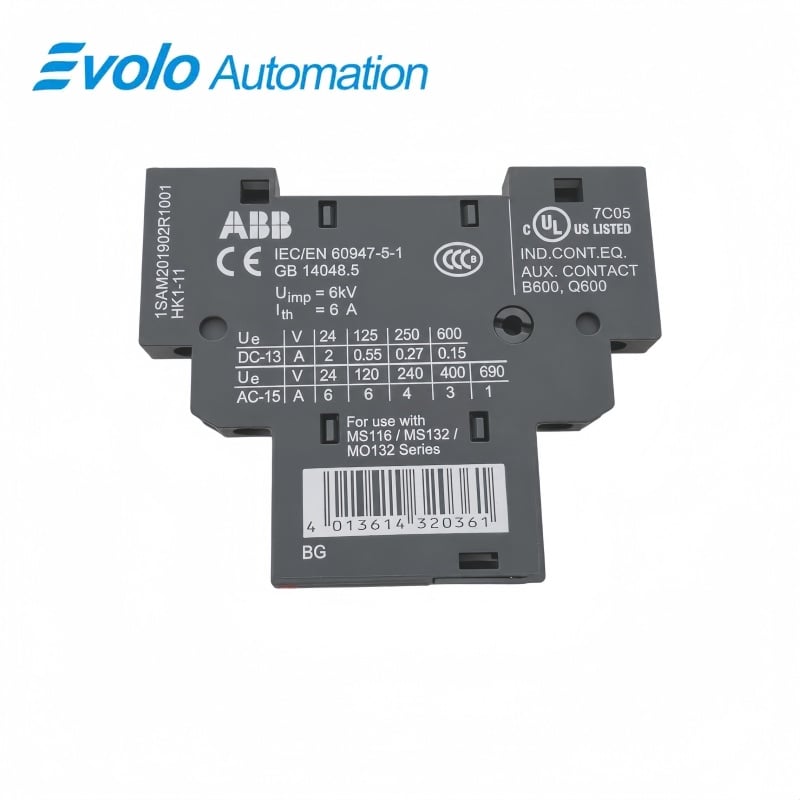

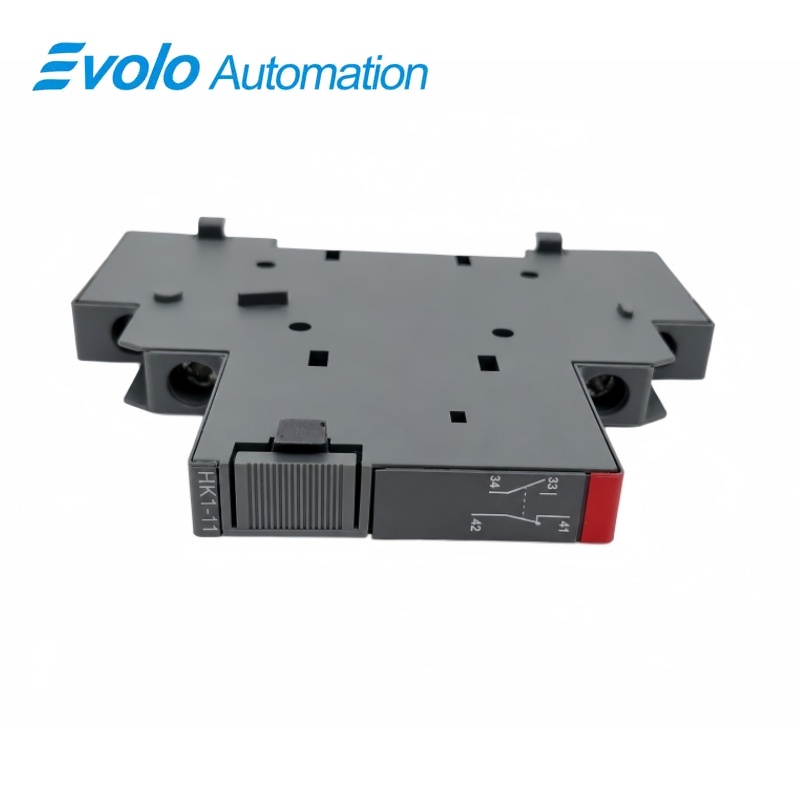

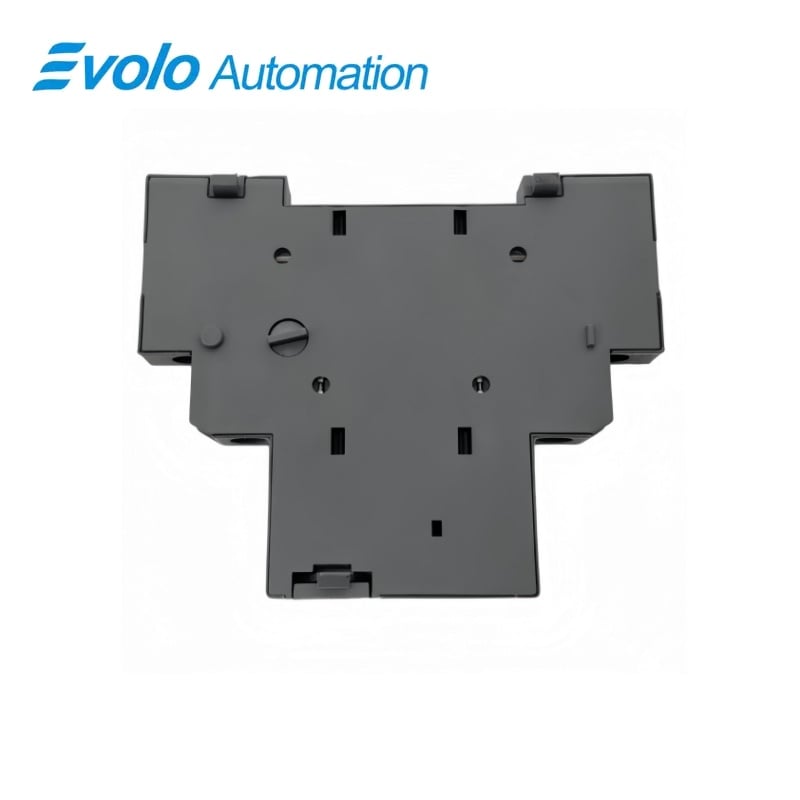

ABB 1SAM201902R1001 HK1-11 Right-Side 1 NO + 1 NC Auxiliary Contact
Manufacturer: ABB
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Match the MS116 or MS132 starter attachment.
- Use an appropriate trip-signaling accessory if a trip-only signal is required.
- Strip auxiliary conductors to 8 mm.
- Apply the 0.8–1.2 N·m terminal torque.
1SAM201902R1001 HK1-11 Right-Side 1 NO + 1 NC Auxiliary Contact
An ABB HK1-11 side-mounted auxiliary block with one normally open and one normally closed contact for motor-starter status and control wiring.
At a Glance
| Brand | ABB |
|---|---|
| Model | 1SAM201902R1001 |
| Product Type | Auxiliary contact accessory |
| Core Function | Following motor-starter main-contact state |
| Application | ABB MS116 and MS132 manual motor starters |
Right-side installation
The auxiliary block mounts on the right side of the compatible manual motor starter.
Main-contact following
The auxiliary contacts change position together with the starter main contacts.
Voltage-specific duties
AC-15 and DC-13 operating-current ratings differ by control voltage.
Product Overview
1SAM201902R1001 extends a compatible ABB manual motor starter with an HK1-11 auxiliary contact arrangement.
One normally open and one normally closed path follow the main-contact state for interlocking or indication circuits, while screw terminals provide the field-wire connections.
Key Functions
Follow starter operation
The auxiliary contacts change position with the main contacts of the manual motor starter.
Provide complementary control paths
One normally open and one normally closed contact support the control schematic’s required state signals.
Terminate the auxiliary circuit
M3 screw connections use the specified conductor preparation and tightening torque.
Official Specifications
| Contact arrangement | 1 NO + 1 NC |
|---|---|
| Rated operational voltage | 690 V AC or 600 V DC |
| Conventional free-air thermal current | 6 A |
| Rated frequency | 50/60 Hz |
| Rated impulse withstand voltage | 6 kV |
| Rated insulation voltage | 690 V AC |
| Pollution degree | 3 |
| Operating ambient temperature | −25 to +70 °C |
| Storage ambient temperature | −50 to +80 °C |
| Shock resistance | 25 g for 11 ms, IEC 60068-2-27 |
| Duty time | 100% |
| Mechanical and electrical durability | 50,000 cycles each |
| Rigid-conductor connection capacity | 1 or 2 × 1–1.5 mm² |
| Flexible-conductor connection capacity | 1 or 2 × 0.75–1.5 mm², with or without ferrules |
| Wire stripping length | 8 mm |
| Terminal tightening torque | 0.8–1.2 N·m |
| Terminal screw and tool | M3; Pozidriv 2 |
| AC-15 operating currents | 6 A at 24/120 V; 4 A at 240 V; 3 A at 400 V; 1 A at 440/690 V |
| DC-13 operating currents | 2 A at 24 V; 0.55 A at 125 V; 0.27 A at 250 V; 0.15 A at 440/600 V |
| Minimum switching conditions | 17 V and 5 mA |
Frequently Asked Questions
Will 1SAM201902R1001 indicate only a fault trip of the motor starter?
No, the HK1 auxiliary contacts follow the starter main contacts rather than providing a dedicated trip-only signal.
Which side of the manual motor starter accepts 1SAM201902R1001?
The auxiliary block mounts laterally on the right side.
Can 1SAM201902R1001 provide both an open-state and a closed-state control path?
Yes, the block has one normally open and one normally closed contact.
How much insulation should I remove from conductors for 1SAM201902R1001?
Strip each conductor to the specified length of 8 mm.
Which tool and torque should I use on the terminal screws of 1SAM201902R1001?
Use a Pozidriv 2 tool on the M3 terminals and tighten to 0.8–1.2 N·m.
Can 1SAM201902R1001 switch a 5 A AC-15 control load at 240 V?
No, the AC-15 operating-current rating at 240 V is 4 A.
Is 1SAM201902R1001 suitable for a very low-level 5 V signal circuit?
No, the specified minimum switching conditions are 17 V and 5 mA.
