330901-00-90-05-02-00 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-00-90-05-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

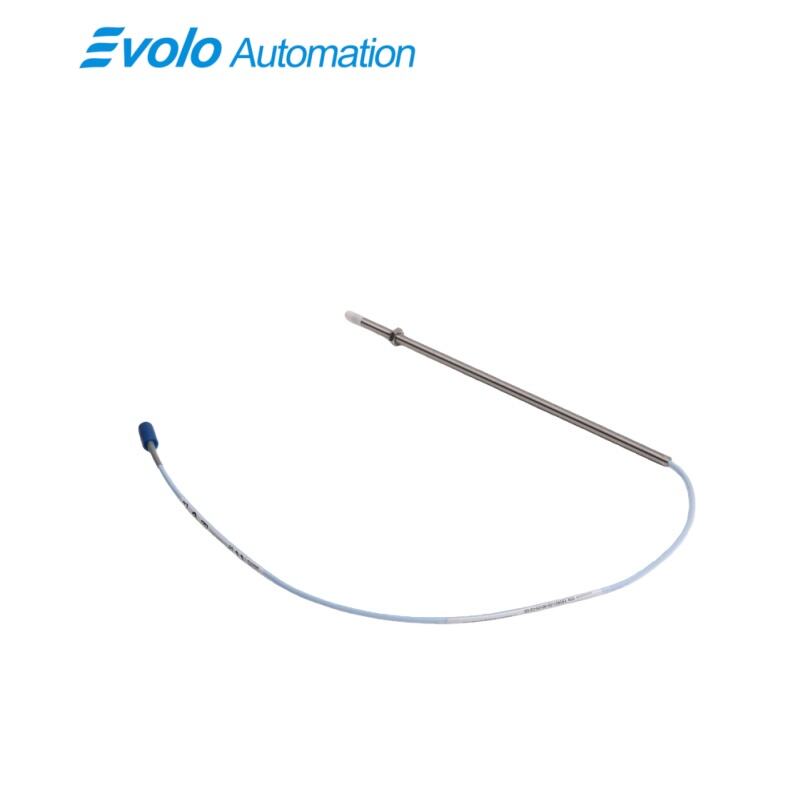

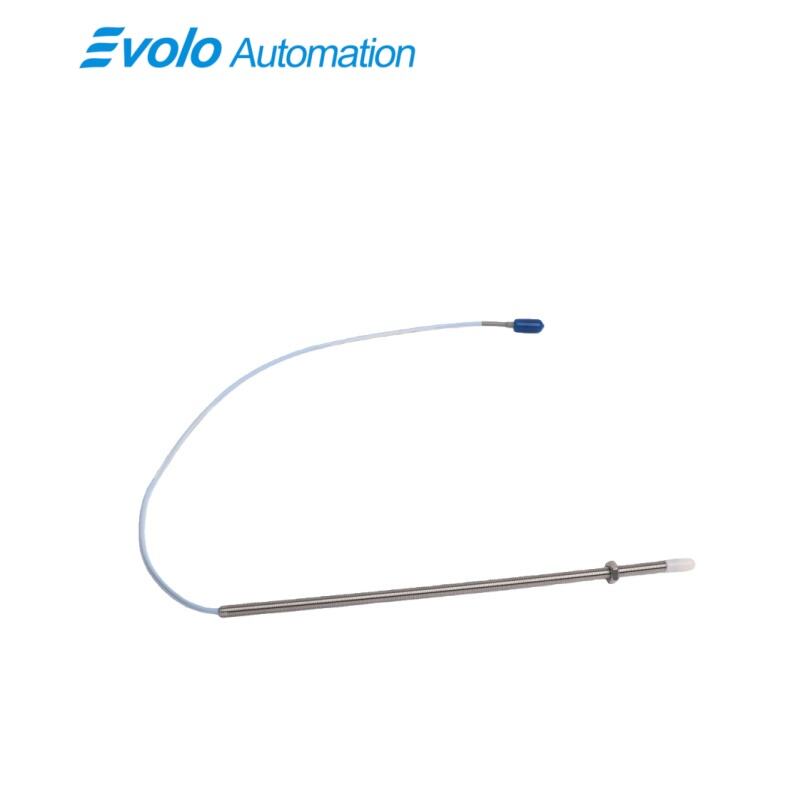

The Bently Nevada 330901-00-90-05-02-00 is a precision-engineered, standard-length variant within the specialized 3300 NSv Proximity Probes family, designed to deliver reliable, high-performance displacement and vibration monitoring for a wide range of industrial machinery. As a core component of Bently Nevada's advanced condition monitoring portfolio, this 3300 NSv Proximity Probe utilizes sophisticated eddy-current technology to generate a highly linear output voltage that directly corresponds to the gap between its probe tip and a conductive target surface. This enables precise measurement of both dynamic shaft vibration and critical static rotor position. Distinguished by its 9.0-inch overall case length and 0-inch unthreaded length, this model offers a straightforward and robust mechanical form factor ideal for standard mounting configurations in turbines, compressors, pumps, and motors.

Engineered for durability and consistent performance, the 330901-00-90-05-02-00 3300 NSv Proximity Probe is constructed to withstand the rigors of industrial environments. The probe body is manufactured from high-strength materials, ensuring resistance to physical stress and corrosion. Its design is optimized for secure installation and long-term signal integrity. A key feature is the integrated 0.5-meter (20-inch) standard cable, which provides a dedicated, factory-terminated connection. The cable is fitted with a Miniature coaxial ClickLoc connector that comes pre-equipped with a connector protector, offering immediate defense against moisture, dust, and accidental impact, thereby safeguarding the electrical connection point in challenging plant environments.

Applications

The 330901-00-90-05-02-00 3300 NSv Proximity Probe is ideally suited for standard radial vibration monitoring on a broad array of industrial rotating equipment, including large pumps, fans, and mid-sized compressors. Its 9.0-inch overall case length provides a sturdy and reliable mounting solution for common bearing housing designs, while its 1.9 mm linear range and stable electrical output deliver precise data for detecting machinery faults and supporting condition-based maintenance programs.

This probe serves as an excellent choice for axial position (thrust) monitoring in equipment where a standard-length sensor is required. The straightforward design with 0-inch unthreaded length allows for direct installation to measure the gap against a shaft collar or thrust disc, ensuring the rotor operates within safe axial limits to prevent damaging contact in gearboxes, steam turbines, and large electric motors, thereby protecting critical mechanical components.

With its wide operating temperature range (-60°C to +175°C) and the integrated connector protector, the sensor is highly effective in environments exposed to moderate thermal extremes, condensation, or incidental fluid splash. It provides dependable, long-term monitoring for machinery in industrial settings such as power generation plants, pulp and paper mills, and water treatment facilities, where environmental resistance and connection reliability are paramount for continuous operation.

Specifications

Competitive Advantage

1. Robust and Versatile Standard-Length Design

Featuring a substantial 9.0-inch overall case length, this 3300 NSv Proximity Probe offers a rugged and versatile form factor that meets the requirements for a vast majority of standard machinery monitoring points. Its straightforward design eliminates complexity, ensuring easy specification, reliable installation, and consistent performance across countless common applications without the need for custom engineering or adapters.

2. Enhanced Connection Protection for Improved Reliability

The inclusion of a factory-fitted connector protector on the Miniature coaxial ClickLoc connector provides a significant advantage in maintaining signal integrity. This proactive design shields the critical electrical connection from environmental contaminants, moisture, and physical damage from the moment of installation, drastically reducing the risk of connection-related failures and ensuring more reliable long-term data acquisition in demanding plant conditions.

3. Exceptional Operational Stability Across Demanding Environments

This probe is engineered for unwavering performance, combining an extensive operating temperature range (-60°C to +175°C) with superior electrical characteristics, including a low supply sensitivity (<2 mV/V). This ensures the 330901-00-90-05-02-00 3300 NSv Proximity Probe delivers accurate and repeatable displacement measurements that are immune to signal drift caused by ambient temperature swings or typical industrial power supply noise, providing trustworthy data for critical decision-making in predictive maintenance.
