Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
3500/60 163179-01 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Inputs Signal |
Accepts from 1 to 6 RTD or TC transducer signals |
|
Input Impedance |
Greater than 10 MW for each lead input. |
|
Tranducers |
Isolated TC I/O modules have 250 Vdc of isolation between channels |
|
Voltage Compliance (current output) |
0 to +12 Vdc range across load. Load resistance is 0 to 600 W. |
|
Resolution |
0.3662 µA per bit ±0.15% error at room temperature ±0.4% error over temperature range. |
|
Signal Conditioning |
Full-scale range for each channel is set in the field via 3500 Configuration Software. No calibration is required |
|
Operating Temperature |
-30 °C to +65 °C (-22 °F to +150 °F) when used with Internal/External/Termination I/O Modules |
|
Dimension: |
2.5x25.2x24cm |
|
Weight: |
0.8kg |
Description

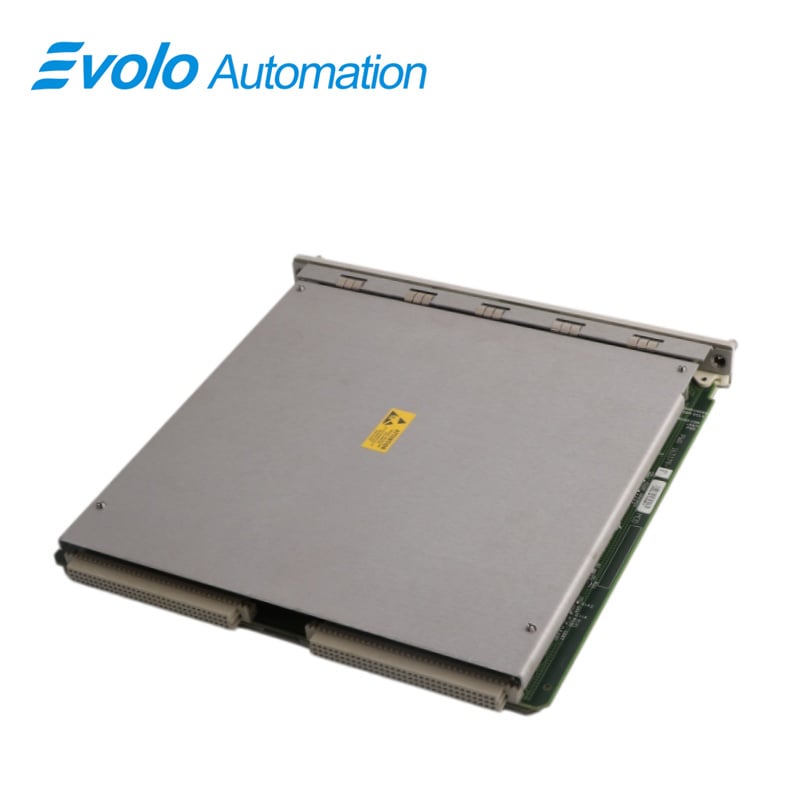

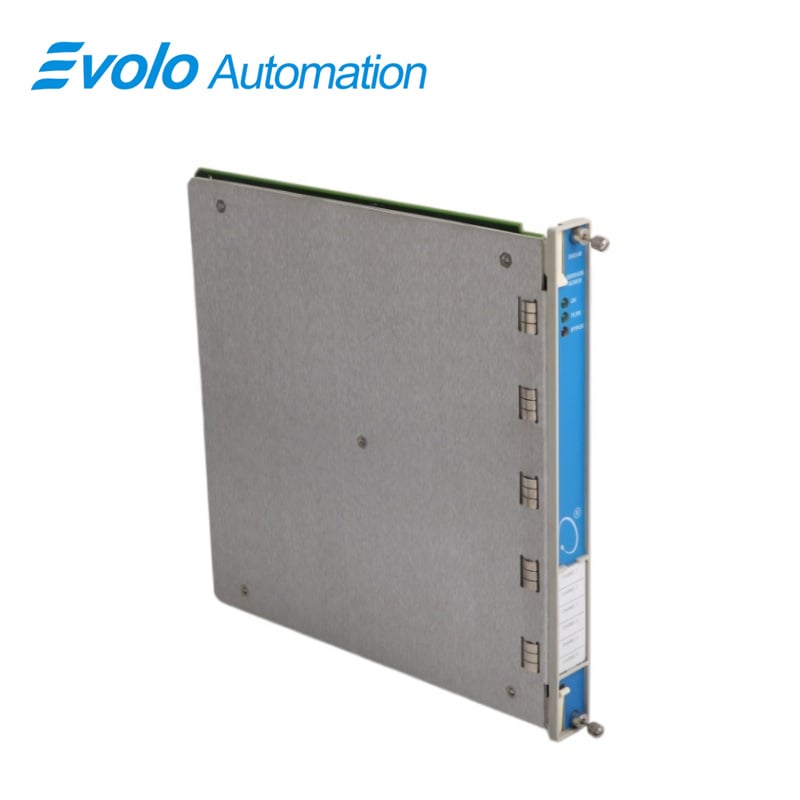

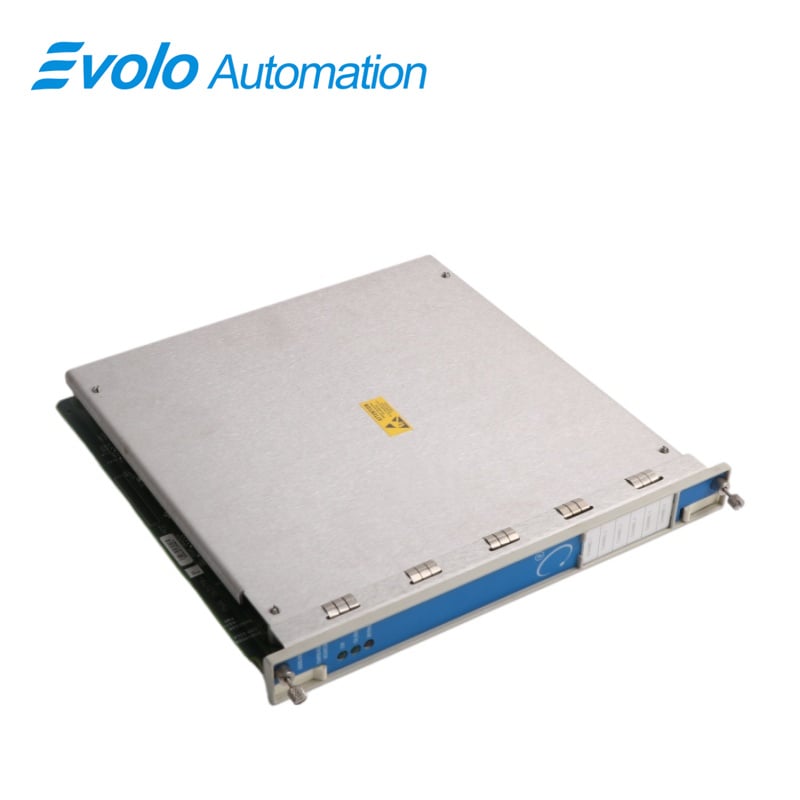

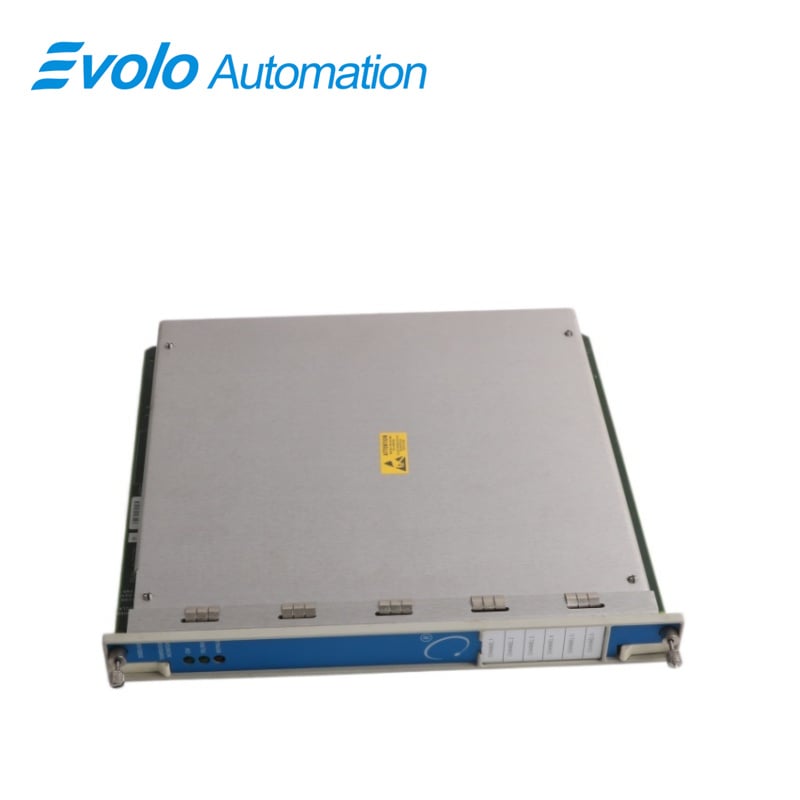

3500/60 163179-01 Temperature Monitor is a six-channel temperature monitor used in industrial automation and turbine control systems. 3500/60 163179-01 Temperature Monitor accepts 1–6 RTD or TC inputs, with input impedance greater than 10 MΩ per lead. The module supports isolated TC I/O with 250 Vdc channel isolation and provides +4–20 mA recorder outputs proportional to full-scale range (0–600 Ω load, 0–12 Vdc compliance).
3500/60 163179-01 Temperature Monitor delivers 1 °C resolution for RTDs and TCs and 0.3662 µA per bit current output resolution (±0.15% at 25 °C). RTD excitation current is 925 µA ±15 µA at 25 °C. Operating temperature ranges from –30 °C to +65 °C with standard I/O modules. Installed in one full-height rear rack slot, 3500/60 163179-01 Temperature Monitor is configured via 3500 software without field calibration, enabling direct temperature signal processing in automated monitoring systems.
Applications
Monitor turbine bearing temperature
3500/60 163179-01 Temperature Monitor connects up to 6 RTD inputs with 925 µA excitation and 1 °C resolution. With ±3 °C accuracy at 25 °C and input impedance above 10 MΩ, 3500/60 163179-01 Temperature Monitor measures bearing metal temperature and triggers rack alarms when limits are exceeded.
Track generator winding temperature
With 250 Vdc channel isolation, 3500/60 163179-01 Temperature Monitor separates thermocouple circuits in high-voltage areas. Each channel outputs 4–20 mA within 0–12 Vdc compliance for 0–600 Ω loads. Using 0.3662 µA per bit resolution, 3500/60 163179-01 Temperature Monitor transmits proportional signals to DCS systems.
Monitor compressor casing temperature in petrochemical units
Operating from –30 °C to +65 °C, 3500/60 163179-01 Temperature Monitor installs in outdoor cabinets and processes up to six temperature points simultaneously. Programmable full-scale range via configuration software allows 3500/60 163179-01 Temperature Monitor to match alarm limits to process temperature ranges without manual calibration.
Specifications
|
Rack Space Requirements |
1 full-height rear slot. |
|
Internal Barrier I/O Module |
Consult the 3500Internal Barrier specification sheet(part number 141495-01) if thelnternal Barrier Option is selected. |
|
RTD Current Source Value |
925 ±15 mA @ 25° C per transducer (single supply for the 4-wire RTD and two supplies for the 3-wire). |
|
Recorder |
+4 to +20 mA. Values are proportional to monitor full-scale. Individual recorder values are provided for each channel. Monitor operation is unaffected by short circuits on recorder outputs |
|
Voltage Compliance (current output) |
0 to +12 Vdc range across load. Load resistance is 0 to 600 W. |
|
Resolution |
0.3662 µA per bit ±0.15% error at room temperature ±0.4% error over temperature range. |
|
RTDs and TCs (except for 10W Copper RTDs) Resolution |
1°C or 1°F |
|
Accuracy(Internal Termination Non-Isolated） |
Bulkhead Rack ±3 °C at 25 °C (±5.4 °F at 77 °F)；Standard Rack: ±3 °C at 25 °C (±5.4 °F at 77 °F). |
Competitive Advantage
Save rack space with six channels
3500/60 163179-01 Temperature Monitor handles six temperature inputs in one full-height slot, reducing cabinet space compared with multiple single-channel modules.
Deliver precise analog output
With ±0.15% error at 25 °C and ±0.4% over temperature range, 3500/60 163179-01 Temperature Monitor provides accurate 4–20 mA output while continuing internal monitoring even if recorder outputs are short-circuited.
Support high isolation in high-voltage environments
The 250 Vdc channel isolation of 3500/60 163179-01 Temperature Monitor prevents voltage transfer between thermocouple inputs, allowing installation near generators and large motors without additional external isolation modules.
