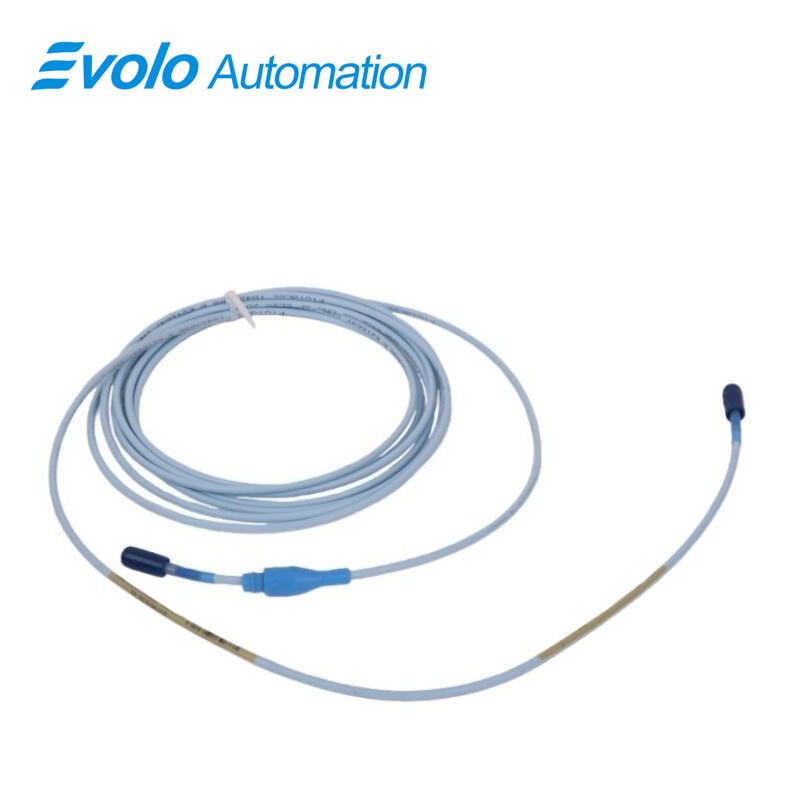

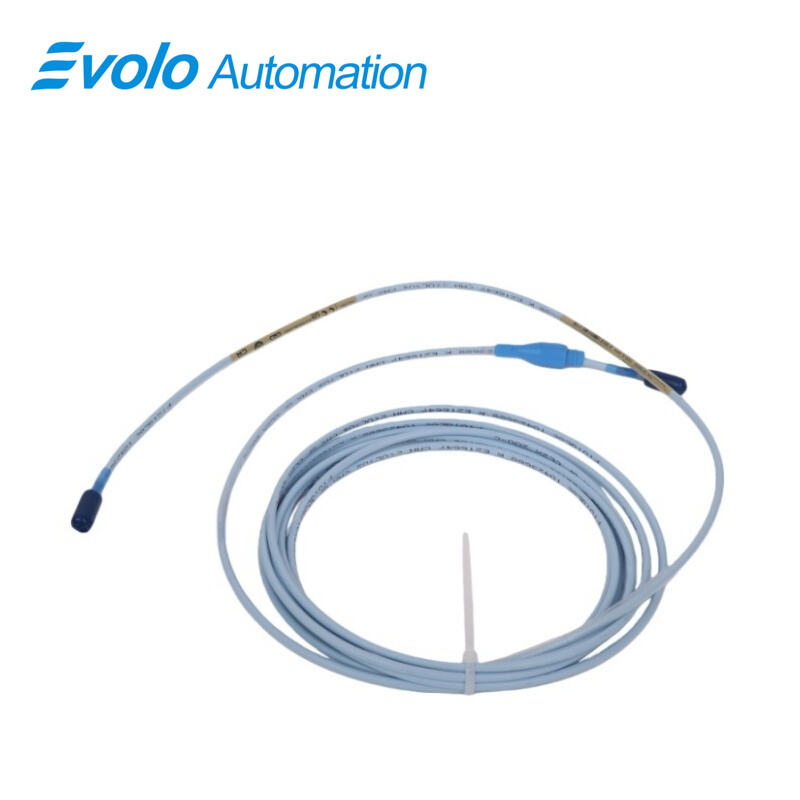

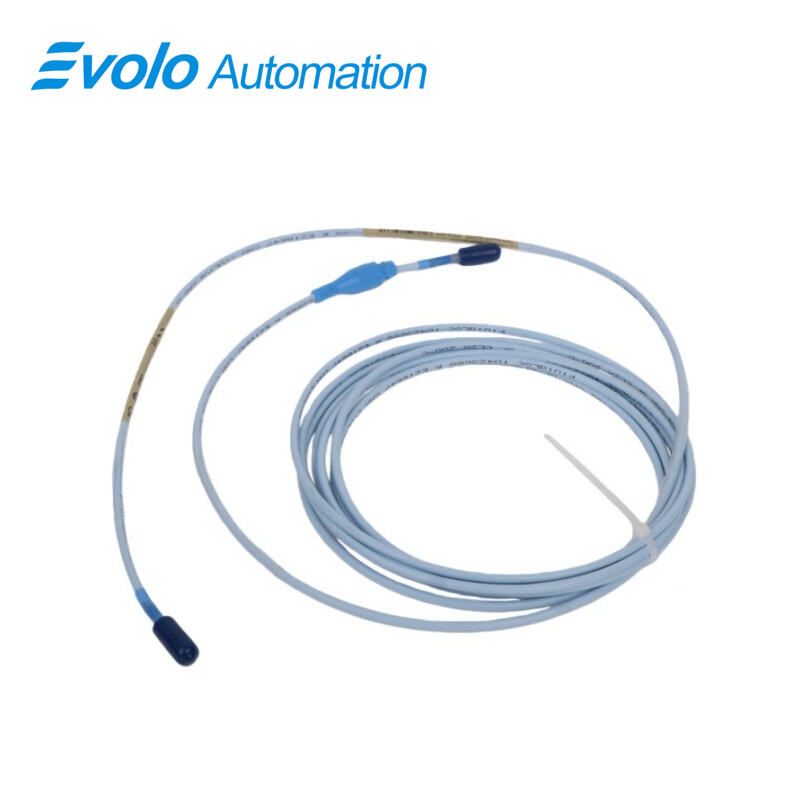

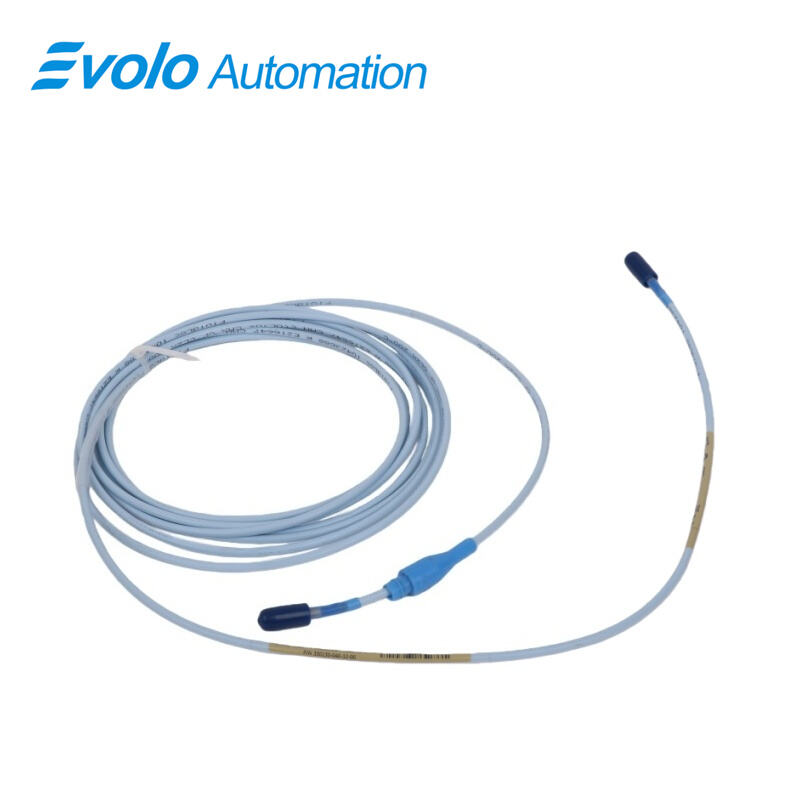

330130-040-11-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-040-11-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-040-11-00 3300 XL Standard Extension Cable is a high-performance, 4.0-meter (11.5 feet) extension solution specifically designed for integration with 3300 XL 8 mm Proximity Transducer Systems. Engineered for demanding industrial automation environments, the cable ensures accurate transmission of static and dynamic signals from the probe to the monitoring system with minimal loss or interference.

Constructed with 75 Q triaxial conductors insulated with fluoroethylene propylene (FEP), the cable offers excellent thermal stability, chemical resistance, and electrical insulation, making it ideal for harsh operating conditions. The cable incorporates a patented Armored FluidLoc design, which provides 330 N (75 lbf) pull strength and prevents oil or other liquids from leaking out of the machine through the cable interior, ensuring both safety and long-term reliability.

With a frequency response of 0 to 10 kHz (+0, -3 dB) over lengths up to 305 meters (1000 feet), the 3300 XL extension cable supports precise monitoring of vibration and position measurements on fluid-film bearing machines, Keyphasor reference signals, and rotational speed measurements. Its standardized construction allows interchangeability with other 3300 XL probes and Proximitor sensors, ensuring seamless integration into existing systems while maintaining compliance with API 670 mechanical and accuracy standards.

Applications

1. Vibration Monitoring on Turbomachinery
Supports accurate vibration signal transmission from 3300 XL probes installed on turbines, compressors, and pumps, ensuring early detection of mechanical issues.

2. Keyphasor Reference Signal Transmission
Enables precise transfer of rotor position data for phase-synchronized monitoring and advanced diagnostics in rotating machinery.

3. Fluid-Film Bearing Position Measurement
Maintains linearity across the 2 mm (80 mils) probe range for reliable shaft position detection, even under extreme operating temperatures (-52°C to +177°C).

4. Long-Distance Signal Integrity
Up to 305 meters (1000 feet) of wiring supported with minimal voltage drop, allowing flexible probe placement in large industrial plants.

5. Harsh Environment Industrial Applications
Armored FluidLoc design and FEP insulation provide resistance against oil, chemicals, and mechanical wear, ideal for petrochemical, power generation, and manufacturing facilities.

Specifications

Competitive Advantage

1. Superior Signal Integrity
Less than 2 mV change per volt input ensures precise transmission, critical for accurate vibration and position measurements.

2. High Mechanical Strength
Armored FluidLoc design provides 330 N (75 lbf) pull strength, securing probes and cables against accidental disconnection.

3. Thermal and Chemical Resistance
FEP insulation maintains performance across extreme temperatures (-52°C to +177°C) and exposure to industrial fluids.

4. Extended Frequency Response
Supports up to 10 kHz with minimal signal loss, ensuring high-fidelity monitoring of both static and dynamic measurements.

5. Interchangeable and Modular Design
Fully compatible with all 3300 XL probes and Proximitor sensors, reducing maintenance complexity and inventory requirements while ensuring API 670 compliance.
