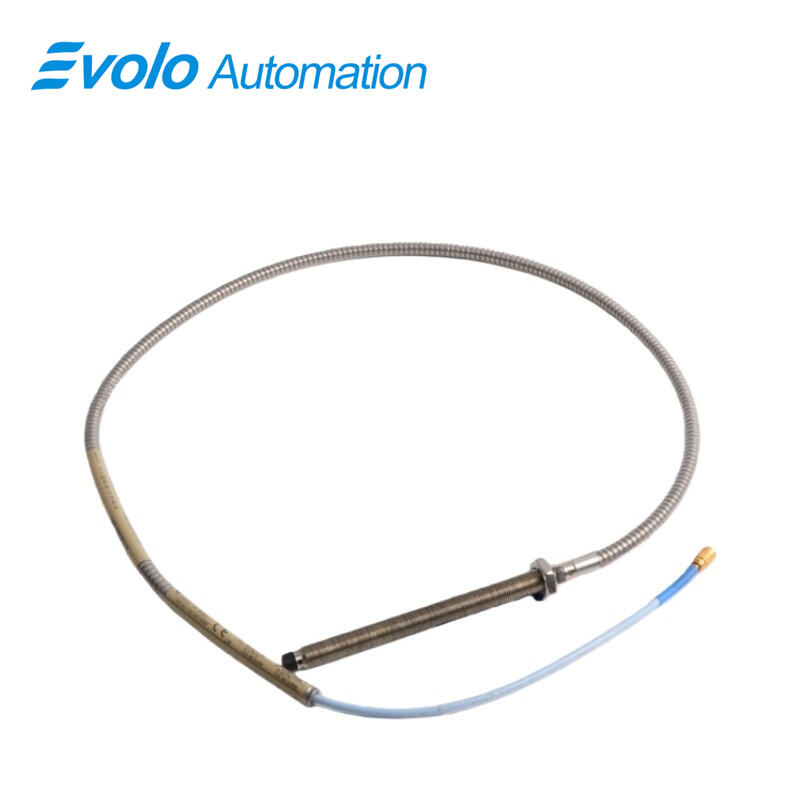

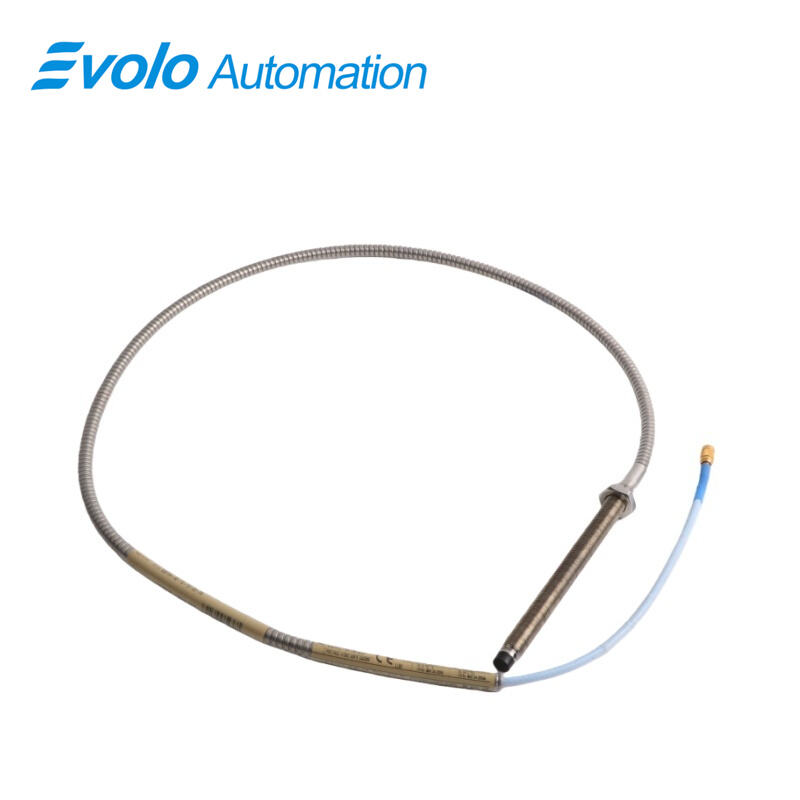

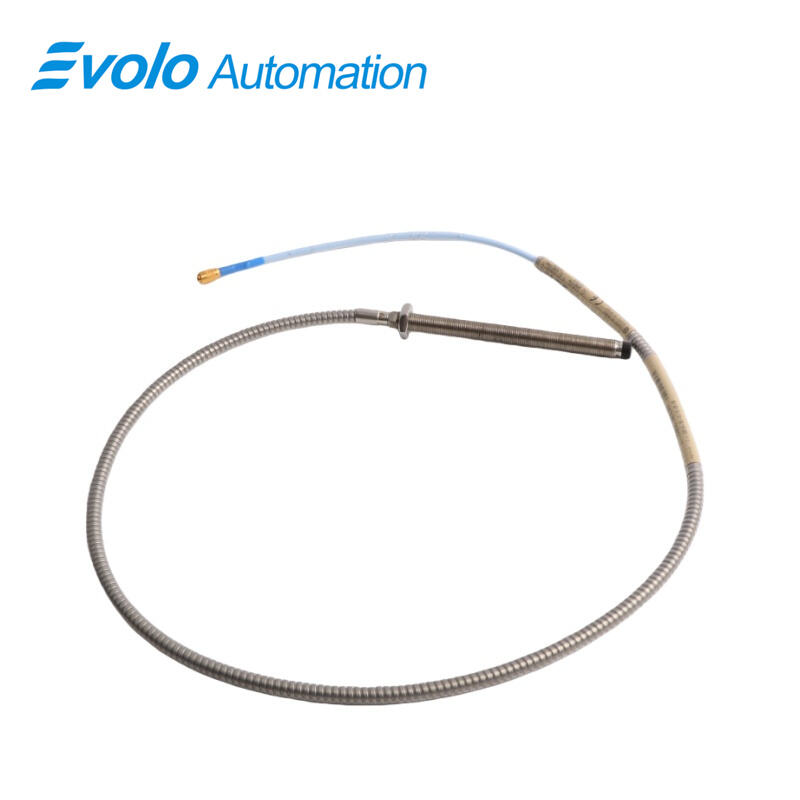

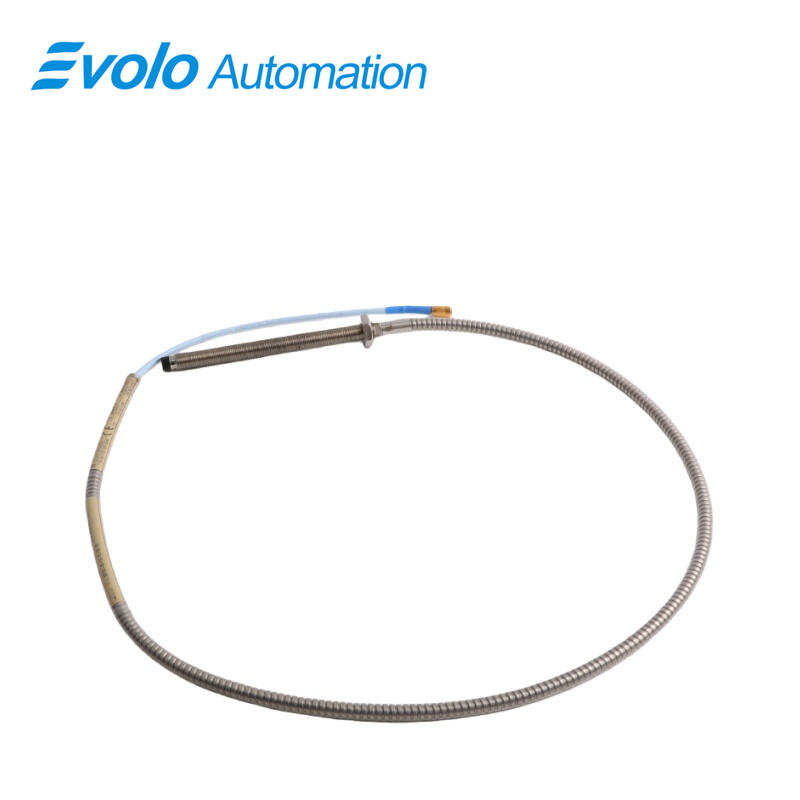

330104-00-12-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-12-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-12-10-01-00 3300 XL 8 mm Proximity Probe is a high-performance sensor designed for industrial automation and rotating machinery monitoring, including turbines, compressors, and pumps. This probe delivers precise static position and dynamic vibration measurements with a 2 mm (80 mils) linear range and 50 Ω output resistance, ensuring accurate signal acquisition for predictive maintenance and machine protection systems. Equipped with a miniature coaxial ClickLoc connector and protector, and a 1.0-meter standard cable, the probe maintains high-fidelity signal transmission with an extension cable capacitance of 69.9 pF/m and supply sensitivity under 2 mV per volt. Its M10x1 threaded probe case, TipLoc molded tip, and CableLoc reinforced cable provide up to 330 N (75 lbf) pull strength for secure mechanical retention. Operating from -52°C to +177°C, this probe withstands extreme industrial environments while remaining fully compatible with non-XL 3300 series 5 mm and 8 mm components. Optional FluidLoc cable protection prevents oil and fluid ingress, supporting reliable performance in lubricated compressors, turbine skids, and high-humidity machine control environments. The 330104-00-12-10-01-00 3300 XL 8 mm Proximity Probe combines durability, precision, and seamless integration for advanced automation and condition monitoring applications.

Applications

Radial Vibration Monitoring
Measures radial vibration on high-speed turbines and compressors; the 2 mm linear range allows detection of sub-mil amplitude variations for predictive maintenance and machine protection systems.

Axial Position Measurement
Provides static displacement readings for thrust and bearing centerline tracking; compatible with API 670-based machinery protection logic for alignment and safety monitoring.

Keyphasor and Speed Reference Signals
Delivers phase and tachometer signals to synchronization and rotor speed control systems; 50 Ω output ensures consistent and accurate timing over panel or cabinet wiring.

High-Temperature Machinery Diagnostics
Reliable operation from -52°C to +177°C supports deployment near bearing housings, turbine casings, and other heat-intensive locations where conventional sensors may fail.

Condition Monitoring Integration
Seamlessly connects to SCADA, vibration monitoring, and machine health platforms; backward compatibility with older 3300 series reduces installation time and avoids bench calibration.

Specifications

Competitive Advantage

API 670 Standard Compliance
Meets requirements for linearity, temperature stability, and mechanical configuration; ensures full interchangeability with existing 3300 5 mm and 8 mm components, reducing integration effort.

Robust Mechanical Retention
TipLoc and CableLoc designs provide up to 330 N (75 lbf) pull strength, preventing disconnections in high-vibration environments.

Extreme Environmental Tolerance
Operates in extreme temperatures from -52°C to +177°C, suitable for turbines, compressors, and pump bearing housings in industrial plants.

Stable Electrical Performance
Supply sensitivity under 2 mV/V and controlled extension cable capacitance (69.9 pF/m) provide reliable signal transmission over long distances in panel and cabinet applications.

Optional FluidLoc Cable Protection
Prevents oil or fluid ingress through cable assemblies, enhancing reliability in lubricated machinery, reducing signal errors, and supporting continuous monitoring in industrial automation systems.
