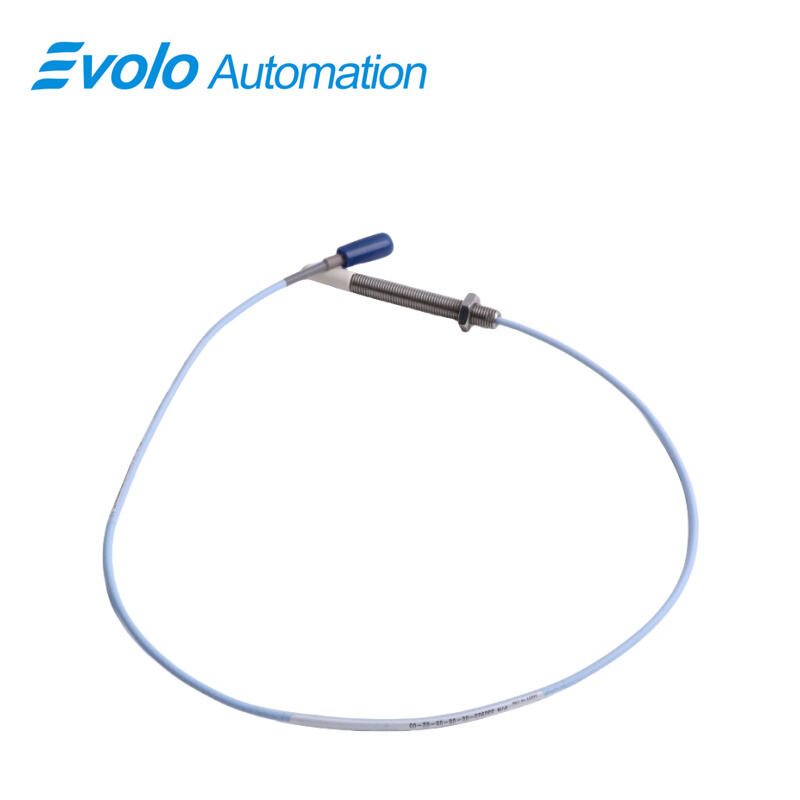

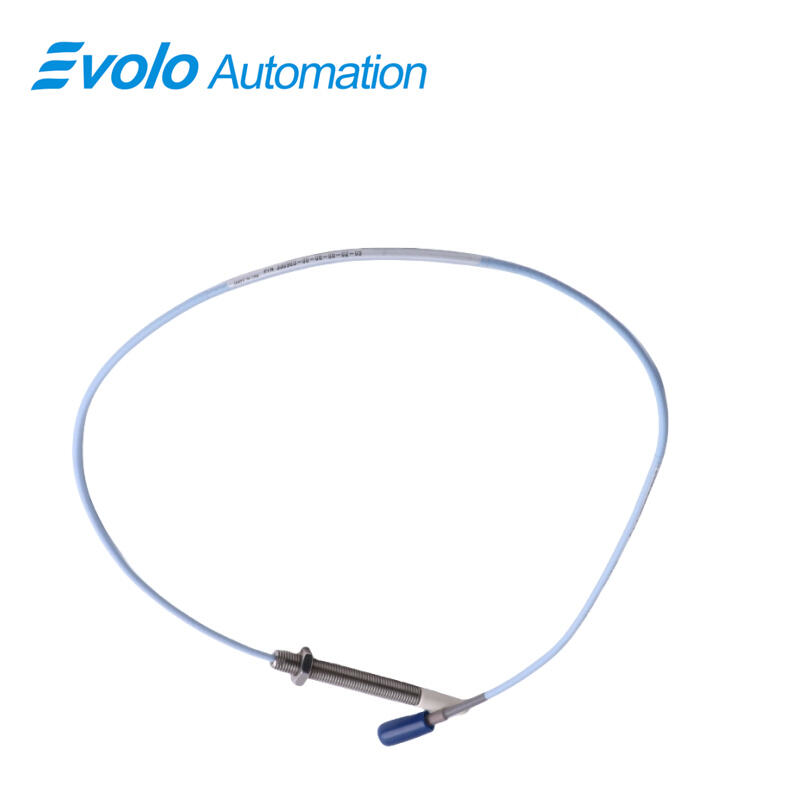

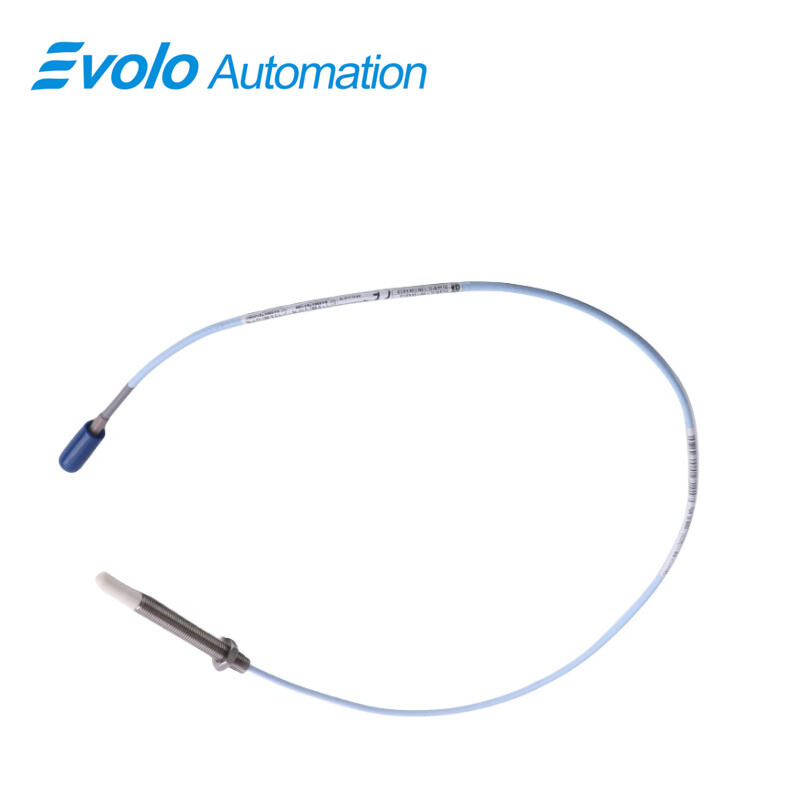

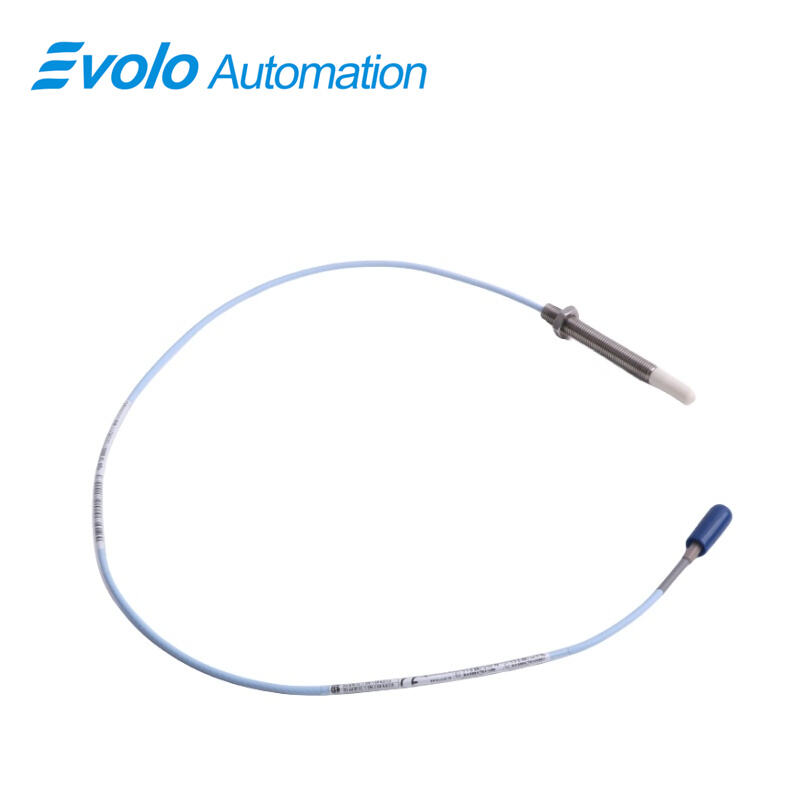

330903-00-12-05-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330903-00-12-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330903-00-12-05-02-05 3300 NSv Proximity Probe is a high-precision transducer system engineered for centrifugal air compressors, refrigeration compressors, process gas compressors, and other industrial machines with limited installation space. Designed specifically for automation applications where side-view, rear-view, or counter-bore restrictions exist, the 3300 NSv Proximity Probe excels in measuring radial vibration on shafts smaller than 51 mm (2 in) and axial positions on compact targets under 15 mm (0.6 in). This Bently Nevada NSv system supports critical measurements on fluid-filmed bearing machinery, including radial vibration, radial position, axial thrust position, tachometer readings, zero speed detection, and Keyphasor phase reference signals.

The 3300 NSv Transducer System is fully compatible with previous 3300 RAM proximity probes and extension cables, allowing straightforward upgrades while leveraging existing automation infrastructure. In applications requiring a full system replacement from older 3000-series or 7000-series transducers, the NSv probe, extension cable, and Proximitor Sensor ensure seamless integration. With an average scale factor of 7.87 V/mm (200 mV/mil), the 3300 NSv provides reliable eddy current output, optimized for small target and side-view limitations, while maintaining a linear range of 1.5 mm (60 mils), surpassing the 3000-series 190 Transducer System.

The 3300 NSv probe offers enhanced chemical resistance for demanding process environments, and its side-view design delivers superior gap performance compared to older 190-series probes. Multiple probe case configurations are available, including armored and unarmored threads in 1/4-28, 3/8-24, M8X1, and M10X1, with reverse-mount versions provided in 3/8-24 or M10X1. All system components feature gold-plated ClickLoc connectors that lock securely, preventing electrical loosening, while the patented TipLoc molding ensures robust bonding between probe tip and body. The CableLoc design provides 220 N (50 lb) pull strength, securing the probe cable connection, and connector protectors safeguard critical automation signals against liquids, preserving reliable performance in industrial environments.

Applications

The 3300 NSv Proximity Probe is specifically designed for industrial automation and monitoring applications where space constraints or small target sizes make conventional probes impractical. It is widely used with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machinery with tight installation requirements. Its small target capabilities make it ideal for measuring radial vibration on shafts smaller than 51 mm (2 in) and axial (thrust) positions on flat targets under 15 mm (0.6 in). The probe excels in fluid-filmed bearing machines for radial vibration and radial position monitoring, axial position detection, tachometer readings, zero-speed sensing, and phase reference (Keyphasor) signal generation. Its precision and compact design allow reliable operation in side-view, rear-view, or counter-bore restricted environments, ensuring accurate real-time monitoring in complex automation systems.

Specifications

Competitive Advantage

The 3300 NSv Proximity Probe offers multiple advantages over traditional Bently Nevada 3300 and 3000-series transducer systems. Its mechanical and electrical compatibility with previous 3300 RAM probes allows easy system upgrades while utilizing existing extension cables and monitoring infrastructure. The probe provides enhanced chemical resistance, making it suitable for demanding process compressor applications, and its optimized side-view design improves gap performance compared to older 190-series probes. The transducer system includes multiple probe case configurations, armored and unarmored threads, gold-plated ClickLoc connectors, and robust TipLoc and CableLoc designs, ensuring secure connections and high pull strength. With an average scale factor of 7.87 V/mm (200 mV/mil) and a 1.5 mm linear range, the 3300 NSv probe delivers high-accuracy measurements, reliable signal integrity, and versatile installation options, making it a superior solution for modern industrial automation and machinery monitoring.
