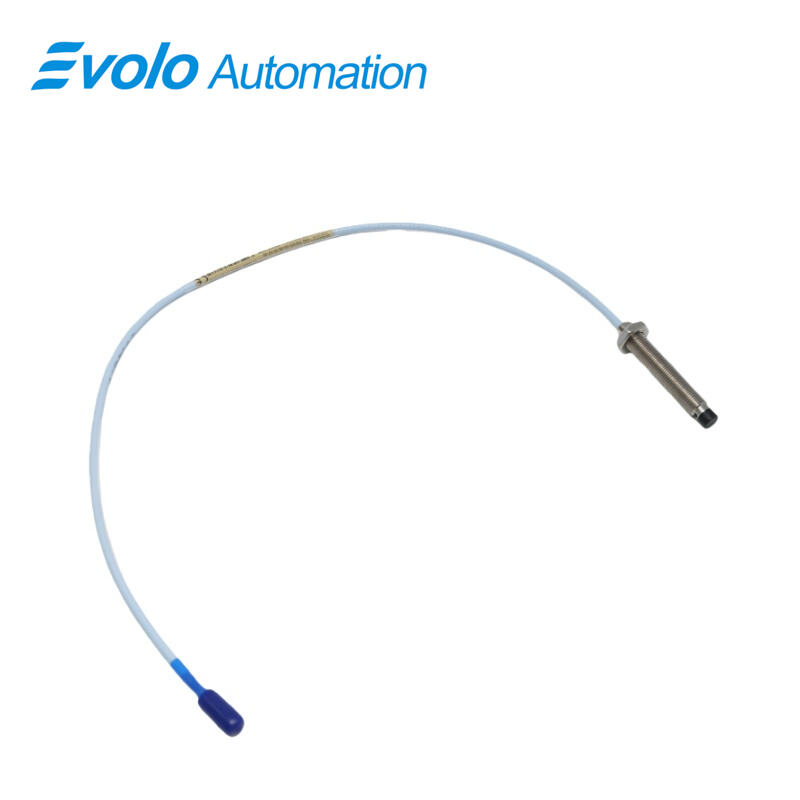

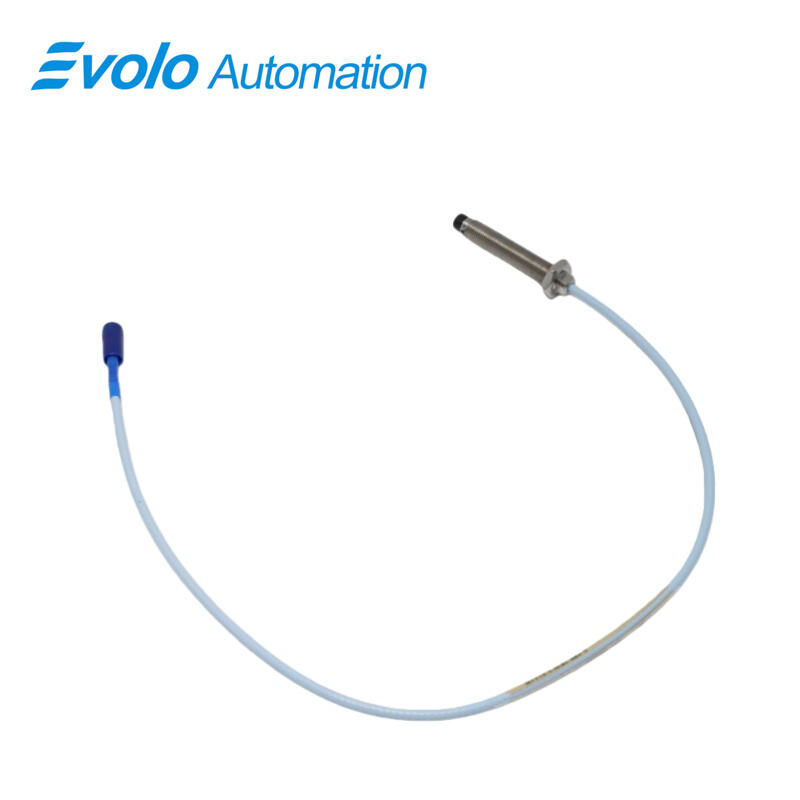

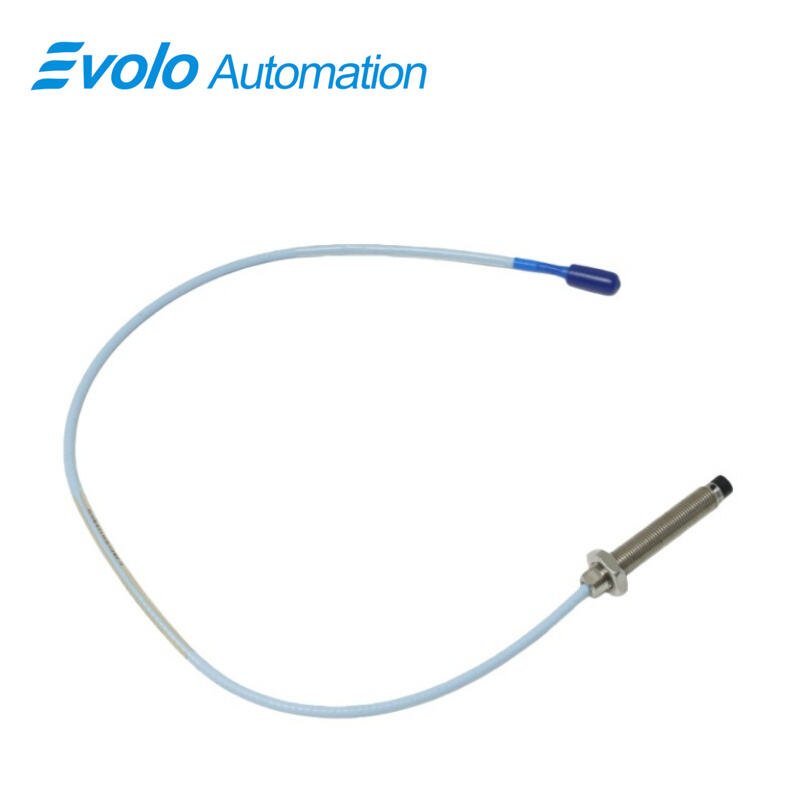

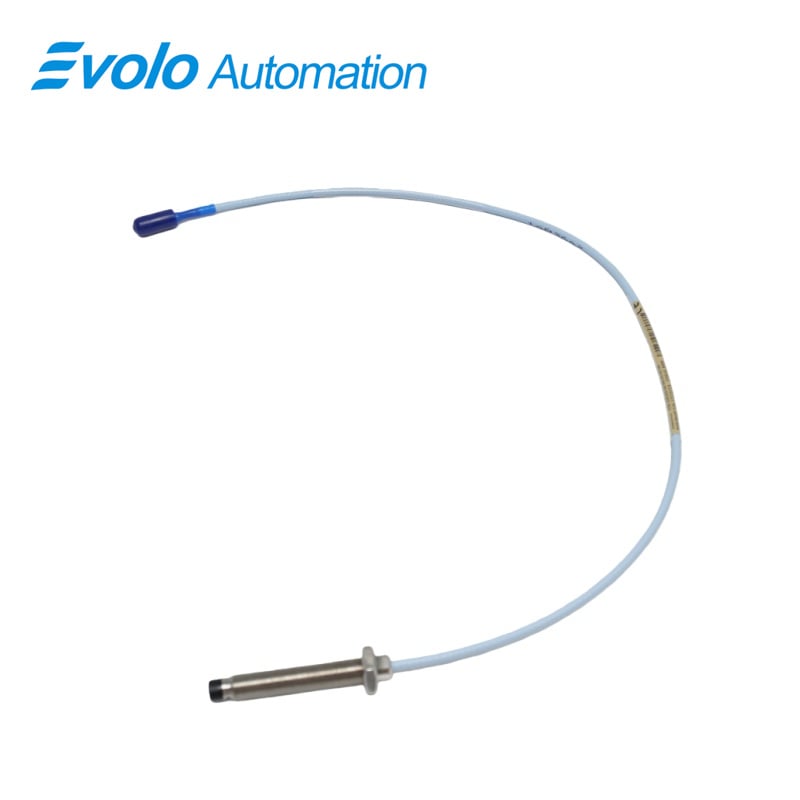

330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-02-06-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes provide precise position and vibration measurement on fluid-film bearing machines by generating output voltage directly proportional to the distance between the probe tip and conductive surfaces. Featuring a 20 mm unthreaded length, 60 mm overall case length, and 0.5-meter total length, the 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes connect via a miniature coaxial ClickLoc connector with standard cable. The M10x1 threaded case engages up to 15 mm, operating between -52°C and +177°C. Output resistance is 50 Ω, extension cable capacitance is 69.9 pF/m, and field wiring supports 0.2–1.5 mm². The 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes linear range is 2 mm, suitable for Keyphasor reference and speed measurement. Patented TipLoc molded tips and CableLoc connectors provide 330 N pull strength, while optional FluidLoc cables prevent fluid leakage. These 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes integrate with 3300 series components, enabling high-resolution automation monitoring of rotating equipment.

Applications

Position Monitoring on Fluid-Film Bearings
The 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes measure shaft displacement by providing output voltage directly proportional to probe tip distance. With a 2 mm linear range and less than 2 mV voltage change per volt of input, the probes detect small positional variations accurately in automation systems.

Vibration Detection on Rotating Machinery
The 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes capture dynamic vibrations of turbines and compressors. Operating from -52°C to +177°C and supporting both static and dynamic measurements, the probes record high-resolution vibration signals under extreme industrial conditions.

Keyphasor Signal Generation for Speed Control
The 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes provide a reliable Keyphasor output for rotational speed measurement. With 50 Ω output resistance and 0.5-meter total length, the probes integrate with speed monitoring modules in automated systems.

Specifications

Competitive Advantage

Direct Distance-to-Voltage Output
The 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes provide linear voltage output across a 2 mm range with supply sensitivity below 2 mV/V, allowing precise position and vibration measurement without additional signal conversion.

High Pull Strength Connection
TipLoc probe tips and CableLoc connectors on the 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes provide 330 N pull force, keeping the probe and cable securely attached during high-vibration operation.

Interchangeable with 3300 Series Components
The 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes are compatible with other 3300 series 5 mm and 8 mm probes and extension cables, enabling easy replacement without recalibration.

Flexible Field Wiring Integration
Supporting 0.2–1.5 mm² wiring and 69.9 pF/m extension cable capacitance, the 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes integrate into existing automation wiring setups efficiently.

Extended Temperature Monitoring
Operating from -52°C to +177°C, the 330103-02-06-05-02-00 3300 XL 8 mm Proximity Probes provide reliable measurement in extreme hot or cold industrial environments, maintaining linear output voltage.
