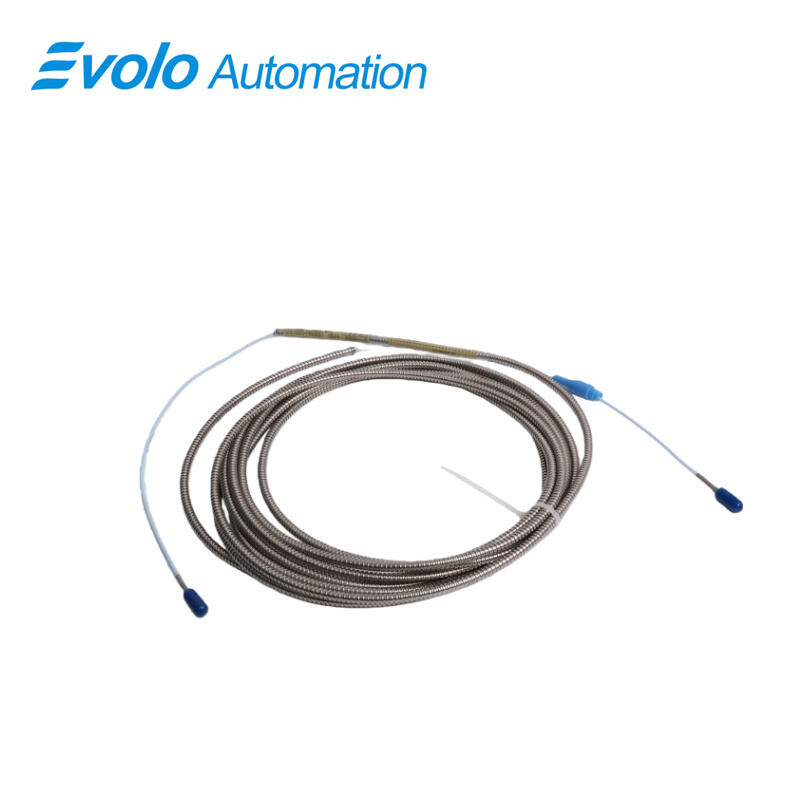

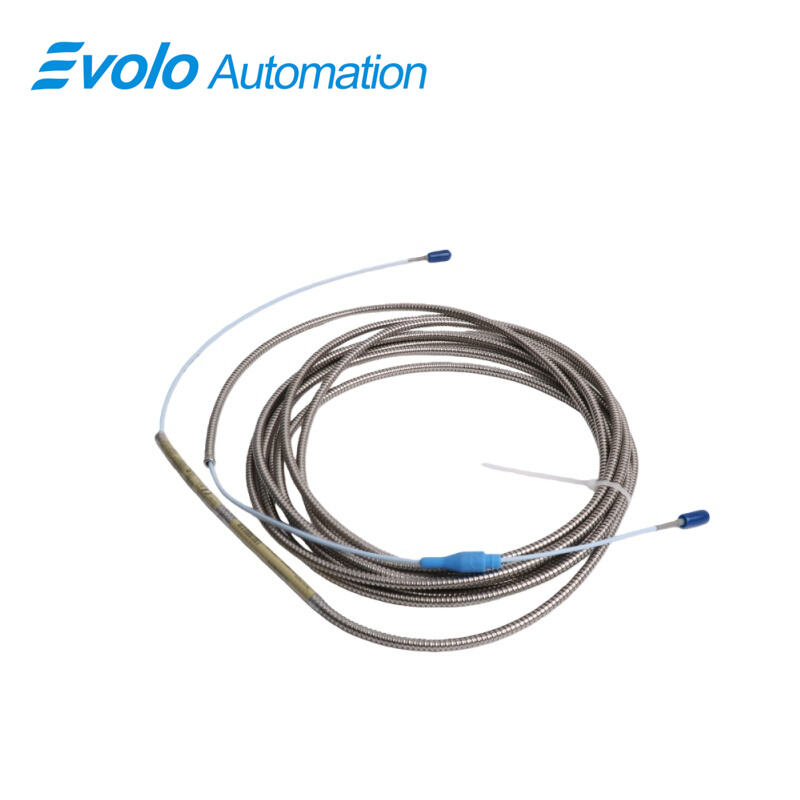

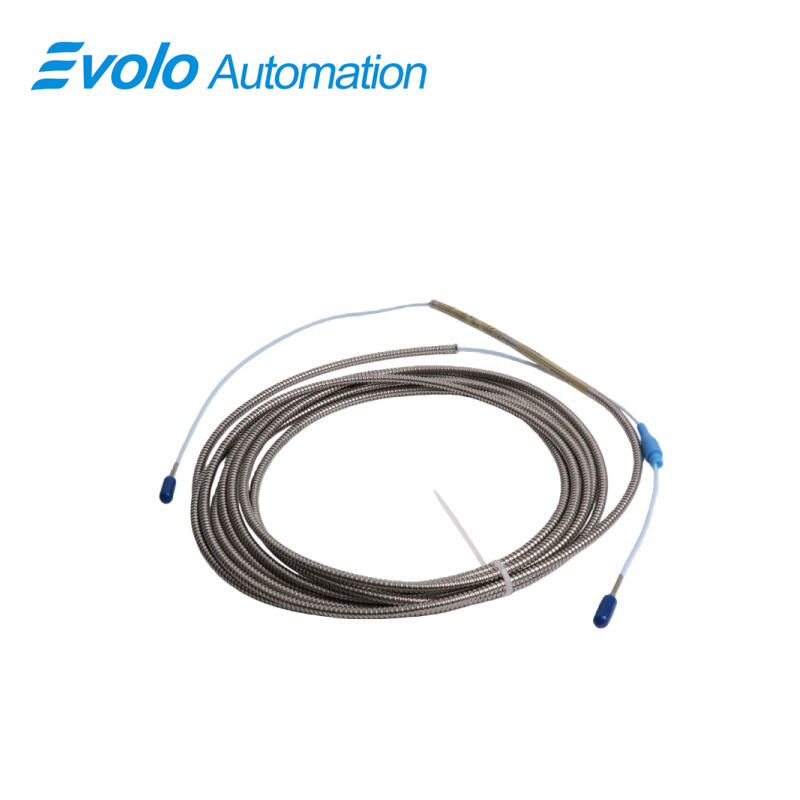

330930-060-05-05 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-060-05-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330930-060-05-05 3300 NSv Extension Cable serves as a critical, high-performance link in the 3300 XL NSv Transducer System, boasting full mechanical and electrical compatibility with Bently Nevada’s legacy 3300 RAM proximity probes and extension cables—enabling seamless interchangeability for upgrades or replacements. As an integral component of the NSv product family, this 330930-060-05-05 3300 NSv Extension Cable enhances the system’s overall reliability and adaptability, particularly in demanding industrial environments where signal integrity and structural durability are non-negotiable. When paired with 3300 NSv probes (which offer superior chemical resistance compared to 3300 RAM probes), the 330930-060-05-05 3300 NSv Extension Cable becomes an ideal solution for process compressor applications and other scenarios exposed to corrosive media, expanding the system’s usability across harsh industrial sectors.

Beyond compatibility, the 330930-060-05-05 3300 NSv Extension Cable complements the 3300 NSv probe’s enhanced side-view performance—outperforming the 3000-series 190 probe when gapped at the same target distance. This synergy ensures precise signal transmission even in space-constrained installations, where probe positioning is limited. The cable is engineered to work seamlessly with the 3300 NSv probe’s diverse case configurations, including armored and unarmored options with 1/4-28, 3⁄8-24, M8X1, and M10X1 threads, as well as reverse-mount probes (standard with 3⁄8-24 or M10X1 threads). This versatility eliminates compatibility concerns across different equipment setups, making the 330930-060-05-05 3300 NSv Extension Cable a flexible choice for retrofits and new installations alike.

A standout feature of the 330930-060-05-05 3300 NSv Extension Cable is its integration with Bently Nevada’s proprietary connection technologies. All transducer system components, including this extension cable, feature gold-plated brass ClickLoc connectors—designed to lock securely into place and prevent loosening due to vibration, thermal cycling, or operational stress. Complementing this, the patented CableLoc design delivers an impressive 220 N (50 lb) of pull strength, forming a robust bond between the cable and probe tip to resist accidental tugging or mechanical damage. The probe-to-cable and cable-to-proximitor sensor connections are further safeguarded by recommended connector protectors, which act as a barrier against liquid ingress—preventing moisture, oils, or chemicals from compromising the ClickLoc connectors and degrading electrical signal quality.

Applications

The 330930-060-05-05 3300 NSv Extension Cable serves as a critical high-fidelity signal transmission component for the 3300 XL NSv Transducer System, engineered to connect proximity probes with monitoring devices across power generation, oil and gas, chemical, and heavy manufacturing industries. Certified with multiple agency approvals, this cable ensures safe and reliable operation in hazardous, corrosive, and extreme environments, while its ultra-wide operating and storage temperature range of -52°C to +175°C (-62°F to +350°F) guarantees consistent performance from freezing outdoor facilities to high-heat industrial enclosures. Featuring a 6.0-meter (19.7 feet) length, flexible AISI 302 stainless steel armor (without FEP jacket), and a connector protector, it offers robust mechanical protection against physical damage, corrosion, and liquid ingress—ideal for harsh conditions like drilling platforms and refineries. With a compact 28x26x3cm dimension and 0.4kg lightweight design, it facilitates easy routing in equipment-dense spaces without compromising durability. Constructed with 75Ω coaxial FEP-insulated conductors, it delivers low capacitance (69.9 pF/m) and minimal DC resistance (0.220Ω/m for center conductor, 0.066Ω/m for shield), ensuring minimal signal attenuation and impedance matching with 50Ω output devices. Compatible with 0.3 to 1.6 mm² (16 to 24 AWG) field wiring, it seamlessly integrates with existing monitoring systems, while supply sensitivity of less than 2 mV/V and stable -17.5 Vdc to -26 Vdc power compatibility (12V without barriers) maintain signal integrity amid voltage fluctuations.

Specifications

Competitive Advantage

1. Robust Armor Protection for Harsh Industrial Environments

Equipped with flexible AISI 302 stainless steel armor and a dedicated connector protector, the cable provides exceptional resistance to mechanical abrasion, impact, and corrosion—ideal for high-risk scenarios like oil and gas drilling platforms and chemical plant machinery. The option to forgo the FEP jacket streamlines deployment in specific environments, while the armor design extends service life and reduces maintenance costs compared to unprotected standard cables.

2. Ultra-Low Signal Attenuation for High-Fidelity Transmission

Constructed with 75 Ω coaxial FEP-insulated conductors, the cable features low typical capacitance (69.9 pF/m) and minimal DC resistance (0.220 Ω/m for center conductor, 0.066 Ω/m for shield). This optimized electrical design ensures minimal signal loss over its 6.0-meter length, and the 50 Ω output resistance enables seamless impedance matching with 3300-series proximity probes and proximitor sensors, delivering reliable vibration and displacement data for predictive maintenance.

3. Multi-Agency Certification for Global Regulatory Compliance

Backed by multiple agency approvals, the cable meets stringent international safety and quality standards for hazardous and regulated industries. This compliance removes market access barriers for global projects, supporting bidding requirements in sectors like power generation, oil and gas, and heavy manufacturing—an advantage over non-certified alternatives limited to regional or general-purpose use.
