Overview

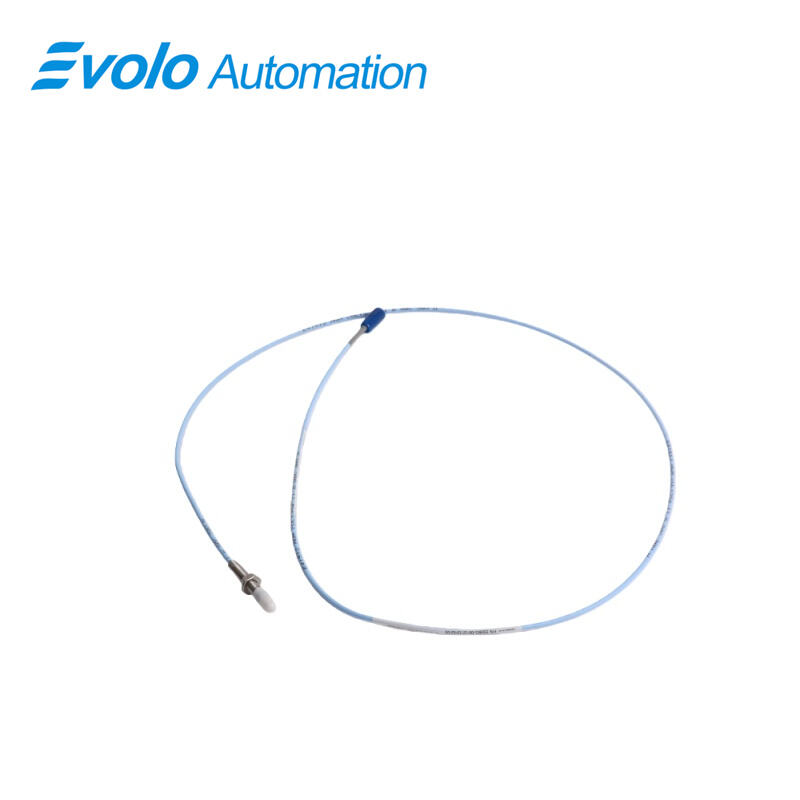

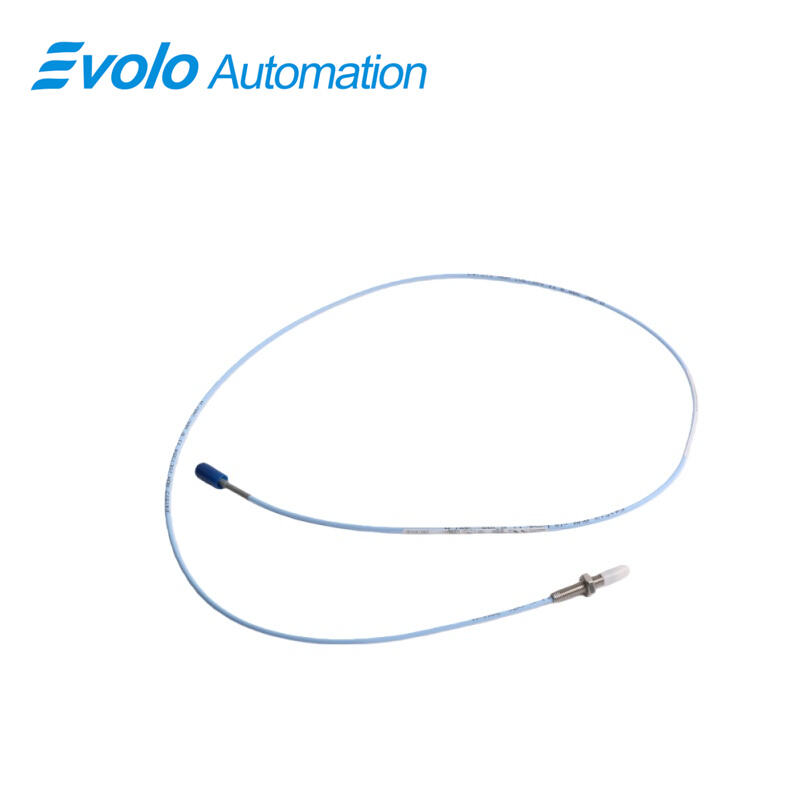

330901-00-90-10-01-05 3300 NSv Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330901-00-90-10-01-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The Bently Nevada 330901-00-90-10-01-05 is a high-performance, standard-length 3300 NSv Proximity Probe engineered to deliver precise non-contact displacement and vibration measurements for a wide array of industrial machinery. As an integral part of the advanced 3300 NSv Proximity Probes series, this sensor leverages refined eddy-current technology to generate a stable, linear voltage output directly proportional to the gap between its probe tip and a conductive target. This enables accurate monitoring of both dynamic shaft vibration and critical static rotor position. Distinguished by its 9.0-inch overall case length and 0-inch unthreaded length, this model provides a robust and versatile mechanical profile, making it an excellent choice for standard mounting configurations where extended reach is not required but reliable performance is essential.
Manufactured in the USA to the stringent quality standards of Bently Nevada, the 330901-00-90-10-01-05 3300 NSv Proximity Probe is built for durability and ease of integration. It comes equipped with a 1.0-meter (39-inch) standard cable, offering a practical length for flexible installation routing. The cable is terminated with a secure Miniature Coaxial ClickLoc connector that includes an integrated connector protector, providing immediate defense against environmental contaminants, moisture, and physical damage to ensure long-term connection integrity in demanding plant environments. This feature is particularly valuable in maintaining signal reliability where cables are exposed to oils, dust, or accidental impact.
Key Functions
Applications
The 330901-00-90-10-01-05 3300 NSv Proximity Probe is ideally deployed for comprehensive radial vibration and position monitoring on standard-sized industrial rotating equipment such as large pumps, fans, and compressors. Its 9.0-inch case length offers a solid mounting solution for common bearing housings, while the 1.0-meter cable provides sufficient reach for flexible connection to monitoring systems, delivering reliable data for condition assessment and fault detection.
This probe is highly effective for axial thrust position monitoring in turbines, gearboxes, and large motors. The straightforward design with 0-inch unthreaded length allows for direct installation against a shaft collar or thrust face, providing accurate DC gap measurements to ensure the rotor remains within safe operational limits and prevent catastrophic thrust bearing failure.
With its wide operating temperature range (-45°C to +180°C) and the protected ClickLoc connector, this sensor is well-suited for environments exposed to thermal extremes and potential contamination. It provides dependable, long-term monitoring for machinery in sectors like power generation and heavy manufacturing, where sensors must endure heat, condensation, or incidental fluid exposure without signal degradation or connection failure.
Official Specifications
Quick Detail
|
Unthreaded Length Option: |
0in |
|
Overall Case Length Option: |
9.0 in |
|
Total Length Option: |
1.0 meter (39 in) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Dimension: |
1.5x1x69cm |
|
Weight: |
0.06kg |
Specifications
|
Operating and Storage Temperature: |
-45°C to +180°C (-60°F to+345°F) |
|
Recommended Gap Setting: |
1.0 mm |
|
Output Resistance: |
50 Ω |
|
Linear Range: |
1.8 mm |
|
Field Wiring: |
0.2 to 1.5 mm2 (17 to 24 AWG) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Frequently Asked Questions
What is the model number?
The listed model number is 330901-00-90-10-01-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. Robust and Versatile Standard-Length Design
Featuring a substantial 9.0-inch overall case length, this 3300 NSv Proximity Probe offers a rugged and adaptable form factor that meets the requirements for the majority of standard machinery monitoring points. This proven mechanical design ensures straightforward installation, reliable fit, and consistent performance across a wide range of common industrial applications without necessitating custom engineering solutions.
2. Integrated Connection Protection for Enhanced Reliability
The inclusion of a factory-fitted connector protector on the Miniature coaxial ClickLoc connector delivers a critical advantage in maintaining long-term signal integrity. This design proactively shields the electrical connection from environmental hazards such as moisture, oils, and conductive dust from the moment of installation, significantly reducing the risk of connection-related failures and ensuring more reliable data acquisition.
3. Exceptional Stability Across Demanding Thermal Environments
Engineered for unwavering performance, this probe combines an extensive operating temperature range (-45°C to +180°C) with superior electrical specifications, including low supply sensitivity (<2 mV/V). This ensures the 330901-00-90-10-01-05 3300 NSv Proximity Probe delivers accurate and repeatable measurements that are resistant to signal drift caused by ambient temperature fluctuations or common industrial electrical noise, providing trustworthy data for critical predictive maintenance decisions.
