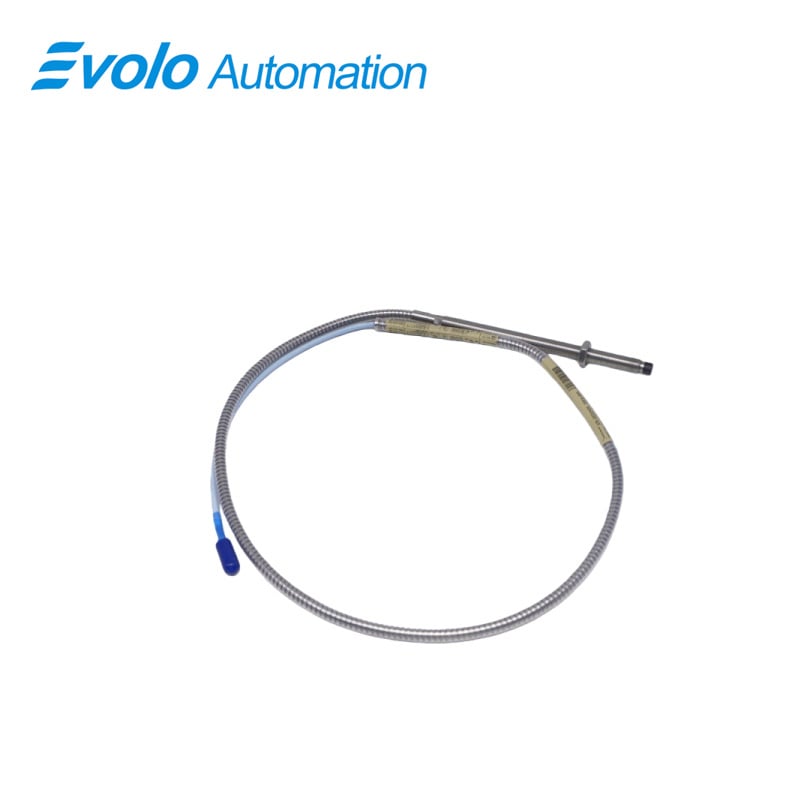

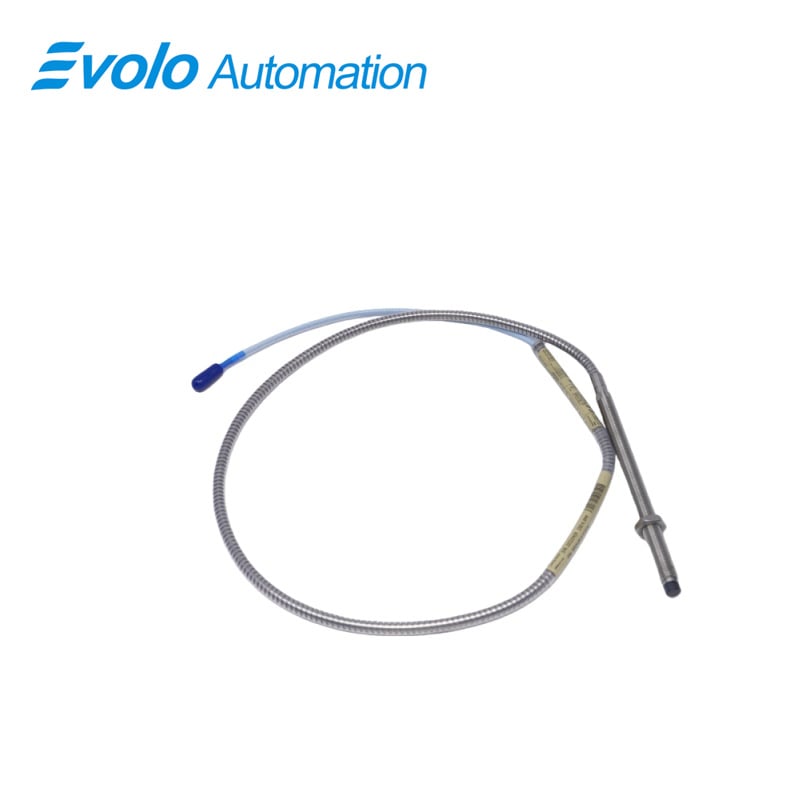

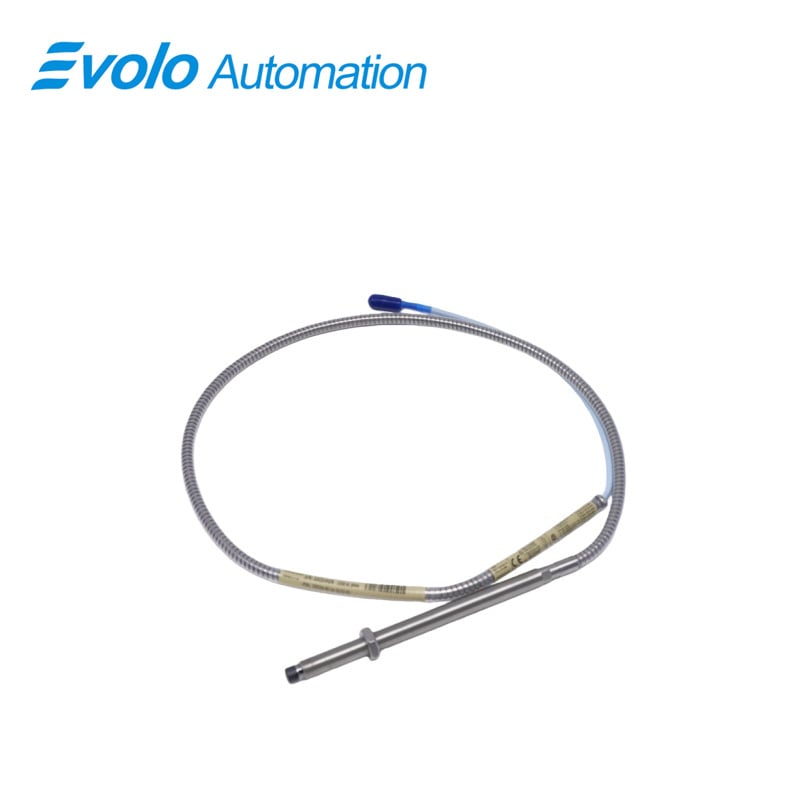

330104-00-14-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-14-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-14-10-02-05 3300 XL 8 mm Proximity Probes represent a major leap in eddy current sensor durability, offering a significantly more resilient design than legacy transducer models. As a specialized configuration within the 3300 XL 8 mm Proximity Probes family, this device is engineered to survive the most punishing mechanical environments found in modern industrial plants. A standout feature of the 330104-00-14-10-02-05 is the utilization of the patented TipLoc molding technique. This advanced manufacturing process ensures an incredibly robust chemical and mechanical bond between the high-performance polyphenylene sulfide (PPS) probe tip and the stainless steel sensor body. By preventing tip separation, the 3300 XL 8 mm Proximity Probes guarantee long-term operational stability in high-flow or high-pressure zones.

Furthermore, the signal integrity of the 330104-00-14-10-02-05 3300 XL 8 mm Proximity Probes is protected by the patented CableLoc design. This reinforcement provides the integrated cable with a massive 330 N (75 lbf) pull strength, creating an unbreakable connection between the probe cable and the internal sensing elements. This mechanical strength ensures that the 3300 XL 8 mm Proximity Probes remain functional even when subjected to accidental tugging or extreme vibration during machine operation. For installations where fluid migration is a concern, these 3300 XL 8 mm Proximity Probes can be enhanced with the FluidLoc cable option. This specialized barrier prevents oil, coolant, and other process liquids from leaking out of the machine housing through the interior of the cable, effectively maintaining the environmental seal of your equipment.

Applications

1.Radial Vibration and Axial Position Monitoring

The primary application of the 330104-00-14-10-02-05 is the high-precision measurement of both static and dynamic displacement in rotating machinery. With a 2 mm (80 mils) linear range and excellent supply sensitivity, it is the industry standard for monitoring radial vibration and axial (thrust) position on fluid-film bearing machines. It allows operators to detect early signs of shaft instability, misalignment, or bearing wear in critical assets like centrifugal compressors, large pumps, and electric motors, providing the data necessary for automated machinery protection systems.

2.Deep-Mount Installation in Thick-Walled Housings

With an Overall Case Length of 140 mm (5.5 inches) and 0 mm of unthreaded length, this specific configuration is optimized for deep-reach installations. It is ideally suited for applications where the probe must pass through a thick outer casing or a deep oil manifold to reach the target shaft. The fully threaded body provides maximum flexibility for adjusting the probe gap, ensuring a secure and stable mount even in the complex internal geometries of large-scale industrial equipment.

3.Hazardous Area and Global Compliance Operations

Certified with CSA, ATEX, and IECEx Approvals, the 330104-00-14-10-02-05 is specifically designed for deployment in explosive and high-risk environments. It is a critical component for machinery protection in oil and gas refineries, chemical processing plants, and offshore platforms. These certifications ensure that the 3300 XL 8 mm Proximity Probes meet the most stringent global safety standards, allowing for reliable operation in zones where combustible gases or vapors may be present.

4.Keyphasor Reference and Speed Sensing

Beyond displacement monitoring, this probe serves as an exceptional Keyphasor sensor for rotational speed and phase reference. By detecting a notch or projection on the shaft, it provides a once-per-turn timing pulse. This pulse is vital for calculating exact RPM for overspeed protection and for performing advanced vibration diagnostics, such as phase-locked loop filtering and vector analysis, which are essential for balancing and fault identification in complex rotor systems.

Specifications

Competitive Advantage

1.Global Compliance and Hazardous Area Versatility

The inclusion of CSA, ATEX, and IECEx approvals gives this probe a significant competitive edge in the global marketplace. Unlike uncertified sensors, the 330104-00-14-10-02-05 can be seamlessly integrated into projects across North America, Europe, and Asia without requiring additional safety testing. This universal certification simplifies the supply chain for multinational corporations and ensures that the 3300 XL 8 mm Proximity Probes are ready for immediate deployment in explosive atmospheres, such as hydrogen-rich oil refineries or offshore natural gas platforms.

2.Superior Signal Integrity and Noise Immunity

Technically, this probe stands out due to its low 50 Ω output resistance and exceptional supply sensitivity of less than 2 mV change per volt of input fluctuation. These parameters ensure that the 330104-00-14-10-02-05 delivers a clean, stable signal even in environments plagued by electromagnetic interference (EMI). By maintaining high signal-to-noise ratios, the 3300 XL 8 mm Proximity Probes prevent false trips and provide the high-resolution data necessary for identifying subtle mechanical faults that cheaper sensors would miss.

3.Optimized Connector Protection System

A unique mechanical advantage of the 330104-00-14-10-02-05 is the Miniature coaxial ClickLoc connector paired with an integrated connector protector. While the ClickLoc design provides a vibration-proof audible lock, the protector adds a critical secondary defense against moisture, oil mist, and physical impact. This dual-layer protection significantly extends the sensor's lifespan in harsh "wet" environments, reducing the total cost of ownership by preventing the most common cause of proximity probe failure: connector contamination.
