Overview

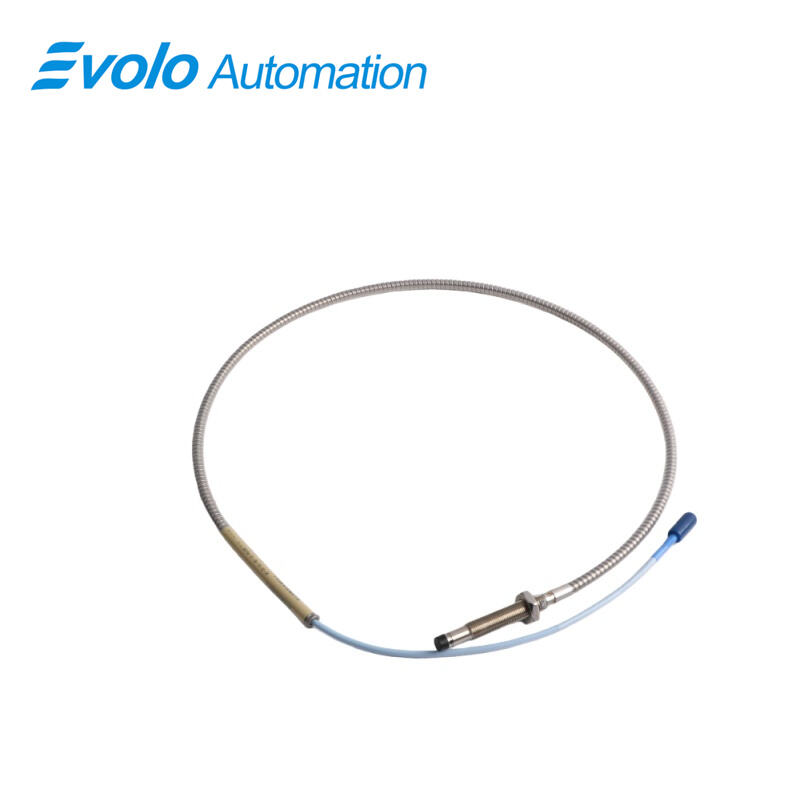

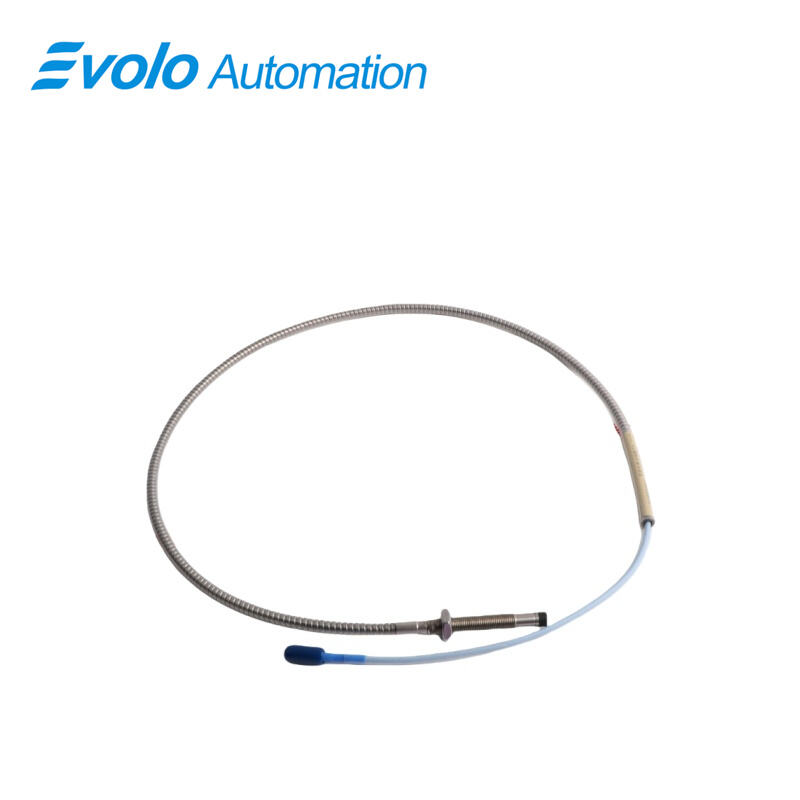

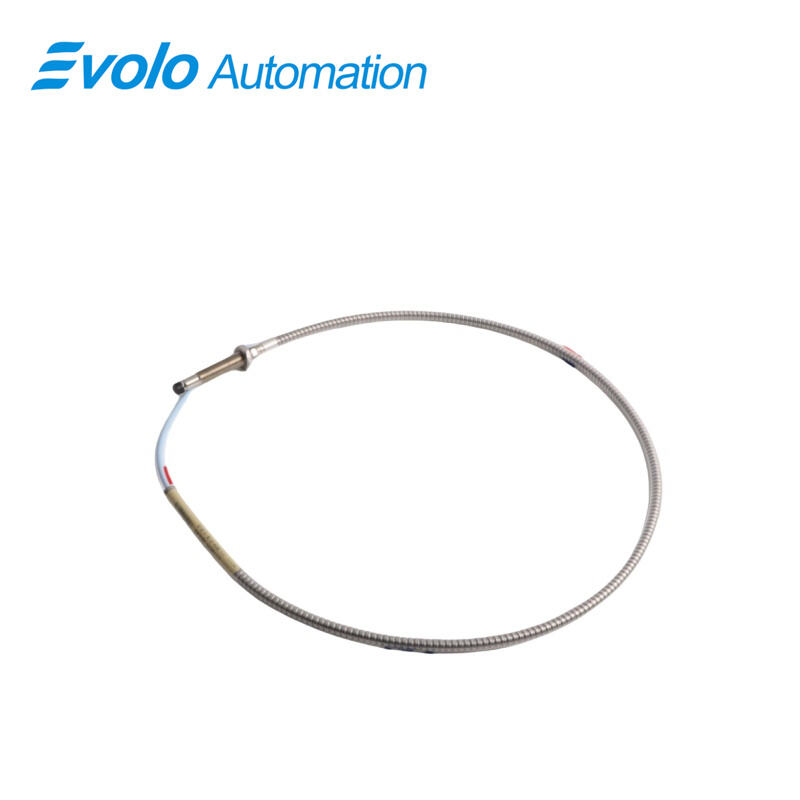

330104-01-06-50-02-05 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-01-06-50-02-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330104-01-06-50-02-05 3300 XL 8 mm Proximity Probes are engineered to deliver high-precision, non-contact measurements for critical rotating machinery, offering reliable performance in applications such as turbines, compressors, pumps, and generators. These 3300 XL 8 mm Proximity Probes incorporate several mechanical and electrical enhancements compared to earlier probe models, ensuring durable operation and accurate data collection under demanding industrial conditions.
One of the key improvements in the 3300 XL 8 mm Proximity Probes is the patented TipLoc molding process, which forms a strong, resilient bond between the probe tip and the main probe body. This feature increases the structural stability of the probe, reduces the risk of tip separation, and guarantees consistent and repeatable measurements, even in high-vibration or high-temperature environments. The 3300 XL 8 mm Proximity Probes are ideal for applications where precise monitoring of shaft displacement, rotor vibration, and axial movement is critical for machinery protection.
The probe cable also benefits from a patented CableLoc design, providing 330 N (75 lbf) pull strength. This secure attachment ensures the cable remains firmly connected to the probe tip, preventing accidental disconnections during installation or operation and maintaining the integrity of the measurement signal.
Key Functions
Applications
The 330104-01-06-50-02-05 3300 XL 8 mm Proximity Probes are designed to deliver precise, non-contact measurement of shaft displacement, rotor vibration, and axial movement in critical rotating machinery such as turbines, compressors, and pumps. With a linear range of 2 mm (80 mils) and an unthreaded length of 10 mm, these probes ensure accurate monitoring of rotor position and vibration for machinery protection and predictive maintenance. The probe features a compact 60 mm case and overall dimensions of 1.8 × 1.6 × 71 cm, with a lightweight design of 0.085 kg, enabling installation in tight or confined spaces without imposing stress on mounting structures. Equipped with a 5.0-meter (16.4-foot) standard cable and a miniature coaxial ClickLoc connector, the probes allow flexible integration with Proximitor sensors and monitoring systems. Constructed with a Polyphenylene Sulfide (PPS) probe tip and a stainless steel AISI 303 or 304 case, the probes provide excellent durability, corrosion resistance, and performance in harsh industrial environments. They operate reliably across a wide temperature range of -52°C to +100°C (-62°F to +210°F) and maintain stable electrical output with 50 Ω resistance and supply sensitivity of less than 2 mV/V under varying voltages. Requiring -17.5 Vdc to -26 Vdc for operation, these probes are compatible with standard 3300 XL Proximitor sensor systems.
Official Specifications
Quick Detail
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Unthreaded Length Option : |
10 mm |
|
Overall Case Length Option : |
60 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
1.8x1.6x71cm |
|
Weight: |
0.085kg |
Specifications
|
Operating Temperature Range: |
-52°C to +100°C (-62°F to+210°F) |
|
Linear Range: |
2 mm (80 mils) |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.5 Vdc to -26 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Frequently Asked Questions
What is the model number?
The listed model number is 330104-01-06-50-02-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.Exceptional Measurement Accuracy
The 3300 XL 8 mm Proximity Probes provide a linear range of 2 mm (80 mils) and highly stable output with less than 2 mV change per volt of input variation, ensuring precise, repeatable monitoring of shaft displacement and rotor vibration for critical machinery.
2.Durable and Compact Construction
Featuring a 60 mm probe case and overall dimensions of 1.8 × 1.6 × 71 cm, these probes are lightweight (0.085 kg) yet mechanically robust. The PPS probe tip combined with AISI 303 or 304 stainless steel casing provides resistance against wear, corrosion, and mechanical stress, making them ideal for industrial environments.
3.Easy Integration and Installation
The 5.0-meter (16.4-foot) standard cable with a miniature coaxial ClickLoc connector ensures secure, vibration-resistant connections to Proximitor sensors. The 10 mm unthreaded length and compact size allow flexible installation even in confined spaces, simplifying system setup.
