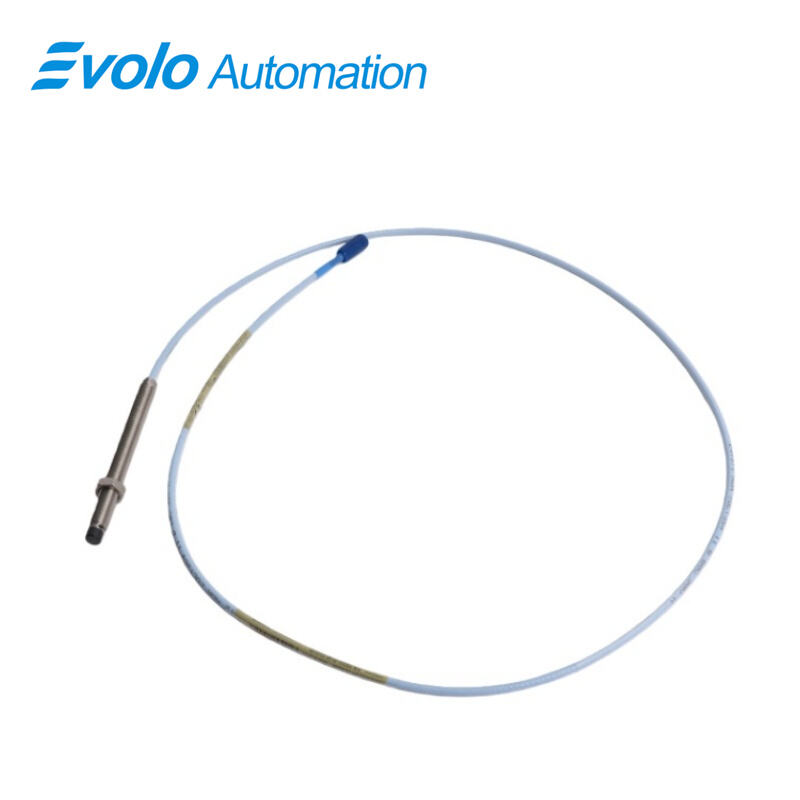

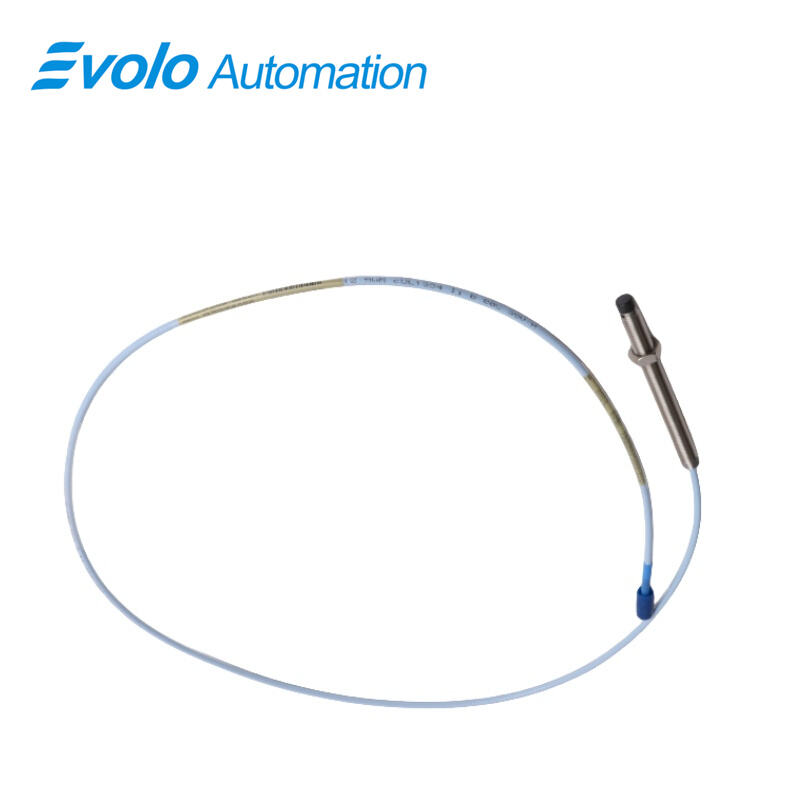

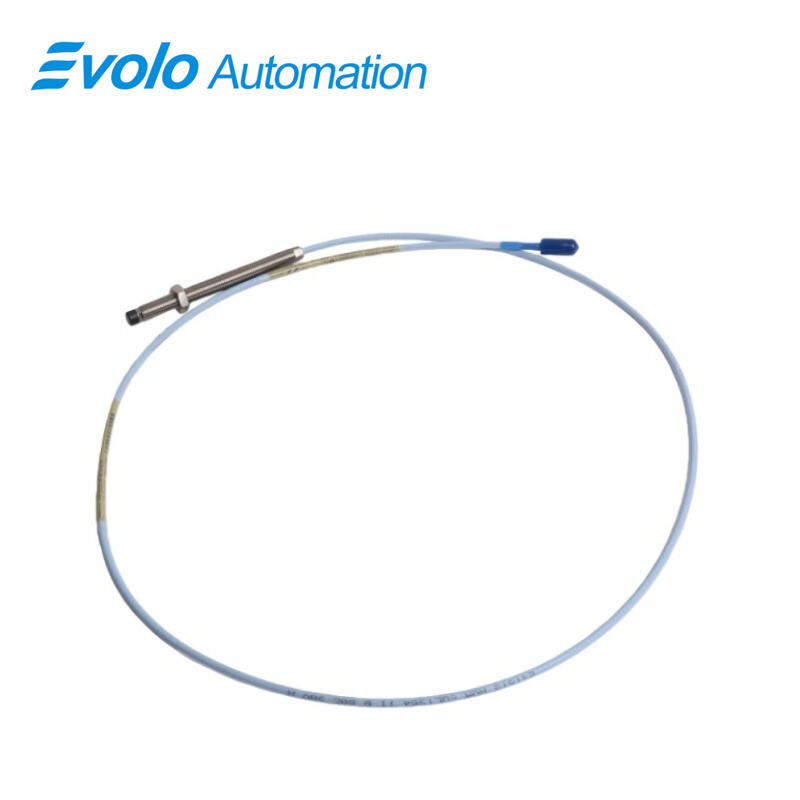

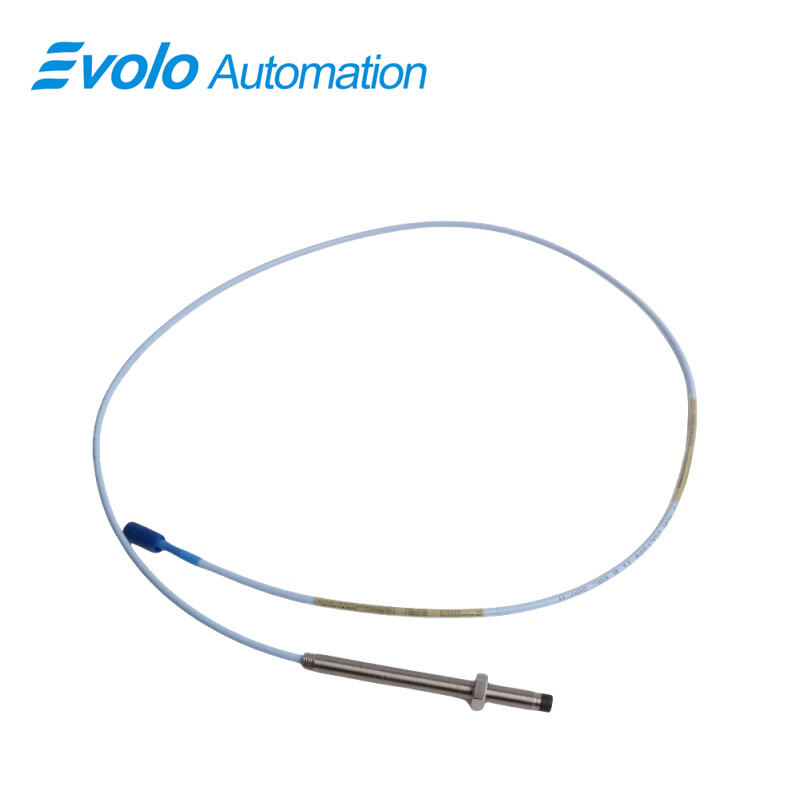

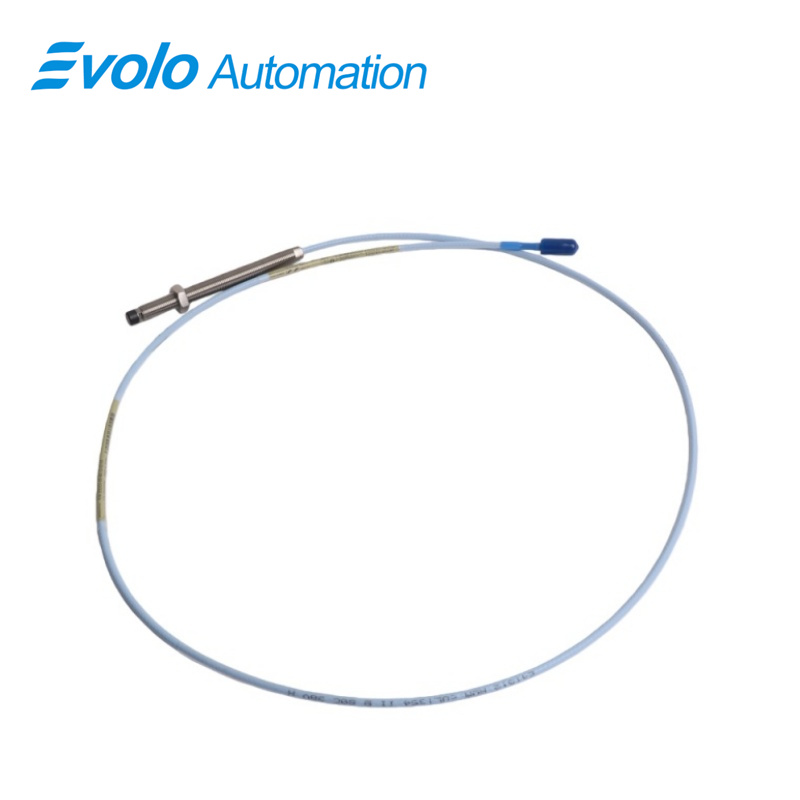

330101-00-41-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-41-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-41-10-02-05 3300 XL 8 mm Proximity Probe is an advanced eddy-current sensor engineered for precise measurement of both static position and dynamic vibration in industrial automation applications. With a 3/8-24 UNF probe thread and Miniature coaxial ClickLoc connector, this probe ensures secure and stable connections while monitoring critical rotating machinery. The probe delivers a linear range of 2 mm (80 mils) and maintains excellent signal integrity with an output resistance of 50 Ω and supply sensitivity below 2 mV per volt change, allowing accurate shaft vibration and position measurements on fluid-film bearing machines. Rated for extreme environments from -52°C to +177°C (-62°F to +350°F) and approved by CSA, ATEX, and IECEx, this probe is suitable for hazardous and high-temperature industrial installations. Incorporating Bently Nevada’s TipLoc and CableLoc designs, the probe tip is robustly bonded to the probe body, and the cable achieves 330 N (75 lbf) pull strength for secure attachment. Optional FluidLoc cable sealing prevents oil and liquid ingress, enhancing reliability in lubrication-heavy applications. The probe is fully compatible with 3300 XL 5 mm and 8 mm transducer components, supporting seamless retrofits, upgrades, and API 670 compliant monitoring systems, while delivering maximum performance for speed, Keyphasor, and position measurements.

Applications

1. Vibration Monitoring on High-Speed Compressors
The probe’s 2 mm linear range and high sensitivity enable real-time vibration monitoring, supporting predictive maintenance of compressors operating at high rotational speeds.

2. Axial and Radial Shaft Position Measurement
Used for axial thrust and radial shaft displacement monitoring, the probe maintains precise readings across extreme temperatures (-52°C to +177°C), enabling reliable machinery diagnostics.

3. Keyphasor Signal Generation
Compatible with Keyphasor systems, the probe delivers accurate tachometer and zero-speed signals, crucial for synchronizing control systems and monitoring rotational speed.

4. Harsh and Hazardous Environments
With IP67 environmental rating and CSA/ATEX/IECEx approvals, the probe withstands dust, water, and hazardous atmospheres, ensuring long-term operational stability.

5. Retrofits and System Upgrades
Backward compatibility with 3300 series 5 mm and 8 mm components allows simple retrofits, reducing downtime while maintaining API 670 compliance for machinery monitoring and safety standards.

Specifications

Competitive Advantage

1. High Measurement Accuracy
The probe’s output resistance of 50 Ω and <2 mV/V supply sensitivity ensure precise, stable measurements for high-performance monitoring.

2. Robust Mechanical Integrity
Patented TipLoc and CableLoc designs provide 330 N pull strength and a strong bond between probe tip and body, ensuring durability in high-vibration environments.

3. Extreme Environmental Tolerance
Rated from -52°C to +177°C and IP67 compliant, the probe withstands harsh industrial conditions, including chemical exposure and temperature extremes.

4. Seamless Integration
Full compatibility with 3300 XL 5 mm and 8 mm systems enables easy retrofits, component interchangeability, and minimal calibration effort during system upgrades.

5. Industry Compliance and Safety
CSA, ATEX, and IECEx approvals allow safe operation in hazardous locations, and adherence to API 670 standards guarantees mechanical configuration, linearity, and temperature stability for critical monitoring.
