Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T8100C |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
T8100C |
|
Part Name |
Trusted TMR Controller Chassis |
|
Dimensions |
48.3 × 34 × 26.5 cm |
|
Weight |
5 kg |
|
Processor Slots |
Supports up to 2 Trusted TMR processor modules |
|
I/O Module Slots |
10 slots for Trusted I/O modules |
|
Mounting Options |
Swing frame or fixed frame |
|
I/O Port Connectivity |
Ethernet; Modbus RTU; Open Modbus TCP; OPC; AADvance |
|
Cooling Method |
Convection cooling (fanless) |
|
Power Supply Input |
24 Vdc |
|
Input Current |
6 A at 24 Vdc |
|
Maximum Power Consumption |
144 W |
|
Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Relative Humidity |
5–95% RH (non-condensing) |
|
Protection Class |
IP20 |
|
Certifications |
CE; UL |
|
Safety Certification |
TÜV SIL 2 & SIL 3 |
Description

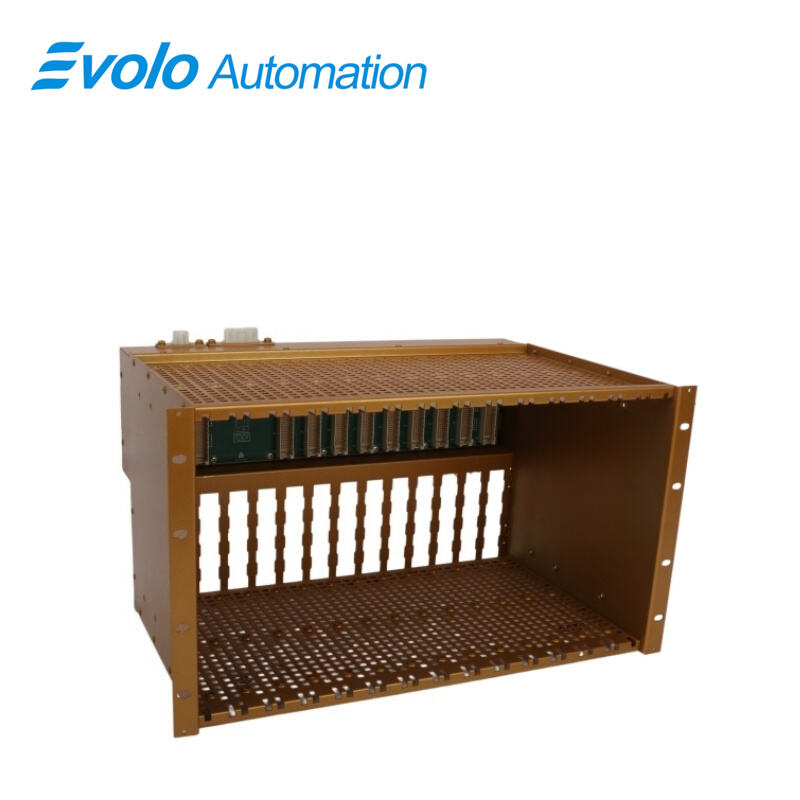

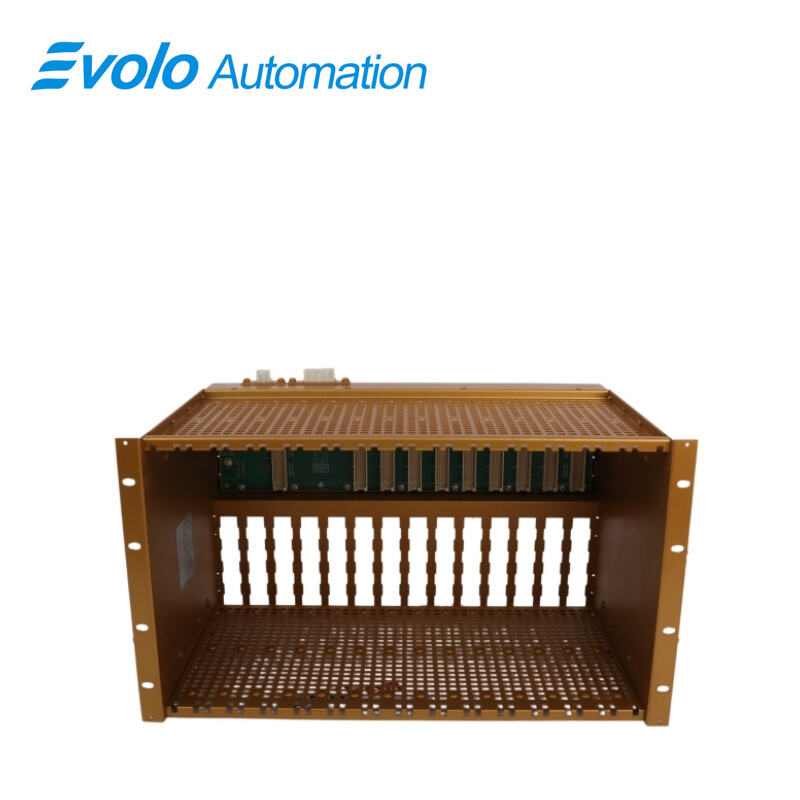

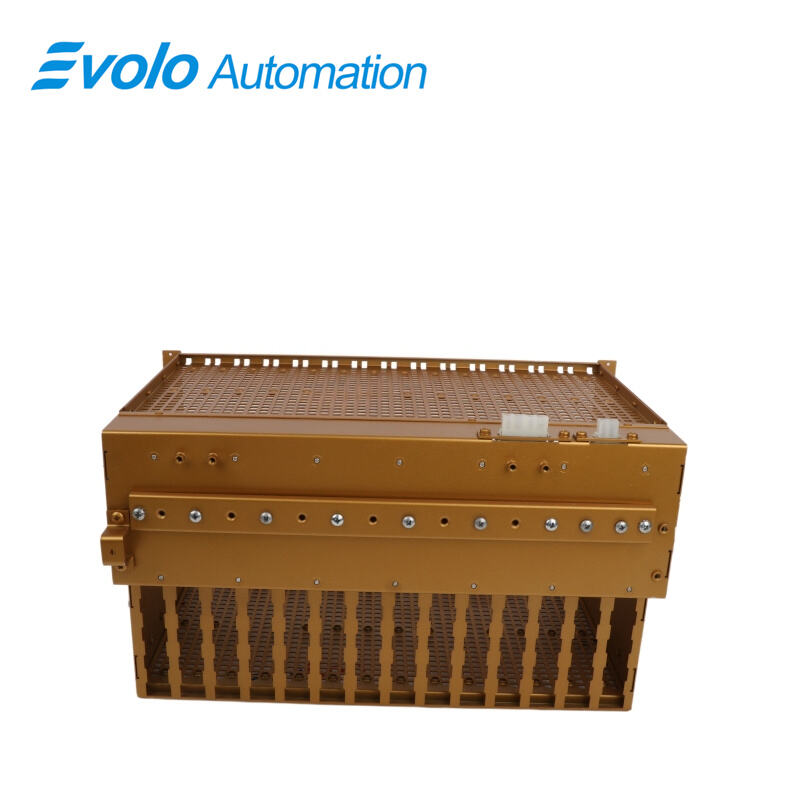

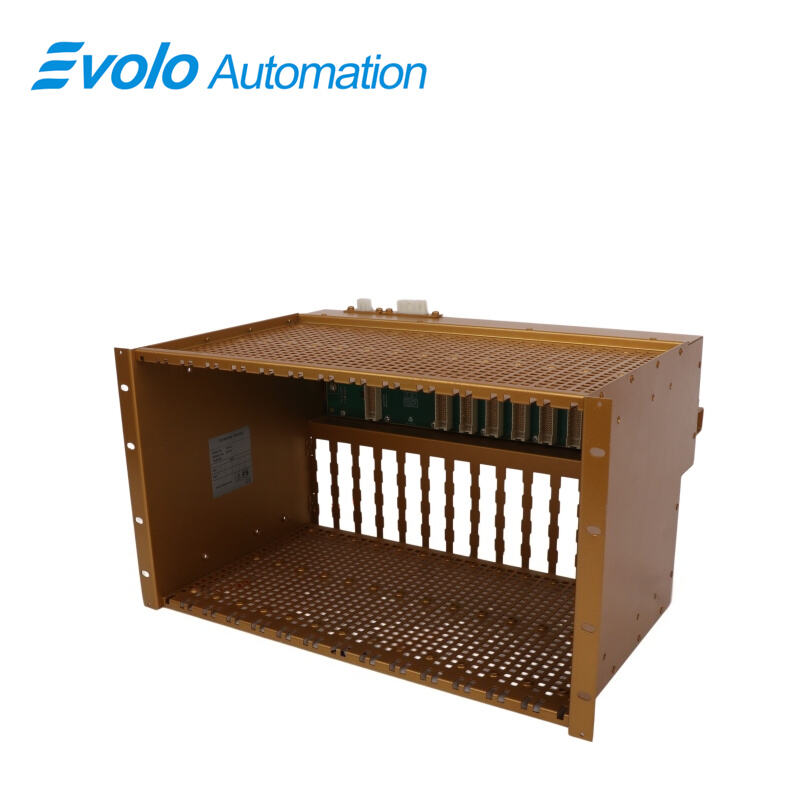

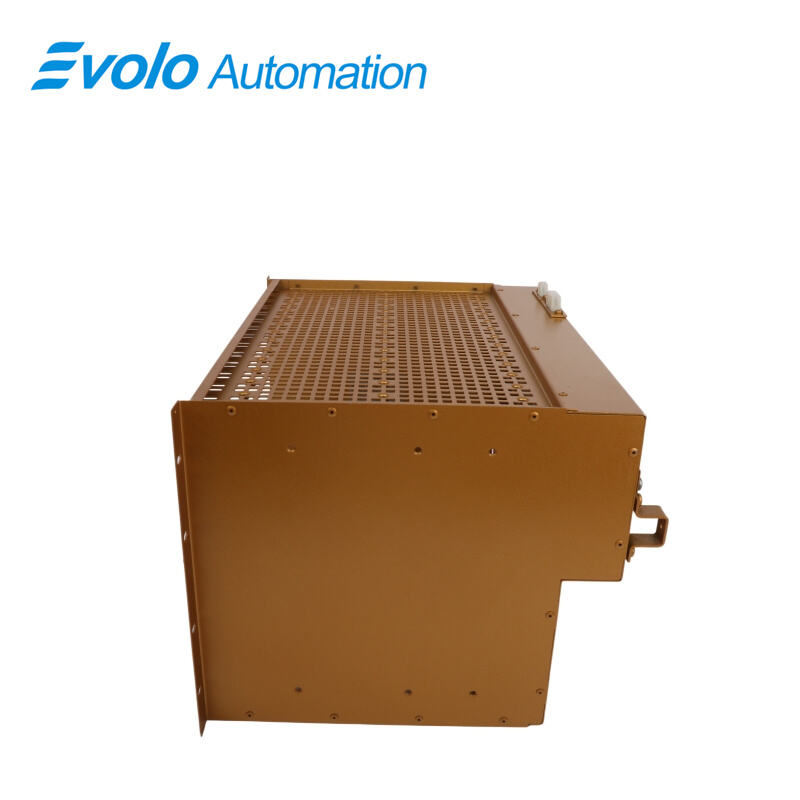

The ICS Triplex T8100C is a Trusted TMR Controller Chassis from Rockwell Automation, specifically built for safety-critical industrial applications. It guarantees fault-tolerant operation through its Triple Modular Redundancy (TMR) architecture, making it perfect for process control, machine control, and power generation.
Applications
Petrochemical Refineries: ESD rack for large safety interlock systems with high-density I/O.
Thermal Power Plants: Boiler safety monitoring with passive cooling for continuous operation.
Offshore Oil Platforms: Compact SIL 3 control with swing-frame rack installation.
Steel Plants: Blast furnace fan control with strong environmental adaptability.
Coal Gasification Plants: Collects I/O data and transmits process status via industrial protocols.
Key Features
Triple Modular Redundancy (TMR): Provides maximum reliability with three independent processors executing the same program in parallel.
Fail-Safe Operation: If a failure occurs, the system drives itself to a safe state, preventing any potential risks.
Self-Diagnostics: The T8100C continuously checks for faults. If detected, it automatically shuts down to maintain safety.
Modular I/O Expansion: You can add up to 48 I/O modules without interrupting operations, increasing flexibility.
Certified Safety Standards: Meets IEC 61508 SIL 3 and EN 50128 standards, certified by TÜV Rheinland.
FAQ
Q: What is the key benefit of dual-processor slots in T8100C for SIS systems?
A: It enables two TMR processors with hardware hot standby, ensuring seamless failover during faults.
Q: What installation flexibility does T8100C offer in tight cabinet spaces?
A: It supports both swing-frame and fixed-frame mounting options for flexible installation.
Q: How many modules and what power demand does T8100C support?
A: It provides 2 processor slots plus 10 I/O slots, powered by 24 V DC, 6 A max load, 144 W total.
Q: Can T8100C operate in harsh cold outdoor environments?
A: It supports -20°C to +60°C, IP20 protection, and must be installed in a protected industrial cabinet.
Q: How does T8100C communicate with DCS systems?
A: It supports Ethernet, Modbus RTU, Open Modbus TCP, and OPC protocols.
