330103-00-10-10-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-10-10-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

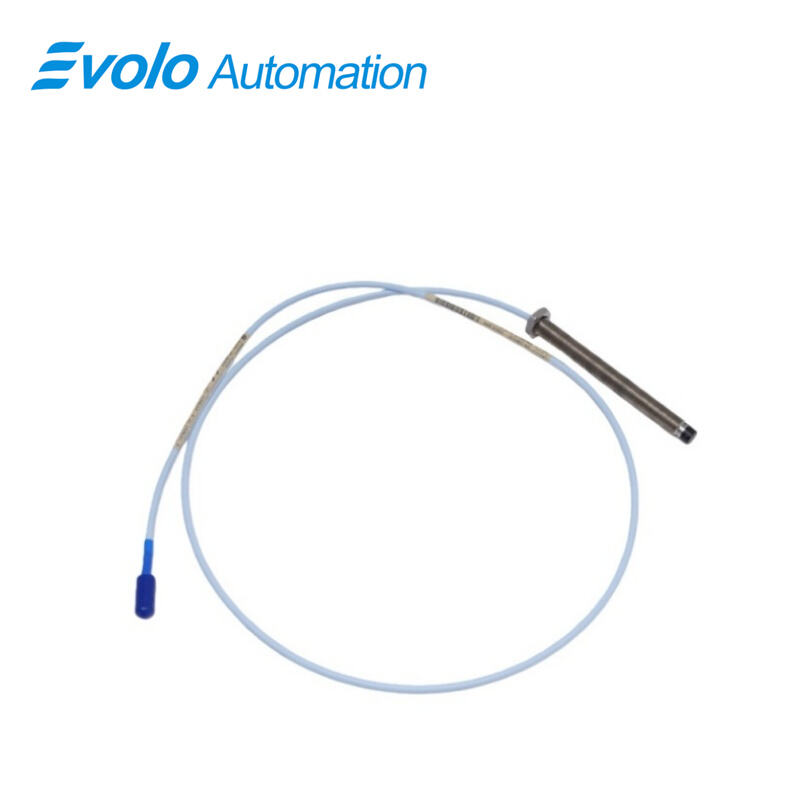

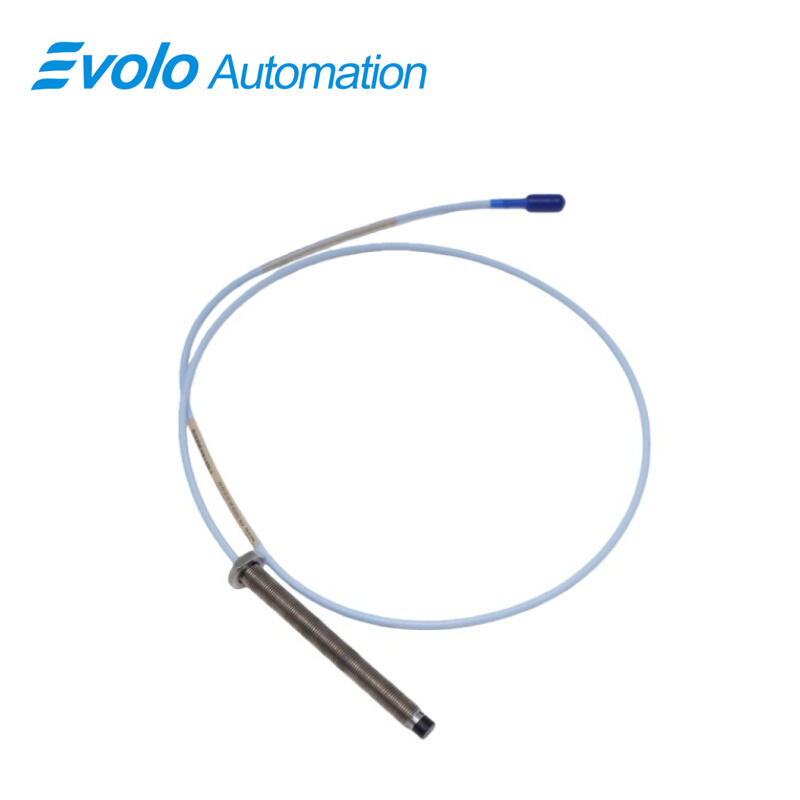

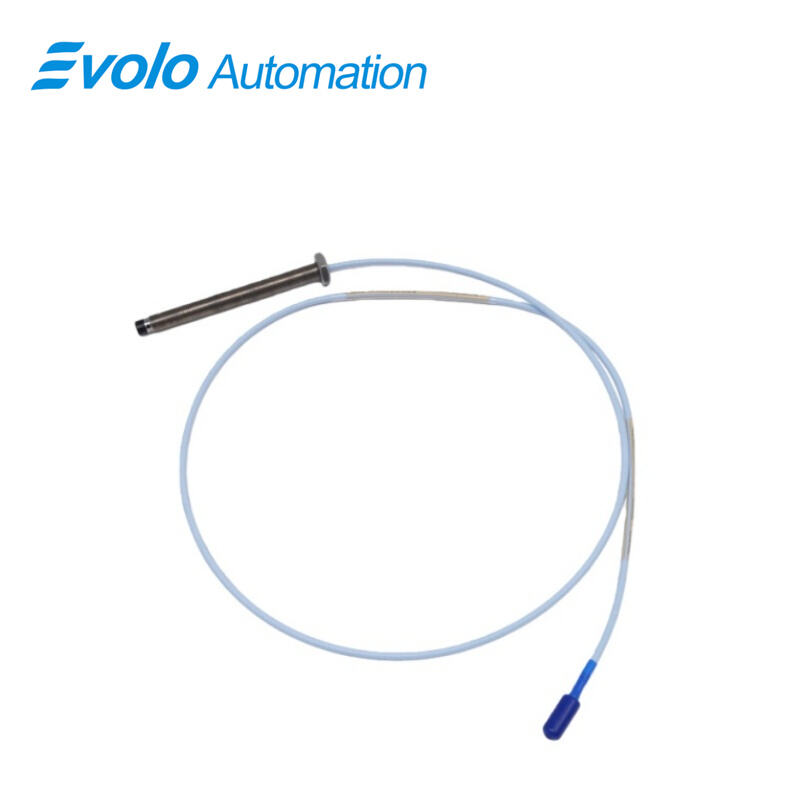

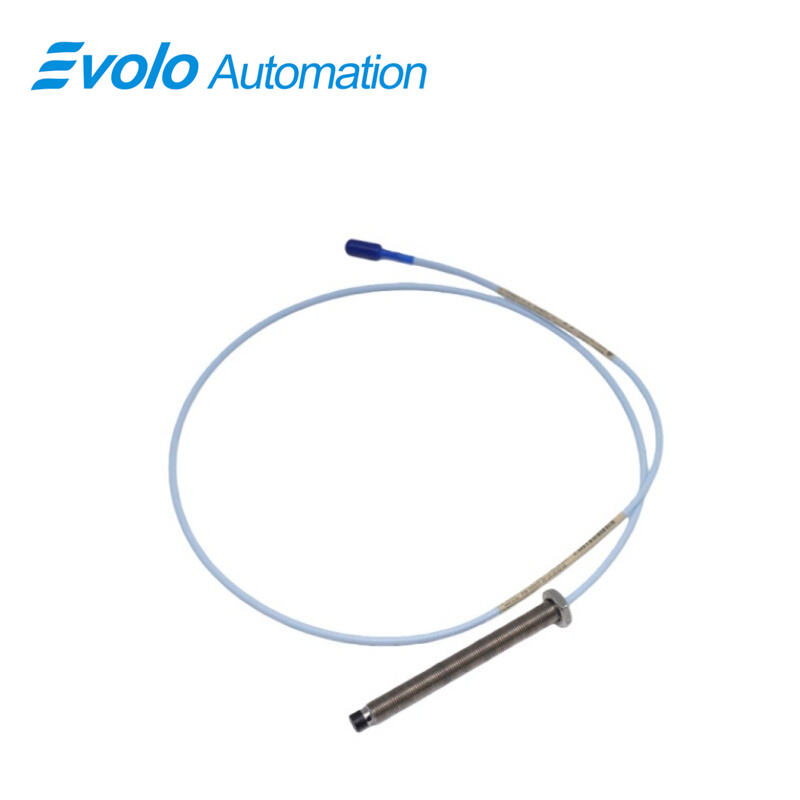

The 330103-00-10-10-02-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer specifically designed for advanced industrial automation applications. Engineered to measure both static positions and dynamic vibrations on fluid-film bearing machines, this probe delivers an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface. The probe features a total length of 1.0 meter (3.3 feet), a miniature coaxial ClickLoc connector with standard cable, and an M10x1 threaded case with a maximum engagement of 15 mm. Operating in extreme environments from -52°C to +177°C (-62°F to +350°F), it maintains exceptional accuracy, with supply sensitivity under 2 mV change per volt of input and a linear range of 2 mm (80 mils). The 3300 XL 8 mm system fully complies with API 670 standards, offering complete interchangeability with probes, extension cables, and Proximitor sensors, simplifying installation, maintenance, and automation system integration. Optional FluidLoc cables prevent fluid leakage, while patented TipLoc and CableLoc technologies enhance durability and secure probe connections, providing pull strengths up to 330 N (75 lbf). This makes the 3300 XL 8 mm Proximity Probe a robust and reliable solution for automated position, speed, and vibration monitoring across demanding industrial environments.

Applications

1. Vibration Monitoring of Rotating Machinery
Measures dynamic vibration on turbines, pumps, and compressors with a linear range of 2 mm, ensuring real-time condition monitoring and predictive maintenance.

2. Position Measurement on Fluid-Film Bearings
Provides precise static position measurement in bearings, allowing automation systems to detect shaft misalignment and prevent costly downtime.

3. Keyphasor and Speed Sensing
Outputs stable signals compatible with Keyphasor systems, enabling accurate rotational speed measurement and synchronization in automated control systems.

4. Integration with API 670 Standard Systems
Supports automation compliance by providing API 670-level mechanical and electrical performance, ensuring reliable operation in petrochemical and power generation plants.

5. Harsh Environment Operation
Operates reliably from -52°C to +177°C (-62°F to +350°F), making it ideal for extreme temperature applications in industrial automation and oil & gas machinery.

Specifications

Competitive Advantage

1. Extreme Durability and Reliability
Patented TipLoc molding ensures a secure bond between probe tip and body, withstanding heavy industrial use and reducing maintenance needs.

2. High Cable Pull Strength
CableLoc design delivers 330 N (75 lbf) pull strength, minimizing the risk of cable disconnections in automated systems.

3. Optional FluidLoc Cable Protection
Prevents oil and fluid leakage through the cable interior, enhancing safety and reliability in fluid-heavy environments.

4. Full Component Interchangeability
Backward-compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, simplifying upgrades and automation system expansions.

5. Precise Electrical Performance
Maintains supply sensitivity below 2 mV per volt and output resistance of 50 Ω, providing consistent and accurate signals for high-speed automated monitoring systems.
