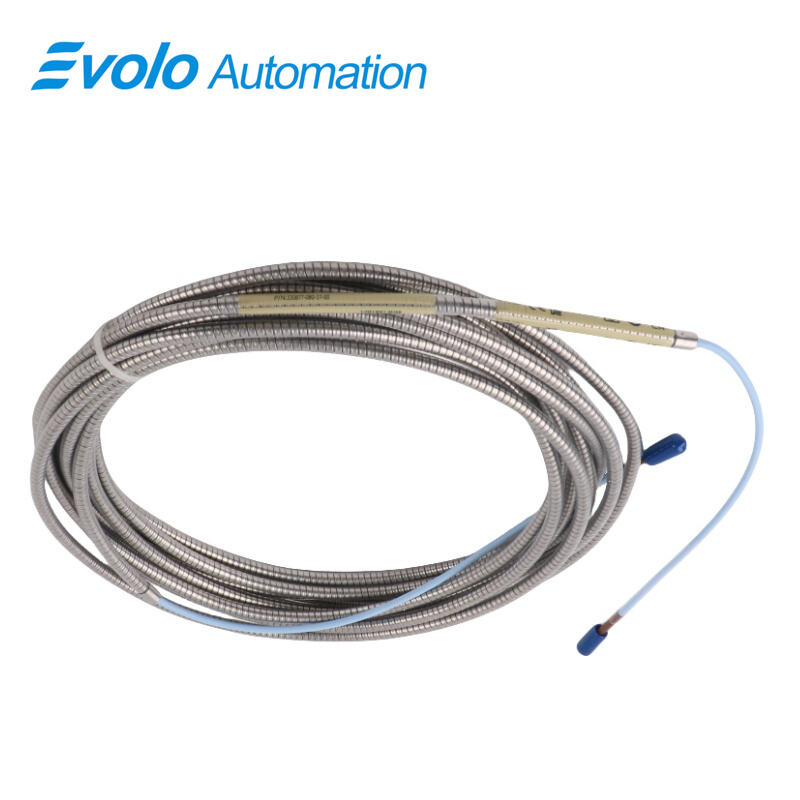

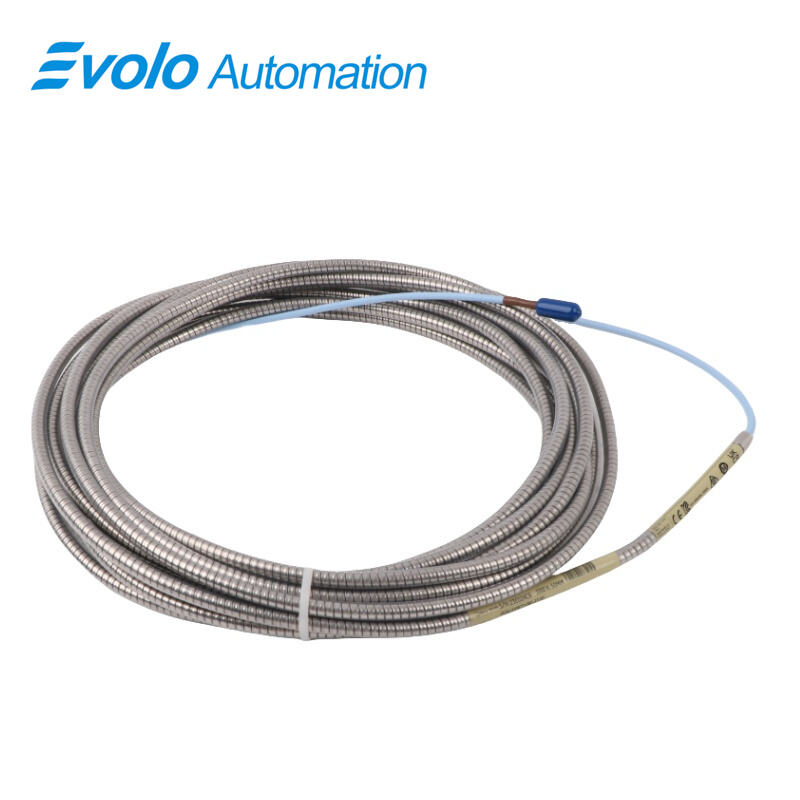

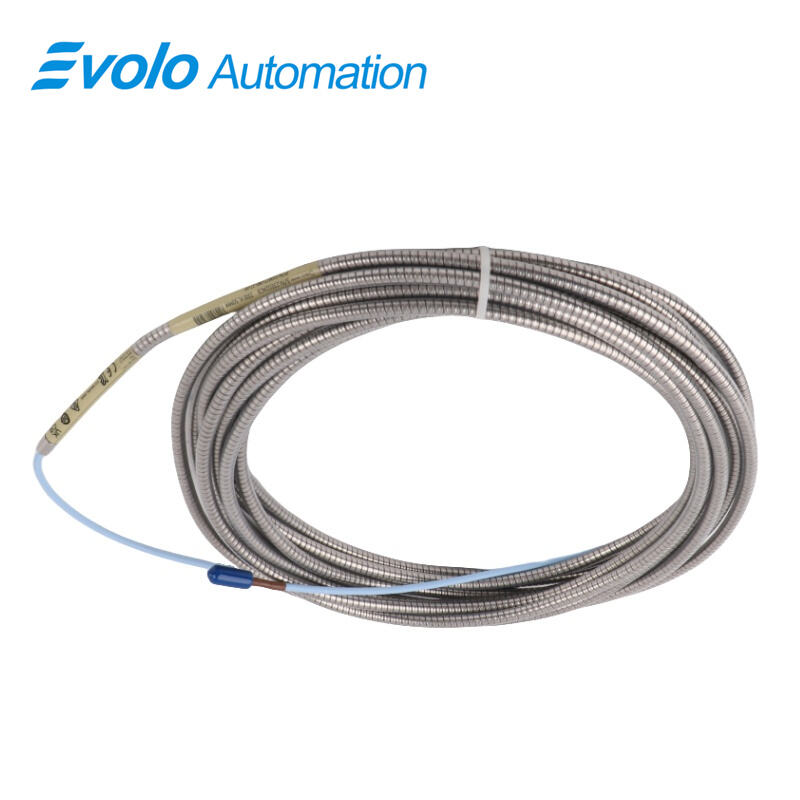

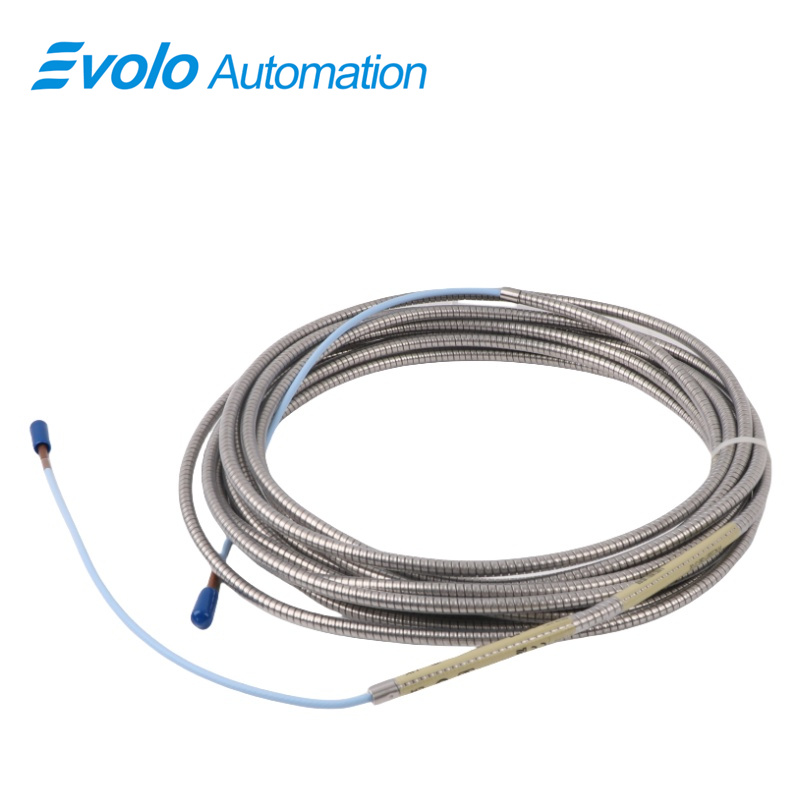

330877-80-37-00 3300 XL 50 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330877-80-37-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330877-80-37-00 3300 XL 50 mm Extension Cable is a high-reliability signal transmission component engineered for advanced industrial automation and machinery protection systems. Designed specifically for use within the 3300 XL 50 mm transducer system, this extension cable connects the 50 mm proximity probe to the Proximitor Sensor while preserving signal integrity across long distances and harsh operating environments. With an 8.0 metre (26.2 ft) cable length and a typical capacitance of 69.9 pF/m, the 330877-80-37-00 extension cable ensures accurate displacement measurement across the full 27.9 mm (1100 mils) linear range required for large rotating machinery automation.

The 3300 XL 50 mm Extension Cable utilizes a 75 Ω triaxial FluidLoc cable with PFA insulation and integrated armor, providing excellent resistance to moisture ingress, mechanical stress, and thermal degradation. Rated for continuous operation from -51°C to +200°C, this extension cable is well suited for high-temperature automation environments such as steam turbine casings and generator housings. Its 50 Ω system output resistance and compatibility with 0.2 to 1.5 mm² shielded triad wiring allow stable, low-noise signal transmission to monitoring and control systems. As a critical automation accessory, the 330877-80-37-00 extension cable supports seamless upgrades from legacy 7200 systems when used as part of a complete 3300 XL 50 mm transducer replacement, ensuring long-term measurement accuracy and operational reliability.

Applications

Application 1: Differential Expansion Measurement in Steam Turbines

In automated steam turbine monitoring systems, the 330877-80-37-00 3300 XL 50 mm Extension Cable enables accurate differential expansion measurement by maintaining low capacitance over 8.0 metres. This stable signal transmission supports precise tracking of axial growth differences up to 27.9 mm, reducing the risk of turbine casing or rotor damage during startup and load changes.

Application 2: Rotor Expansion Monitoring in Power Generation

For rotor expansion automation, the extension cable ensures consistent signal quality between the proximity probe and Proximitor Sensor. Its 69.9 pF/m capacitance minimizes phase shift and amplitude loss, allowing control systems to accurately calculate rotor growth during thermal transients in large generators.

Application 3: High-Temperature Machinery Protection Systems

Installed near turbine housings, the 3300 XL 50 mm Extension Cable withstands ambient temperatures up to 200°C without insulation breakdown. This makes it ideal for automation systems operating in confined, high-heat zones where conventional cables would degrade and compromise monitoring accuracy.

Application 4: Long-Distance Sensor Routing in Automation Cabinets

With armored construction and triaxial shielding, this extension cable supports long-distance routing from field-mounted probes to centralized automation panels. The robust design reduces electromagnetic interference, ensuring reliable data delivery to machinery protection and process control platforms.

Application 5: Legacy System Upgrade Projects

During automation upgrades from older 7200-series transducer systems, the 330877-80-37-00 extension cable plays a critical role in ensuring full compatibility with 0.394 V/mm output scaling. When used as part of a complete 3300 XL 50 mm system replacement, it minimizes commissioning time and improves overall measurement performance.

Specifications

Competitive Advantage

Competitive Advantage 1: Optimized Low-Capacitance Signal Performance

The typical 69.9 pF/m capacitance enables accurate displacement measurement across the full 27.9 mm linear range, outperforming standard industrial cables that introduce higher signal distortion in automation systems.

Competitive Advantage 2: Extreme Temperature Resistance

With a continuous operating rating from -51°C to +200°C, the 330877-80-37-00 extension cable delivers superior durability in harsh automation environments, significantly extending service life compared to conventional insulated cables.

Competitive Advantage 3: FluidLoc Armored Construction

The PFA-insulated FluidLoc cable with armor prevents moisture intrusion and mechanical damage, reducing unplanned downtime and maintenance costs in critical machinery automation applications.

Competitive Advantage 4: High EMI and Noise Immunity

The 75 Ω triaxial design and compatibility with shielded triad wiring enhance noise rejection, ensuring stable output to monitoring systems even in electrically noisy industrial automation facilities.

Competitive Advantage 5: Seamless System Compatibility

Designed specifically for the 3300 XL 50 mm transducer system, this extension cable maintains identical electrical characteristics across the probe, cable, and Proximitor Sensor. This compatibility simplifies automation system design, reduces calibration errors, and supports reliable long-term condition monitoring.
