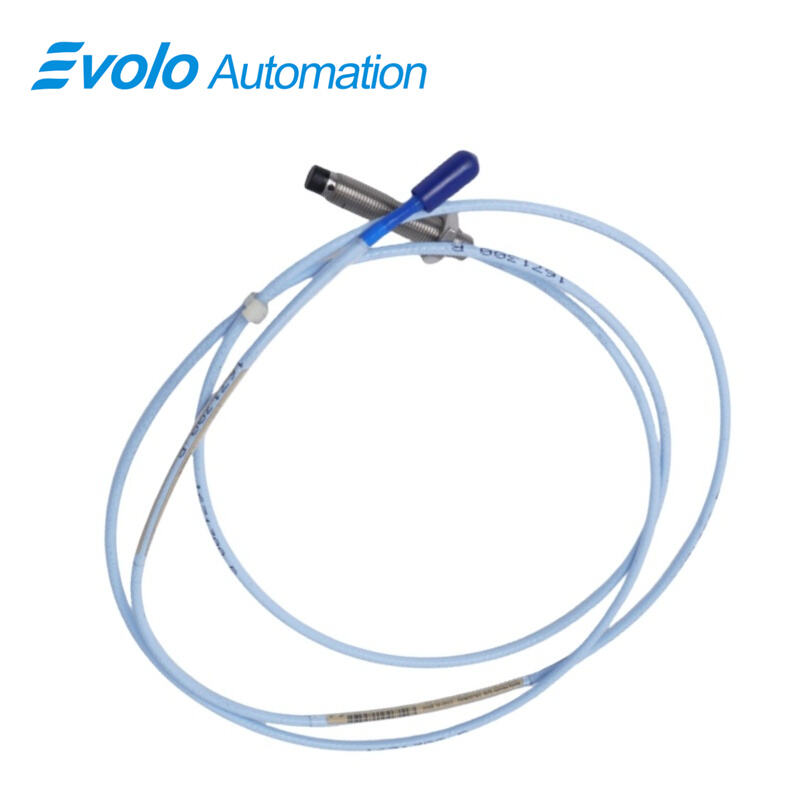

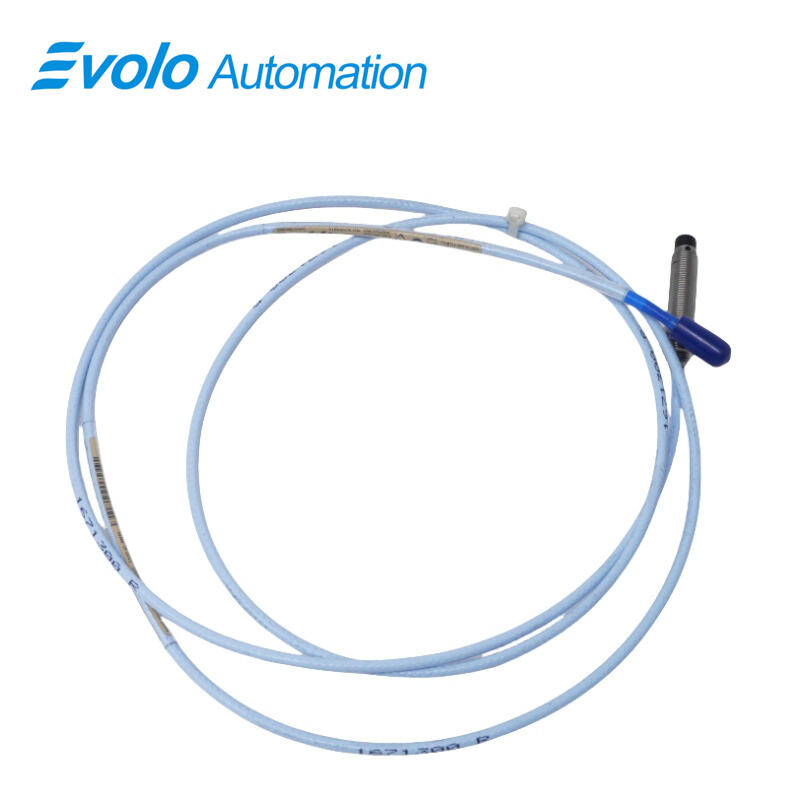

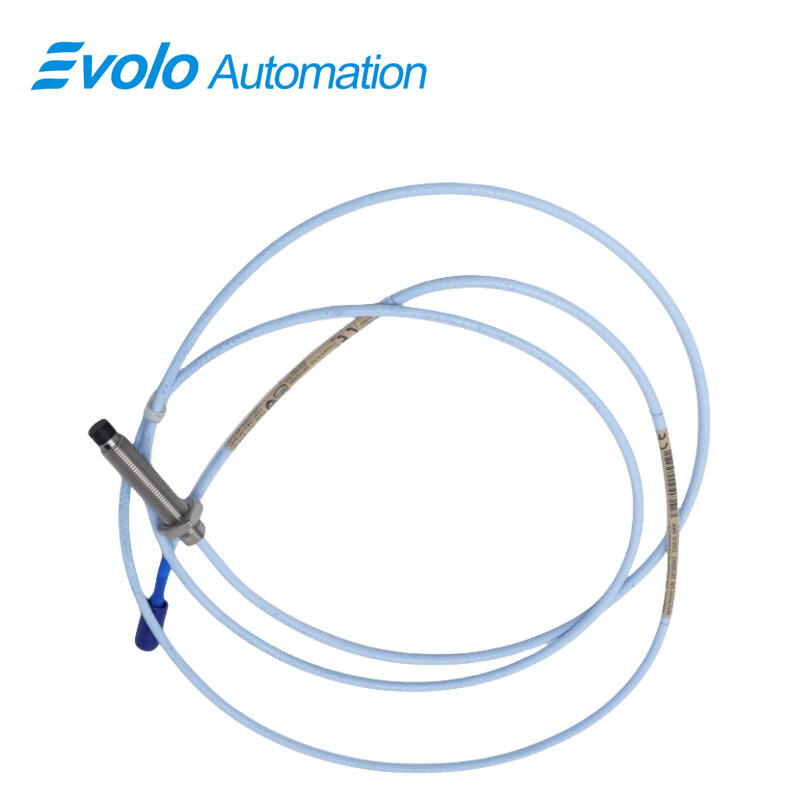

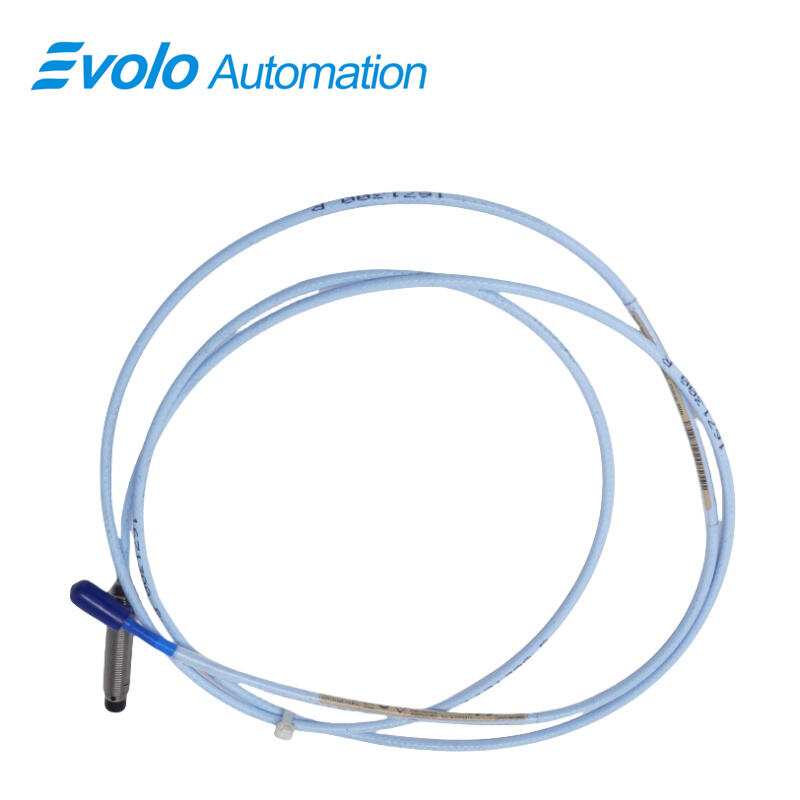

330103-00-05-15-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-15-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-05-15-01-00 3300 XL 8 mm Proximity Probe is a high-precision non-contact sensor designed for industrial automation, machinery protection, and condition monitoring systems. As a core component of the 3300 XL 8 mm Proximity Transducer System, this proximity probe converts the distance between the probe tip and a conductive target surface into a stable output voltage, enabling accurate measurement of both static position and dynamic vibration parameters.

Featuring an M10x1 threaded probe case, a 50 mm minimum overall case length, and a 1.5 meter standard cable, the 330103-00-05-15-01-00 probe supports compact installations in automated rotating machinery. With a 2 mm linear measurement range and typical extension cable capacitance of 69.9 pF/m, the probe maintains excellent linearity and signal consistency across its operating range. The supply sensitivity below 2 mV/V and 50 Ω output resistance ensure stable signal performance even under fluctuating power conditions common in industrial automation environments.

Engineered to operate reliably from -52°C to +177°C, this 3300 XL 8 mm proximity probe is suitable for turbines, compressors, pumps, and motors equipped with fluid-film bearings. Advanced mechanical enhancements, including patented probe construction methods and robust cable attachment concepts, significantly improve durability and resistance to vibration-induced stress. Full interchangeability with other 3300 XL 8 mm system components eliminates calibration complexity, making this probe a reliable and efficient solution for automated machinery monitoring applications.

Applications

Application 1: Shaft Vibration Monitoring in Rotating Machinery

In automated monitoring systems for turbines and compressors, the 330103-00-05-15-01-00 proximity probe accurately detects shaft vibration within a 2 mm linear range, enabling early fault detection and condition-based maintenance.

Application 2: Radial Shaft Position Measurement

The probe is widely used to measure real-time shaft position in fluid-film bearing machines, providing proportional voltage output that supports closed-loop automation control and protective shutdown logic.

Application 3: Keyphasor Reference Signal Generation

In speed and phase reference applications, the stable electrical characteristics and low noise design allow precise Keyphasor signal generation for synchronization and vibration phase analysis.

Application 4: High-Temperature Industrial Equipment Monitoring

With an operating temperature capability up to +177°C, the proximity probe performs reliably in high-temperature environments such as steam turbines, boilers, and enclosed drive systems.

Application 5: Compact Automation Installations

The M10x1 thread and 50 mm case length make this probe suitable for space-constrained automation equipment where accurate proximity measurement is required without increasing mechanical footprint.

Specifications

Competitive Advantage

Competitive Advantage 1: High Measurement Stability

The supply sensitivity of less than 2 mV per volt minimizes output drift caused by power fluctuations, improving data reliability in automated monitoring systems.

Competitive Advantage 2: Excellent Signal Linearity

With a 2 mm linear range and controlled capacitance of 69.9 pF/m, the probe delivers accurate displacement measurements with minimal non-linearity, outperforming standard proximity sensors.

Competitive Advantage 3: Wide Environmental Adaptability

The -52°C to +177°C temperature range allows continuous operation in extreme industrial environments, reducing the need for specialized sensor variants.

Competitive Advantage 4: Simplified System Integration

Full interchangeability within the 3300 XL 8 mm system eliminates probe matching and bench calibration, reducing installation time and maintenance costs in automation projects.

Competitive Advantage 5: Enhanced Mechanical Reliability

Robust probe construction and secure cable attachment design improve resistance to vibration and mechanical stress, ensuring long service life in high-speed rotating machinery applications.
