330180-12-00 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-12-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

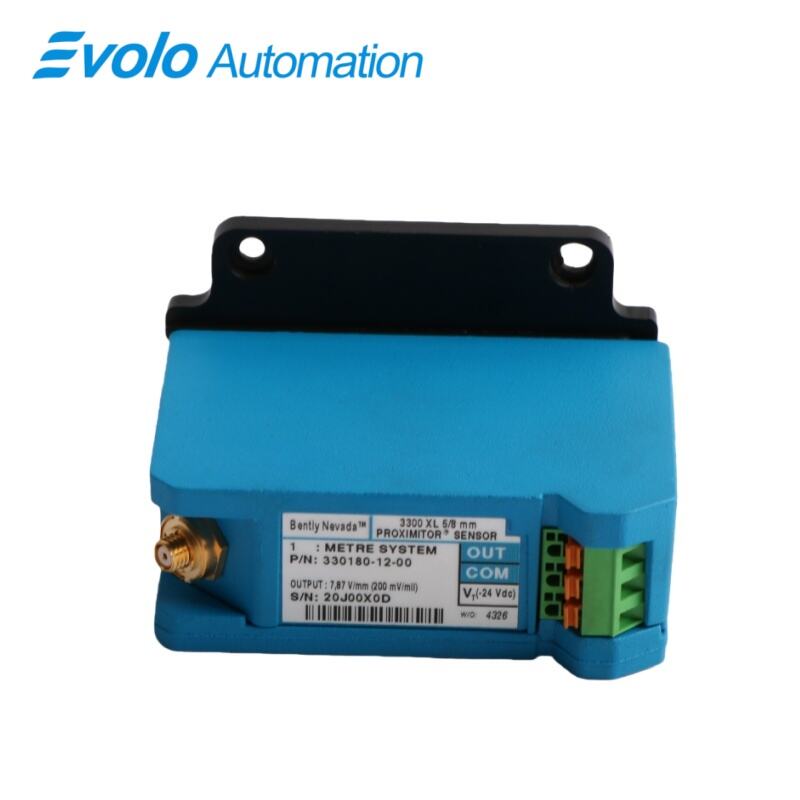

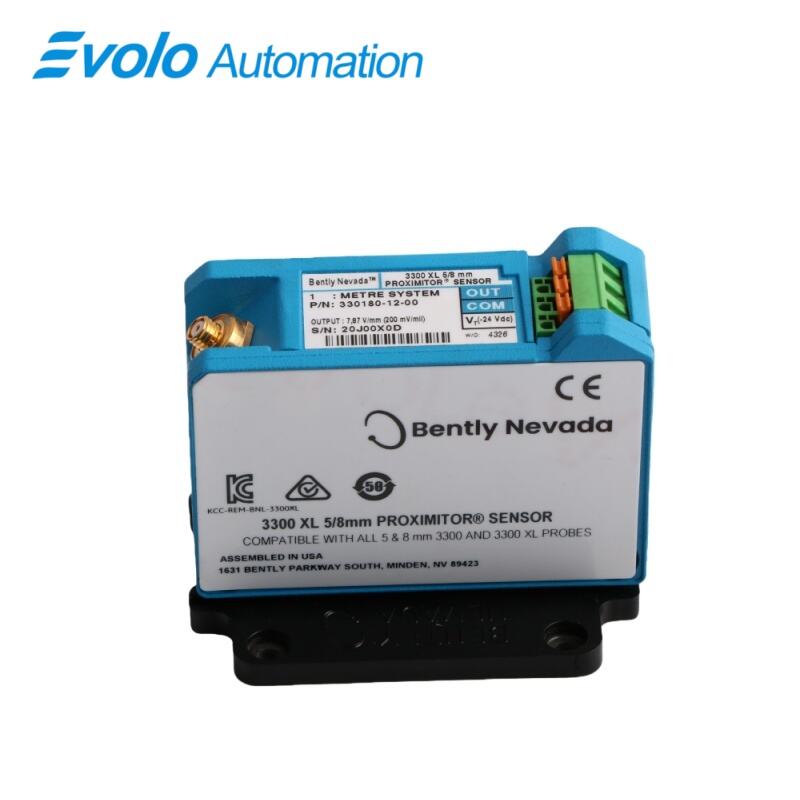

The Bently Nevada 330180-12-00 3300 XL Proximitor Sensor is a state-of-the-art eddy current displacement transducer designed for precise, reliable monitoring of critical rotating machinery. As an integral part of the advanced 3300 XL monitoring system, this proximitor sensor excels in measuring both dynamic vibration and static position of machine shafts, providing essential data for predictive maintenance and machinery protection strategies. Distinguished by its 1.0-meter (3.3 feet) integrated system length, the 330180-12-00 model offers a streamlined solution for installations where shorter lead lengths are advantageous, facilitating neat and efficient routing within control panels and tight machinery spaces. With an overall compact dimension of 7.8x6x6.2cm and a light weight of 0.22kg, this proximitor sensor is engineered for versatility and ease of integration.

Crafted for durability, the 330180-12-00 proximitor sensor features a robust aluminum body coupled with a 304 stainless steel sleeve. This material combination delivers excellent resistance to corrosion, mechanical stress, and environmental degradation, ensuring long-term performance in challenging industrial settings such as manufacturing plants, power generation facilities, and pulp and paper mills. The sensor’s specific physical configuration includes a 12.8 mm (0.5 in) unthreaded length and a 50.7 mm (2.0 in) overall case length, a design optimized for secure mounting and optimal proximity to the target surface without unnecessary bulk. This 3300 XL proximitor sensor operates flawlessly across an extensive temperature range from -63°C to +180°C, guaranteeing stability and accuracy whether exposed to extreme cold or situated near high-heat equipment like steam turbines.

Applications

This proximitor sensor is ideally deployed for monitoring critical parameters on rotating equipment such as pumps, fans, motors, and compressors within general industrial facilities, including power generation plants, water treatment centers, and manufacturing lines. Its 1.0-meter system length and compact design facilitate easy installation in space-limited enclosures and control cabinets, providing precise measurement of shaft vibration and position to prevent unexpected failures and schedule maintenance effectively.

The sensor’s robust aluminum and 304 stainless steel construction makes it suitable for environments with moderate corrosion concerns, such as paper mills with humid atmospheres or coastal industrial sites. Its ability to operate reliably across a vast temperature range from -63°C to +180°C allows it to function in both outdoor applications subject to seasonal extremes and indoor locations near heat-generating machinery, ensuring consistent signal accuracy for condition monitoring programs.

As a core component without mandatory agency approvals, this model is extensively applied in standard industrial zones where explosive atmospheres are not a concern. It serves as a reliable and cost-effective solution for integrating with existing 3300 series or newer 3300 XL monitoring systems, enabling upgrades or expansions of machinery protection networks in sectors like metals processing, general manufacturing, and conventional power generation without the complexity or cost associated with hazardous-location certified hardware.

Specifications

Competitive Advantage

1.Optimized Compact Design and Installation Flexibility

This sensor features an integrated system length of 1.0 meter and compact physical dimensions (7.8x6x6.2cm), offering unparalleled installation flexibility within space-constrained control cabinets and machine housings compared to longer or bulkier models. Its 12.8 mm unthreaded length and 50.7 mm overall case length are engineered for precise positioning in tight mounting points, simplifying the installation process and eliminating the need for additional mounting hardware.

2.Exceptional Operational Stability Across Extreme Temperatures

With an extensive operating and storage temperature range of -63°C to +180°C, this sensor stands out among competitors. This thermal resilience guarantees absolute signal reliability and measurement accuracy when installed near high-temperature equipment, such as steam turbine casings, or in cold outdoor environments, effectively preventing signal drift or performance degradation due to thermal fluctuations and providing year-round stable monitoring for critical assets.

3.Robust, Industrial-Grade Construction

The combination of an aluminum body and a 304 stainless steel sleeve provides superior mechanical strength and corrosion resistance. This construction enables the sensor to withstand vibration, shock, and common chemical exposure in industrial settings, significantly extending its service life in demanding applications and reducing the frequency of replacements and overall maintenance costs due to sensor failure.
