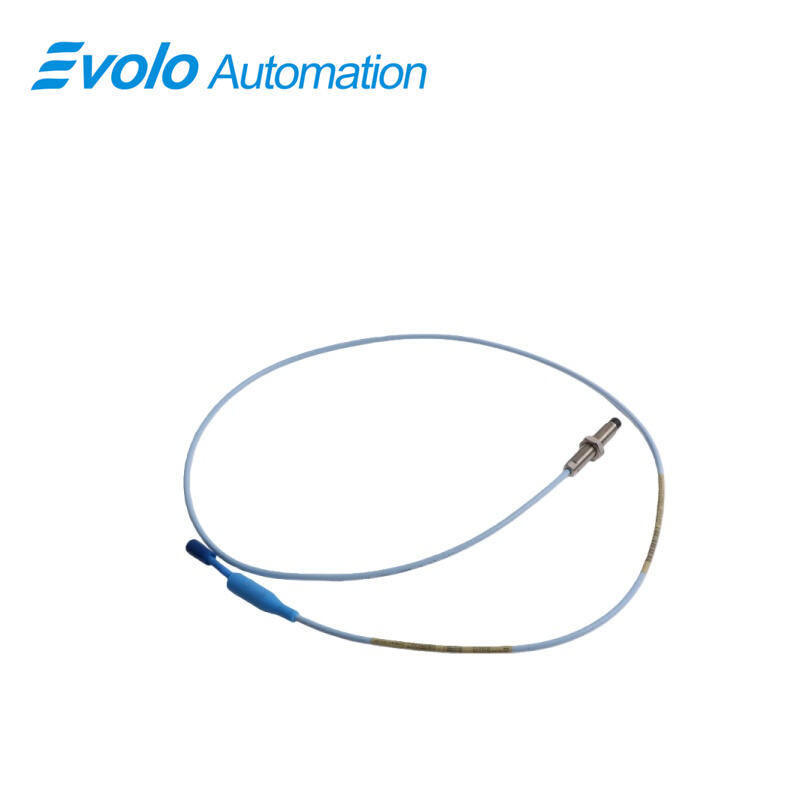

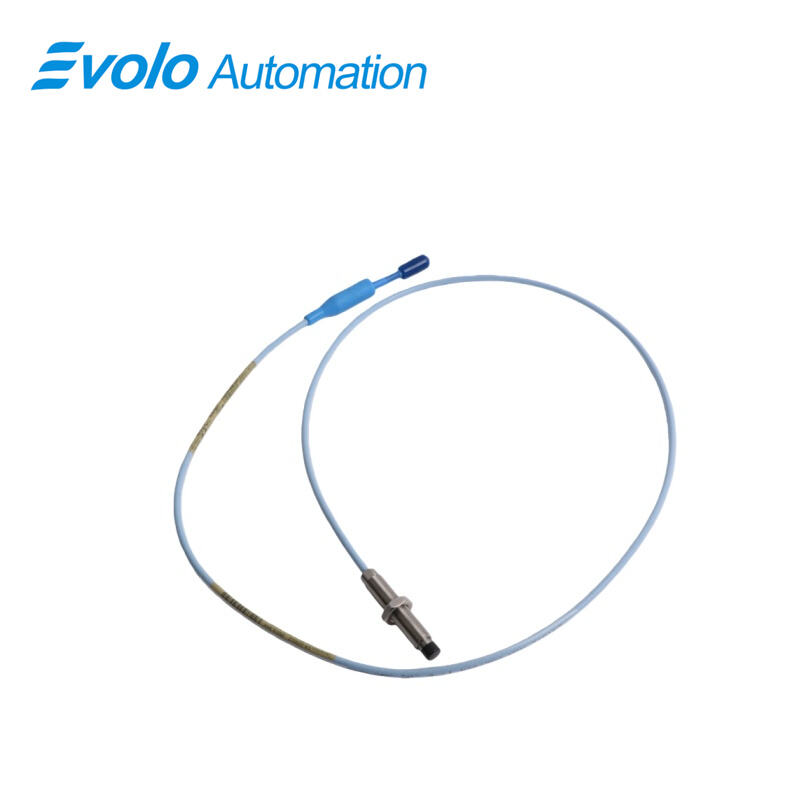

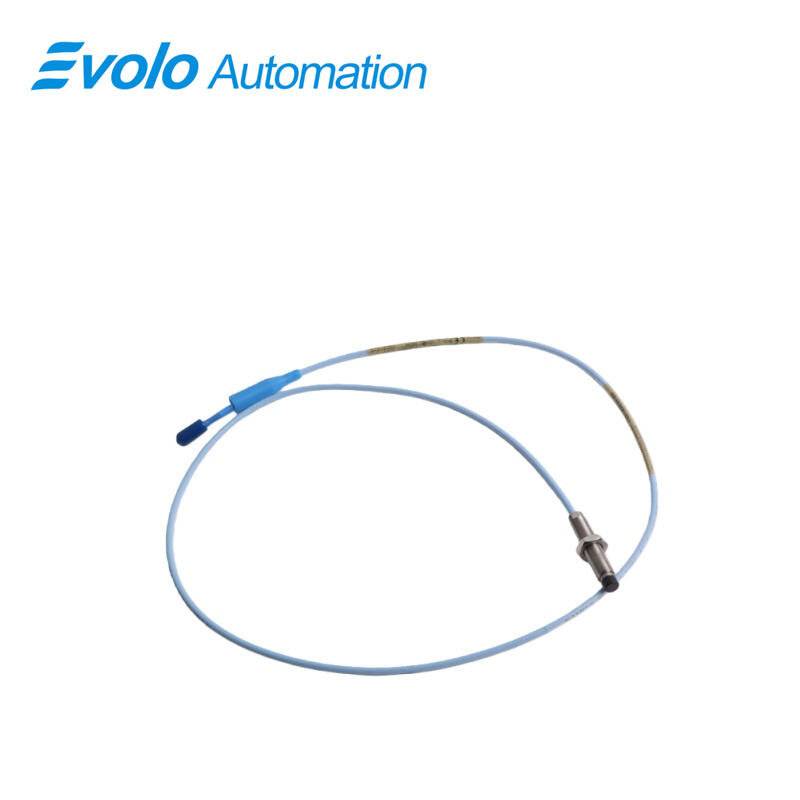

330103-00-03-05-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-03-05-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-03-05-01-05 3300 XL 8 mm Proximity Probes are high-accuracy eddy current displacement sensors specifically engineered for continuous condition monitoring of critical rotating machinery. Designed as part of the advanced 3300 XL 8 mm Proximity Probes family, this model delivers precise, repeatable non-contact measurements by converting changes in the distance between the probe tip and a conductive target surface into a proportional output voltage. This capability enables reliable monitoring of both static position and dynamic vibration, supporting early fault detection and long-term asset protection strategies.

The 3300 XL 8 mm Proximity Probes are optimized for demanding industrial environments where stability, durability, and signal integrity are essential. With a compact probe body featuring a 30 mm overall case length and 0 mm unthreaded length, the 330103-00-03-05-01-05 model allows rigid mounting directly into bearing housings or machine casings, ensuring accurate alignment with rotating shafts. Its small physical footprint and lightweight design of only 0.05 kg make it particularly suitable for installations with limited space, such as compressors, motors, pumps, and auxiliary rotating equipment.

Applications

The 330103-00-03-05-01-05 3300 XL 8 mm Proximity Probes are widely used for continuous shaft vibration and radial displacement monitoring in rotating machinery such as motors, pumps, compressors, and fans. With a 2 mm linear range, stable output resistance of 50 Ω, and low supply sensitivity, the probe provides accurate vibration data essential for early detection of imbalance, misalignment, or bearing wear.

In power generation and process industries, the 3300 XL 8 mm Proximity Probes support precise shaft position and axial displacement measurements in turbines and auxiliary equipment. The probe’s wide operating temperature range of -45°C to +165°C ensures consistent performance in high-heat turbine housings as well as cold outdoor installations, while the compact 30 mm case length enables installation in space-restricted bearing housings.

The probe is also suitable for hazardous-area applications requiring certified instrumentation. With CSA, ATEX, and IECEx approvals, the 330103-00-03-05-01-05 3300 XL 8 mm Proximity Probes can be safely deployed in environments with explosive gases or dust, providing reliable displacement and vibration data for machinery protection systems without compromising safety compliance.

Specifications

Competitive Advantage

1. Compact Design for Flexible Installation

The 330103-00-03-05-01-05 3300 XL 8 mm Proximity Probes feature a compact body with a 30 mm overall case length, 0 mm unthreaded length, and lightweight 0.05 kg construction, enabling precise installation in confined spaces while maintaining rigid mounting and accurate shaft alignment.

2. High Signal Stability and Measurement Accuracy

With a 2 mm linear range, 50 Ω output resistance, and supply sensitivity of less than 2 mV/V, the 3300 XL 8 mm Proximity Probes deliver stable, low-noise signals even under power supply fluctuations, ensuring reliable vibration and position data for critical machinery monitoring.

3. Durable Materials and Global Certifications

Constructed with a PPS probe tip and AISI 303/304 stainless steel housing, the probe offers excellent resistance to corrosion, oil, and mechanical stress. Combined with CSA, ATEX, and IECEx approvals, the 330103-00-03-05-01-05 3300 XL 8 mm Proximity Probes provide long-term reliability and global applicability in harsh and hazardous industrial environments.
