Siemens SINAMICS S Replacement Control Interface Board 6SL3352-6TE32-1AA3
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SINAMICS S

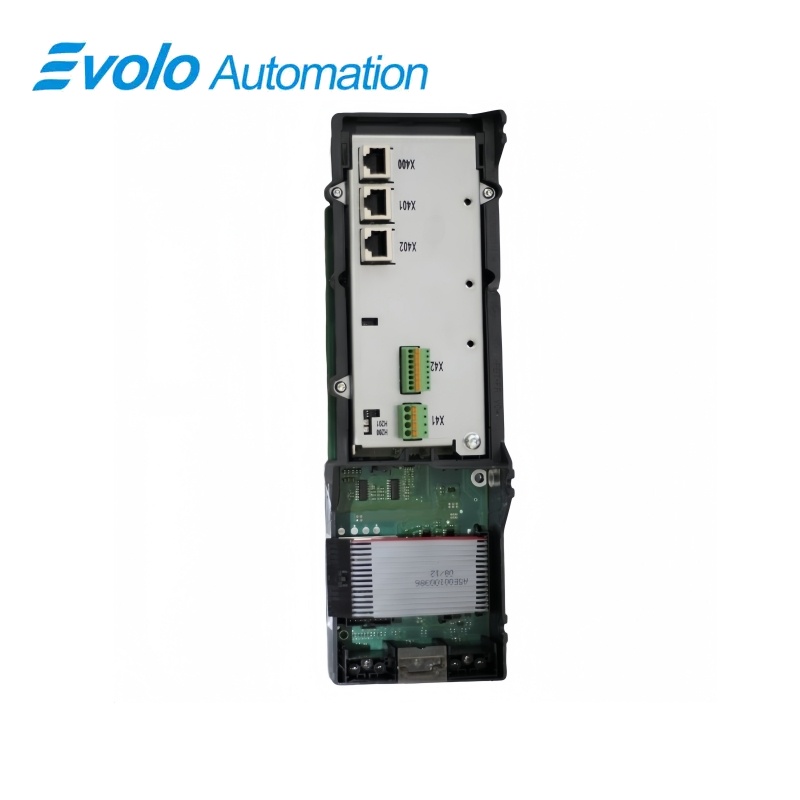

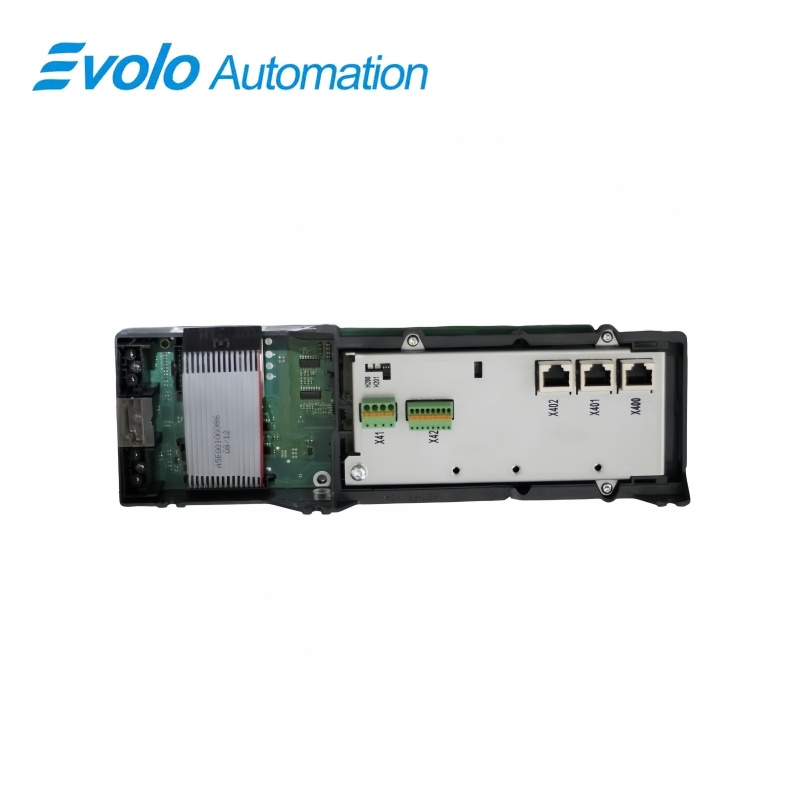

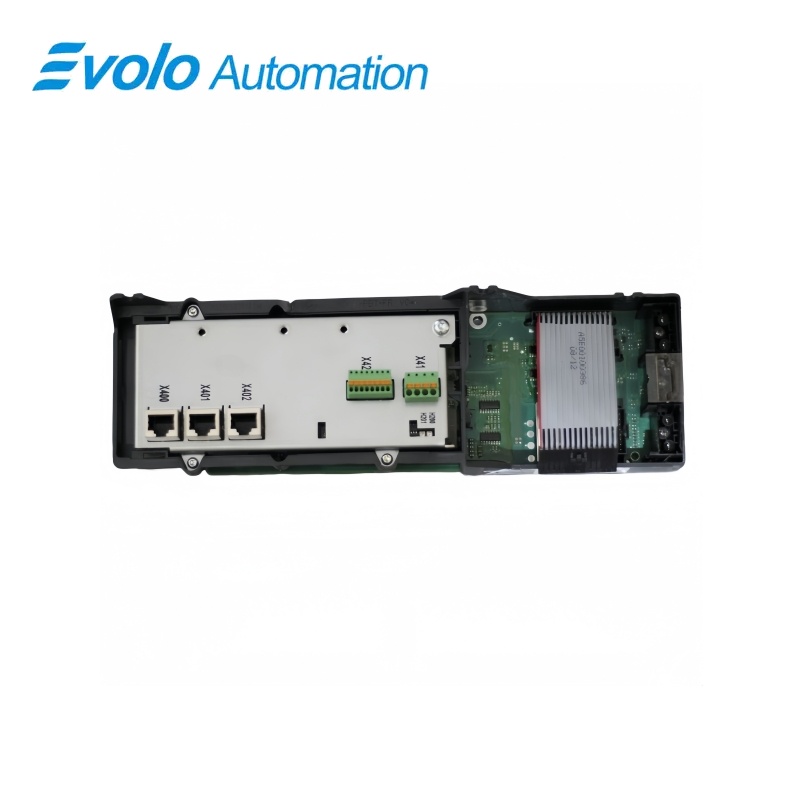

6SL3352-6TE32-1AA3 SINAMICS S Replacement Control Interface Board
This Siemens replacement control interface board is specified for a SINAMICS motor module rated 210 A on 380 to 480 V three-phase, 50/60 Hz systems.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SL3352-6TE32-1AA3 |
| Product Type | Replacement control interface board for a motor module |
| Core Function | Provides the control-interface function for the matched 210 A SINAMICS motor module |
| Application or Compatible Series | SINAMICS motor modules rated for 380 to 480 V three-phase systems and 210 A |
Exact Identification
Match 6SL3352-6TE32-1AA3 character by character and confirm the complete SINAMICS S Replacement Control Interface Board designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This Siemens replacement control interface board is specified for a SINAMICS motor module rated 210 A on 380 to 480 V three-phase, 50/60 Hz systems.
The board is identified for a 210 A motor module in the stated three-phase voltage class. Connector locations, firmware context and converter parameters must remain aligned with the installed drive. Siemens identifies a replacement type and matching control interface module for service planning.
Key Functions
Exact Motor-Module Pairing
The board is identified for a 210 A motor module in the stated three-phase voltage class.
Controlled Spare-Part Exchange
Connector locations, firmware context and converter parameters must remain aligned with the installed drive.
Defined Replacement Combination
Siemens identifies a replacement type and matching control interface module for service planning.
Official Specifications
| Integrated Safety Functions | Safe Torque Off (STO) and Safe Stop 1 (SS1) |
|---|---|
| Safety Function Architecture | The integrated safety functionality is concentrated in the control interface board |
| Mechanical Integration | SINAMICS S chassis and cabinet motor modules |
| CIB Module Integration Range | 6SL3310-1TExx-xAA0, 6SL3315-1TExx-xAA0, 6SL3320-1TExx-xAA0, 6SL3325-1TExx-xAA0 and 6SL3325-1TGxx-xAA0 |
| Replacement Assembly Article | 6SL3352-3AE32-1AA0 |
| Replacement Assembly Design | IPD card |
| Replacement Assembly DC-Link Class | 510 to 720 V DC |
| Replacement Assembly Cooling | For air-cooled Motor Modules |
| Replacement Assembly Net Weight | 0.16 kg |
| Control Interface Module | 6SL3350-6TK00-0EA0 |
| CIM Technical Designation | CIM DAC |
| Compatible CIM Hardware Versions | A, AE, AF and AH |
| Siemens PRODIS Identifier | 35495618 |
| Complete Replacement Kit Net Weight | 0.400 kg |
Frequently Asked Questions
Which motor-module rating must match 6SL3352-6TE32-1AA3?
Use the board only with the documented 210 A module in the 380 to 480 V three-phase class.
What line frequency is associated with 6SL3352-6TE32-1AA3?
The matched motor-module application is specified for 50 or 60 Hz systems.
Can I substitute a visually similar control board for 6SL3352-6TE32-1AA3?
No; the complete article number and Siemens replacement combination must be checked before substitution.
What should I back up before replacing 6SL3352-6TE32-1AA3?
Save the converter project, parameters, firmware information, fault history and commissioning record.
How should I handle 6SL3352-6TE32-1AA3 during installation?
Use grounded electrostatic-discharge precautions and avoid touching connectors or electronic components.
What electrical safety step is required before removing 6SL3352-6TE32-1AA3?
Isolate all drive supplies, wait for the DC link to discharge and verify absence of voltage.
What should I test after installing 6SL3352-6TE32-1AA3?
Check every connector, auxiliary supply, diagnostic state, parameter set and the authorized drive functional test.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the installed motor module and converter family exactly.
- Use the Siemens replacement type and matching interface module only after checking the installed hardware revision.
- Restore the validated parameter set before enabling the drive.
