330101-00-26-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-26-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

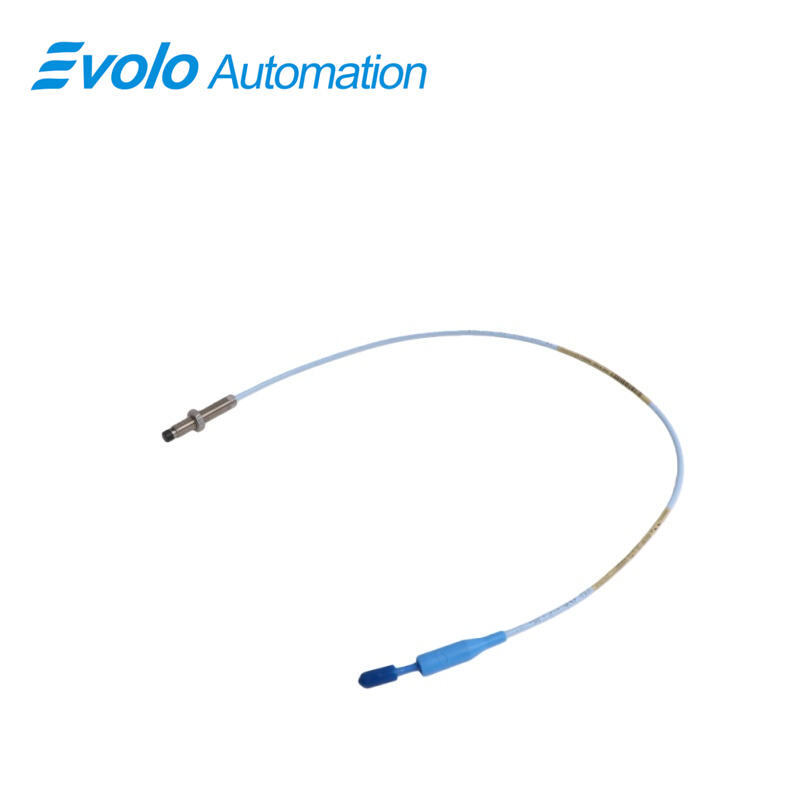

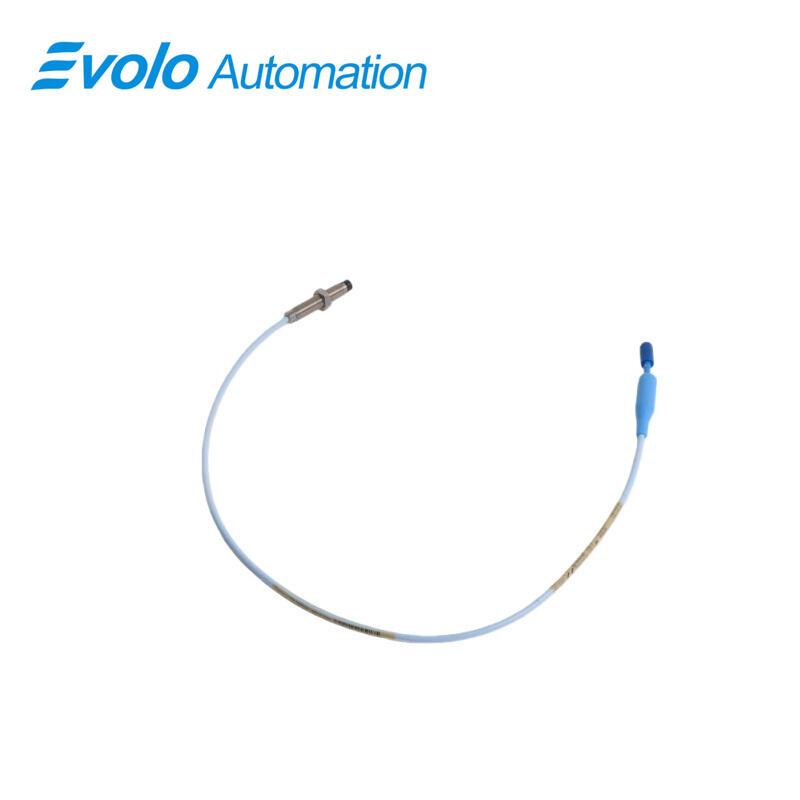

The 330101-00-26-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision non-contact eddy current sensor developed for continuous condition monitoring of critical rotating machinery. As a core sensing element within the 3300 XL transducer platform, this 3300 XL 8 mm Proximity Probe is designed to deliver accurate and repeatable measurements of shaft vibration, radial displacement, and axial position in demanding industrial environments. The probe is commonly applied in machinery protection and predictive maintenance systems where stable signal quality and long-term reliability are essential.

This model features a 1.0 metre (3.3 feet) total length, combined with a miniature coaxial ClickLoc connector and standard cable, providing secure electrical contact and resistance to vibration-induced loosening. The 0 in unthreaded length and 2.6 in overall case length allow the probe to be installed directly into compact bearing housings and tight machinery layouts without the need for additional spacers or mechanical modifications. Its compact physical profile, together with a lightweight construction of approximately 0.05 kg, minimizes mechanical loading on mounting structures and supports long-term stability during continuous operation.

Applications

The 330101-00-26-10-02-05 3300 XL 8 mm Proximity Probe is widely used for continuous radial vibration and shaft displacement monitoring in turbines, compressors, pumps, and motors, where accurate non-contact measurement is required to detect imbalance, misalignment, or bearing degradation at an early stage.

In axial thrust position monitoring applications, the probe measures the gap between the probe tip and shaft collar or thrust surface, ensuring the rotor remains within safe axial limits and preventing damage to thrust bearings and adjacent stationary components in high-speed rotating machinery.

The probe is suitable for installation in harsh industrial environments, including power generation, oil and gas, and heavy manufacturing facilities, where high temperatures, vibration, and electrical noise are present, while still delivering stable and repeatable displacement signals for machinery protection systems.

Specifications

Competitive Advantage

1. Compact Mechanical Design for Easy Installation

With a 0 in unthreaded length, 2.6 in overall case length, and lightweight construction, the 330101-00-26-10-02-05 3300 XL 8 mm Proximity Probe fits easily into confined mounting locations without compromising mechanical stability or measurement accuracy.

2. Stable Electrical Performance with Low Noise Sensitivity

The probe’s 50 Ω output resistance and supply sensitivity of less than 2 mV per volt ensure reliable signal transmission even in electrically noisy industrial environments, reducing false alarms and improving the accuracy of condition monitoring data.

3. Global Compliance and Environmental Robustness

Multiple approvals including CSA, ATEX, and IECEx enable worldwide deployment, while the PPS probe tip and stainless steel case provide strong resistance to temperature extremes, corrosion, and industrial fluids, extending service life and reducing maintenance requirements.
