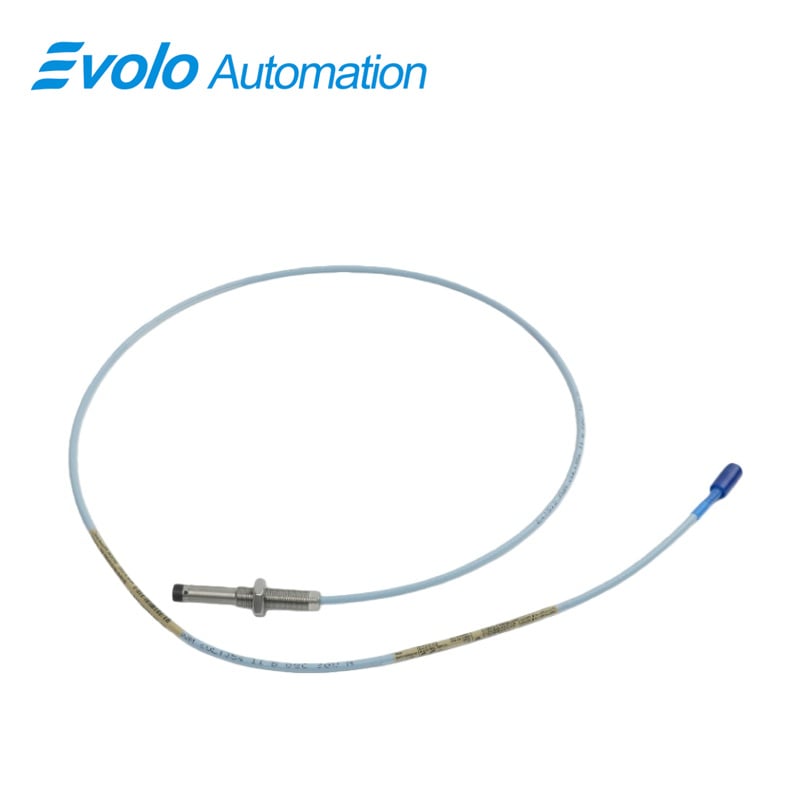

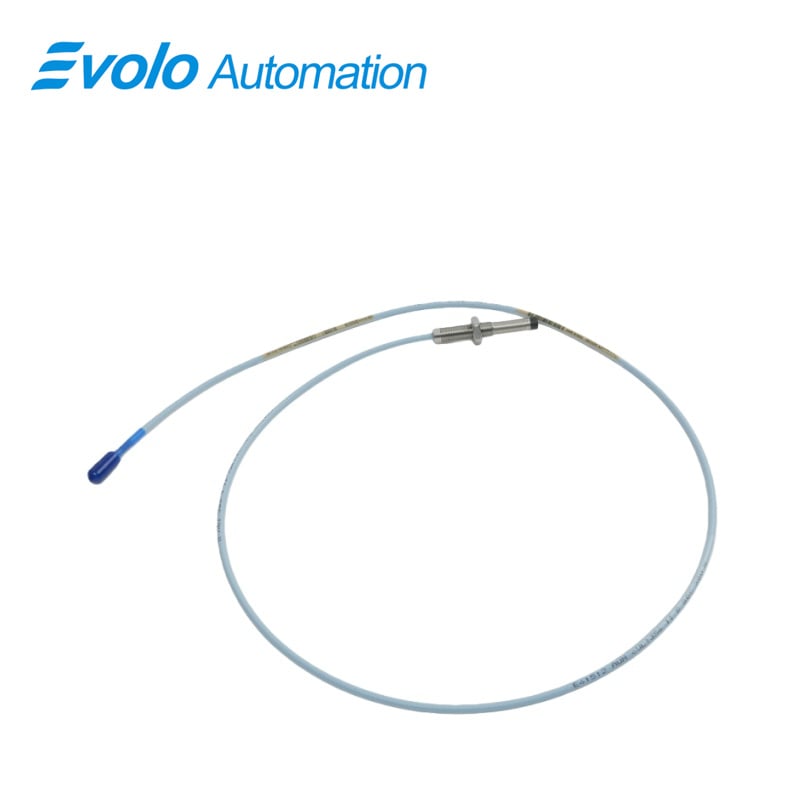

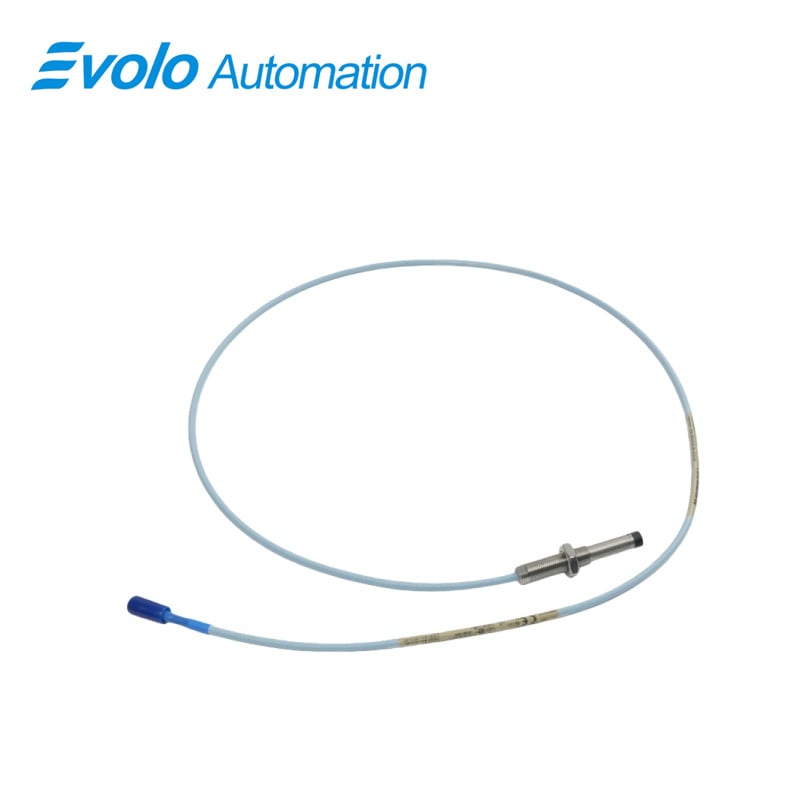

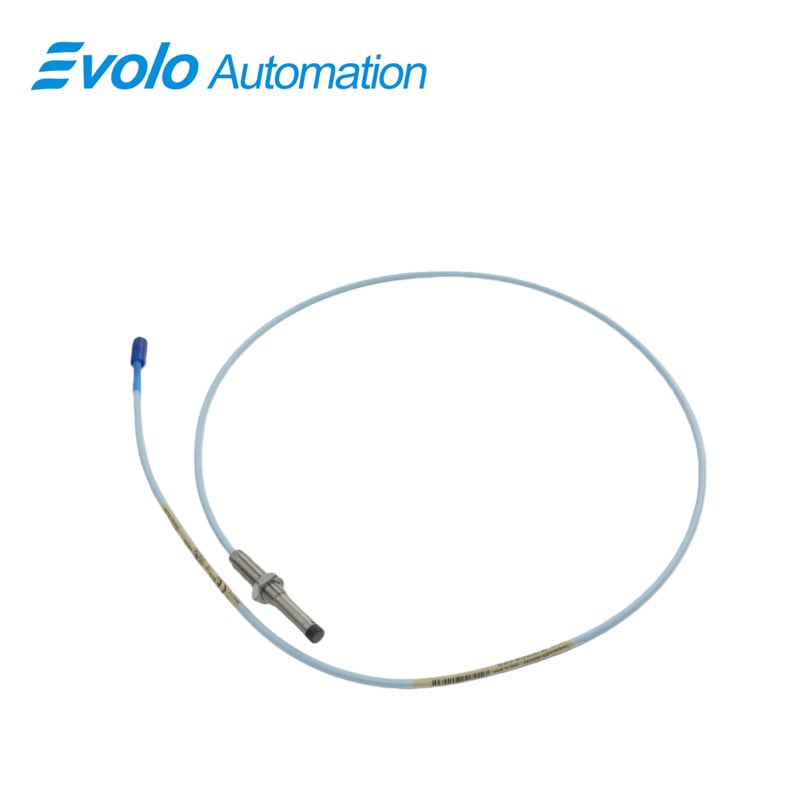

330103-02-08-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-02-08-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-02-08-10-02-05 3300 XL 8 mm Proximity Probe is a precision eddy current transducer designed for industrial automation and critical machinery monitoring. Engineered to provide an output voltage directly proportional to the distance between the probe tip and conductive surfaces, it can measure both static positions and dynamic vibrations with high accuracy. Featuring a robust M10x1 threaded stainless-steel housing and a linear range of 2 mm (80 mils), the probe operates reliably in extreme temperatures from –52°C to +177°C (–62°F to +350°F). Equipped with a miniature coaxial ClickLoc connector and CSA, ATEX, IECEx approvals, this probe ensures safe and reliable operation in hazardous and explosive industrial environments. The 3300 XL 8 mm system supports full interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for component-specific calibration and enhancing field maintainability. With patented TipLoc and CableLoc designs, it provides enhanced tip stability and cable retention up to 330 N (75 lbf), while optional FluidLoc cables prevent oil or fluid ingress, ensuring long-term durability and consistent signal integrity. The system complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability, making it ideal for high-performance machinery vibration and position measurement applications.

Applications

Vibration Monitoring in Fluid-Film Bearings
Monitors rotor and shaft vibrations to detect misalignment, imbalance, or bearing wear in high-speed industrial turbines and pumps.

Rotational Speed & Keyphasor Reference
Generates accurate Keyphasor signals for synchronization of control systems and rotational speed measurements in automated machinery.

Hazardous Area Machinery Monitoring
ATEX and IECEx approvals allow safe installation in explosive or flammable environments, such as chemical plants or refineries.

Precision Position Measurement
Measures linear displacement in tight spaces with 2 mm linear range, ensuring accurate alignment verification in precision machinery.

Interchangeable System Components
Compatible with existing 3300 XL systems and legacy 5 mm/8 mm probes, allowing easy upgrades without reconfiguring monitoring systems.

Specifications

Competitive Advantage

Robust Design for Extreme Environments
Stainless-steel housing and high operating temperature tolerance ensure reliable performance in harsh industrial conditions.

High Accuracy and Linearity
2 mm linear range with minimal supply sensitivity (<2 mV per volt) delivers precise position and vibration measurements.

Enhanced Safety Compliance
CSA, ATEX, and IECEx approvals enable deployment in hazardous zones, reducing downtime and compliance risks.

Advanced Tip and Cable Stability
Patented TipLoc and CableLoc designs provide 330 N pull strength, maintaining signal integrity under vibration and thermal stress.

Seamless System Interchangeability
Supports full compatibility with 3300 XL probes, extension cables, and Proximitor sensors, reducing installation time and simplifying maintenance.
