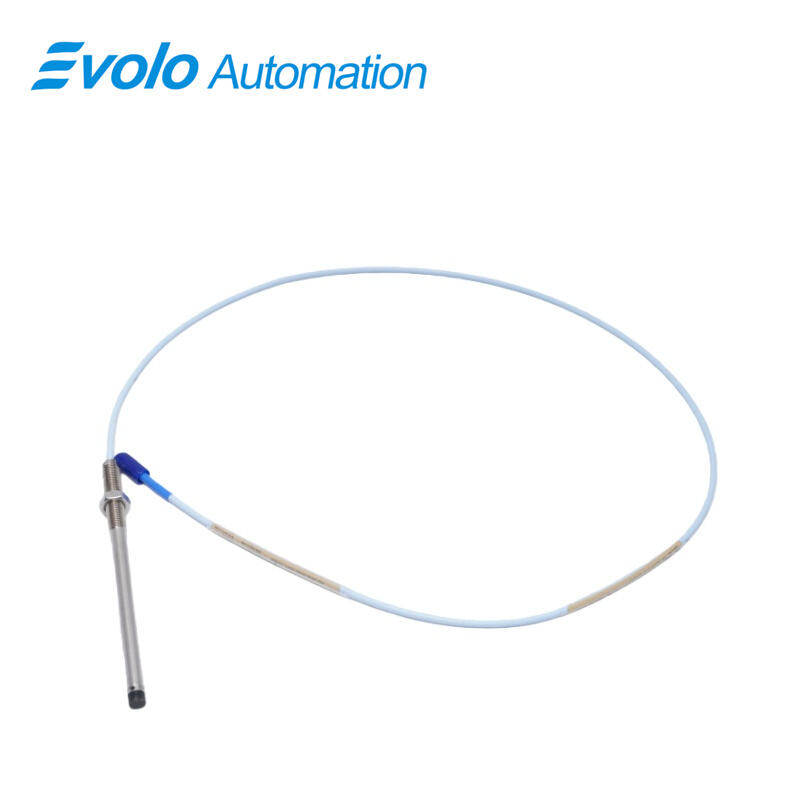

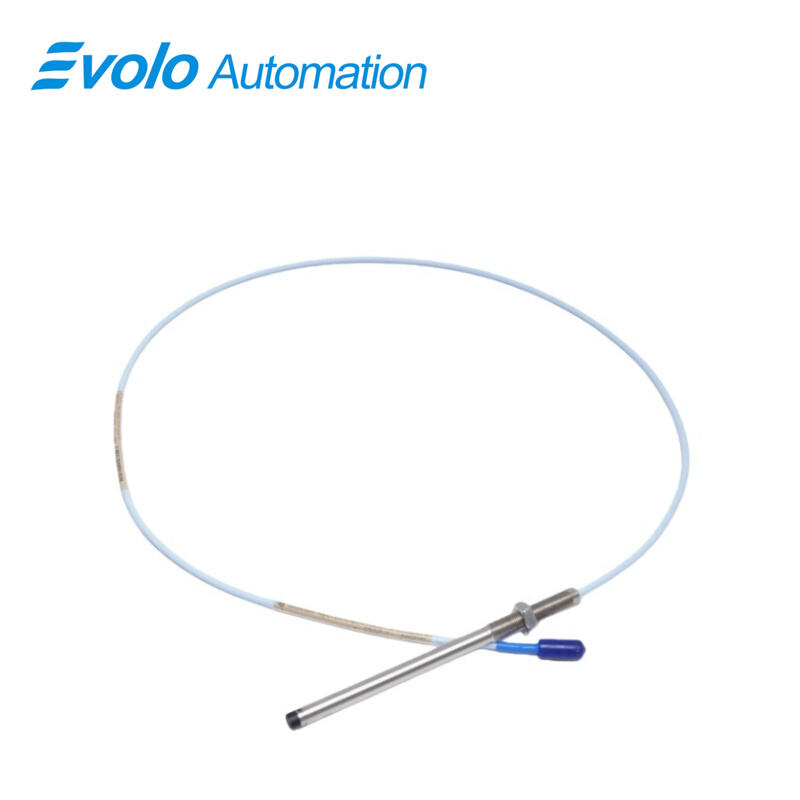

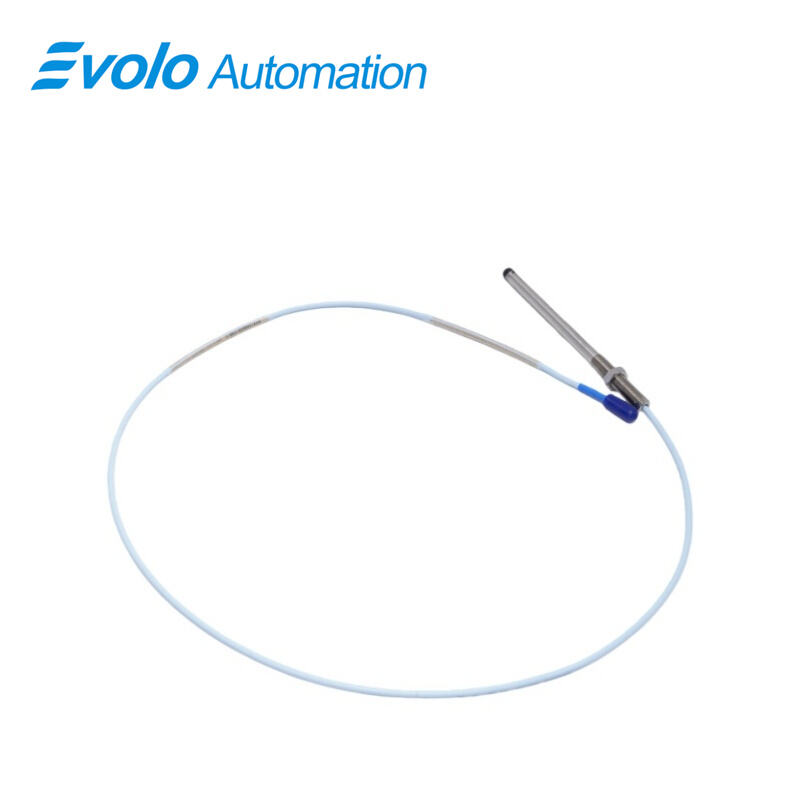

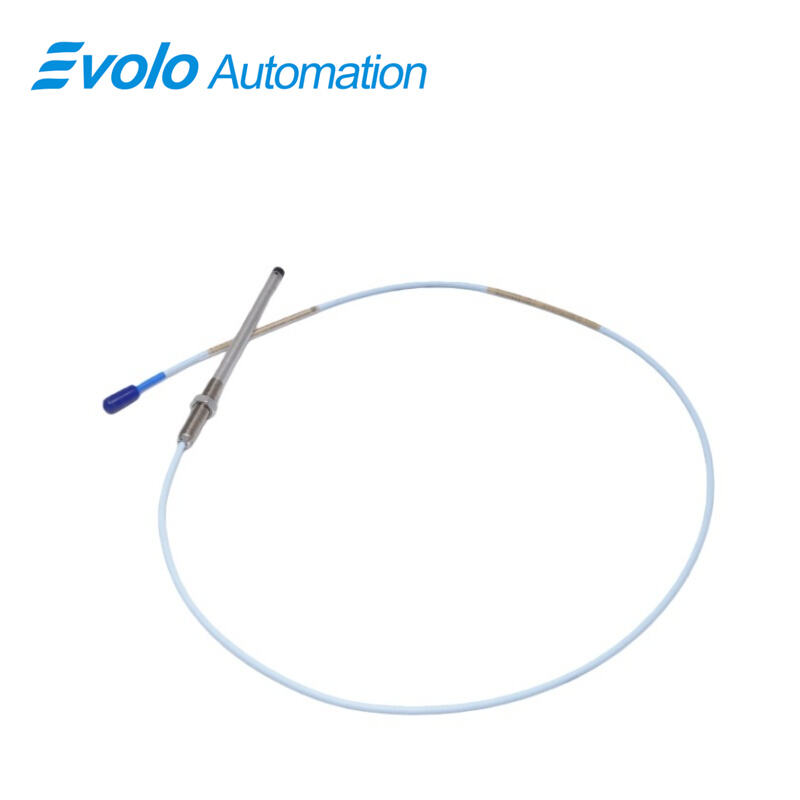

330101-36-80-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-36-80-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-36-80-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision automation sensor designed for accurate measurement of both static positions and dynamic vibration in industrial machinery. As part of the 3300 XL series, this 8 mm proximity probe delivers an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface, enabling precise monitoring of machinery health and performance in automated systems. This capability makes it essential for applications requiring real-time vibration analysis, position monitoring, and rotational speed measurement.

In industrial automation, the 3300 XL 8 mm system is widely applied to fluid-film bearing machines, turbines, compressors, and pumps where precise displacement measurements are critical for predictive maintenance and operational efficiency. The probe supports Keyphasor reference signals, providing accurate rotor position and speed data, which is crucial for automated control systems that rely on synchronized timing and vibration monitoring.

The 330101-36-80-10-02-00 probe system is engineered to meet the rigorous requirements of the American Petroleum Institute (API) 670 standard, ensuring reliable mechanical configuration, linear measurement range, high accuracy, and excellent temperature stability. All 3300 XL 8 mm components—including probes, extension cables, and Proximitor sensors—are fully interchangeable, eliminating the need for custom calibration and simplifying maintenance in automated plants.

This proximity probe benefits from advanced design improvements. The patented TipLoc molding technology ensures a durable bond between the probe tip and the body, enhancing probe reliability in harsh operating conditions. The CableLoc design on the probe’s cable provides a robust 330 N (75 lbf) pull strength, ensuring secure connections in automated systems with high vibration or motion. For fluid-sensitive environments, an optional FluidLoc cable design prevents oil or other liquids from leaking through the cable, further supporting automation applications where machine integrity and safety are paramount.

The 330101-36-80-10-02-00 3300 XL 8 mm Proximity Probe is backward compatible with existing 3300 series 5 mm and 8 mm probes, offering flexibility for retrofits or system upgrades in automated facilities. Its precise measurement capability, robust mechanical design, and automation-ready features make it a leading choice for predictive maintenance, condition monitoring, and advanced industrial automation systems.

Applications

The 330101-36-80-10-02-00 3300 XL 8 mm Proximity Probe is designed for high-precision measurement applications in industrial automation and condition monitoring systems. Its core function is to provide an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface, enabling accurate measurement of both static positions and dynamic vibrations in machinery.

Vibration and Position Monitoring

This probe is ideal for fluid-film bearing machines, including turbines, compressors, pumps, and generators, where precise radial and axial vibration monitoring is critical. The recommended gap setting of approximately 1.27 mm (50 mils) for radial vibration ensures optimal measurement accuracy. The probe’s linear range of 2 mm (80 mils) provides reliable detection of small displacements, making it suitable for high-speed machinery in automated industrial processes.

Rotational Speed and Keyphasor Measurement

The 3300 XL 8 mm probe also supports Keyphasor reference signals, allowing precise rotor position and speed measurement. This functionality is essential for automated control systems that require synchronized timing for condition monitoring, predictive maintenance, and operational efficiency.

Harsh Environment and High-Temperature Applications

Constructed with AISI 303/304 stainless steel and a polyphenylene sulfide (PPS) probe tip, the probe withstands operating temperatures from -52°C to +177°C (-62°F to +350°F). Its robust design, combined with patented TipLoc and CableLoc features, ensures long-term reliability in high-vibration and oil-lubricated environments. The optional FluidLoc cable further prevents leakage of oil or other liquids through the cable interior, making it suitable for automated machinery in harsh industrial settings.

Interchangeability and Automation Integration

The 3300 XL 8 mm Proximity Probe is fully compatible with other 3300 series components, including 5 mm and 8 mm probes, extension cables, and Proximitor sensors. This interchangeability simplifies integration, reduces downtime, and eliminates the need for component-specific calibration, making it ideal for large-scale automation systems where consistent sensor performance is critical.

In summary, the 330101-36-80-10-02-00 3300 XL 8 mm Proximity Probe is engineered for vibration and position monitoring, Keyphasor speed measurement, and automated condition monitoring in industrial machinery, providing reliable, high-precision performance under challenging operating conditions.

Specifications

Competitive Advantage

High-Precision Measurement

The 3300 XL 8 mm Proximity Probe provides an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface, delivering highly accurate position and vibration measurements. Its 2 mm (80 mils) linear range and recommended gap setting of 1.27 mm (50 mils) for radial vibration enable precise monitoring of machinery in automated systems, ensuring reliable performance under both static and dynamic conditions.

Robust Design for Harsh Environments

Built with AISI 303/304 stainless steel and a PPS probe tip, this probe withstands extreme operating temperatures from -52°C to +177°C (-62°F to +350°F). The patented TipLoc molding technology ensures a strong bond between the probe tip and body, while the CableLoc design provides 330 N (75 lbf) pull strength, securing the cable even in high-vibration or oil-lubricated environments. Optional FluidLoc cables prevent leakage of oil or other liquids, enhancing reliability in harsh industrial settings.

Interchangeability and Compatibility

The 3300 XL 8 mm system components are fully interchangeable with other 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors. This backward compatibility reduces maintenance time, eliminates the need for bench calibration, and simplifies integration into existing automated systems.

Standards Compliance and Automation Ready

Fully compliant with API 670 standards, the 3300 XL 8 mm probe ensures superior mechanical configuration, linearity, accuracy, and temperature stability. Its miniature coaxial ClickLoc connector and standard cable facilitate easy integration into automation control and condition monitoring systems, making it ideal for predictive maintenance and real-time machinery monitoring.

Enhanced Performance Features

With a low output resistance of 50 Ω and supply sensitivity of less than 2 mV change per volt, the 3300 XL 8 mm probe delivers stable, high-fidelity signals for automated monitoring applications. Its compact design and robust construction allow installation in tight spaces without sacrificing performance, providing a clear competitive advantage in advanced industrial automation environments.
