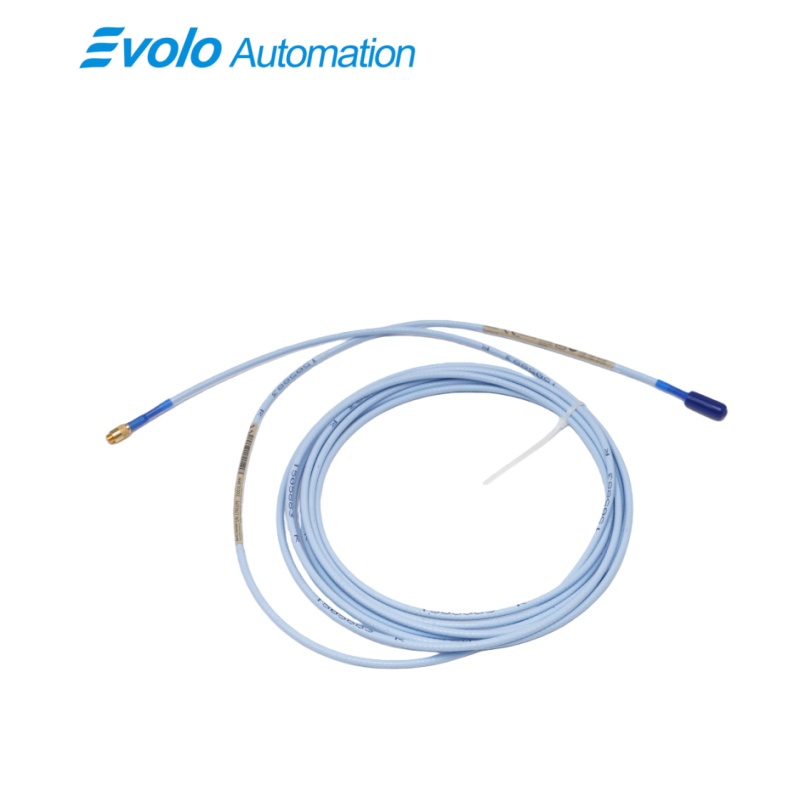

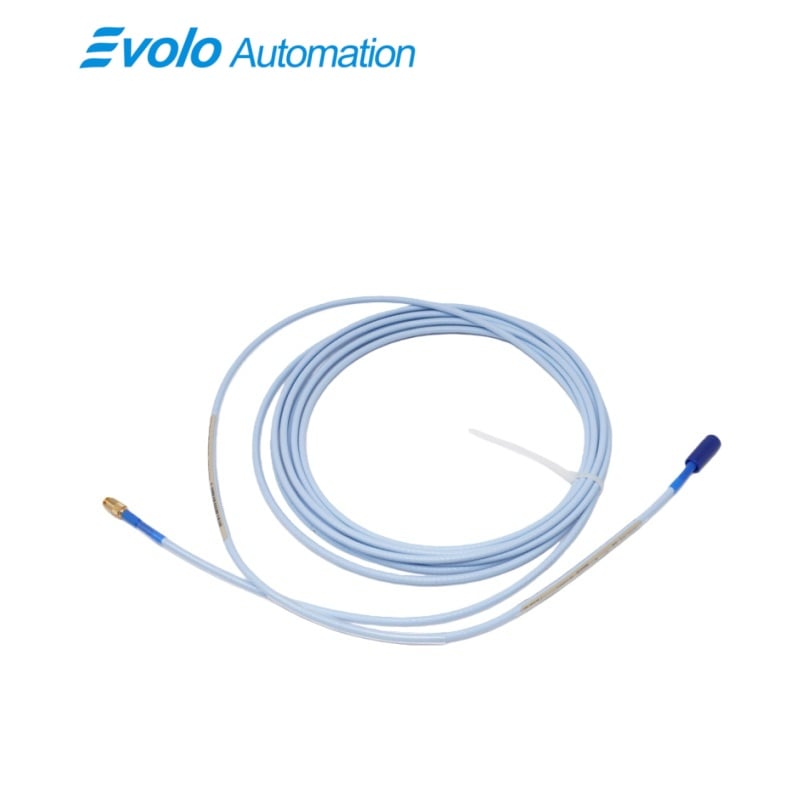

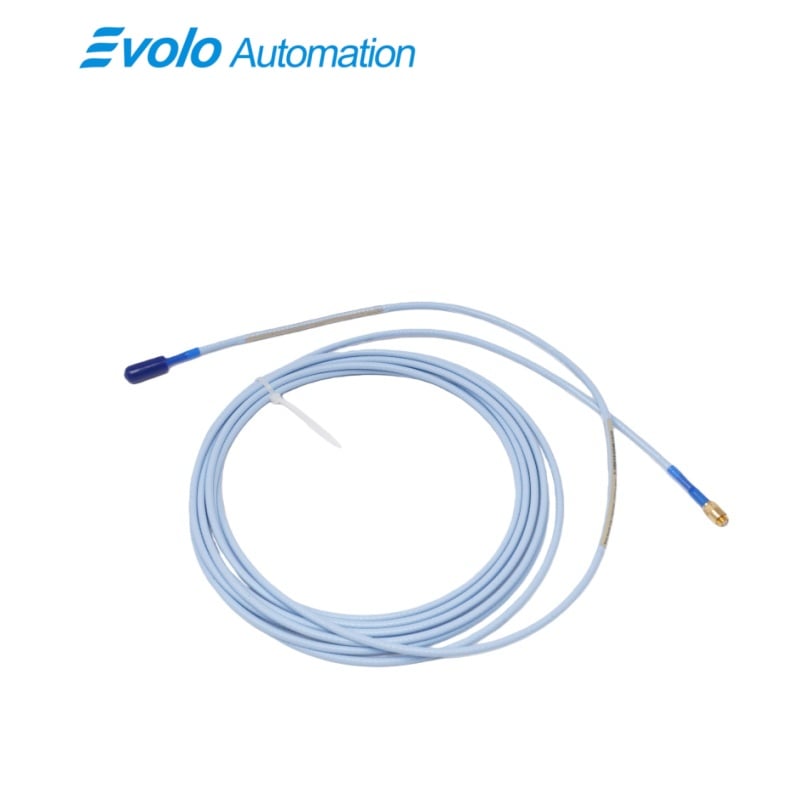

330130-40-00-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-40-00-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-40-00-00 3300 XL Standard Extension Cable is a purpose-built signal transmission component designed to extend the physical connection between proximity probes and signal conditioning devices within 3300 XL proximity transducer systems. As an integral part of the 3300 XL Standard Extension Cable family, this model ensures that high-fidelity measurement signals are transmitted accurately over extended distances without distortion, attenuation, or instability, even in demanding industrial environments.

Engineered for precision machinery monitoring, the 3300 XL Standard Extension Cable plays a critical role in maintaining the proportional relationship between probe output voltage and the physical gap measured at the probe tip. By preserving this relationship, the extension cable enables accurate monitoring of shaft vibration, radial displacement, and static position in rotating equipment. The 330130-40-00-00 3300 XL Standard Extension Cable is optimized for use in applications where direct probe-to-sensor connections are impractical due to equipment size, installation constraints, or control cabinet placement.

Applications

The 330130-40-00-00 3300 XL Standard Extension Cable is commonly used in rotating machinery monitoring systems to extend the connection between proximity probes and signal processing equipment in motors, pumps, compressors, and fans. Its 4.0 meter length, low capacitance, and 75 Ω triaxial cable design ensure stable transmission of vibration and displacement signals over extended distances.

In large industrial installations such as power generation units and process plants, the 3300 XL Standard Extension Cable enables flexible placement of control cabinets away from high-temperature or high-vibration zones. The cable’s operating temperature range of -50°C to +155°C supports reliable performance in turbine halls, generator enclosures, and auxiliary equipment rooms.

The cable is also well suited for general industrial machinery condition monitoring where precise signal integrity is required but regulatory approvals are not mandatory. With standard cable construction, compact dimensions, and compatibility with 16 to 24 AWG field wiring, the 330130-40-00-00 3300 XL Standard Extension Cable supports efficient installation and dependable long-term operation in a wide range of monitoring systems.

Specifications

Competitive Advantage

1. Stable Signal Transmission Over Extended Distance

The 3300 XL Standard Extension Cable features a controlled 75 Ω triaxial structure and low typical capacitance of 68.5 pF/m, allowing it to preserve signal accuracy across a 4.0 meter length without distortion, ensuring dependable vibration and displacement measurements.

2. Wide Temperature Tolerance for Industrial Environments

With an operating range from -50°C to +155°C, the 330130-40-00-00 3300 XL Standard Extension Cable maintains electrical and mechanical stability in both cold outdoor conditions and elevated-temperature machinery enclosures, reducing failure risk due to thermal stress.

3. Compact, Installer-Friendly Design

The cable’s manageable 19x15x2 cm packaging size, 0.21 kg weight, and support for 0.5 to 1.4 mm² (16–24 AWG) field wiring simplify routing and installation, lowering labor time while maintaining compatibility with standard industrial wiring practices.
